Logitech TV Mount Adapter Kit for Rally Bar Huddle
PRODUCT DESCRIPTION
Logitech TV Mount Adapter Kit for Rally Bar Huddle (952-000248) - 2 Years Local Warranty
Logitech TV Mount Adapter Kit — Mount Rally Bar Huddle Directly on the Display

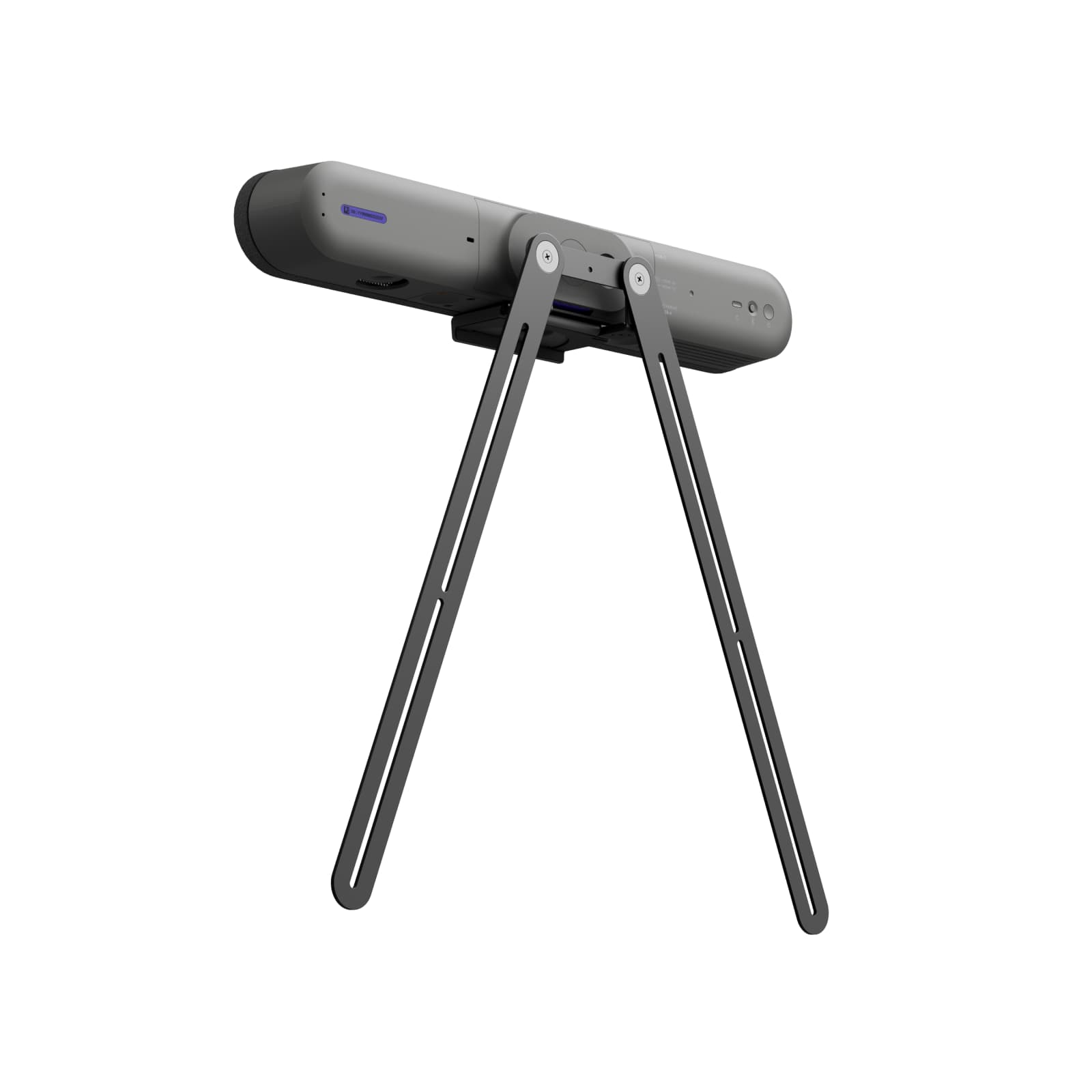

The Logitech TV Mount Adapter Kit for Rally Bar Huddle (952-000248) lets you mount Rally Bar Huddle directly above or below a TV or display, for a sleek, wall-free setup with flexible placement. It suits wall- or cart-mounted displays up to 65 inches diagonal with VESA mounting points.
Works with the Rally Bar Huddle Multi Mount
The kit's swing arms attach to the Multi Mount that ships with Rally Bar Huddle, so no separate video bar bracket is needed. The slim arms measure 548 x 36 x 3 mm and a 7 mm wrench is included for installation.
Logitech TV Mount Adapter Kit for Rally Bar Huddle Datasheet — Technical Specifications
General
| Part Number | 952-000248 |
| Product series | Logitech Rally Bar Huddle accessories |
| Compatibility | Rally Bar Huddle (requires the Rally Bar Huddle Multi Mount) |
| Warranty | 2 Years Local Warranty (Singapore) |
Mounting & Dimensions
| Display size | Wall- or cart-mounted displays up to 65 in diagonal |
| Display requirement | VESA mounting points |
| Design | Swing-arm design, video bar above or below the display |
| Dimensions (H x W x D) | 548 x 36 x 3 mm |
Compatibility & Installation Notes
This adapter kit is made for Rally Bar Huddle and the Rally Bar Huddle + Tap IP bundle. It uses the Multi Mount included with Rally Bar Huddle: the Multi Mount's foot is removed and its L bracket is flipped and reattached, then the kit's swing arms are fixed to it.
For displays larger than 65 inches, or to mount Rally Bar or Rally Bar Mini, choose the Logitech TV Mount for Video Bars (952-000041), which supports displays up to 98 inches.
Package Contents & Rally Bar Huddle Ordering Information

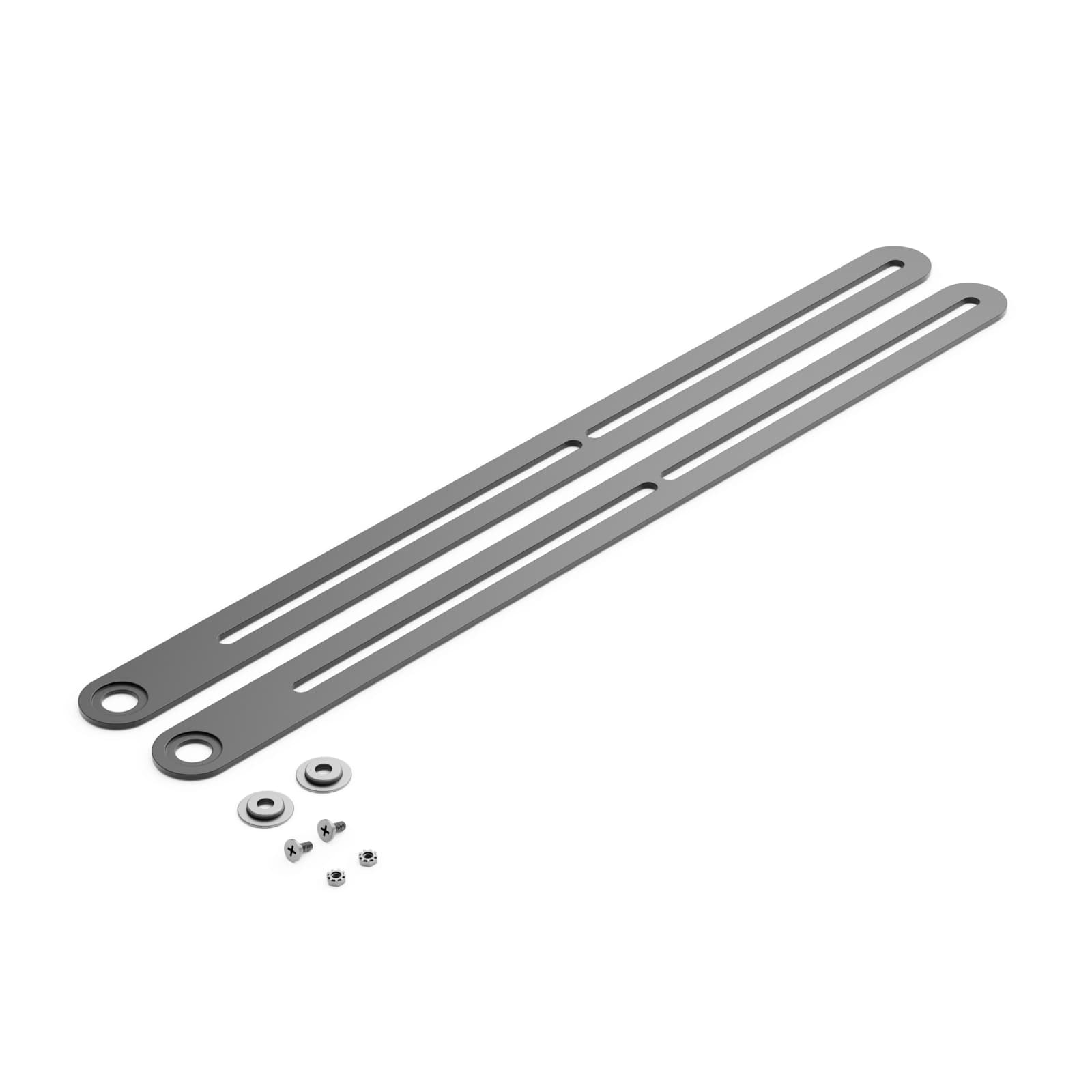

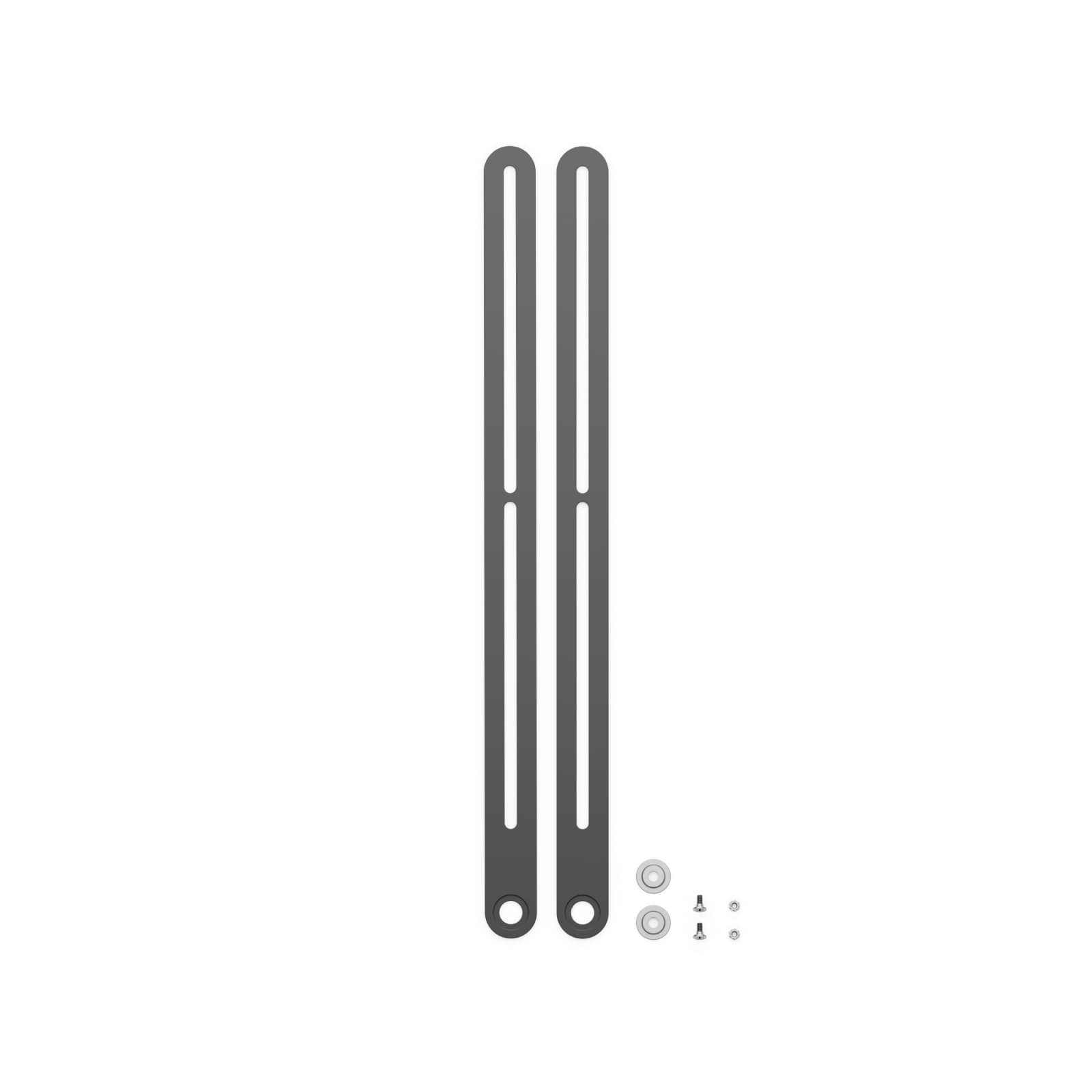

In the box: 2 x swing arm, 2 x stainless steel washer, 2 x M4/7 mm locking nut, 2 x Phillips bolt, 1 x 7 mm wrench.
Rally Bar Huddle and mounting at SourceIT:
| Model | Part Number |
| Logitech TV Mount Adapter Kit for Rally Bar Huddle (this listing) | 952-000248 |
| Logitech Rally Bar Huddle Graphite | 960-001577 |
| Logitech Rally Bar Huddle + Tap IP Bundle | 991-000482 |
| Logitech TV Mount for Video Bars | 952-000041 |
Datasheet & Downloads
Frequently Asked Questions — Logitech TV Mount Adapter Kit for Rally Bar Huddle
Is the Rally Bar Huddle Multi Mount included?
No. The kit attaches to the Multi Mount that comes in the box with Rally Bar Huddle, so you use the mount you already have.
What display sizes are supported?
Wall- or cart-mounted displays up to 65 inches diagonal with VESA mounting points.
Can Rally Bar Huddle go below the display?
Yes. The swing-arm design allows Rally Bar Huddle to be mounted directly above or below the TV or display.
Will it work with Rally Bar or Rally Bar Mini?
No. This kit is for Rally Bar Huddle only. For Rally Bar and Rally Bar Mini use the TV Mount for Video Bars.
Does it come with a local warranty?
Yes. Every Logitech TV Mount Adapter Kit for Rally Bar Huddle sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
