Logitech Logi Dock Flex Multi-purpose Managed Docking Station
PRODUCT DESCRIPTION
Logitech Logi Dock Flex Multi-purpose Managed Docking Station (939-002180) - 2 Years Local Warranty
Managed USB-C Docking Station for Hot-Desking and Hybrid Work
The Logitech Logi Dock Flex (939-002180) is a multi-purpose managed docking station built for shared desks, hot-desking and hybrid offices. A single USB-C cable connects a laptop to dual 4K displays, wired Ethernet and desk peripherals while delivering up to 100 W of laptop charging — and its built-in 8-inch touchscreen turns any desk into a bookable, IT-managed workspace.

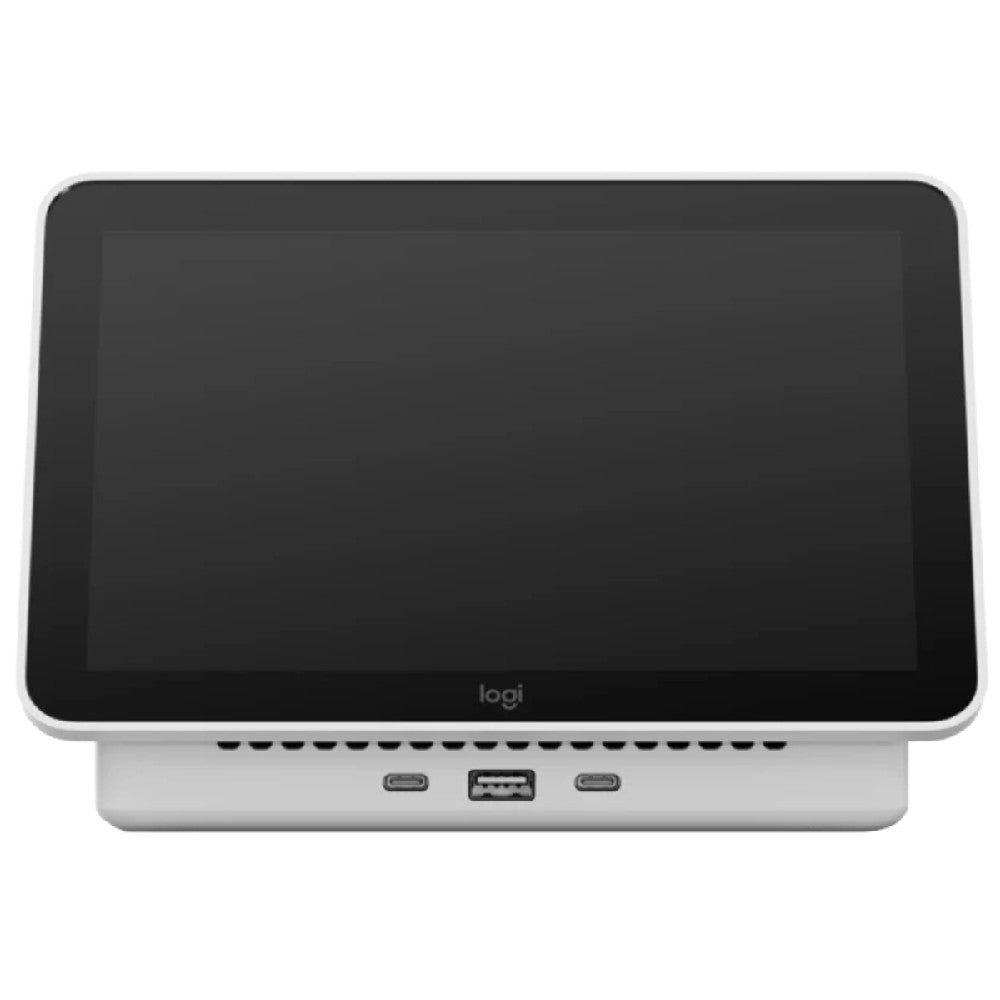

Built-In Desk Booking Touchscreen
The integrated 8-inch (1280×800) touchscreen shows real-time desk availability and lets employees claim a desk simply by plugging in their laptop. It supports Microsoft Teams and Zoom Workspace Reservation plus other supported booking platforms, helping organisations optimise desk utilisation across flexible workspaces.
Dual 4K, Gigabit Ethernet and 100W Single-Cable Docking
Drive two 4K monitors at 3840×2160 @60Hz via HDMI 2.0 and DisplayPort 1.4, connect to wired Gigabit Ethernet, and power the laptop with up to 100 W USB-C Power Delivery — all through one cable. Front USB-C and USB-A ports keep everyday peripherals within reach, while IT-facing rear ports stay tidy and secured.
Cloud-Managed and Secure by Design
Deploy and monitor at scale with Logitech Sync on CollabOS — remote configuration, device health and desk-usage analytics from a single console. AES-128 full-disk encryption, PKI and symmetric-key data protection, a Kensington security slot and an advanced cable-retention system keep shared desks secure.
Logitech Logi Dock Flex Datasheet — Technical Specifications
General
| Model | Logitech Logi Dock Flex |
| Part Number | 939-002180 |
| Product Type | Multi-purpose managed docking station |
| Warranty | 2 Years Local Warranty (Singapore) |
Display (built-in touchscreen)
| Screen | 8-inch (203 mm) IPS touchscreen |
| Resolution | 1280 × 800 |
| Touch | Capacitive multi-touch |
Docking & Video Output
| Laptop Connection | 1 × USB-C, up to 100 W Power Delivery |
| External Displays | Dual 4K — HDMI 2.0 and DisplayPort 1.4, each up to 3840 × 2160 @60Hz HDR |
Ports
| Front (user) | 2 × USB-C (7.5W each), 1 × USB-A (7.5W) |

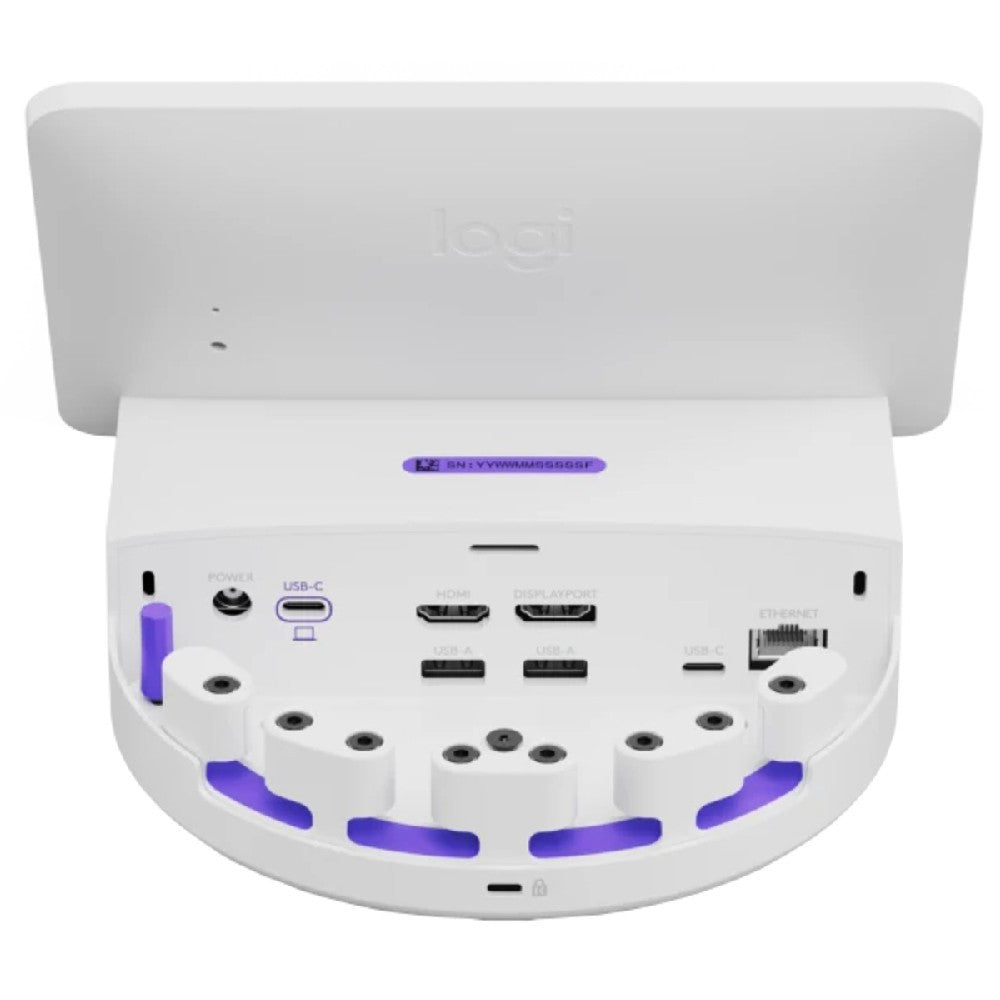

| Rear (IT-managed) | 1 × USB-C upstream (100W PD), 1 × USB-C (7.5W), 2 × USB-A (7.5W), 1 × HDMI 2.0, 1 × DisplayPort 1.4, 1 × RJ45 Gigabit Ethernet, DC power input |
Connectivity & Management
| Ethernet | Gigabit Ethernet (10/100/1000) |
| Wi-Fi | 802.11a/b/g/n/ac (Wi-Fi 5) |
| Bluetooth | 5.0 (inactive — reserved for future use) |
| Management | Logitech Sync on CollabOS (cloud management, remote config, analytics) |
Security
| Full-Disk Encryption | AES-128 |
| Data Encryption | PKI + symmetric keys |
| Physical Security | Kensington security slot; advanced cable-retention system |
Design & Power
| Dimensions | 141 × 201 × 176 mm (H × W × D) |
| Weight | Approx. 1.0 kg |
| Operating Temperature | 0°C to 40°C |
| Part Number | 939-002180 |
| Warranty | 2 Years Local Warranty (Singapore) |
Compatibility & Software Support
| Operating Systems | Windows 10 / 11; macOS (latest two versions) |
| USB-C Requirements | USB Power Delivery 2.0+, USB 3.1 Gen 2+, DisplayPort Alt Mode |
| Desk Booking Platforms | Microsoft Teams, Zoom Workspace Reservation, Appspace and other supported booking platforms |
| Management Software | Logitech Sync (CollabOS) |
Package Contents & Logi Dock Flex Ordering Information
In the box:
- Logi Dock Flex docking station
- Power supply and AC cable
- 1.5 m USB-C cable with magnetic dock
- Power-supply bracket
- User documentation
Ordering information
| Region / Variant | Part Number |
| Singapore / WW (this listing) | 939-002180 |
| Americas variant | 939-002154 |
Regional plug/region SKUs differ: SourceIT stocks 939-002180; Logitech’s Americas SKU for the same station is 939-002154.
Datasheet & Downloads
Frequently Asked Questions — Logitech Logi Dock Flex
What makes Logi Dock Flex different from a normal dock?
Beyond single-cable USB-C docking with 100 W charging and dual 4K, it adds an 8-inch desk-booking touchscreen and cloud management via Logitech Sync — so it doubles as a hot-desking and workspace-management device, not just a dock.
How many monitors can it drive?
Two 4K displays at 3840×2160 @60Hz — one via HDMI 2.0 and one via DisplayPort 1.4.
Which desk-booking platforms does it support?
Microsoft Teams and Zoom Workspace Reservation, plus Appspace and other supported booking platforms, managed through Logitech Sync.
Does it need a separate compute or licence?
The dock is self-contained for docking and desk booking. Desk-booking and centralised management run through Logitech Sync / your chosen booking platform; check licensing for the booking service you deploy.
Why does the datasheet show a different part number?
This SG/WW listing is 939-002180; Logitech’s Americas SKU for the same station is 939-002154 — a regional variance, not a different product.
How is it secured on shared desks?
AES-128 full-disk encryption, PKI and symmetric-key data protection, a Kensington security slot and an advanced cable-retention system.
Does it include local warranty?
Yes. Every Logi Dock Flex sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
