LG 75XF3P-B 75" High-Brightness Open-Frame Display, 3,000 nit, 4K UHD, webOS 6.0
PRODUCT DESCRIPTION
LG 75XF3P-B 75" High-Brightness Open-Frame Display (75XF3P-B) - 3 Years Local Warranty
3,000 nit 4K UHD for Window-Facing Signage
The LG 75XF3P-B is a 75-inch 4K UHD open-frame display rated at 3,000 cd/m² (typ.) and 2,800 cd/m² (min.). LG approves it for direct sunlight and 24-hour operation, suiting large shopfront windows and outdoor kiosk enclosures.

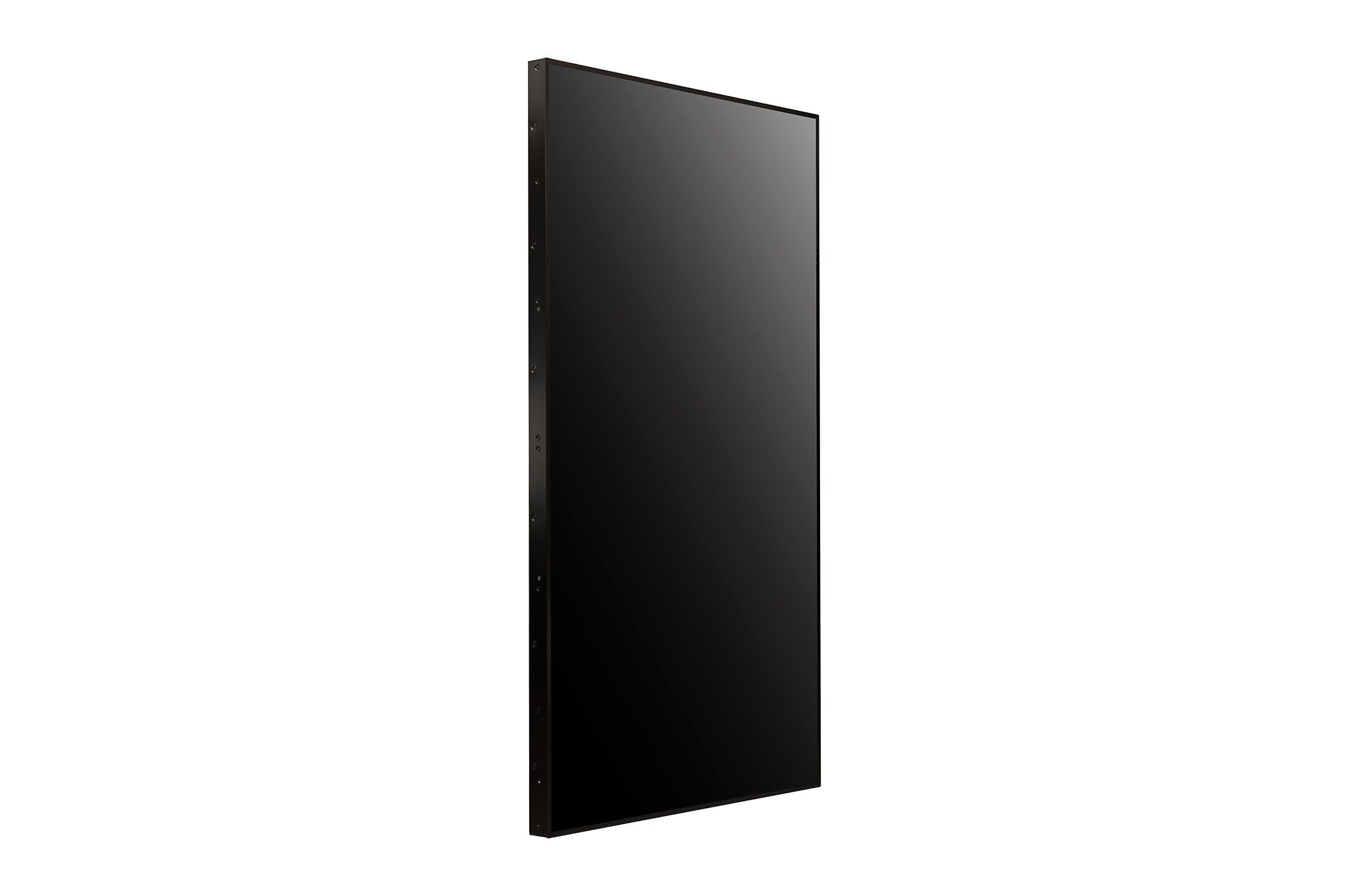

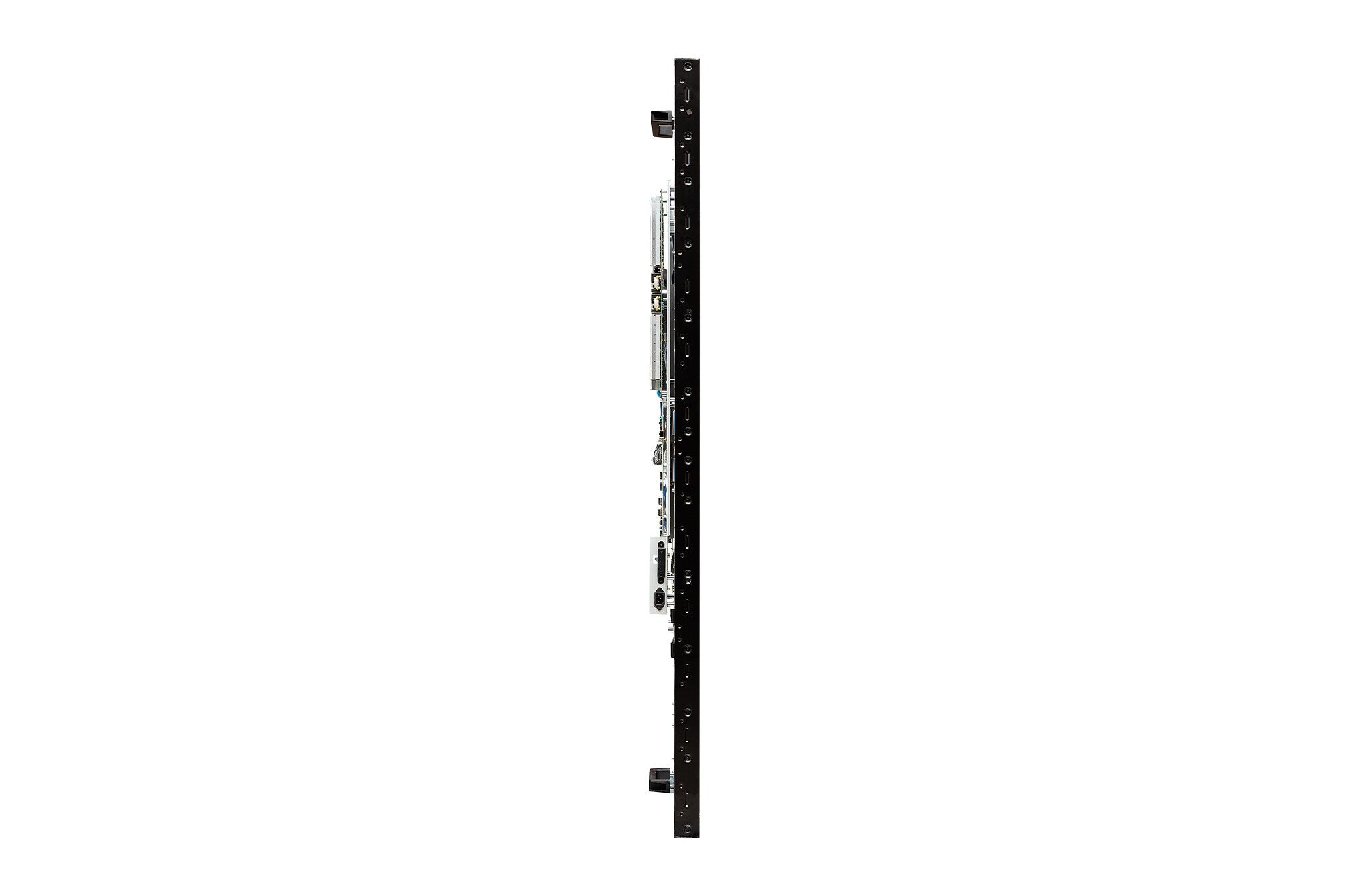

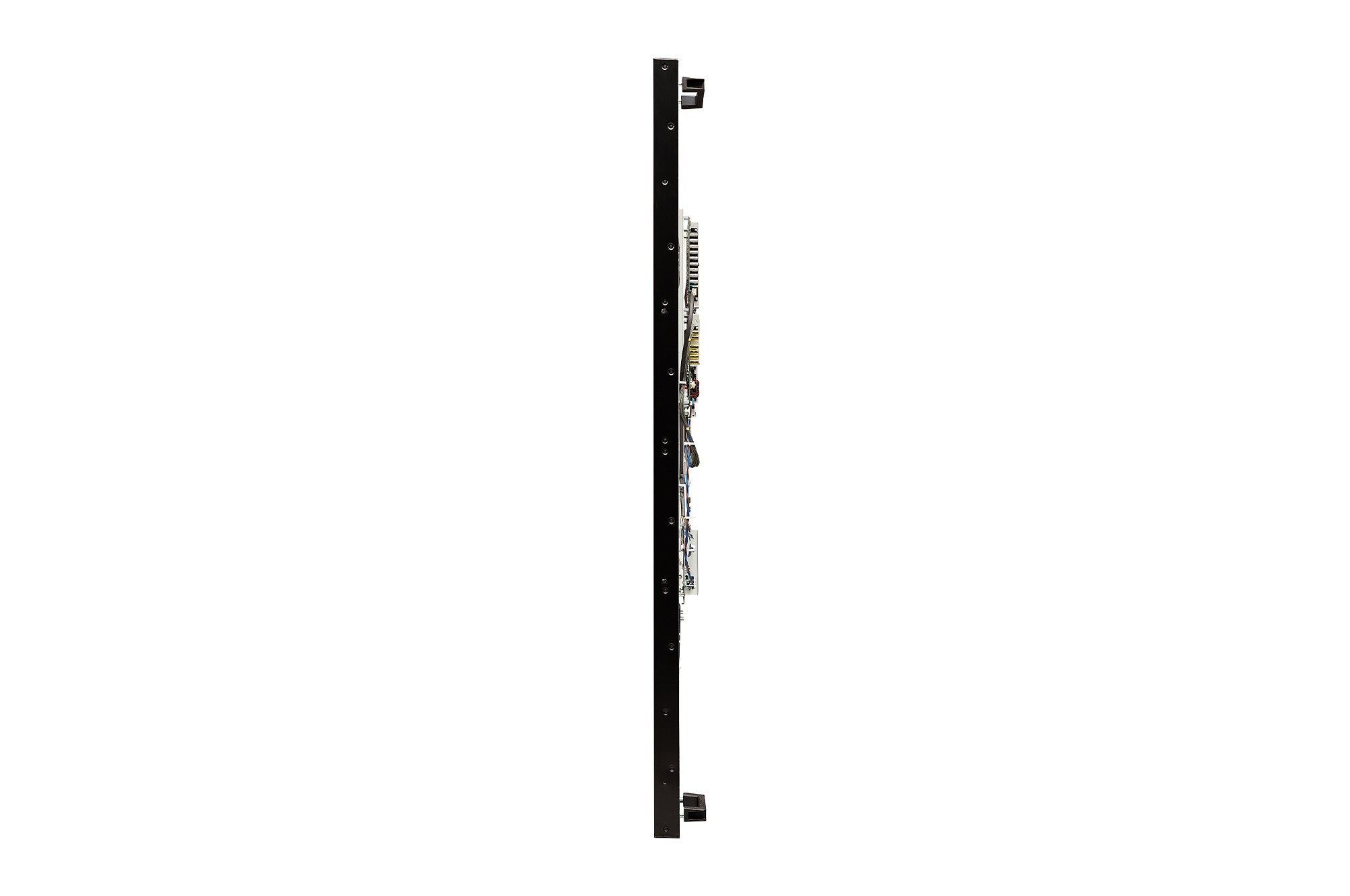

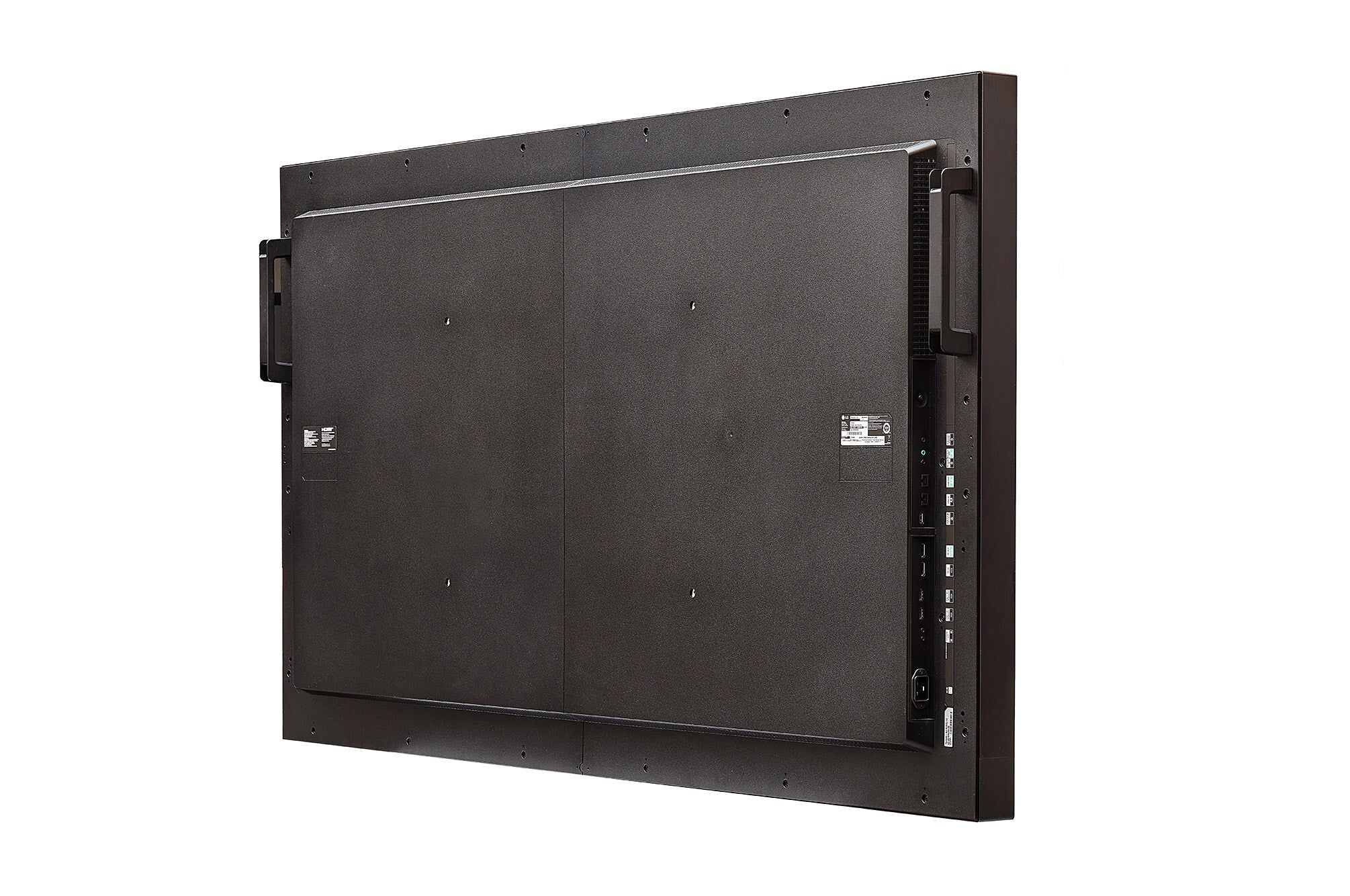

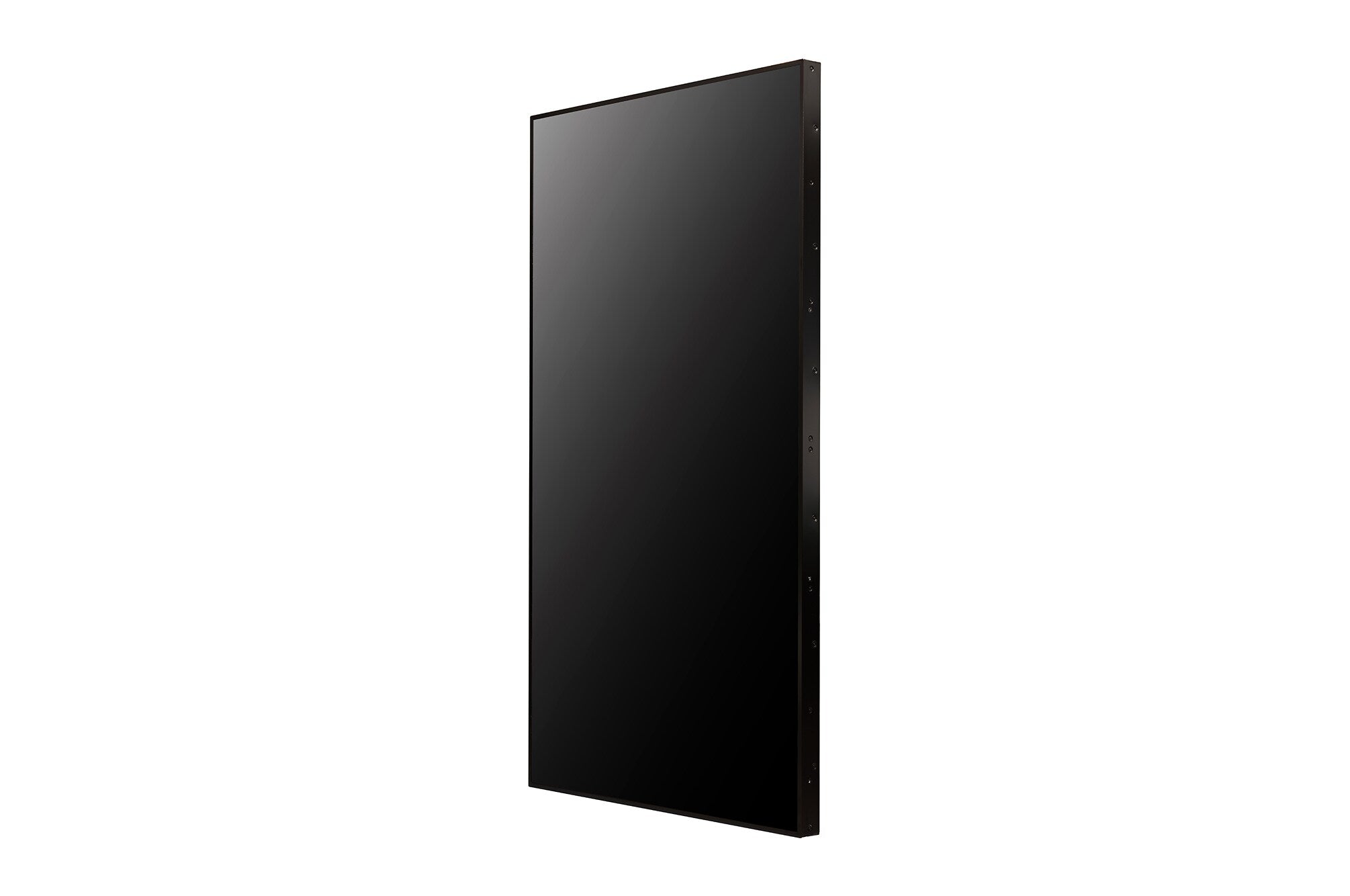

Open Frame, Slim Enough for Double-Sided Builds

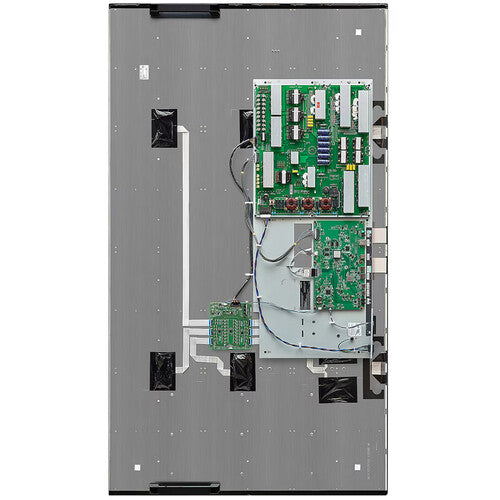

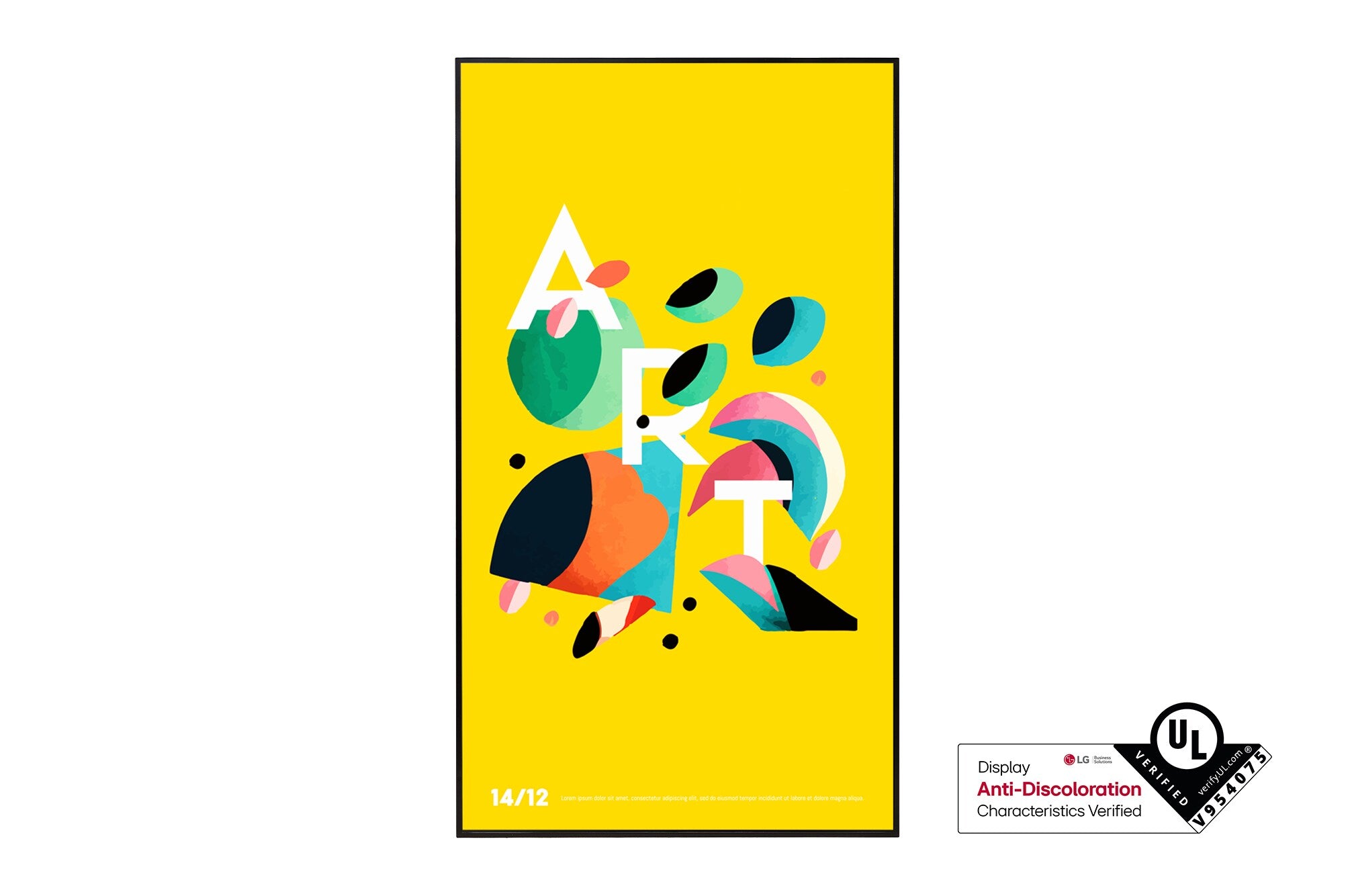

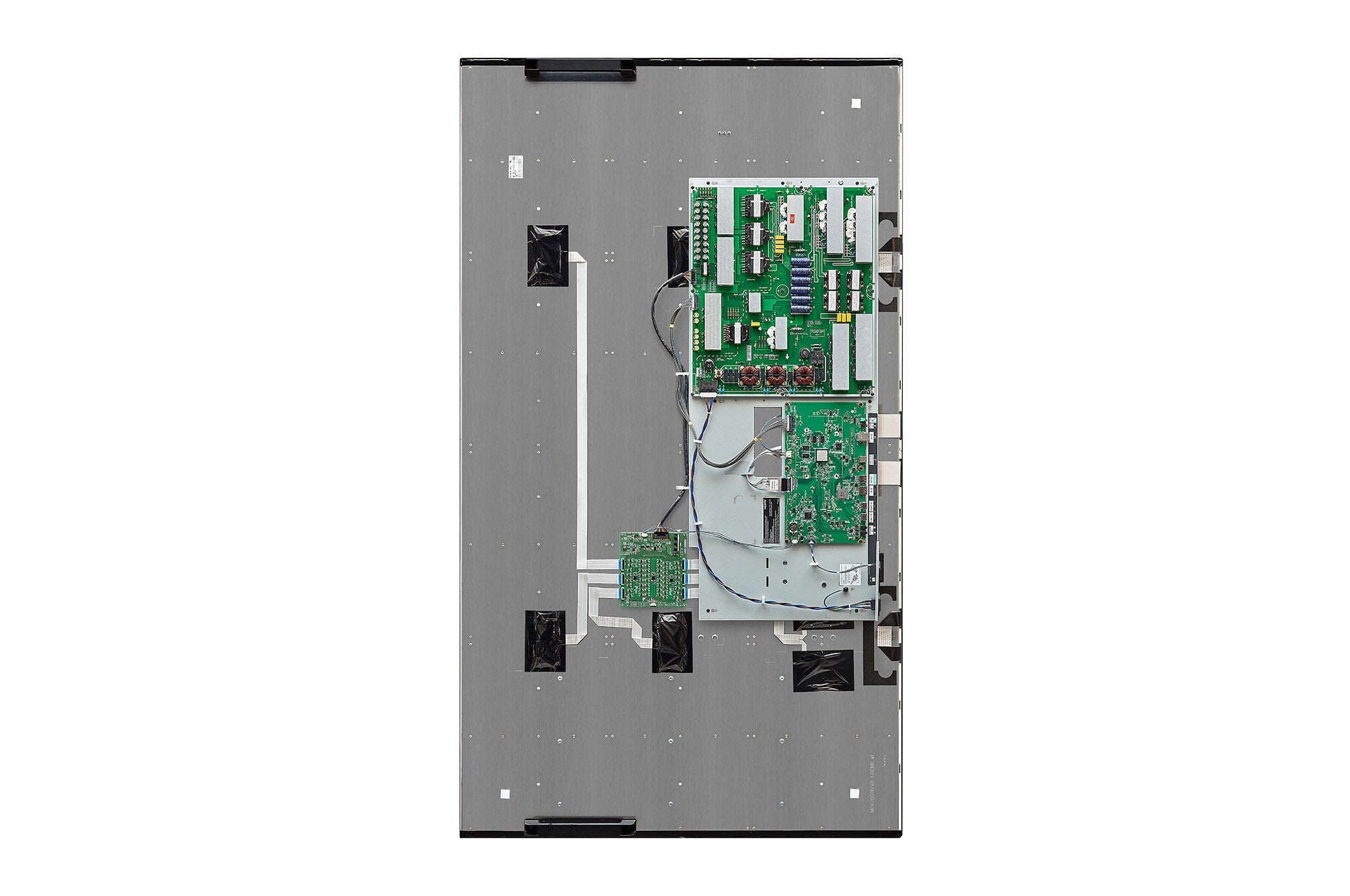

The open-frame design lets integrators build their own casing around the panel, and LG notes its slim profile supports double-sided configurations with the optional WM-B640S bracket. LG lists UL Verification for display anti-discolouration characteristics and conformal coating on the power board.
M+ IPS Panel and Smart Sensors
An M+ IPS panel with direct backlight, two temperature sensors, a humidity sensor and an auto-brightness sensor help manage heat and energy; LG states around 35% lower power use than its conventional models. The operating range is 0 °C to 50 °C without direct sunlight and 0 °C to 40 °C in direct sunlight.
webOS 6.0 and LG Software
webOS 6.0 with 8 GB internal memory runs content without an external player, with PIP/PBP and Video Tag (4). The display works with LG SuperSign CMS, SuperSign Control+ and LG ConnectedCare.
Need help specifying a large window-facing display? Email sales@sourceit.com.sg with your enclosure and site details, and we will recommend the right model.
LG 75XF3P-B Datasheet — Technical Specifications
General
| Product Name | LG 75XF3P-B 75" Open-Frame High-Brightness Display |
| Part Number | 75XF3P-B |
| Series | XF3P-B Open Frame |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 75" |
| Panel Technology | M+ IPS |
| Backlight | Direct |
| Native Resolution | 3,840 x 2,160 (4K UHD), 16:9, 60 Hz |
| Brightness | 3,000 cd/m² (typ.), 2,800 cd/m² (min.) |
| Contrast Ratio | 1,200:1 (typ.); dynamic 500,000:1 |
| Colour Gamut | NTSC 72% |
| Colour Depth | 10 bit (dithering), 1.07 billion colours |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G BW, typ.) |
| Surface Treatment | AGLR (haze 3%), QWP |
| Life Time (Typ.) | 50,000 hours |
| Operation Hours | 24 hours |
| Portrait / Landscape | Yes / Yes |
Connectivity
| Inputs | HDMI x 2 (HDCP 2.2), DisplayPort (HDCP 1.3), DVI-D, audio in, RS-232C (4-pin phone jack), RJ45 (LAN), IR in, USB 2.0 Type-A |
| Outputs | DisplayPort out, external speaker out (4-pin phone jack), RS-232C out |
| Speakers | None built in |
Mechanical
| Bezel | Black, 11.8 mm (even) |
| Dimensions (W x H x D) | 1,675.2 x 953.6 x 114.6 mm |
| Weight (Head) | 32.7 kg |
| Carton Dimensions (W x H x D) | 1,816 x 1,106 x 285 mm |
| Packed Weight | 43 kg |
| Handles | Yes (2) |
| VESA Mount | No (LG optional double-sided bracket WM-B640S) |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 745 W typ. / 775 W max.; Smart Energy Saving (70%) 280 W; DPM 0.5 W; power off 0.5 W |
| Heat Dissipation | 2,644 BTU/hr |
| Operating Temperature | 0 °C to 50 °C (without direct sunlight); 0 °C to 40 °C (direct sunlight) |
| Operating Humidity | 10% to 80% |
| Conformal Coating (Power Board) | Yes |
| Direct Sunlight | Yes |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class A / CE / KC / VCCI |
| ErP | Yes |
Compatibility & Software Support
Platform
LG webOS 6.0 with 8 GB internal memory. Features listed by LG include embedded CMS (local contents scheduling, Group Manager), USB Plug & Play, Fail Over, booting logo and no-signal image, RS-232C / local network / backlight sync, PIP, PBP, Video Tag (4), Play via URL, screen and external-input rotation, gapless playback, Tile Mode, setting data cloning, ISM method, Auto Set ID, status mailing, HDMI-CEC, SI server setting, webRTC and Pro:Idiom.
LG Software
| SuperSign CMS | Yes |
| SuperSign Control+ | Yes |
| LG ConnectedCare | Yes |
Control & Integration
SNMP, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN and Network Ready.
Package Contents & XF3P-B Ordering Information
In the Box
Remote controller (with 2 batteries), power cord, HDMI cable, manual (EIG, IG), RS-232C gender.
Optional Accessories (LG)
Double-sided bracket WM-B640S (landscape and portrait). Enclosures, brackets and installation are not included in the price.
XF3P-B Series Models
| Size | Part No. |
| 55" | 55XF3P-B |
| 75" (this listing) | 75XF3P-B |
Datasheet & Downloads
| LG product page (Singapore) | 75XF3P-B on lg.com/sg |
| LG spec sheet and datasheet (PDF) | 75XF3P on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 75XF3P-B.
Frequently Asked Questions — LG 75XF3P-B
Is it a sealed outdoor display?
No. The 75XF3P-B is an open-frame display: LG designs it to be built into a custom casing or kiosk enclosure, and does not publish an IP rating for the bare unit.
Does it have a VESA mount?
No. LG lists no VESA interface; its optional WM-B640S double-sided bracket supports landscape and portrait installs.
Can it face direct sunlight?
Yes. LG lists direct-sunlight operation, 3,000 cd/m² (typ.) brightness and 0 °C to 40 °C operation in direct sunlight.
Is a bracket or enclosure included?
No. Enclosures, brackets and installation are quoted separately.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
