LG 55XF3P-B 55" High-Brightness Open-Frame Display, 3,000 nit, FHD, webOS 6.1
PRODUCT DESCRIPTION
LG 55XF3P-B 55" High-Brightness Open-Frame Display (55XF3P-B) - 3 Years Local Warranty
3,000 nit for Window-Facing and Outdoor Kiosks
The LG 55XF3P-B is a 55-inch Full HD open-frame display rated at 3,000 nit (typ.) and 2,400 nit (min.). LG approves it for direct sunlight and lists 24/7 operation, making it suited to shopfront windows, drive-thru boards and outdoor kiosk enclosures.

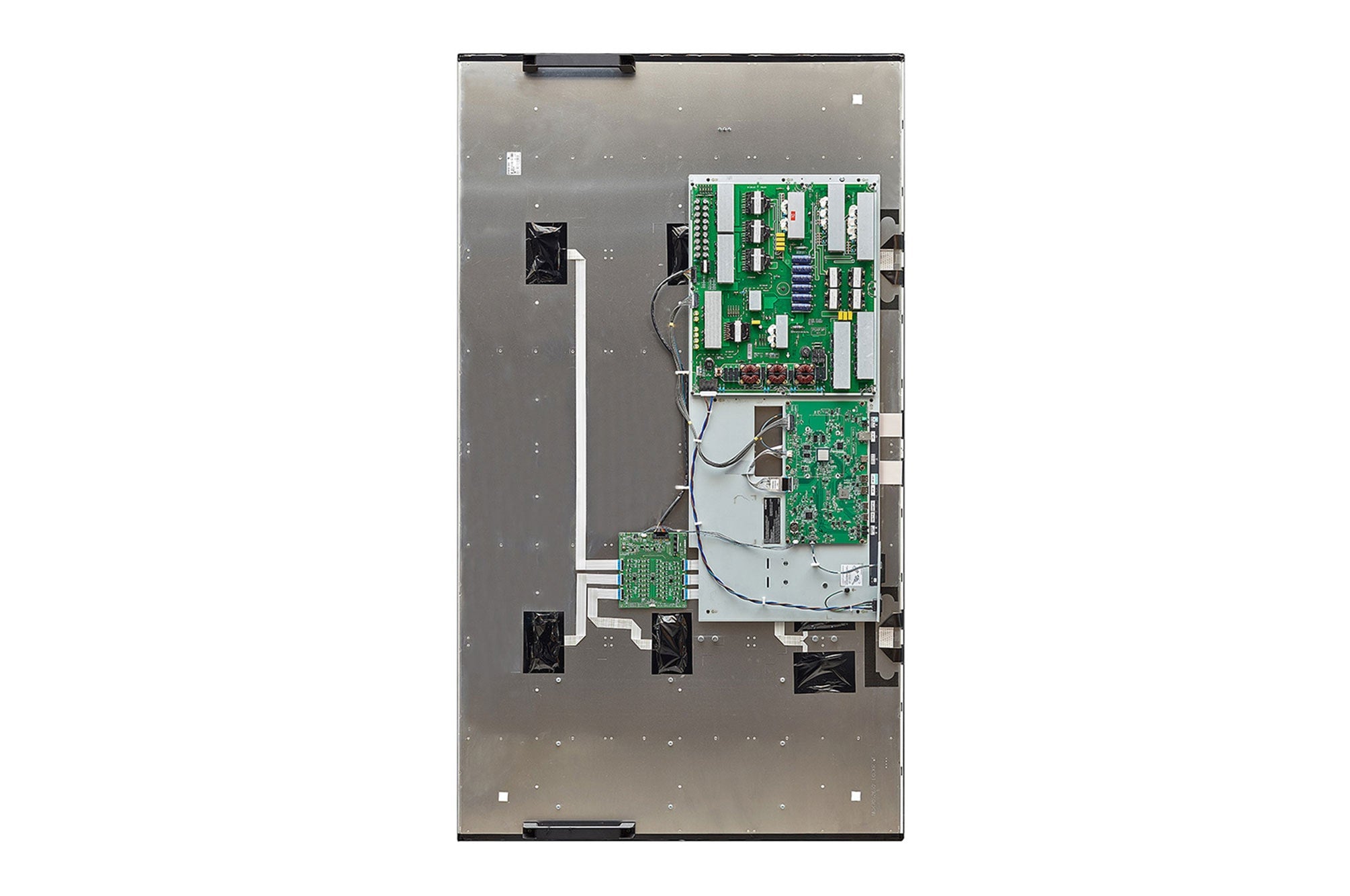

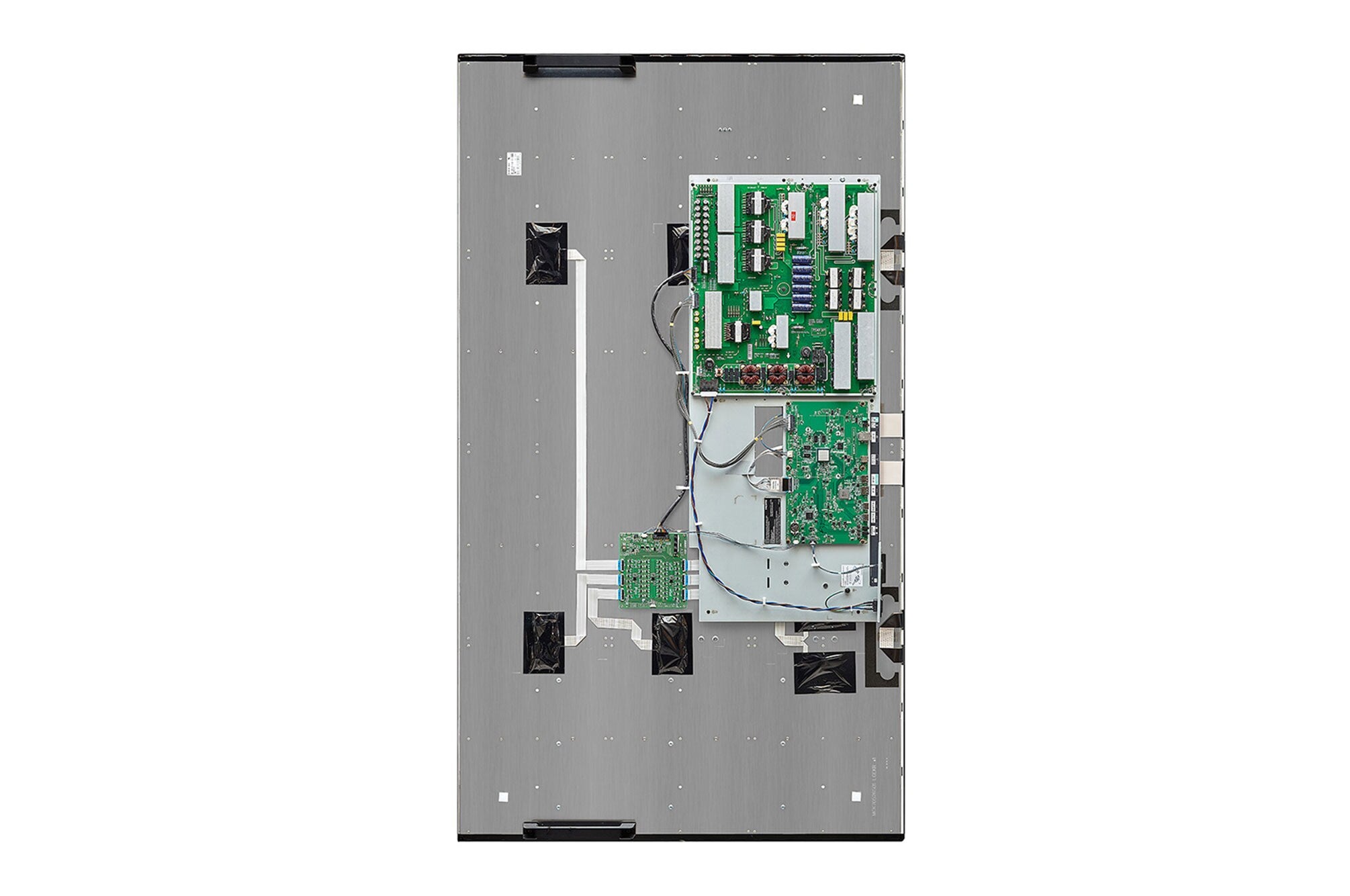

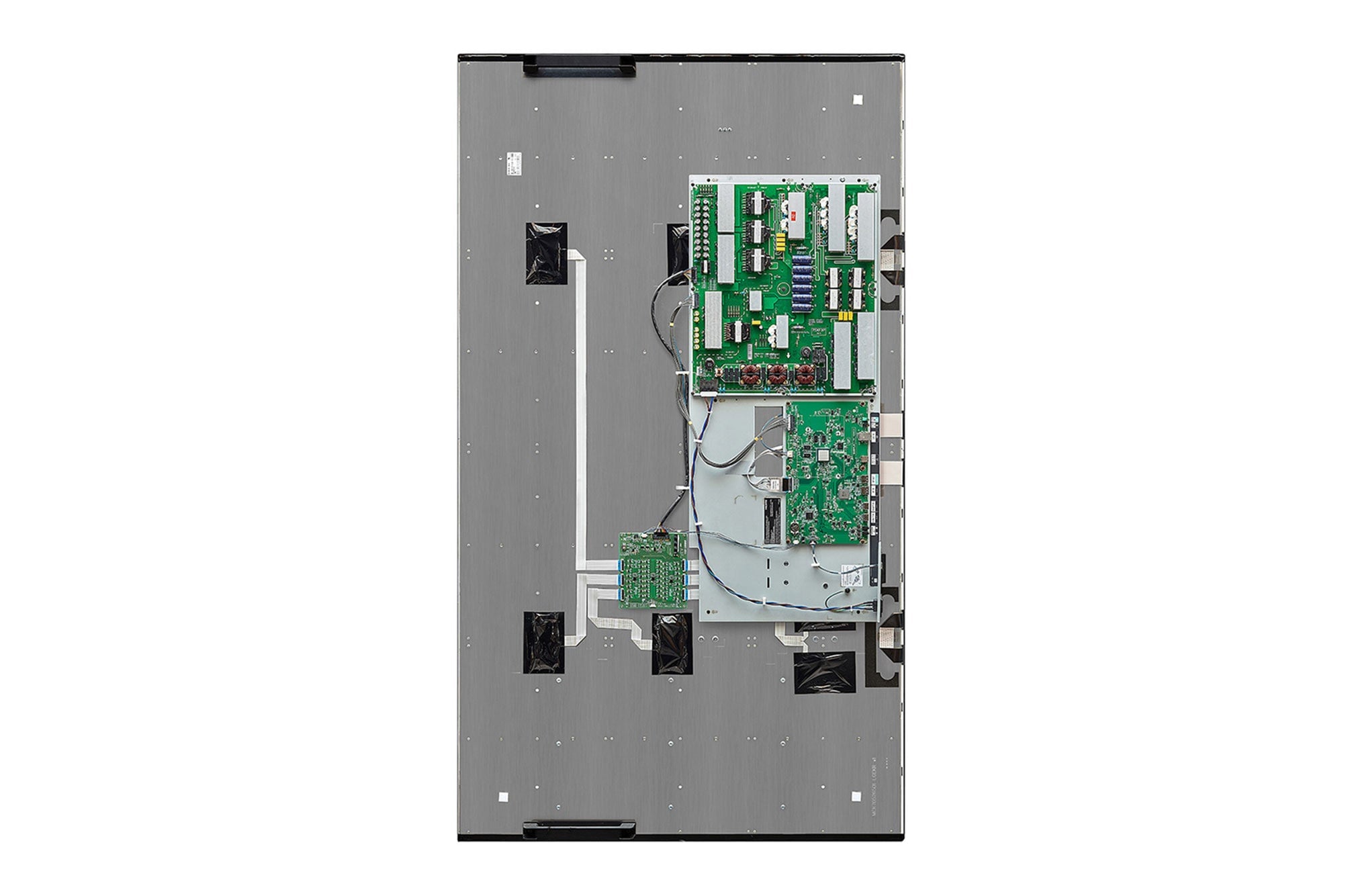

Open Frame for Custom Enclosures

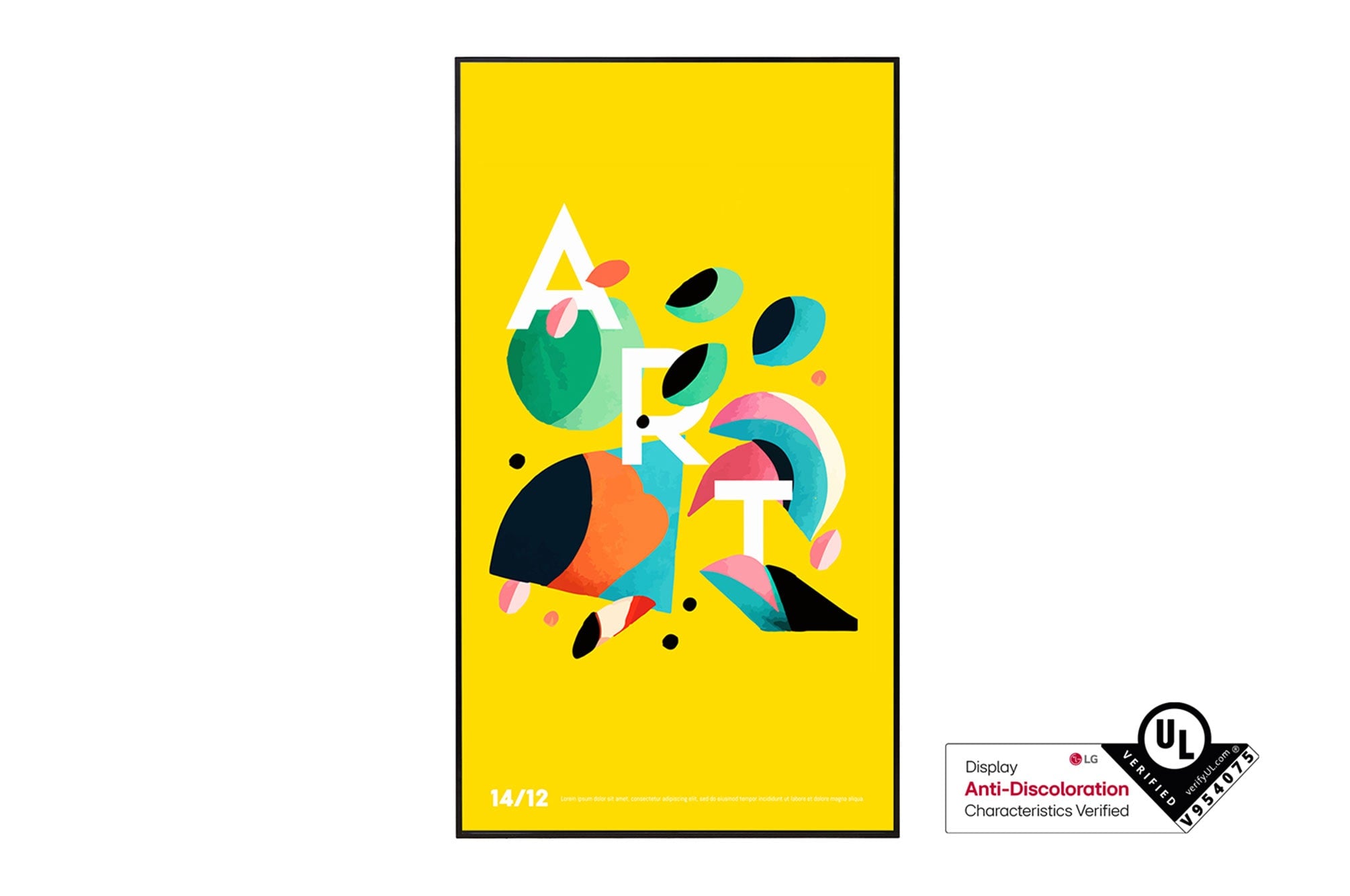

The open-frame structure lets integrators design their own casing and functions around the panel. LG lists the display as the world's first to receive UL Verification for display anti-discolouration characteristics, and applies conformal coating to the power board against dust and humidity.
Sensors and Wide Operating Range
Temperature, auto-brightness and humidity sensors plus a built-in fan are included; auto brightness adjusts output to ambient light to save energy. LG lists an operating range of 0 °C to 50 °C without direct sunlight and 0 °C to 40 °C in direct sunlight.
webOS 6.1 and LG Software
webOS 6.1 with 8 GB internal memory runs content without an external player, and the display works with LG SuperSign CMS, SuperSign Cloud, SuperSign Control+ and LG ConnectedCare.
Need help specifying a window-facing or kiosk display? Email sales@sourceit.com.sg with your enclosure and site details, and we will recommend the right model.
LG 55XF3P-B Datasheet — Technical Specifications
General
| Product Name | LG 55XF3P-B 55" Open-Frame High-Brightness Display |
| Part Number | 55XF3P-B |
| Series | XF3P-B Open Frame |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 55" |
| Panel Technology | IPS, M+ |
| Backlight | Direct |
| Native Resolution | 1,920 x 1,080 (FHD), 16:9, 60 Hz |
| Brightness | 3,000 nit (typ.), 2,400 nit (min.) |
| Contrast Ratio | 1,300:1; dynamic 500,000:1 |
| Colour Gamut | NTSC 72% |
| Colour Depth | 8 bit, 16.7 million colours |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 9 ms (G to G) |
| Surface Treatment (Haze) | 3% |
| QWP (Quarter Wave Plate) | Yes |
| Life Time (Typ.) | 50,000 hours |
| Operation Hours | 24/7 |
| Portrait / Landscape | Yes / Yes |
Connectivity
| Inputs | HDMI x 2 (HDCP 2.2), DisplayPort (HDCP 1.3), RS-232C (4-pin phone jack), RJ45 (LAN), USB 2.0 Type-A |
| Outputs | DisplayPort out, external speaker out (L/R, 10 W + 10 W, 4-pin phone jack), RS-232C out (4-pin phone jack), IR out (shared with RS-232C out) |
| Speakers | None built in |

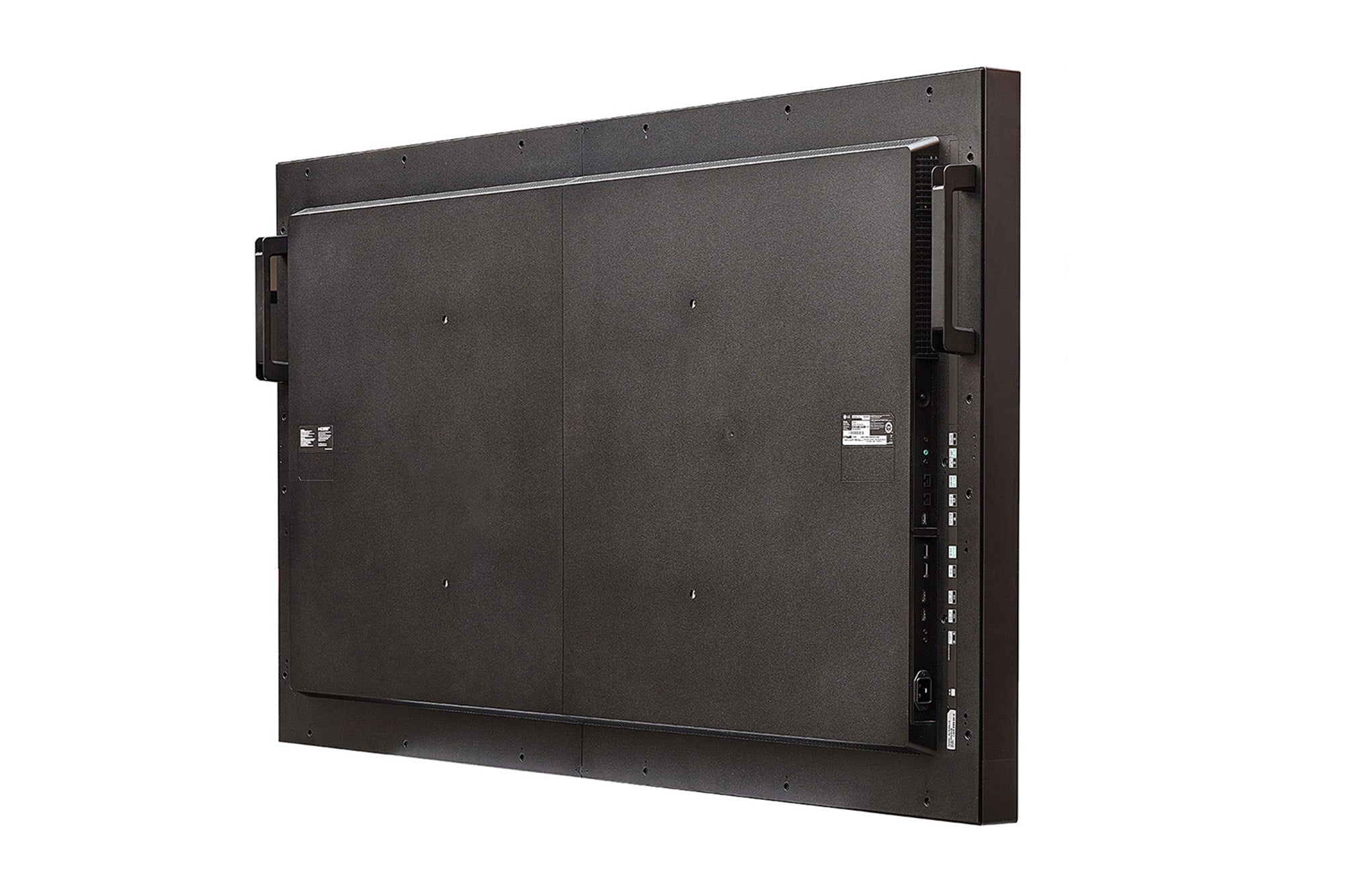

Mechanical
| Bezel | Black; 12.0 / 9.9 / 9.9 / 12.0 mm |
| Dimensions (W x H x D) | 1,235.5 x 709.4 x 106.8 mm |
| Weight (Head) | 26.5 kg |
| Carton Dimensions (W x H x D) | 1,344 x 236 x 820 mm |
| Packed Weight | 32.25 kg |
| Handles | Yes (2) |
| VESA Mount | 600 x 400 mm |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | Power off 0.5 W (other values not yet published by LG) |
| Operating Temperature | 0 °C to 50 °C (without direct sunlight); 0 °C to 40 °C (direct sunlight) |
| Operating Humidity | 10% to 80% |
| Conformal Coating (Power Board) | Yes |
| Direct Sunlight | Yes |
| Cooling | Built-in fan |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class A / CE / KC / VCCI |
| ErP / Energy Star | Yes / No |
Compatibility & Software Support
Platform
LG webOS 6.1 with 8 GB internal memory. Features listed by LG include embedded CMS (local contents scheduling, Group Manager), USB Plug & Play, Fail Over, booting logo and no-signal image, RS-232C / local network / backlight sync, Video Tag (2), Play via URL, screen and external-input rotation, gapless playback, Tile Mode (max. 15 x 15), setting data cloning, ISM method, Auto Set ID, status mailing, HDMI-CEC, SI server setting, webRTC and Pro:Idiom.
LG Software
| SuperSign CMS | Yes |
| SuperSign Cloud | Yes |
| SuperSign Control+ | Yes |
| LG ConnectedCare | Yes |
Control & Integration
SNMP, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN and Network Ready.
Package Contents & XF3P-B Ordering Information
In the Box
Remote controller (with 2 batteries), power cord, HDMI cable, IR extension kit, manual (ESG & EIG).
Enclosures, brackets and installation are not included in the price.
XF3P-B Series Models
| Size | Part No. |
| 55" (this listing) | 55XF3P-B |
| 75" | 75XF3P-B |
Datasheet & Downloads
| LG product page (Singapore) | 55XF3P-B on lg.com/sg |
| LG spec sheet and datasheet (PDF) | 55XF3P on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 55XF3P-B.
Frequently Asked Questions — LG 55XF3P-B
Is it a sealed outdoor display?
No. The 55XF3P-B is an open-frame display: LG designs it to be built into a custom casing or kiosk enclosure, and does not publish an IP rating for the bare unit.
Can it face direct sunlight?
Yes. LG lists direct-sunlight operation, 3,000 nit (typ.) brightness and 0 °C to 40 °C operation in direct sunlight.
Does it need a media player?
No. webOS 6.1 plays content from 8 GB internal memory, USB or a URL, and works with LG SuperSign CMS and SuperSign Cloud.
Is a bracket or enclosure included?
No. Enclosures, brackets and installation are quoted separately; the VESA pattern is 600 x 400 mm.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
