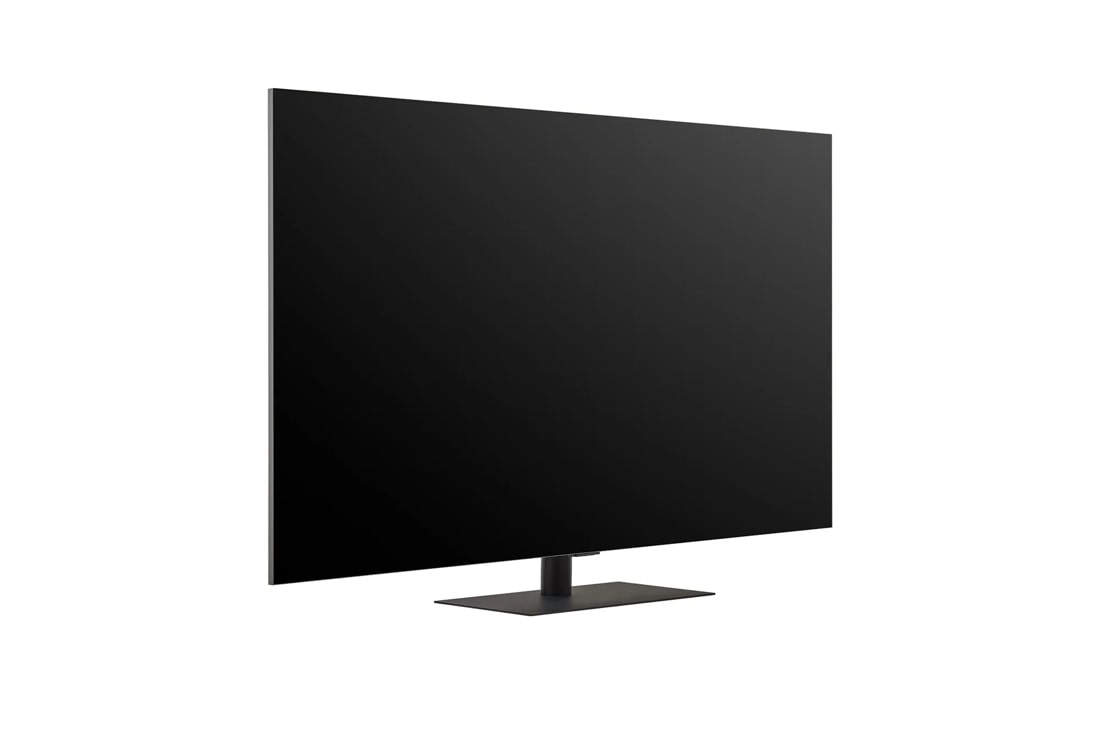

LG 65EP5Q 65" 4K UltraFine OLED Pro Monitor, 12G-SDI x4, DCI-P3 99.5%
PRODUCT DESCRIPTION
LG 65EP5Q 65" UltraFine Display OLED Pro (65EP5Q) - 3 Years Local Warranty
Self-Lit OLED for Critical Viewing
The LG 65EP5Q UltraFine Display OLED Pro is a 65-inch 4K (3,840 x 2,160) OLED monitor for broadcast, virtual production and post-production work. LG publishes a 3,300,000:1 contrast ratio, DCI-P3 99.5% colour gamut, 10-bit colour, 0.1 ms response time and a 120 Hz refresh rate.
HDR Brightness Up to 2,900 nits
LG rates peak brightness at 2,900 / 2,200 / 1,000 / 330 nits at APL 3% / 10% / 25% / 100%, with HDR/SDR monitoring, mastering peak, transfer matrix and custom 3D LUT import via USB. LG lists a Delta E below 2 and Eyesafe certification.
Four 12G-SDI Inputs
Four 12G-SDI inputs support single, dual and quad link and Quad View, with four SDI loop-through outputs, plus HDMI (HDCP 2.2/1.4), LAN, USB and an SFP+ slot for Embrionix SDI modules. Audio level meters cover channels 1–16.
Calibration and Remote Control
Calibration is supported with LG SuperSign WB and third-party CalMAN (uniformity compensation, 9/13/25-point, EBU Grade 1). webOS 8.5, LG Connect, an Open API for third-party control pads and a browser-based remote IP control app are listed by LG. A stand is included in the box.
Need help choosing a reference or production monitor? Email sales@sourceit.com.sg with your signal chain and workflow, and we will recommend the right model.
LG 65EP5Q Datasheet — Technical Specifications
General
| Product Name | LG 65EP5Q 65" UltraFine Display OLED Pro |
| Part Number | 65EP5Q |
| Series | OLED Pro Monitor |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 65" |
| Panel Technology | OLED (self-lit) |
| Native Resolution | 3,840 x 2,160 (UHD), 16:9 |
| Refresh Rate | 120 Hz |
| Brightness | 2,900 / 2,200 / 1,000 / 330 nits (APL 3% / 10% / 25% / 100%) |
| Contrast Ratio | 3,300,000:1 |
| Colour Gamut | DCI-P3 99.5% |
| Colour Depth | 10 bit, 1.07 billion colours |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 0.1 ms (G to G) |
| Surface Treatment (Haze) | 1% |
| Panel Life (Typ.) | 30,000 hours |
| Operation Hours | 12 hours / 7 days (moving content only) |
| Portrait / Landscape | No / Yes |
Picture & Colour
| Colour Gamut Modes | Auto / Native / BT.709 / BT.2020 / sRGB / AdobeRGB / P3, plus calibrated (Cali 1) versions of each |
| EOTF | Auto / User / 1.9 / 2.2 / 2.4 / 2.6 / Cali 1–Cali 10 |
| Colour Temperature | VAR / 9,300K / 6,500K / 5,400K / 3,200K / D65 / C / D-Cinema |
| HDR / SDR Monitoring | Yes; mastering peak, transfer matrix, mono / blue only |
| 3D LUT | Custom 3D LUT file import via USB |
| Calibration | SuperSign WB and CalMAN — uniformity compensation, 9p / 13p / 25p, EBU Grade 1 |
| Delta E | < 2 |
| Eyesafe Certification | Yes |
| Image-Sticking Prevention | TPC auto-dimming, GSR auto-dimming, pixel cleaning, screen shift, logo luminance adjustment, convex power control |

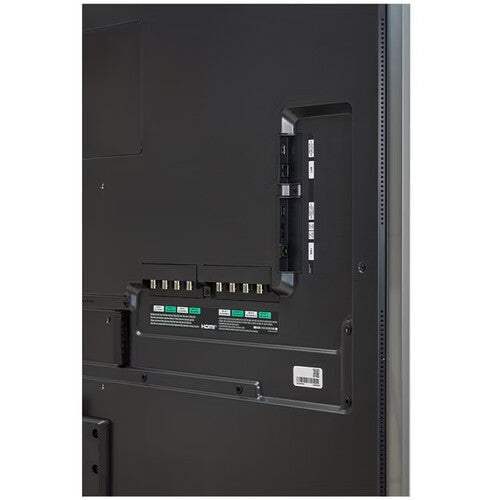

Connectivity
| Inputs | SDI x 4 (12G x 4; single link SD/HD/3G/6G/12G, dual link HD/3G 4K, quad link HD 4K / 3G 4K, Quad View), HDMI (HDCP 1.4/2.2), RJ45 (LAN, 100Base-T), USB 2.0 Type-A, RS-232C (service only), SFP+ (Embrionix SDI module only) |
| Outputs | SDI x 4 (loop-through), audio |
| Wireless | Wi-Fi and Bluetooth (built-in) |
| Speakers | 15 W x 2; Dolby Atmos |
| Audio Monitoring | SDI1–SDI4 source selection; level meter Ch1–16 |
Mechanical
| Bezel | Silver; 1.5 mm each side (off bezel); 6.2 / 6.2 / 6.2 / 11.1 mm T/R/L/B (on bezel) |
| Dimensions (W x H x D) | 1,441 x 826 x 24.3 mm |
| Dimensions with Stand (W x H x D) | 1,441 x 895 / 910 x 263 mm |
| Weight (Head) | 22 kg |
| Weight (Head + Stand) | 27.3 kg |
| Carton Dimensions (W x H x D) | 1,600 x 970 x 172 mm |
| Packed Weight | 34.1 kg |
| VESA Mount | 300 x 300 mm |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 120 W typ. (IEC 62087) / 450 W max.; power off 0.5 W |
| Cooling | Built-in fan |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80% |
| Conformal Coating | Power board |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class A / CE / KC |
| ErP | Yes (EU only) |
Compatibility & Software Support
Platform
LG webOS 8.5 with 16 GB internal memory (eMMC). LG lists PIP (2), PBP, no-signal image, ISM method, profile load/save (1–10), function keys (1–5), VPID, internal signal patterns and zoom (x2–x5). On-screen menu language: English.
LG Software
| SuperSign WB | Yes (including calibration) |
| Third-party calibration | CalMAN |
| LG Connect | Yes |
| Third-party control pads | Open API |
| Remote IP control app | HTML |
Note
LG does not list SuperSign CMS, SuperSign Cloud or LG ConnectedCare support for this model.
Package Contents & OLED Pro Ordering Information
In the Box
Remote controller, installation guide, regulation book, stand (base, body, neck, cable holder, screws), AV cover, wall mount cover.
Optional Accessories (LG)
LG does not list optional accessories for this model. Wall brackets and installation are not included in the price.
LG OLED Signage on SourceIT
| Size | Part No. |
| 65" (this listing) | 65EP5Q |
| 55" | 55EW5P-M |
Datasheet & Downloads
| LG product page (Global) | 65EP5Q on lg.com |
| LG spec sheet and datasheet (PDF) | 65EP5Q on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 65EP5Q.
Frequently Asked Questions — LG 65EP5Q
What is the 65EP5Q designed for?
LG positions the UltraFine Display OLED Pro for broadcast, virtual production and AV workflows, with four 12G-SDI inputs, HDR/SDR monitoring and calibration with SuperSign WB or CalMAN.
Can it run 24/7 as signage?
No. LG specifies 12 hours a day, 7 days a week with moving content only, and a typical panel life of 30,000 hours.
Can it be mounted in portrait?
No. LG lists landscape orientation only.
Is a stand or wall bracket included?
A stand (base, body and neck) is included in the box. Wall brackets and installation are not included; the VESA pattern is 300 x 300 mm.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
