LG 55EW5P-M 55" Transparent OLED Signage, FHD, 43% Transparency, webOS 7.5
PRODUCT DESCRIPTION
LG 55EW5P-M 55" Transparent OLED Signage (55EW5P-M) - 3 Years Local Warranty
See-Through OLED Signage

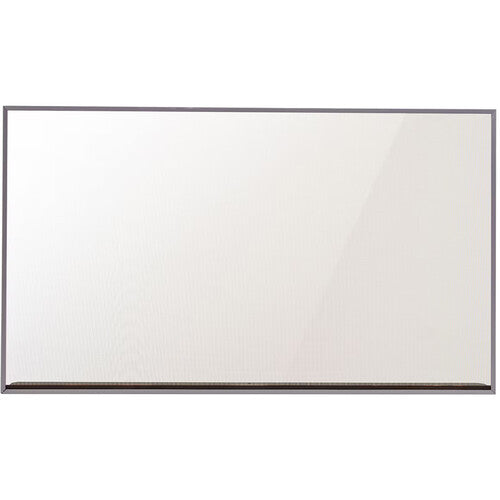

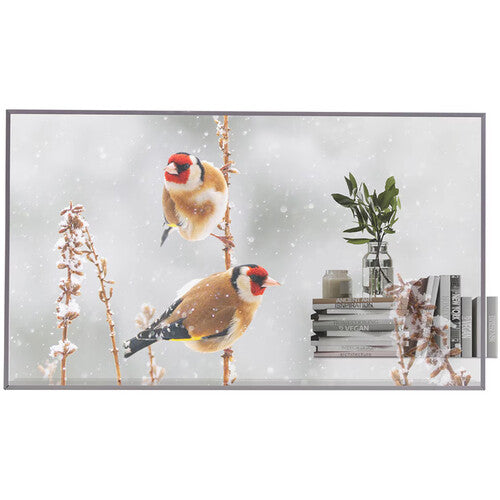

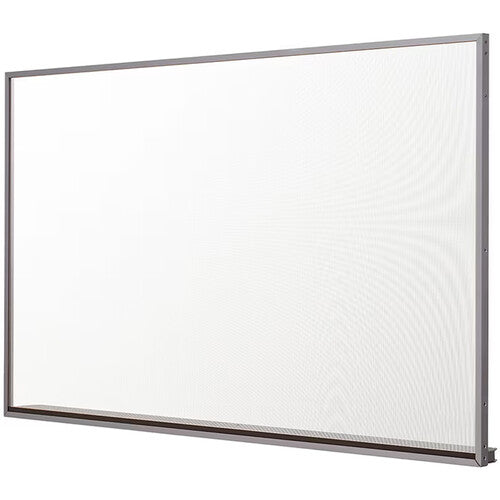

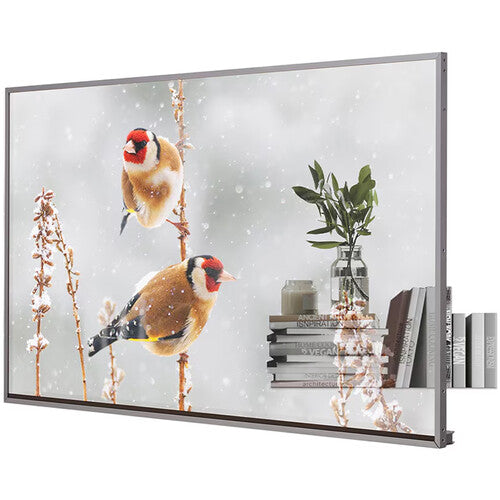

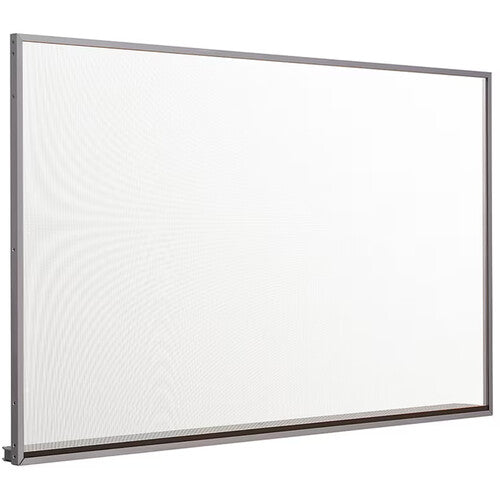

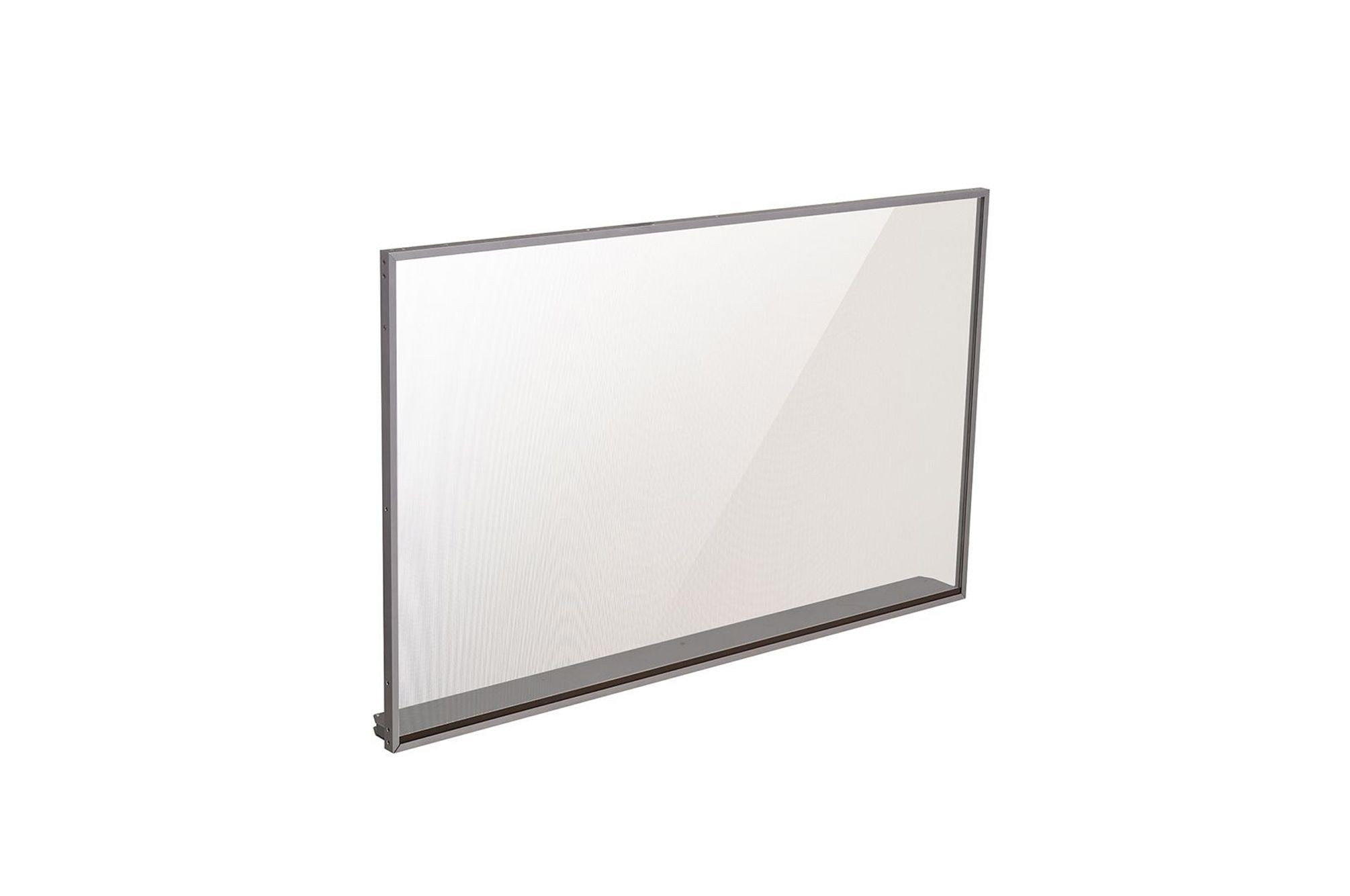

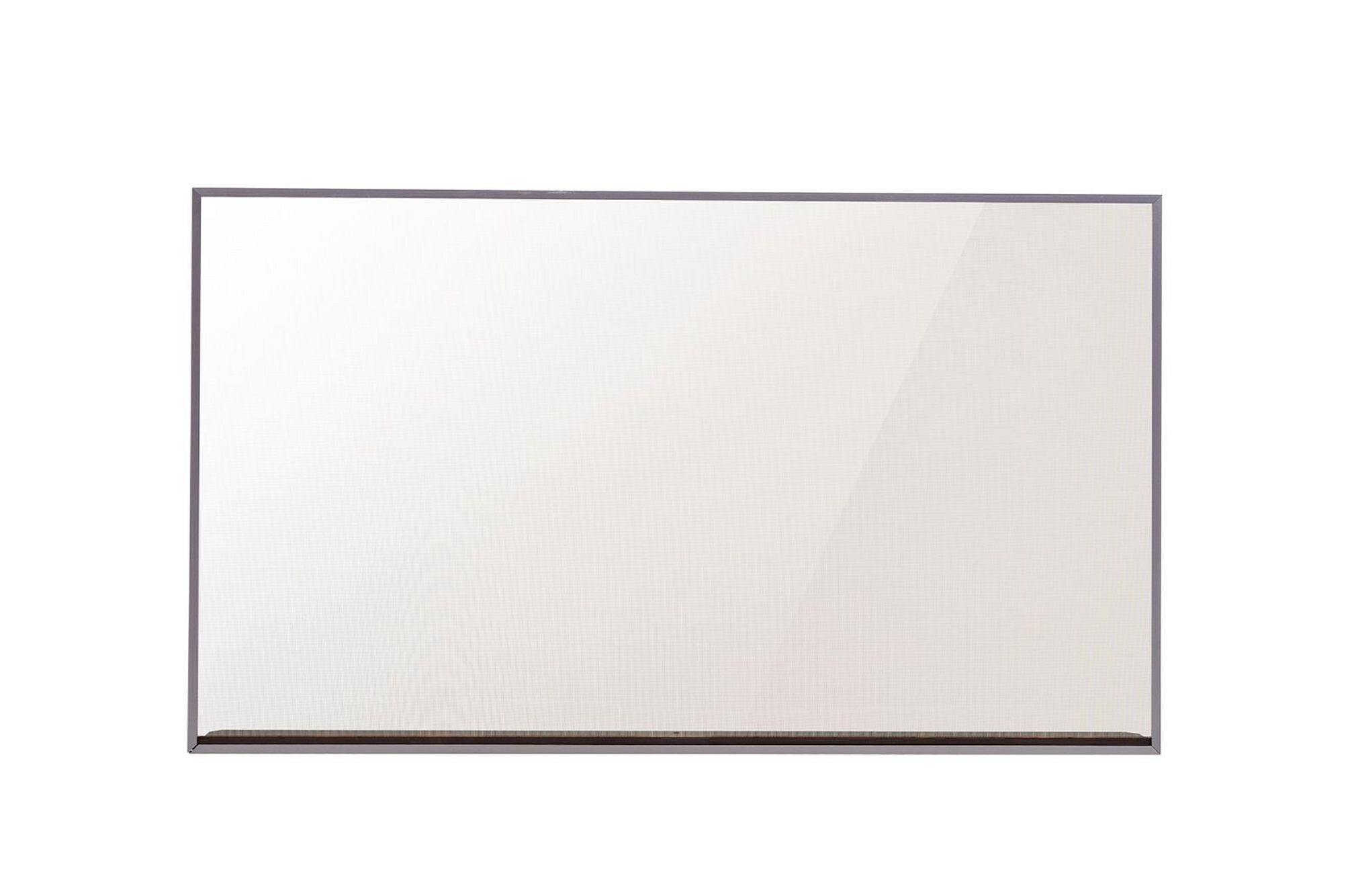

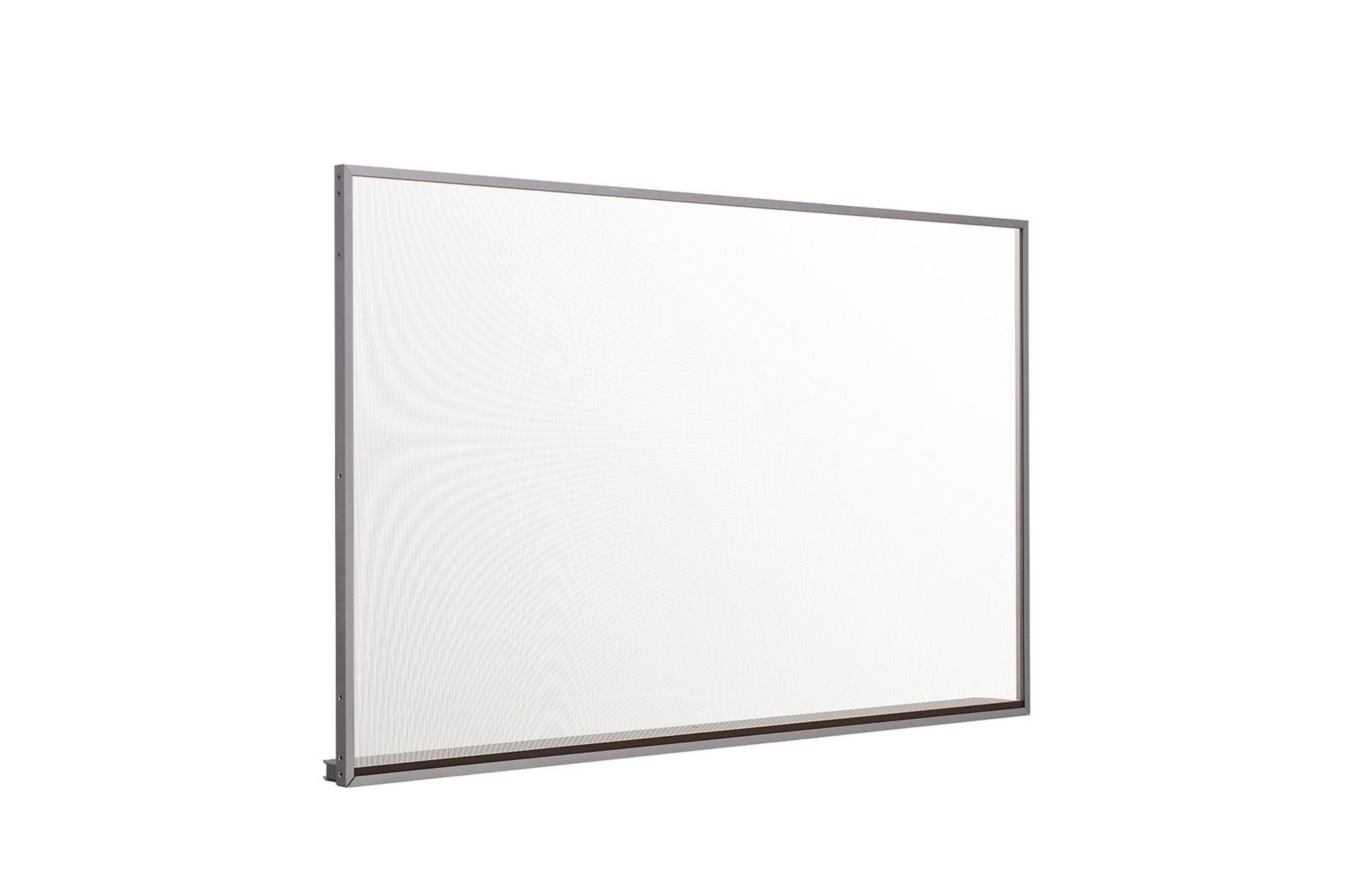

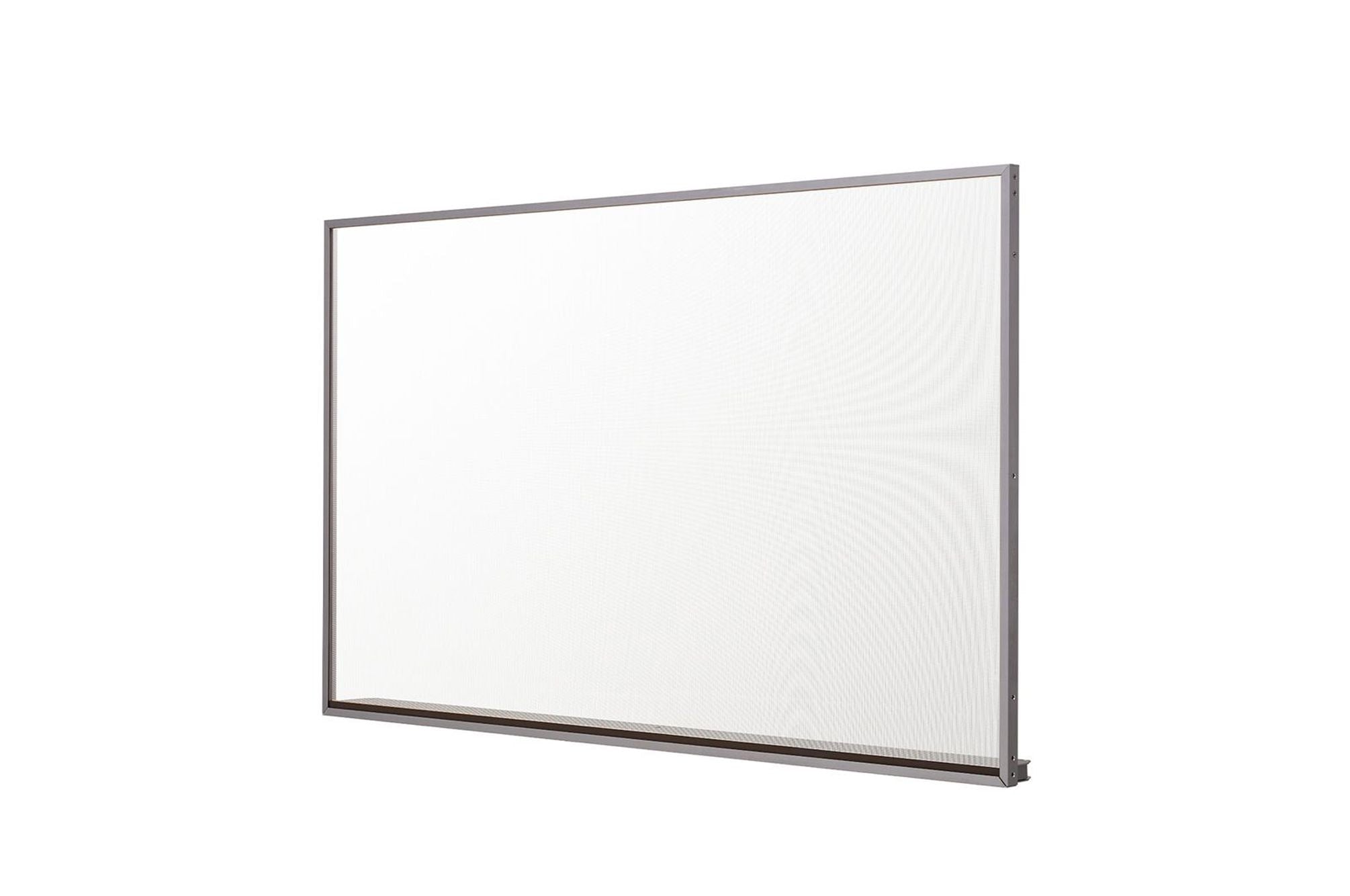

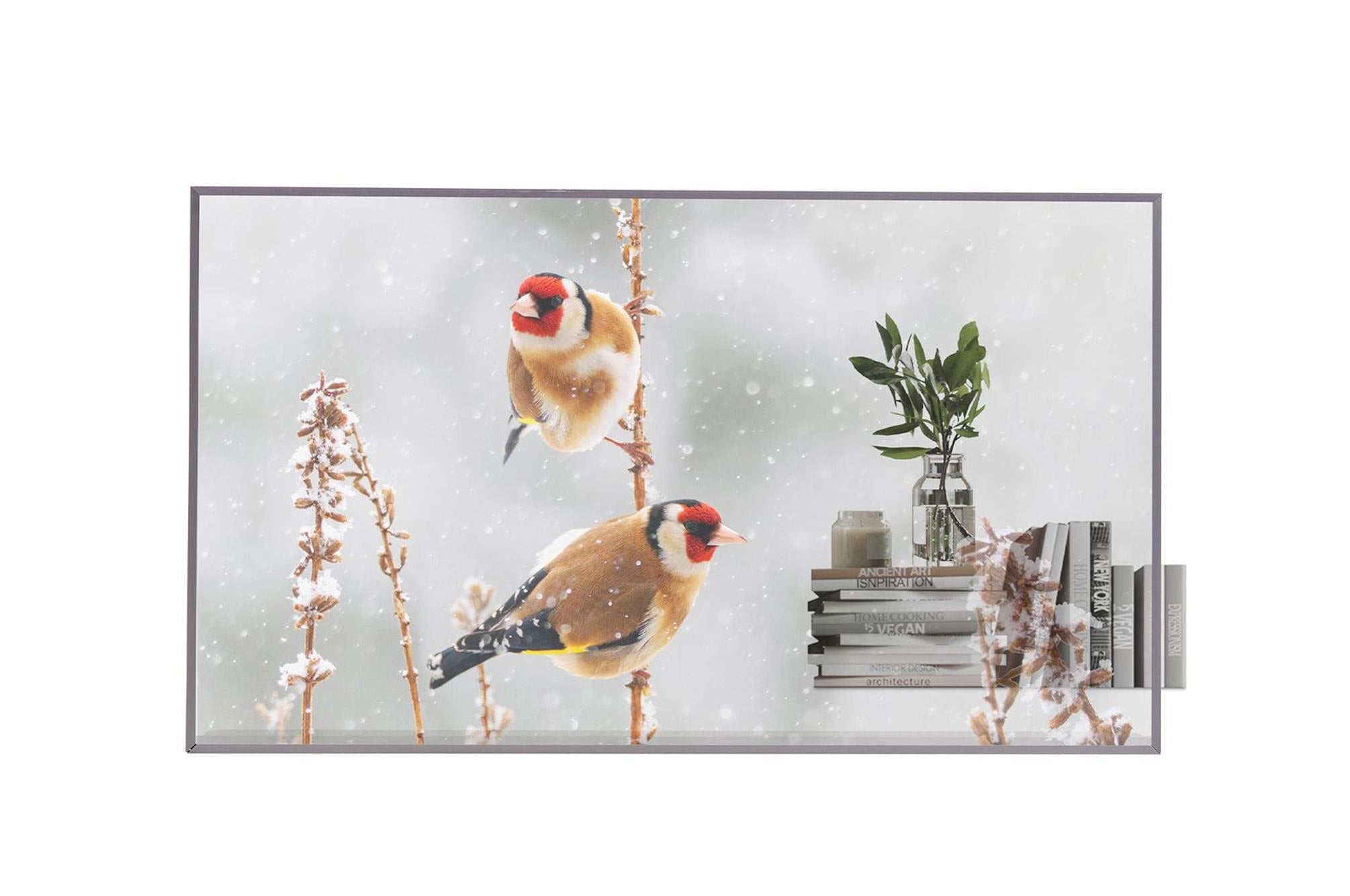

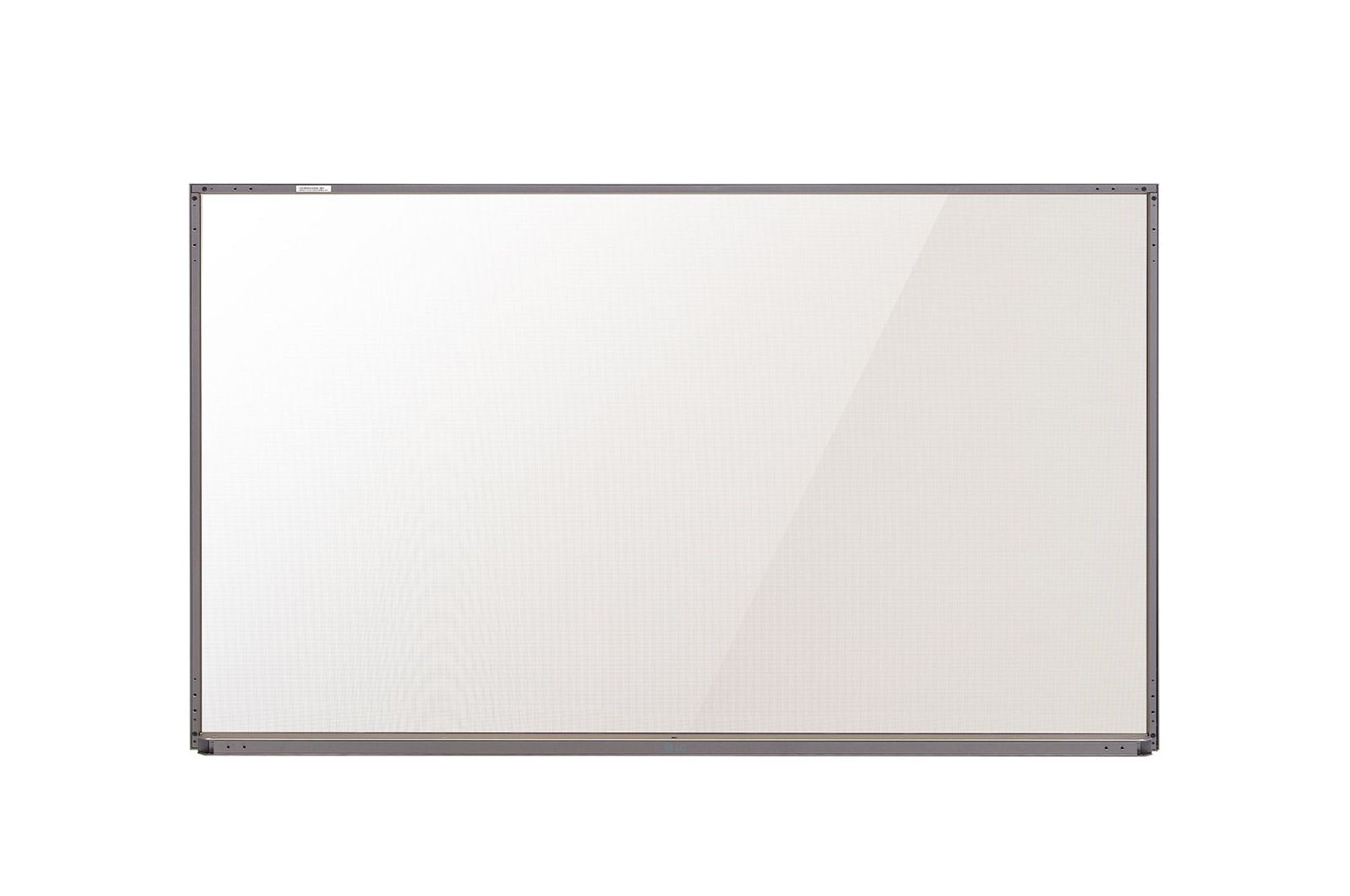

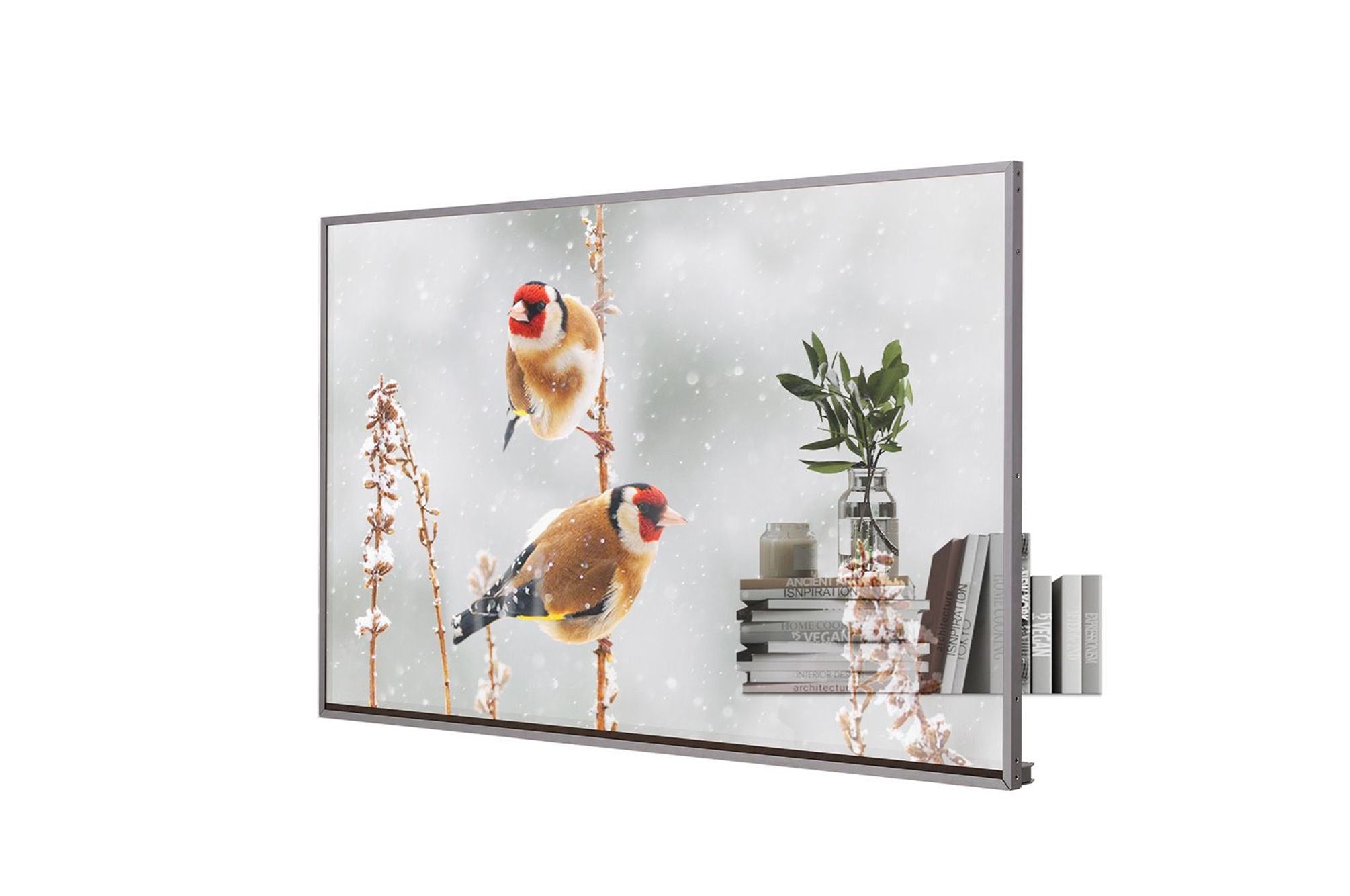

The LG 55EW5P-M is a 55-inch transparent OLED signage display with 43% transparency (set) and Full HD 1,920 x 1,080 resolution. Viewers see both the on-screen content and the products or space behind the panel — suited to shop windows, showcases, museums and exhibitions.
Self-Lit OLED Picture
LG rates brightness at 200 / 600 nit (APL 100% / 25%, without glass), with a 200,000:1 contrast ratio, 10-bit colour, DCI 90% / BT709 110% colour gamut and 0.1 ms (G to G) response time.
Protected, Tileable Design

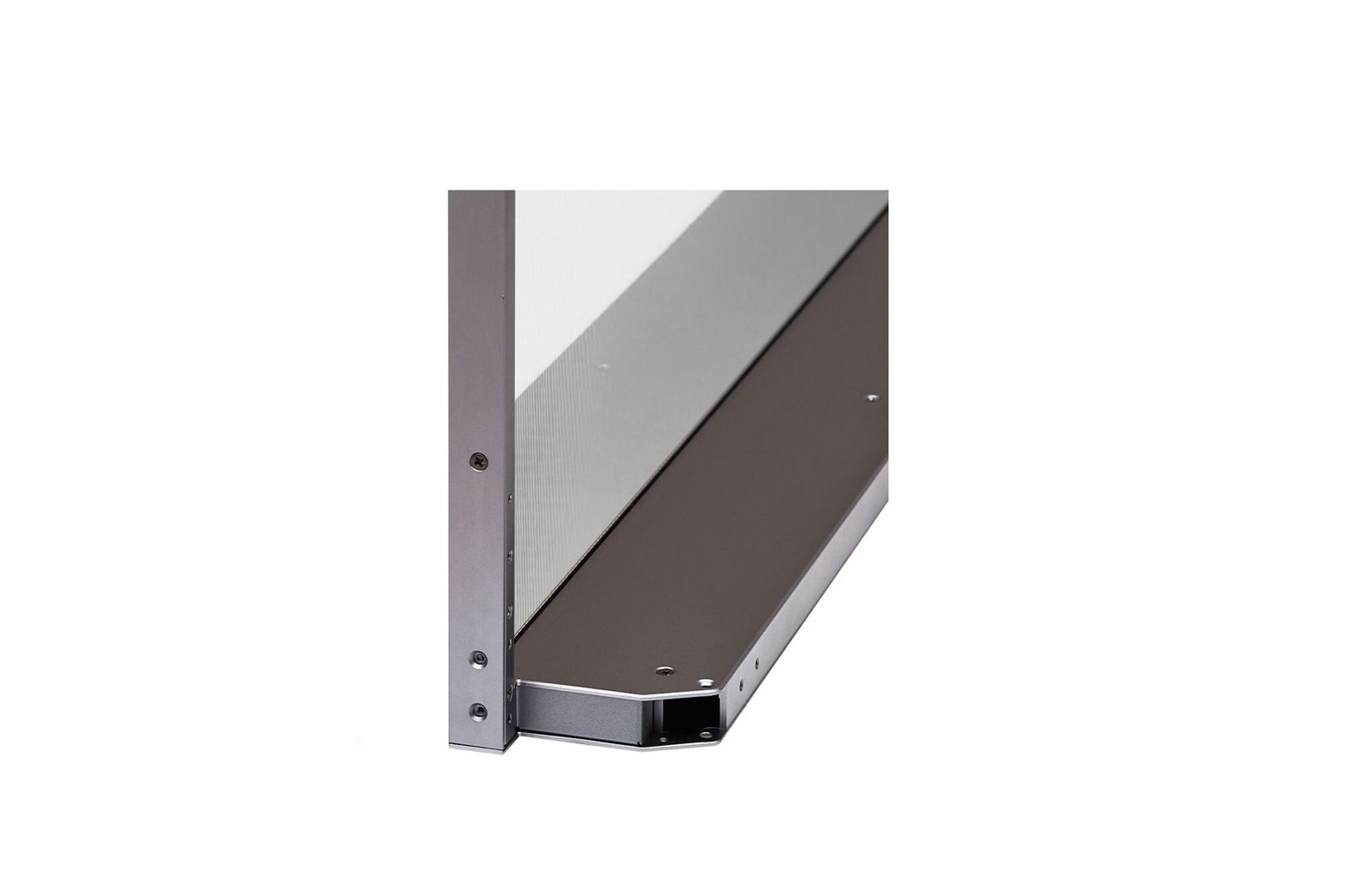

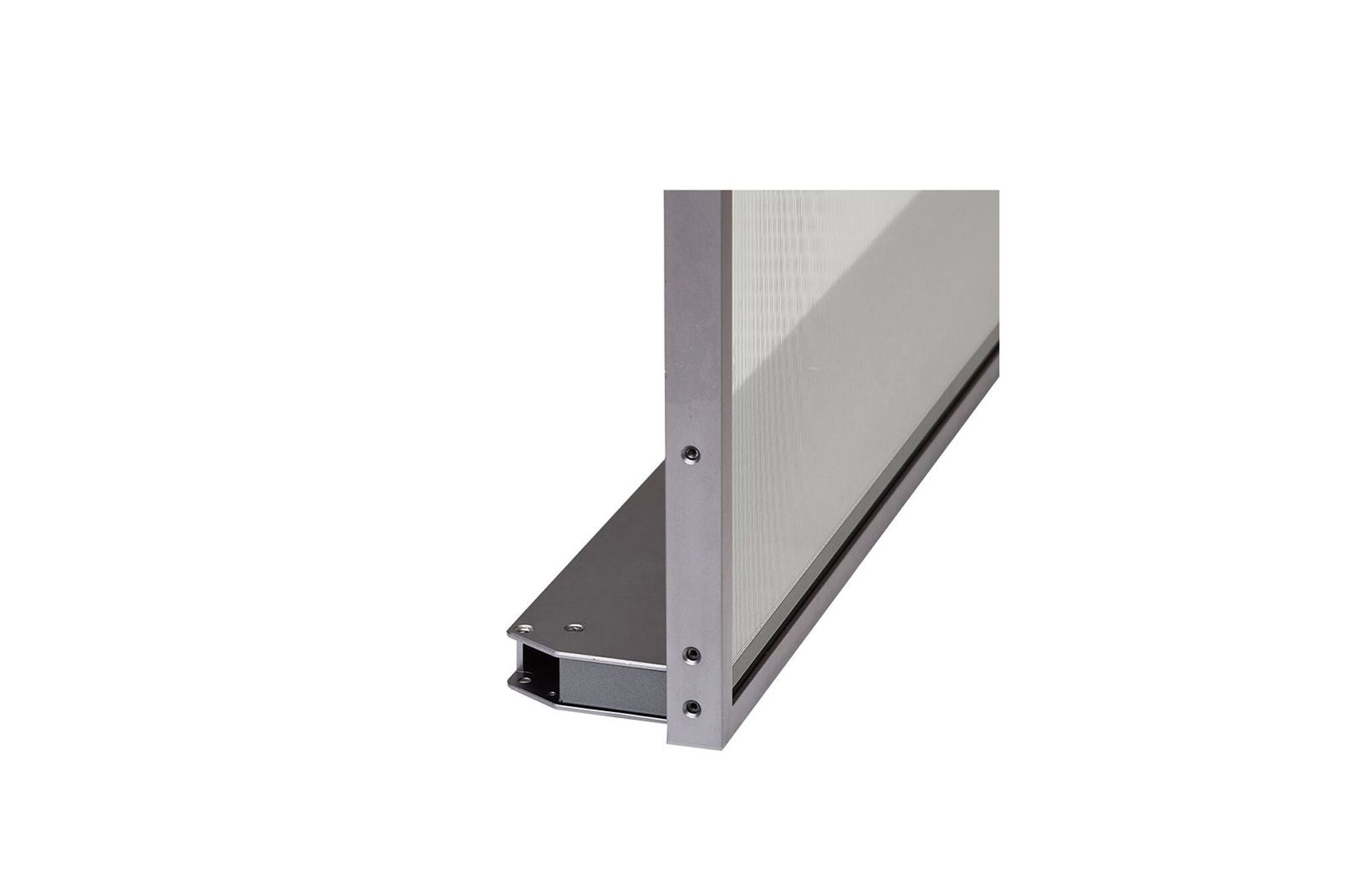

A 3.0 mm chemically strengthened, shatter-proof protection glass with anti-reflective film and a 5H hard coating protects the panel. The even 12.2 mm transparent bezel, included tiling brackets and a separate signage box keep multi-panel installations clean.
webOS 7.5 and LG Management Software
LG webOS 7.5 with 16 GB internal memory handles local contents scheduling, USB Plug & Play, gapless playback and Tile Mode. The display is compatible with LG SuperSign CMS, SuperSign Cloud, SuperSign Control+ and LG ConnectedCare.
Planning a transparent OLED installation? Email sales@sourceit.com.sg with your layout, background and content plan, and we will help you scope it.
LG 55EW5P-M Datasheet — Technical Specifications
General
| Product Name | LG 55EW5P-M 55" Transparent OLED Signage |
| Part Number | 55EW5P-M |
| Series | EW5P Transparent OLED |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 55" |
| Panel Technology | OLED (transparent) |
| Native Resolution | 1,920 x 1,080 (FHD), 16:9 |
| Refresh Rate | 120 Hz |
| Brightness | 200 / 600 nit (APL 100% / 25%, without glass) |
| Contrast Ratio | 200,000:1 |
| Colour Gamut | DCI 90%, BT709 110% |
| Colour Depth | 10 bit (R), 1.07 billion colours |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 0.1 ms (G to G), 8 ms (MPRT) |
| Transparency (Typ.) | 43% (set) |
| Surface Treatment | Haze 3% (set), hard coating (5H) |
| Panel Life | 30,000 hours (typ.) |
| Operation Hours | 18 hours / 7 days (moving content only) |
| Portrait / Landscape | Yes / Yes |
Protection Glass
| Thickness | 3.0 mm |
| Strengthening | Chemical strengthening |
| Anti-Reflective | Yes (film) |
| Shatter-Proof | Yes |
Connectivity

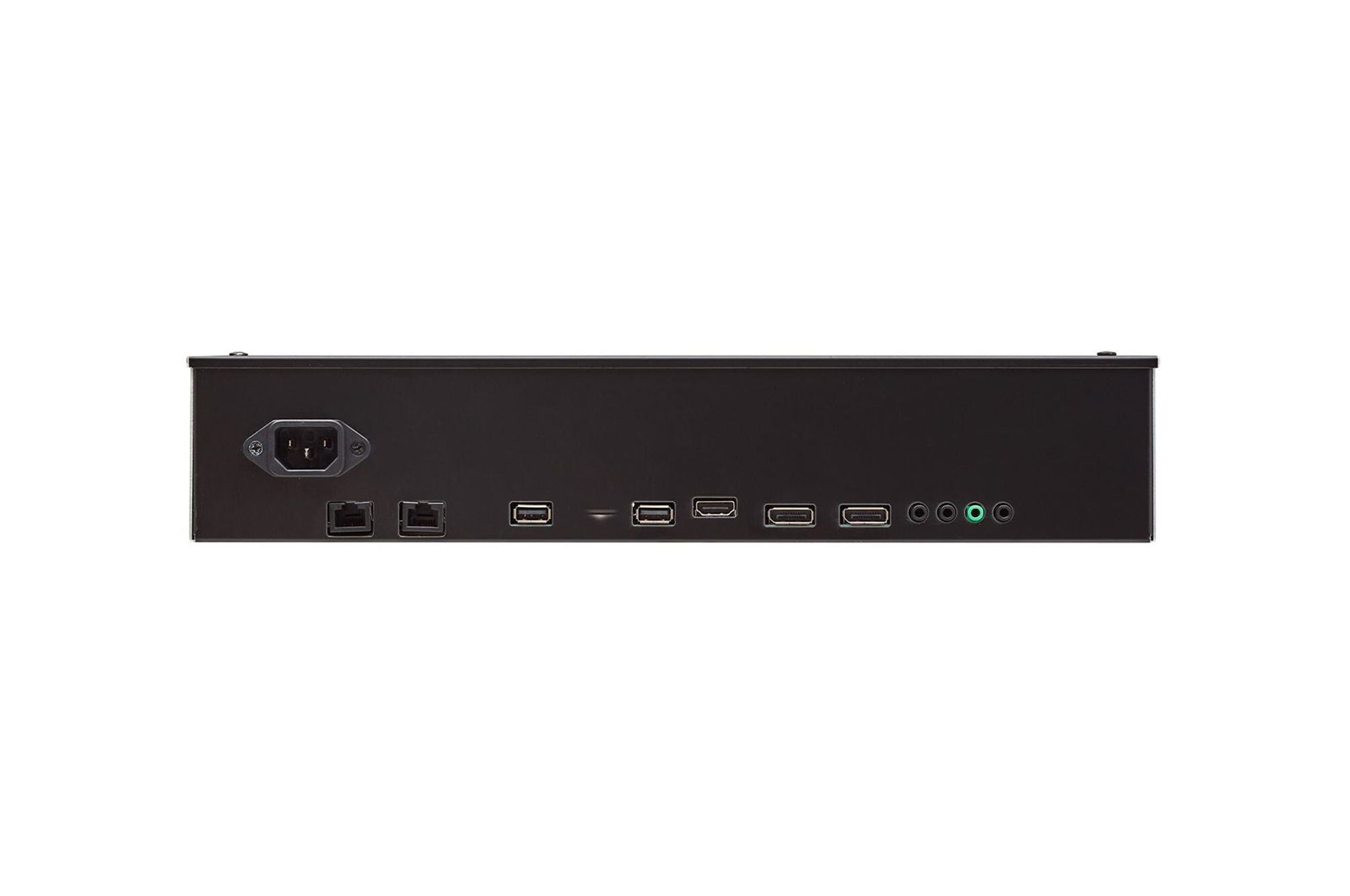

| Inputs | HDMI (HDCP 2.2/1.4), DP (HDCP 1.3), RS-232C, RJ45 (LAN), IR (external IR receiver), USB 2.0 Type-A x 2; daisy chain (HDMI, DP) |
| Outputs | DP, audio, RS-232C, RJ45 (LAN), IR (sharing RS-232C); daisy chain (DP) |
Mechanical

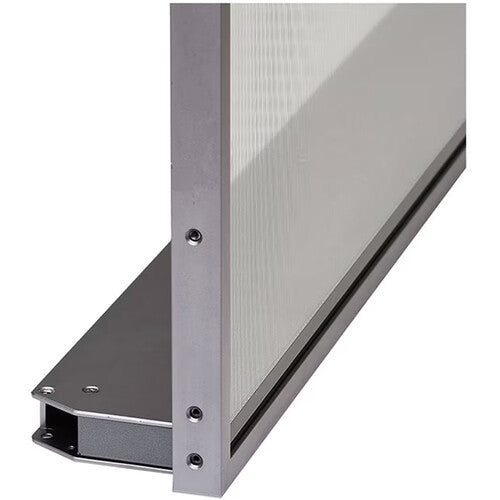

| Bezel | Transparent, even 12.2 mm (T/R/L/B) |
| Dimensions — Head (W x H x D) | 1,237.6 x 717.9 x 86.5 mm |

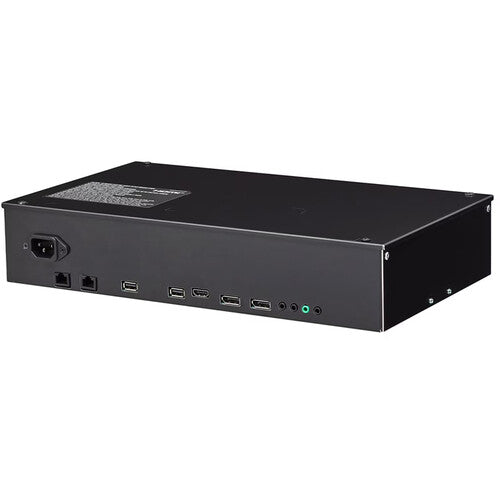

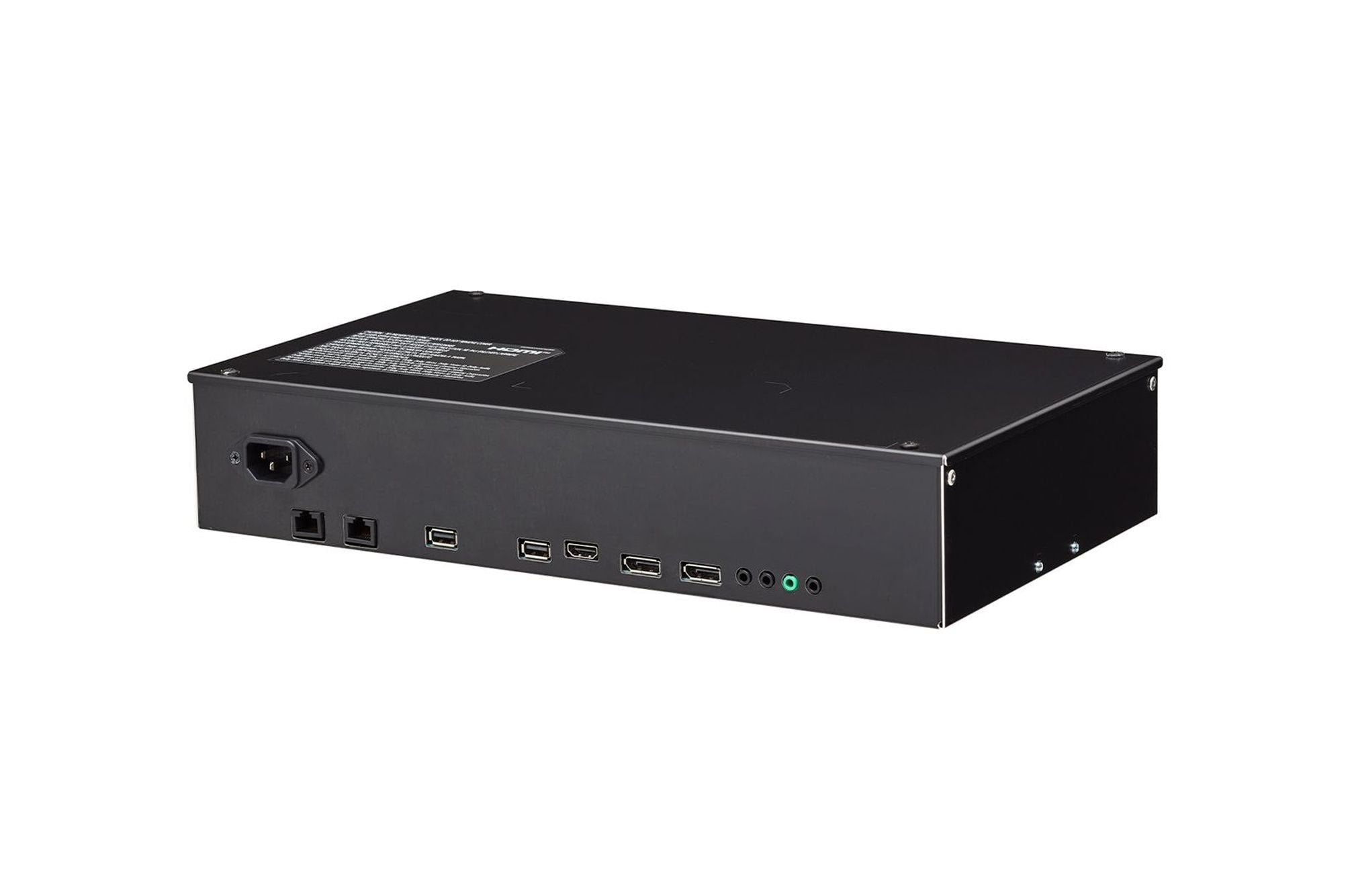

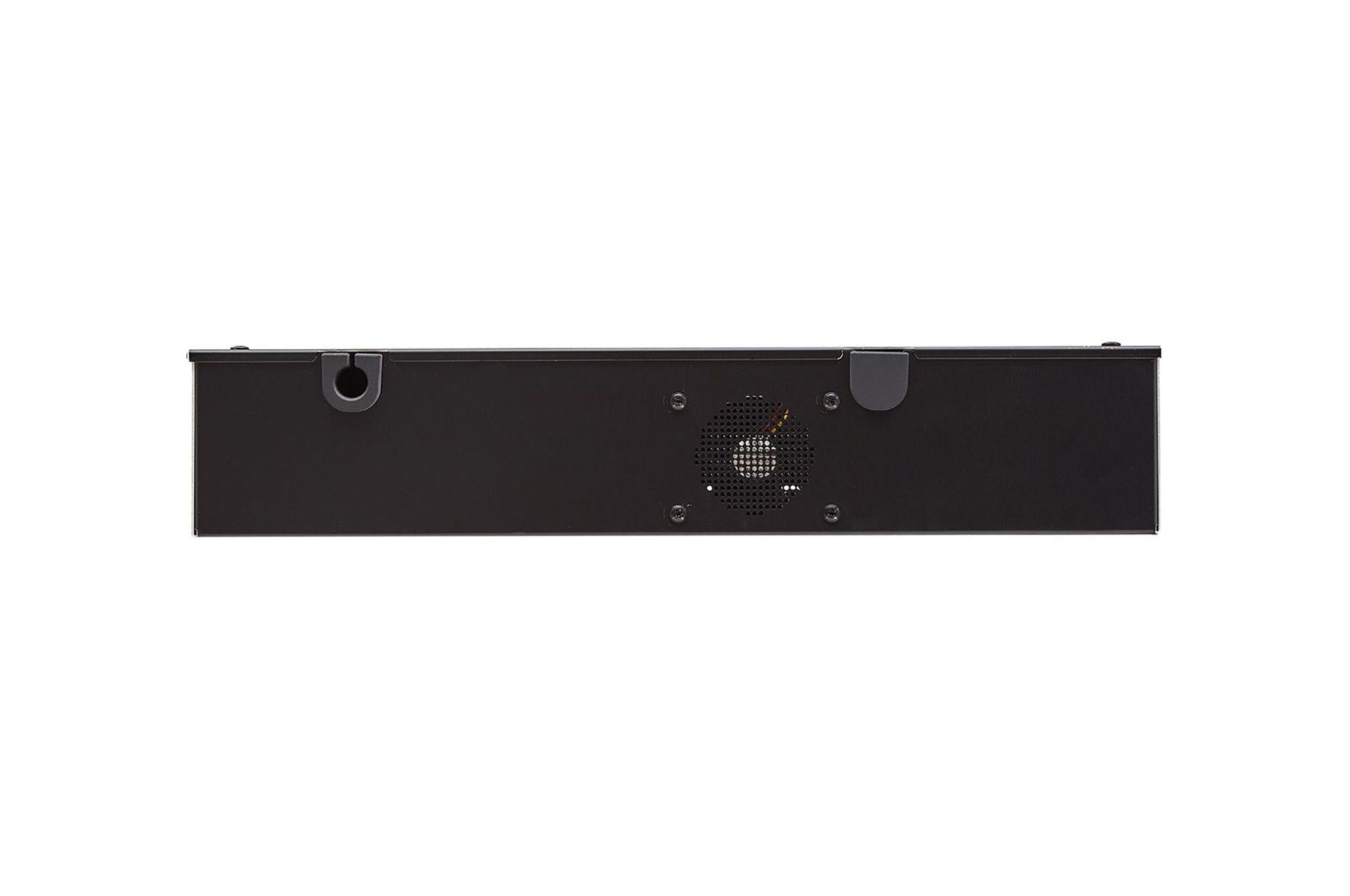

| Dimensions — Signage Box (W x H x D) | 381.6 x 217.6 x 73.6 mm |
| Weight | 14.1 kg (head), 2.6 kg (signage box) |
| Carton Dimensions (W x H x D) | 1,368 x 245 x 957 mm |
| Packed Weight | 30.0 kg |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 70 W typ. (IEC 62087) / 230 W max.; DPM 0.5 W; power off 0.5 W |
| Heat Dissipation | 239 BTU/hr (typ.), 785 BTU/hr (max.) |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80% |
| Conformal Coating (Power Board) | Yes |
Certifications
| Safety | CB / NRTL |
| EMC | FCC Class A / CE / KC |
| ErP | Yes |
Compatibility & Software Support
Platform
LG webOS 7.5 with 16 GB internal memory (eMMC). Features listed by LG include local contents scheduling, Group Manager, USB Plug & Play, Fail Over, RS-232C and local network sync, Video Tag (4), screen and external-input rotation, gapless playback, Tile Mode, setting data cloning, ISM method, Auto Set ID, status mailing, HDMI-CEC and scan inversion. Temperature sensor built in.
LG Software
| SuperSign CMS | Yes |
| SuperSign Cloud | Yes |
| SuperSign Control+ | Yes |
| LG ConnectedCare | Yes |
| Mobile CMS | Yes |
Control & Integration
SNMP, Control Manager, Wake on LAN, PM Mode and SI Server Setting.
Package Contents & Transparent OLED Ordering Information
In the Box
Remote controller, power cord, quick setup guide, IR receiver, regulation book, phone-to-RS232C gender, MCX / harness cables (3 m x 4 / 3 m x 2, panel to signage box), DP cable (2 m), LAN cable (1.5 m), RS-232 cable (4P-4P, 1.5 m), LC cable (VLC, 3 m), screws (M3 x L5.5 black x 24, M3 x L5.5 silver x 8, M3 x L6 black x 14), cover shield assembly (1), cable rubbers (2), cable cap assemblies (2), tiling brackets (2), signage box wing brackets (2).
Wall, ceiling or floor mounting hardware and installation are not included in the price.
LG OLED Signage on SourceIT
| Size | Part No. |
| 65" | 65EP5Q |
| 55" (this listing) | 55EW5P-M |
Datasheet & Downloads
| LG product page (Singapore) | 55EW5P-M on lg.com/sg |
| LG spec sheet and datasheet (PDF) | 55EW5P-M on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 55EW5P-M.
Frequently Asked Questions — LG 55EW5P-M
How transparent is it?
LG rates transparency at 43% (typ., set).
Can it run 24/7?
No. LG specifies 18 hours a day, 7 days a week with moving content only, and a typical panel life of 30,000 hours.
Can it be installed in portrait?
Yes. LG lists both portrait and landscape orientation.
Is mounting hardware included?
Tiling brackets and signage box wing brackets are included in the box, but wall, ceiling or floor mounting hardware and installation are quoted separately.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
