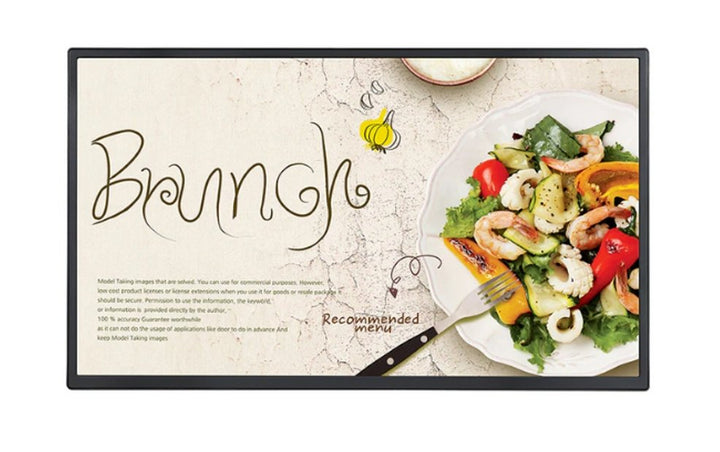

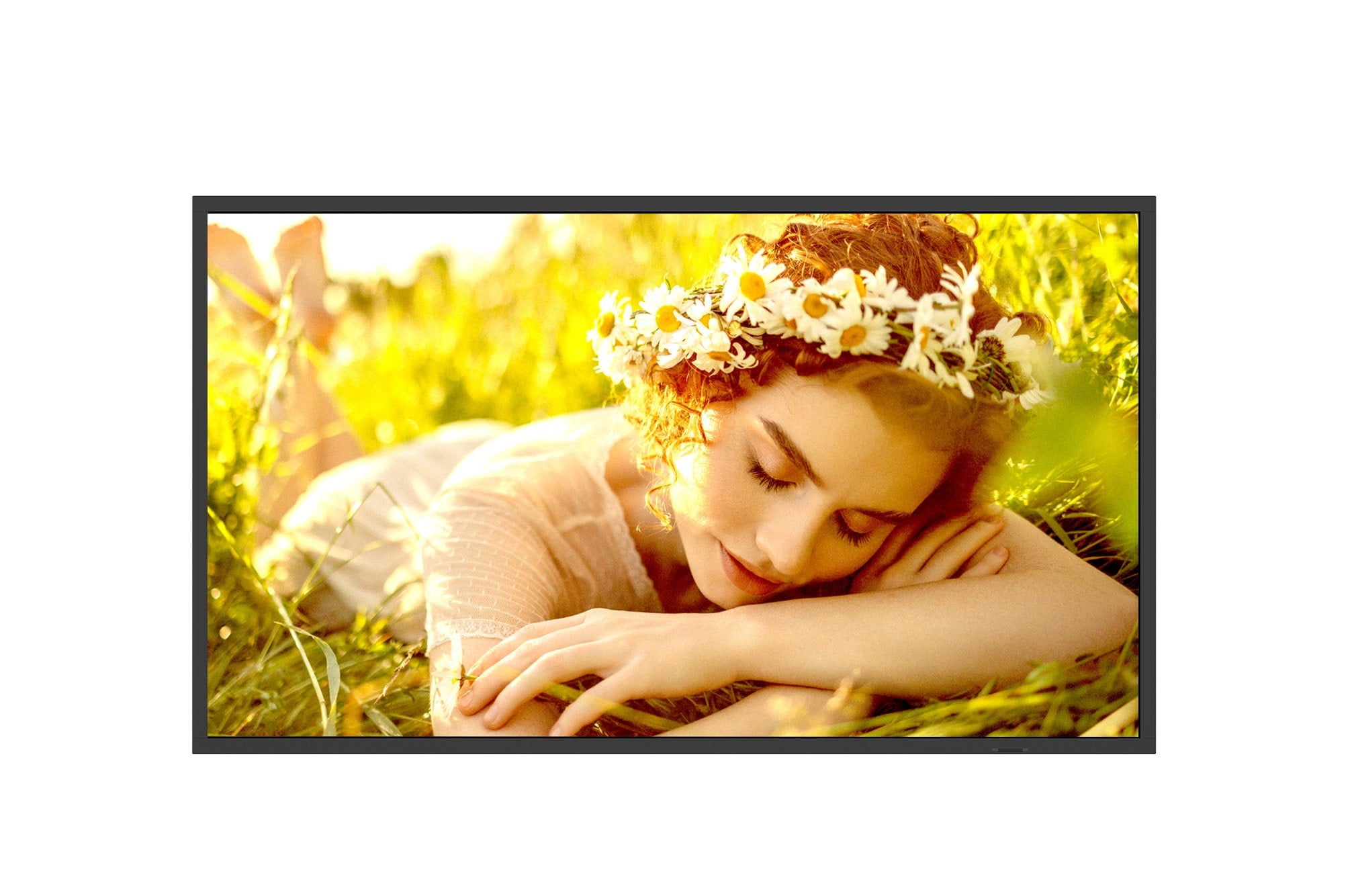

LG 32UL5Q-M 32" FHD Signage Display, 500 nit, 24/7, webOS 6.1
PRODUCT DESCRIPTION
LG 32UL5Q-M 32" FHD Standard Signage with webOS (32UL5Q-M) - 3 Years Local Warranty
Compact Full HD Signage for 24/7 Operation
The LG 32UL5Q-M is a 32-inch Full HD (1,920 x 1,080) signage display with 500 nit (typ.) brightness, a 25% haze anti-glare surface and 4,000:1 contrast. LG rates it for 24/7 operation with a minimum panel life of 50,000 hours — a good fit for counters, menu boards, wayfinding and meeting-room doors.

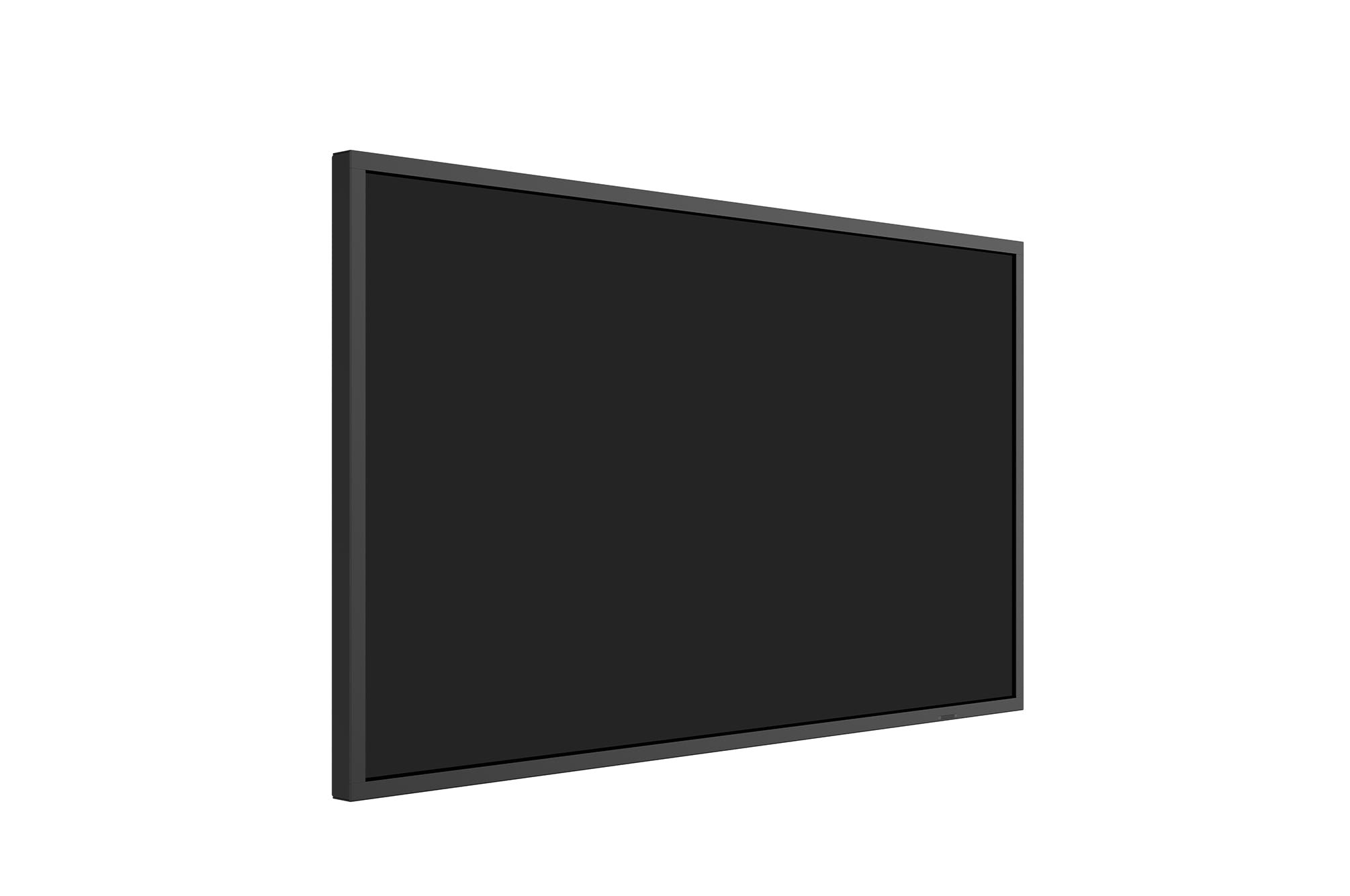

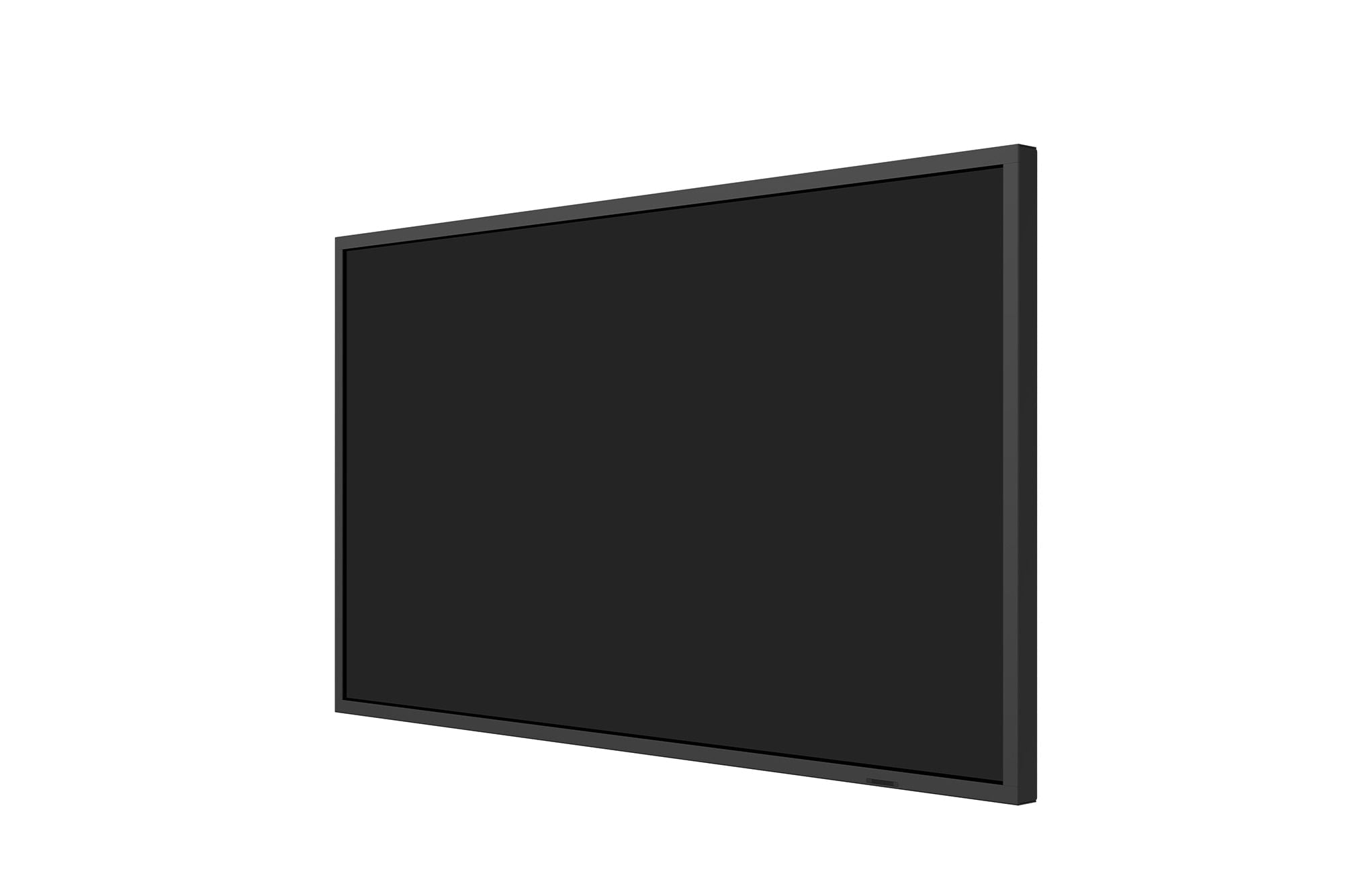

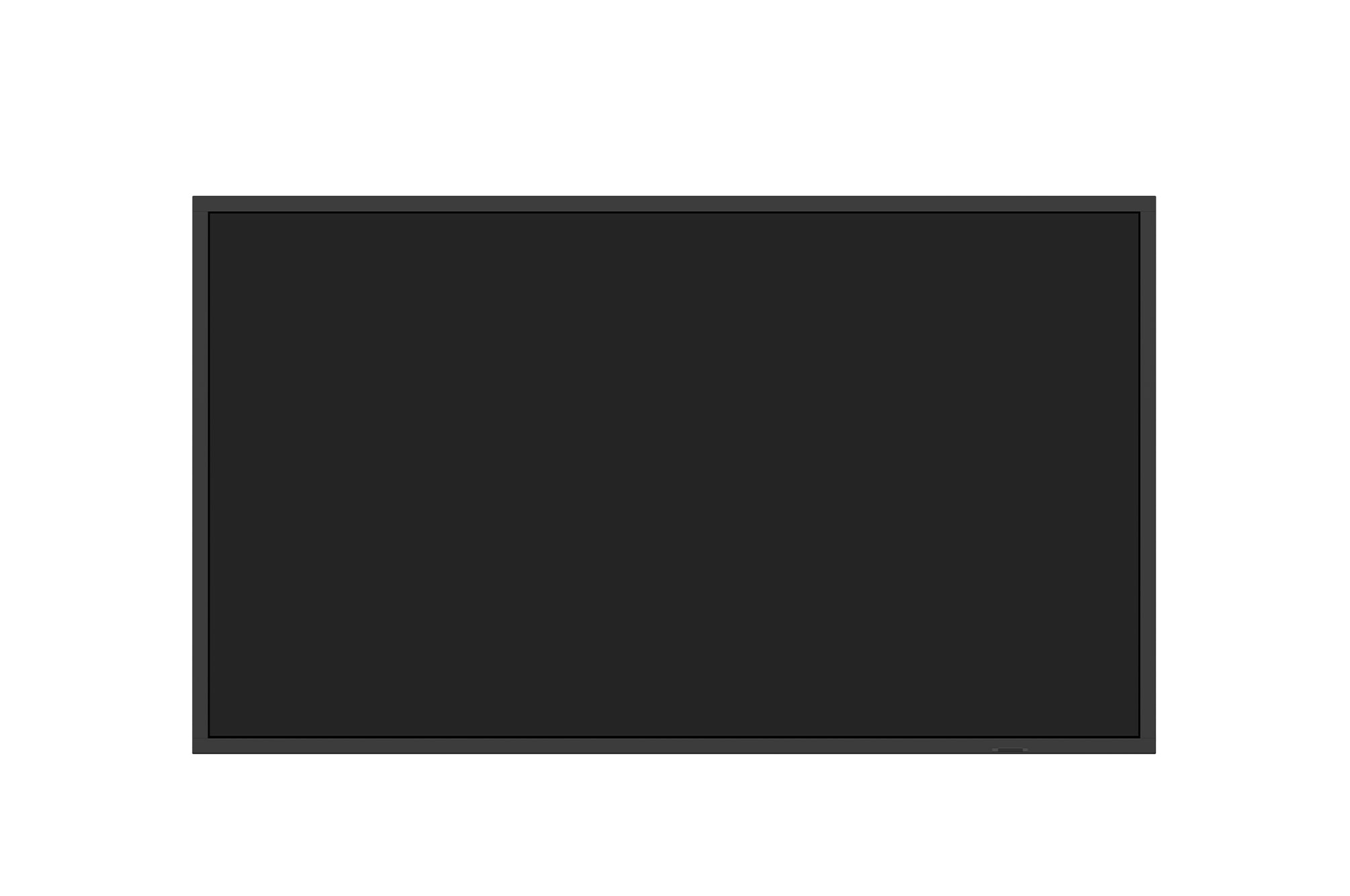

Even Bezel and Flexible Mounting

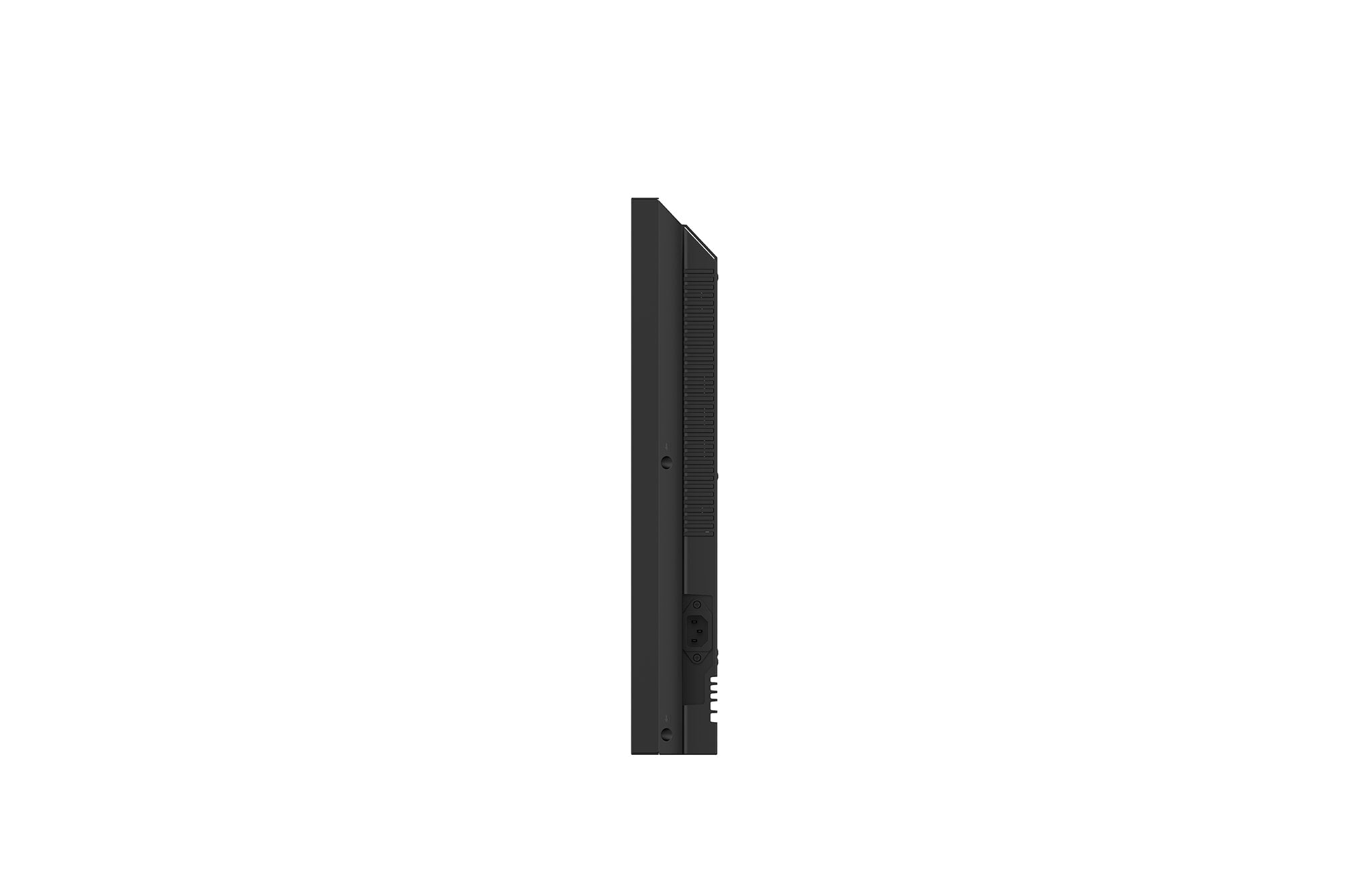

An 11.9 mm even bezel, 65 mm depth and 5.4 kg head weight make it easy to place. LG supports landscape and portrait orientation plus face-up and face-down tilt of up to 15°.
webOS 6.1 Built In — No External Player Needed
LG webOS 6.1 runs content from 8 GB internal memory or USB Plug & Play, with local scheduling, Play via URL, gapless playback, Screen Share and Video Tag. Built-in Wi-Fi and Bluetooth, plus temperature, auto-brightness and gyro sensors, are included.
Remote Monitoring and Control
The display is compatible with LG SuperSign CMS, SuperSign Cloud, SuperSign Control+ and LG ConnectedCare, and supports Crestron Connected, SNMP and Wake on LAN. LG lists conformal coating on the power board.
Need help choosing a small signage display? Email sales@sourceit.com.sg with your location, mounting and content source, and we will recommend the right model.
LG 32UL5Q-M Datasheet — Technical Specifications
General
| Product Name | LG 32UL5Q-M 32" FHD Standard Signage |
| Part Number | 32UL5Q-M |
| Series | UL5Q-M FHD Signage |
| Local Warranty (Singapore) | 3 years on-site, supplied by SourceIT with a GST invoice |
Panel
| Screen Size | 32" |
| Panel Technology | VA |
| Backlight | Direct |
| Native Resolution | 1,920 x 1,080 (FHD), 16:9, 60 Hz |
| Brightness | 500 nit (typ.) |
| Contrast Ratio | 4,000:1 (typ.); dynamic 1,000,000:1 |
| Colour Gamut | NTSC 72% |
| Colour Depth | 16.7 million colours (8 bit true) |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8 ms (G to G) |
| Surface Treatment (Haze) | 25% |
| Panel Life (Min.) | 50,000 hours |
| Operation Hours | 24/7 |
| Portrait / Landscape | Yes / Yes |
| Tilt (Face Up / Face Down) | 15° / 15° |
Connectivity

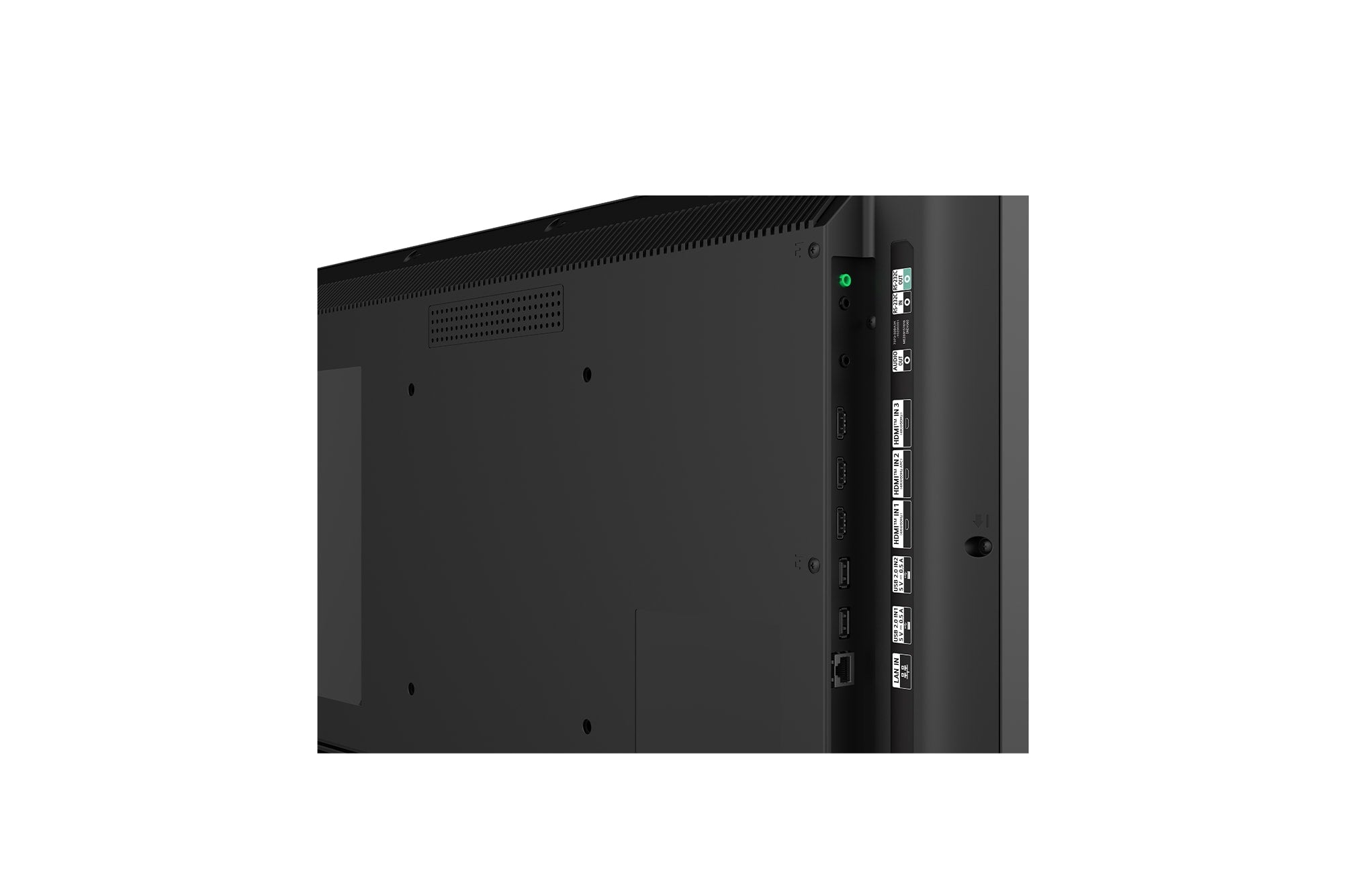

| Inputs | HDMI x 3 (HDCP 2.2/1.4), RS-232C (4-pin phone jack), RJ45 (LAN), USB 2.0 Type-A x 2 |
| Outputs | Audio, RS-232C (phone jack) |
| Wireless | Wi-Fi and Bluetooth (built-in) |
| Speakers | 10 W x 2 |
Mechanical
| Bezel | Black, 11.9 mm (even) |
| Dimensions (W x H x D) | 725.2 x 420.1 x 65 mm |
| Weight (Head) | 5.4 kg |
| Carton Dimensions (W x H x D) | 825 x 525 x 135 mm |
| Packed Weight | 7.2 kg |

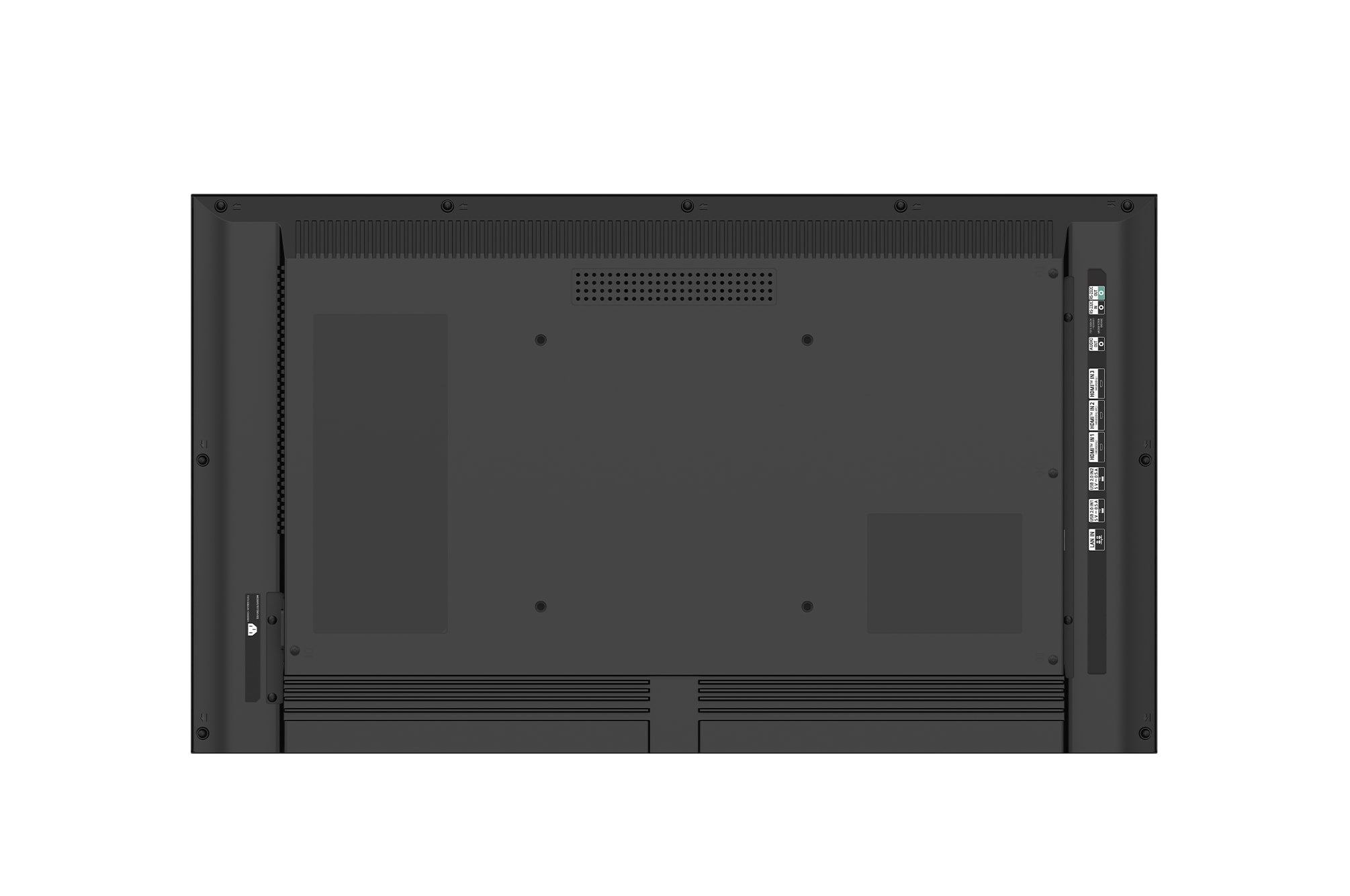

| VESA Mount | 200 x 200 mm |
Power & Environment
| Power Supply | AC 100–240 V, 50/60 Hz, built-in power |
| Power Consumption | 44 W typ. / 85 W max.; Smart Energy Saving (70%) 31 W; DPM 0.5 W; power off 0.5 W |
| Heat Dissipation | 150.1 BTU/hr (typ.), 290.0 BTU/hr (max.) |
| Operating Temperature | 0 °C to 40 °C (portrait: 0 °C to 35 °C) |
| Operating Humidity | 10% to 80% |
| Conformal Coating (Power Board) | Yes |
Certifications
| Safety | CB / UL |
| EMC | FCC Class B / CE / KC |
| ErP / Energy Star | No / Yes |
Compatibility & Software Support
Platform
LG webOS 6.1 with 8 GB internal memory (eMMC). Features listed by LG include local contents scheduling, Group Manager, USB Plug & Play, Fail Over, booting logo and no-signal image, RS-232C and local network sync, Screen Share, Video Tag (4), Play via URL, screen and external-input rotation, gapless playback, Tile Mode setting, setting data cloning, ISM method, Auto Set ID, status mailing, Beacon, HDMI-CEC, SI server setting, webRTC and Pro:Idiom.
LG Software
| SuperSign CMS | Yes |
| SuperSign Cloud | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| LG ConnectedCare | Yes |
| Mobile CMS | Yes |
Control & Integration
Crestron Connected, SNMP, Control Manager, Wake on LAN, Network Ready, PM Mode and Smart Energy Saving.
Package Contents & UL5Q-M Series Ordering Information
In the Box
Remote controller, power cord, regulation book, phone to D-Sub9 gender.
Wall brackets and installation are not included in the price.
UL5Q-M Series Models
| Size | Part No. |
| 32" FHD (this listing) | 32UL5Q-M |
LG also offers the UL5Q-M series in larger UHD sizes (for example 43UL5Q-M, 55UL5Q-M and 75UL5Q-M); email us for availability. Related small signage in stock: LG 32SM5J-B and LG 22SM3G-B.
Datasheet & Downloads
| LG product page (Hong Kong) | 32UL5Q-M on lg.com/hk_en |
| LG spec sheet and datasheet (PDF) | 32UL5Q-M on LG Commercial Display |
| Manuals | LG Business manual download |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 32UL5Q-M.
Frequently Asked Questions — LG 32UL5Q-M
Can it run content without a media player?
Yes. webOS 6.1 plays content from its 8 GB internal memory, USB Plug & Play or a URL, and works with LG SuperSign CMS and SuperSign Cloud for scheduling.
Is it suitable for 24/7 use?
Yes. LG rates the 32UL5Q-M for 24/7 operation with a minimum panel life of 50,000 hours.
Can it be mounted in portrait or tilted?
Yes. LG lists portrait and landscape orientation and face-up/face-down tilt of up to 15°. In portrait, LG's operating temperature range is 0 °C to 35 °C.
Is a wall bracket included?
No. Wall mounting brackets and installation are quoted separately; the VESA pattern is 200 x 200 mm.
What warranty do I get?
3 years local on-site warranty in Singapore, supplied by SourceIT with a GST invoice.
