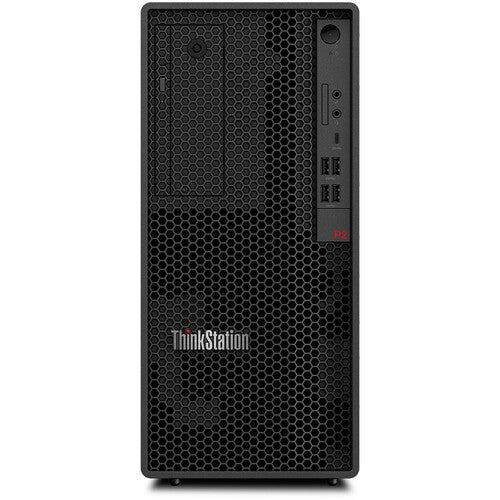

Lenovo ThinkStation P2 Tower Gen 2 Ultra 7 265/ 16GB/ 512GB SSD
PRODUCT DESCRIPTION
Lenovo ThinkStation P2 Tower Gen 2 Workstation, Core Ultra 7 265 / 16 GB / RTX 2000 Ada Generation 16 GB (30JQ007HSG) - 3 Years Premier Support, Singapore Local Warranty
Core Ultra 7 265 in a 17-litre workstation chassis
The build sheet specifies an Core Ultra 7 265 — 20 (8 P-core + 12 E-core) cores and 20 threads, 36MB L2 / 30MB Intel Smart Cache, boosting up to 5.3GHz (P-core 5.2GHz / E-core 4.6GHz) per Lenovo's processor table. Lenovo's own summary line for this machine type reads "Up to one 125W Intel Core Ultra (Series 2) processor; supports up to 24 cores; up to 5.7GHz", and it publishes no per-processor wattage beyond that platform statement.
Memory: read the population table before you fill all four slots
This build ships 16 GB of DDR5-5600 UDIMM. Lenovo publishes something for this machine type that most vendors leave out — the speed each population actually runs at. One or two modules of 8, 16 or 32 GB run at 5600 MT/s; four modules of 8 or 16 GB drop to 4800; and the maximum 4x 32 GB configuration runs at 4400 MT/s. So the 128 GB ceiling costs you memory speed, and nobody should quote you 128 GB at 5600.
Where the P2 stops and the P3 starts
The P2 Tower Gen 2 and the P3 Tower Gen 2 share the same processors, the same FCLGA1851 socket, the same W880 chipset and the same four-slot PCIe layout. Stepping up is not a processing decision. What the larger machine buys you is headroom: 256 GB of memory against 128 GB, and a graphics ceiling of RTX PRO 6000 Blackwell at 96 GB against the P2's RTX PRO 4000 Blackwell at 24 GB, in a 27-litre chassis with a 1100 W supply option. If the workload fits inside 24 GB of video memory and 128 GB of system memory, the P2 is the right machine and the P3 is money spent on space you will not use.
17 litres, four slots, a single 512 GB SSD
170 x 315.35 x 376 mm and 9.67 kg in maximum configuration. Four PCIe slots: a PCIe 5.0 x16 double-width graphics position rated 75 W, a PCIe 4.0 x16 connector running at x4 lanes, and two open-ended PCIe 3.0 x1. Power on this part number is where the sources part company - see the note in the compatibility section below. Networking is a single onboard Intel I219-LM gigabit port with vPro Enterprise and AMT 16. Lenovo publishes no rack-mount option and no rail kit for this machine type.
Lenovo ThinkStation P2 Tower Gen 2 Datasheet — Technical Specifications
General
| Brand | Lenovo |
| Product name | ThinkStation P2 Tower Gen 2 |
| Machine type | 30JQ |
| Part number | 30JQ007HSG |
| Product category | Tower workstation |
| Warranty as configured | 3 Years Premier Support, Singapore Local Warranty |
| Sold and supported by | SourceIT Pte Ltd, Singapore |
This Configuration — From the Distributor Build Sheet for 30JQ007HSG
| Processor | Intel® Core™ Ultra 7 265 vPro® Processor |
| Cores / threads | not stated on the build sheet; Lenovo publishes 20 cores (8 P-core + 12 E-core) and 20 threads for this processor |
| Clock speeds as printed on the build sheet | E-cores up to 4.60 GHz, P-cores up to 5.20 GHz |
| Graphics | NVIDIA RTX™ 2000 Ada Generation 16GB GDDR6 |
| Memory installed | 16 GB |
| Memory type and speed | DDR5-5600MT/s (UDIMM) |
| Memory modules | not stated on the build sheet |
| Storage | 512 GB SSD M.2 2280 PCIe Gen4 Performance TLC Opal |
| Second drive | none stated on the build sheet |
| Chipset | Intel® W880 Chipset |
| Power supply | 550W Platinum Fixed as printed on the build sheet - Lenovo publishes 500W and 750W for this machine type, see the note below |
| Wired network | Intel® I219-LM, 1x GbE RJ-45 |
| Wireless | Intel® Wi-Fi 7 BE200 2x2 BE vPro® & Bluetooth® 5.4 |
| Display output on the build sheet | USB-C / DP |
| Keyboard and mouse | USB Keyboard & Mouse |
| Operating system | Windows 11 Pro 64 English (US) / English (UK) |
| Warranty stated on build sheet | 3 Year Premier Support |
Chassis and Platform — From Lenovo PSREF
| Lenovo official model name | ThinkStation P2 Tower Gen 2 |
| Lenovo support-site product name | P2 Tower Gen 2 Workstation (ThinkStation) |
| Machine type | 30JQ (from Lenovo's support catalogue; the PSREF book prints no machine type numbers) |
| PSREF book date | September 02 2026 |
| Withdrawal status | not marked withdrawn in the PSREF book |
| Form factor | Tower (17L) |
| Chassis dimensions | 170 x 315.35 x 376 mm (6.7 x 12.4 x 14.8 inches, with feet) |
| Weight | 9.67 kg (21.32 lbs, maximum configuration) |
| Rack mounting | not published (no rack-mount option and no rail kit appears in this book) |
| Processor summary as published | Up to one 125W Intel® Core™ Ultra (Series 2) processor; supports up to 24 cores; up to 5.7GHz |
| Processor socket | 1x FCLGA1851 |
| Chipset | Intel® W880 chipset |
| Processor options published | Core Ultra 5 225, Core Ultra 5 235, Core Ultra 5 235A, Core Ultra 5 245, Core Ultra 5 245K, Core Ultra 5 250K Plus, Core Ultra 7 265, Core Ultra 7 265K, Core Ultra 7 270K Plus, Core Ultra 9 285, Core Ultra 9 285K |
| Processor TDP | not published (no per-processor TDP column exists; the only wattage figure is the platform summary line above) |
| Memory type | DDR5-5600 UDIMM, ECC or non-ECC, maximum transfer speeds of up to 5600 MT/s |
| Memory slots | Four DDR5 UDIMM slots, dual-channel capable |
| Maximum memory | Up to 128GB (4x 32GB DDR5 UDIMM) |
| Memory population speeds as published | 1x 8GB / 2x 8GB / 1x 16GB / 2x 16GB / 1x 32GB / 2x 32GB run at 5600 MT/s; 4x 8GB and 4x 16GB run at 4800 MT/s; 4x 32GB runs at 4400 MT/s |
| ECC support | ECC on models with ECC DIMMs |
| Storage | Up to 2x 3.5-inch SATA HDD; also supports up to 4x M.2 SSD (3 onboard, 1 via a Single M.2 to PCIe® adapter) |
| M.2 slots | 2 onboard M.2 PCIe® 4.0 slots; 1 onboard M.2 PCIe® 5.0 slot; 1 via Single M.2 to PCIe® adapter running on the PCIe® 3.0 protocol. A separate M.2 slot carries the WLAN card |
| Drive bays | Three internal disk bays: up to two 3.5-inch bays plus one 2.5-inch bay |
| RAID | Integrated SATA controller: RAID 0/1. Integrated NVMe® controller: RAID 0/1/5 |
| Maximum per-drive capacity | not published |
| Graphics options published | NVIDIA® RTX PRO 4000 Blackwell 24GB GDDR7 with ECC; NVIDIA® RTX PRO 2000 Blackwell 16GB GDDR7 with ECC; NVIDIA® RTX 4000 Ada Generation 20GB GDDR6 with ECC; NVIDIA® RTX 2000 Ada Generation 16GB GDDR6 with ECC; NVIDIA® RTX A1000 8GB GDDR6; NVIDIA® RTX A400 4GB GDDR6 |
| RTX A2000 in this book | not published - the RTX A2000 was offered on the previous ThinkStation P2 Tower and does not appear in the Gen 2 book |
| Expansion slots | Four PCIe® slots: one PCIe® 5.0 x16, one PCIe® 4.0 x16 and two PCIe® 3.0 x1 |
| Slot detail | Slot 1: PCIe 5.0 x16, full height, length <= 268mm, 75W, double-width; Slot 2: PCIe 3.0 x1, full height / half length, 25W, open-ended; Slot 3: PCIe 4.0 x16 connector running at x4 lanes, full height / half length, 25W; Slot 4: PCIe 3.0 x1, full height / half length, 25W, open-ended |
| Front ports | 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm). Optional SD card reader |

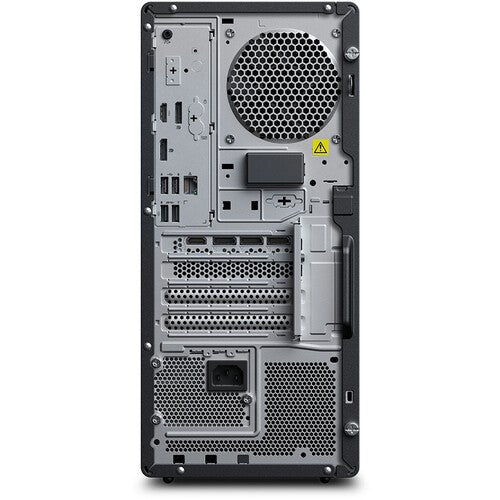

| Rear ports | 2x USB-A (Hi-Speed USB / USB 2.0); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI® 2.1 TMDS; 2x DisplayPort™ 1.4; 1x Ethernet (GbE RJ-45); 1x line-out (3.5mm) |
| Displays from the integrated graphics | 3 by onboard ports (2x DP, 1x HDMI®). The book's "12 independent displays" figure is the system maximum once discrete cards are added, not an integrated-graphics capability |
| Onboard network | Intel® Ethernet Connection I219-LM, 1x RJ-45, supports Wake-on-LAN - one onboard port, not two. No onboard 2.5GbE |
| Management | Intel® vPro® Enterprise with Intel® AMT 16 |
| Wireless | Intel® Wi-Fi® 7 BE200, 802.11be 2x2 Wi-Fi® + Bluetooth® 5.4 with vPro® support; or no WLAN and Bluetooth® |
| Audio | High Definition (HD) Audio, Realtek® ALC623-CG codec; single 2W speaker |
| Power supply options | 500W Fixed 92%; 750W Fixed 92% |
| Power supply efficiency wording | Autosensing, 80 PLUS Platinum qualified |
| Cooling | not published |
| Acoustics | not published |
| Total system power consumption | not published |
| Security chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical security | Optional E-lock; Kensington® Security Slot™, 3 x 7 mm; padlock loop; chassis intrusion switch offered or omitted |
| Operating systems published | Windows® 11 Pro; Windows® 11 Home; Windows® 11 Home Single Language; Ubuntu Linux LTS; Red Hat Enterprise Linux 10; no preload |
| Certifications | ENERGY STAR® 9.0 (optional); EPEAT 1.0 Gold Registered (optional); EPEAT 2.0 Gold and Silver Registered (optional); RoHS compliant; TCO Certified generation 10 |
| AI PC Category (Lenovo's own field, verbatim) | AI-Ready Workstations |
| NPU | Intel® AI Boost, up to 13 TOPS on every published processor |
| Copilot+ PC | not published - the phrase does not appear in this book, and the 13 TOPS NPU is below the 40 TOPS bar |
| ISV certifications | not published as a list - the book gives a reference link only |
| Base warranty options published | 1-year limited onsite service, 2-year limited onsite service, 3-year limited onsite service, No base warranty |
| Premier Support in the base-warranty list | not published - the phrase Premier Support does not appear in this PSREF book |
Compatibility & Fit
Why this page carries two specification tables
Lenovo's PSREF specification book is published per machine type, not per part number. It lists the processor, graphics card, memory speed, operating-system edition and warranty term as options the machine type can be built with — it never says which of them this particular part number actually shipped with. The distributor build sheet does state those per-SKU fields. So this page keeps the two apart: the build-sheet table describes the unit we sell, and the PSREF table describes the chassis and platform it is built on. Anything neither source states is marked not stated rather than estimated.
Warranty on this configuration
Lenovo's published base warranty options for this machine type are 1-year, 2-year and 3-year limited onsite service, or no base warranty. The distributor build sheet for this part number documents 3 Year Premier Support, which is a configured Lenovo service level rather than the bare base term — that is the cover quoted in the heading above. Lenovo's PSREF book for this machine type does not list Premier Support among its base warranty terms, so treat it as the configured service level recorded by the distributor and ask us to confirm it on the quotation. The previous version of this page described the same cover as "3 Years Local Warranty", which is a different thing from Premier Support; we have used the wording the build sheet actually documents.
Where the build sheet and Lenovo's book disagree on the power supply
The build sheet for this part number states 550W Platinum Fixed. Lenovo's specification book for the ThinkStation P2 Tower Gen 2 publishes two power supplies, 500W Fixed and 750W Fixed, both at 92 per cent autosensing and 80 PLUS Platinum qualified. A 550 W option does not appear in Lenovo's book. The five sibling listings in this family record 750 W instead. We have printed the build sheet's figure and Lenovo's list side by side rather than picking one, and we would ask the distributor to settle it before you order if the supply wattage matters to your configuration.
What the old page said that we have not repeated
The previous copy described a "20-core Intel Core Ultra 7 265". Lenovo does publish 20 cores for that processor, but the build sheet for this part number states no core count at all, so the figure now sits in the platform table attributed to Lenovo rather than being presented as a per-SKU fact. The old copy also promised "certified NVIDIA graphics" without naming a certification body or programme; Lenovo publishes no ISV certification list for this machine type, so that claim has been removed rather than repeated. This is also the only listing in its family that names no graphics card in its title, while the description makes the RTX 2000 Ada its headline feature.
Package Contents & ThinkStation Ordering Information
In the box, per the distributor build sheet and Lenovo PSREF:
- Lenovo ThinkStation workstation, built to the configuration above
- USB keyboard and mouse (stated on the distributor build sheet)
- Power cord and Lenovo documentation
Lenovo does not publish a box-contents list per part number, and the PSREF book carries no power-cord or optical-drive entry, so the keyboard, mouse and optical drive listed here come from the distributor build sheet. Additional graphics cards, storage adapters and monitors are separate line items — ask us to quote them with the machine.
Lenovo ThinkStation Workstation Ordering Information
| 30JQ0044SG | ThinkStation P2 Tower Gen 2, Core Ultra 9 285K 24C, 64 GB, RTX 2000 Ada Generation 16 GB |
| 30JQ0045SG | ThinkStation P2 Tower Gen 2, Core Ultra 7 265K 20C, 64 GB, RTX 2000 Ada Generation 16 GB |
| 30JQ0046SG | ThinkStation P2 Tower Gen 2, Core Ultra 5 245K 14C, 64 GB, RTX 2000 Ada Generation 16 GB |
| 30JQ0047SG | ThinkStation P2 Tower Gen 2, Core Ultra 9 285 24C, 64 GB, RTX 2000 Ada Generation 16 GB |
| 30JQ0048SG | ThinkStation P2 Tower Gen 2, Core Ultra 7 265 20C, 64 GB, RTX 2000 Ada Generation 16 GB |
| 30JQ007HSG (this listing) | ThinkStation P2 Tower Gen 2, Core Ultra 7 265, 16 GB, RTX 2000 Ada Generation 16 GB |
Datasheet & Downloads
Lenovo's PSREF specification book is the authoritative source for the chassis and platform, and it is published per machine type rather than per part number. Everything in the PSREF table above is taken from it.
Frequently Asked Questions — Lenovo ThinkStation P2 Tower Gen 2
Does it come with Windows?
Yes. The distributor build sheet states Windows 11 Pro, English, preloaded.
Can I put 128 GB in it, and will it still run at 5600?
You can reach 128 GB with four 32 GB modules, and Lenovo publishes that this configuration runs at 4400 MT/s, not 5600. Four 8 GB or 16 GB modules run at 4800. Only one or two modules run at the full 5600. That is Lenovo's own population table, and it is the answer to a question most spec sheets do not address.
Is the RTX A2000 available on this machine?
Not on this generation. The RTX A2000 was published for the previous ThinkStation P2 Tower and does not appear in the Gen 2 book at all. The Gen 2 graphics list is RTX PRO 4000 Blackwell, RTX PRO 2000 Blackwell, RTX 4000 Ada Generation, RTX 2000 Ada Generation, RTX A1000 and RTX A400.
What changed from the previous P2 Tower?
Same 17-litre chassis and the same 500 W / 750 W supplies. What is new is the platform: FCLGA1700 to FCLGA1851, W680 to W880, DDR5-4400 to DDR5-5600, the graphics slot from PCIe 4.0 to PCIe 5.0, and an NPU where the 12th to 14th generation Core machines had none. The graphics ladder also moves to Blackwell RTX PRO, losing the RTX A4000 and RTX A2000 in the process.
What power supply does it have?
The build sheet for this part number states 550W Platinum Fixed. Lenovo's specification book for the ThinkStation P2 Tower Gen 2 publishes two power supplies, 500W Fixed and 750W Fixed, both at 92 per cent autosensing and 80 PLUS Platinum qualified. A 550 W option does not appear in Lenovo's book. The five sibling listings in this family record 750 W instead. We have printed the build sheet's figure and Lenovo's list side by side rather than picking one, and we would ask the distributor to settle it before you order if the supply wattage matters to your configuration.
How many network ports does it have?
The build sheet for this part number and its siblings disagree: some print "Intel I219-LM, 2x RJ-45" and one prints "1x GbE RJ-45". The I219-LM is a single-port controller and Lenovo's book publishes one onboard RJ-45. Ask us to confirm if a second port matters.
What cooling does it use?
Lenovo publishes nothing. The PSREF specification book for this machine type contains no cooling or thermal section, so we cannot tell you what cooler a given processor ships with, and we will not guess. Ask us and we will put the question to the distributor in writing.
How loud is it?
Lenovo publishes no acoustic figure for this machine type — no dB(A) rating, no noise class. Any number you see quoted for it did not come from Lenovo.
Which applications is it certified for?
Lenovo does not publish a list in the specification book — it points to its ISV certification portal instead. We have therefore not named any application as certified. Tell us which software you run and we will check the current entry for you.
Is this a Copilot+ PC?
No. Lenovo's own AI PC Category field for this machine reads "AI-Ready Workstations", which is a different classification. The NPU is Intel AI Boost at up to 13 TOPS, below the 40 TOPS threshold Microsoft sets for Copilot+. The higher 23 to 36 TOPS figures in Lenovo's processor table are combined platform totals across CPU, integrated graphics and NPU, not NPU figures, and should not be read as meeting that bar.
How much power does it draw?
Lenovo does not publish a total system power figure or a rule for which power supply a given graphics configuration needs. The wattage in the specification is the supply's rating, which is a ceiling rather than a draw. Let us size the machine with you rather than assuming.
