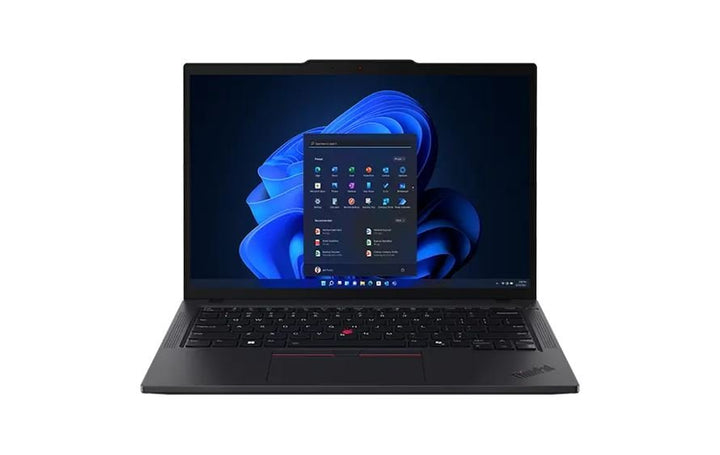

Lenovo ThinkPad T14 Gen 5 U5-125U/16GB/512GB SSD
PRODUCT DESCRIPTION
Lenovo ThinkPad T14 Gen 5 (Intel), Intel Core Ultra 5 125U, 16GB memory, 512GB SSD — Singapore Local Warranty
What This Configuration Actually Is
This listing is part number 21ML005YSG, sold under SKU 21ML005YSG. Lenovo’s own name for the machine is ThinkPad T14 Gen 5 (Intel), machine types 21ML, 21MM. The build supplied is an Intel Core Ultra 5 125U with 16GB memory, 512GB SSD. Lenovo builds this machine type to order, so the panel, camera, wireless card, battery, adapter and Windows edition are options rather than fixed attributes of the model name — which is exactly why this page separates the two sources below.
Two Sources, Kept Apart
Lenovo publishes specifications per machine type, not per part number, and the per-part-number pages on PSREF are not machine-readable. So the platform facts on this page come from Lenovo’s PSREF model book for ThinkPad T14 Gen 5 (Intel) (revision May 06 2026), and the per-unit facts come from the distributor build sheet supplied with 21ML005YSG. The two are shown in separate spec groups so you can always see which source stands behind a line. Where neither source states something, this page says “not stated” rather than estimating it.
Memory: Upgradable, and What Is Not Published
Memory on this machine type is not soldered. Two DDR5 SO-DIMM slots, dual-channel capable, up to 64GB DDR5-5600. Nothing is soldered — memory is user-upgradable. That matters for a fleet purchase: this unit is documented at 16GB, and it can be taken further later without replacing the machine. What neither Lenovo nor the distributor publishes is whether the fitted memory arrives as one module or two, which decides whether a slot is free and whether the machine runs single or dual channel. Ask us and we will confirm before you order.
Worth Knowing Before You Order
SourceIT has marked this configuration as no longer a current supply line. Please contact us to confirm availability, or ask us to quote the nearest current equivalent.
Specification note. A Lenovo model name is not a specification. Lenovo builds this machine type in many configurations and the panel, camera, fingerprint reader, wireless card, battery, adapter and Windows edition all vary between part numbers under the same name. The “This Configuration” group below states what the distributor documents for 21ML005YSG; the “Chassis and Platform” group states what Lenovo publishes for the machine type as a whole. Where a figure is published by neither, it is marked not stated rather than estimated. Please confirm the exact build with us before ordering. Specifications and prices are subject to change by Lenovo without notice.
Product Video
Full Specifications
Two sources, never mixed. The first group is what the distributor documents for this exact part number. The second is what Lenovo publishes for the machine type.
This Configuration — From the Distributor Build Sheet for 21ML005YSG
| Part number | 21ML005YSG |
| Processor | Intel® Core™ Ultra 5 125U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.3GHz, 12MB |
| Memory | 16GB SO-DIMM DDR5-5600 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal 2.0 |
| Model and display | ThinkPad T14 Gen 5 14" WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz, DBEF5 |
| Graphics | Integrated graphics |
| Camera and security | 5.0MP with Privacy Shutter / Fingerprint Reader |
| Battery and adapter | Integrated Li-Polymer 52.5Wh battery with 65W AC adapter |
| Wireless and keyboard | Intel® Wi-Fi® 6E AX211, 11ax 2x2 + BT5.3 / Backlit KYB English |
| Operating system | Windows® 11 Pro, English / NO Recovery Media |
Chassis and Platform — From Lenovo PSREF
| Lenovo product name | ThinkPad T14 Gen 5 (Intel) |
| Machine types | 21ML, 21MM |
| PSREF book revision | May 06 2026 |
| Lifecycle status | Not marked withdrawn in Lenovo's specification book |
| Display | 14-inch WUXGA 1920x1200 and above, 16:10. Lenovo publishes six panels for this machine type including a 2.2K IPS and an OLED; every IPS panel is 60Hz and only the OLED runs at 120Hz. |
| Memory | Two DDR5 SO-DIMM slots, dual-channel capable, up to 64GB DDR5-5600. Nothing is soldered — memory is user-upgradable. |
| Storage | One M.2 2280 PCIe 4.0 x4 slot, up to 2TB. Opal 2.0 is stated by Lenovo. There is no second drive slot. |
| Graphics | Lenovo names the integrated graphics on these processors simply Intel® Graphics. Neither “Iris Xe” nor “UHD Graphics” appears in the book for this machine type. |
| AI PC category | Lenovo publishes the value AI PC for this machine type |
| NPU | Intel® AI Boost, up to 11 TOPS |
| Wireless | Intel® Wi-Fi® 6E AX211 with Bluetooth® 5.3, or Intel® Wi-Fi® 7 BE200 with Bluetooth® 5.3 (Lenovo adds “Bluetooth® 5.4 hardware ready” for the BE200 — that is not a claim of Bluetooth 5.4 support) |
| Battery | 39.3Wh or 52.5Wh, depending on configuration |
| Power adapter | 45W or 65W USB-C, two-pin, three-pin or slim, USB PD 3.0 |
| Keyboard | Six-row spill-resistant keyboard. Backlight is an option, not standard. |
| Security chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Security lock slot | Kensington® Nano Security Slot™, 2.5 x 6 mm — a standard Kensington lock does not fit |
| Durability | MIL-STD-810H military test passed |
| Weight | From 1.31 kg (black cover, 39.3Wh). Lenovo also publishes 1.36 kg, 1.38 kg (black cover, 52.5Wh) and 1.43 kg depending on cover material and battery. |
| Bundled carry case | Lenovo publishes no bundled carry case field for this machine type. |
| Base warranty options | 1-year courier or carry-in service; 1-year courier or carry-in with 2-year system board service (Korea only); 1-year limited onsite service; 3-year (1-yr battery) courier or carry-in service; 3-year (1-yr battery) limited onsite service; No base warranty |
Source documents
- Lenovo PSREF specification book for ThinkPad T14 Gen 5 (Intel): ThinkPad_T14_Gen_5_Intel_Spec.pdf
Ports, Display and Connectivity
Ports Lenovo publishes for ThinkPad T14 Gen 5 (Intel)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
- 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
- 1x HDMI® 2.1, up to 4K/60Hz
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Ethernet (RJ-45)
- Optional: Nano-SIM card slot; smart card reader
Lenovo qualifies the HDMI output as “up to 4K/60Hz” and this page carries that qualifier rather than dropping it.
| Display panel (machine type) | 14-inch WUXGA 1920x1200 and above, 16:10. Lenovo publishes six panels for this machine type including a 2.2K IPS and an OLED; every IPS panel is 60Hz and only the OLED runs at 120Hz. |
| Display panel (this unit) | ThinkPad T14 Gen 5 14" WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz, DBEF5 |
| Camera (this unit) | 5.0MP with Privacy Shutter / Fingerprint Reader |
| Wireless (this unit) | Intel® Wi-Fi® 6E AX211, 11ax 2x2 + BT5.3 / Backlit KYB English |
Security, Durability and Warranty
| Security chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Security lock slot | Kensington® Nano Security Slot™, 2.5 x 6 mm — a standard Kensington lock does not fit |
| Fingerprint reader (this unit) | 5.0MP with Privacy Shutter / Fingerprint Reader |
| Durability | MIL-STD-810H military test passed |
The lock slot is the one specification most often got wrong on a ThinkPad order. Lenovo fits a Kensington Nano slot measuring 2.5 x 6 mm; a standard Kensington cable lock physically will not fit it. If you are locking a fleet, order Nano-head locks or a twin-head lock that carries both.
What Lenovo publishes as the base warranty
- 1-year courier or carry-in service
- 1-year courier or carry-in with 2-year system board service (Korea only)
- 1-year limited onsite service
- 3-year (1-yr battery) courier or carry-in service
- 3-year (1-yr battery) limited onsite service
- No base warranty
Lenovo publishes both one-year and three-year base terms for this machine type. The three-year options are worded “3-year (1-yr battery)” — the system is covered for three years but the battery is covered for one. The phrase “Premier Support” does not appear in the book at all, so where a build sheet states Premier Support that is a distributor service level and cannot be substantiated from Lenovo’s published specification.
The build sheet for 21ML005YSG documents no warranty upgrade, so the heading of this page claims no duration. Cover is Singapore local warranty at whatever term is registered against the unit’s serial number. Ask us and we will confirm it before you order.
Ordering Information
Configurations of this machine type that SourceIT lists. Every one is a different part number — the model name alone does not identify the build.
| 21ML005YSG (this listing) | ThinkPad T14 Gen 5, Ultra 5 125U, 16GB memory, 512GB SSD |
| 21ML0061SG | ThinkPad T14 Gen 5, Ultra 7 155U, 32GB memory, 1TB SSD |
| 21ML0060SG | ThinkPad T14 Gen 5, Ultra 7 155U, 16GB memory, 512GB SSD |
| 21MLCTO1WW U5-BB | ThinkPad T14 Gen 5, Ultra 5 125U, 16GB memory, 512GB SSD |
| 21MLCTO1WW U7-BB | ThinkPad T14 Gen 5, Ultra 7 155U, 16GB memory, 512GB SSD |
Prices shown on each listing are in Singapore dollars. Ask us for a quotation if you need a configuration that is not listed; this machine type is built to order and other builds exist.
Frequently Asked Questions
Lenovo publishes an AI PC category for this machine — is this a Copilot+ PC?
No. Lenovo publishes an “AI PC Category” field for this machine type and its value is AI PC, defined in Lenovo’s own footnote as a machine whose NPU is “capable of 10+ TOPs to run the Copilot assistant”. That is a ten-TOPS bar, not Microsoft’s forty-TOPS Copilot+ bar. Lenovo publishes no Copilot+ PC classification for this machine type, and neither does this page. The NPU figure Lenovo publishes for this processor is up to 11 TOPS, well under the forty TOPS Microsoft requires for Copilot+ features.
Can I add memory later?
Yes. Lenovo publishes two DDR5 SO-DIMM slots and up to 64GB DDR5-5600 for this machine type, with nothing soldered. What is not published — by Lenovo or by the distributor — is whether this unit ships with one module or two, which determines whether a slot is free. Ask us to confirm before you order.
Does it have an Ethernet port?
Yes. Lenovo publishes 1x Ethernet (RJ-45) as a standard port on this machine type.
What is the difference between this and the other configurations you list?
Processor, memory and storage, and in some cases the documented warranty term. Everything else in the Chassis and Platform group is common to the machine type. The Ordering Information section above lists every configuration of this machine type we carry.
Will a standard Kensington lock fit?
No. Lenovo publishes a Kensington Nano Security Slot of 2.5 x 6 mm on this machine type. A standard Kensington lock head does not fit a Nano slot. Order a Nano-head lock, or a twin-head lock if your fleet mixes both slot types.
Was anything corrected on this page?
The build sheet for this SKU labels the graphics “Integrated Intel® Iris® Xe Graphics Functions as UHD Graphics”. Neither “Iris Xe” nor “UHD Graphics” appears in Lenovo’s book for this machine type, which names the graphics simply Intel® Graphics. This page publishes Lenovo’s name.
