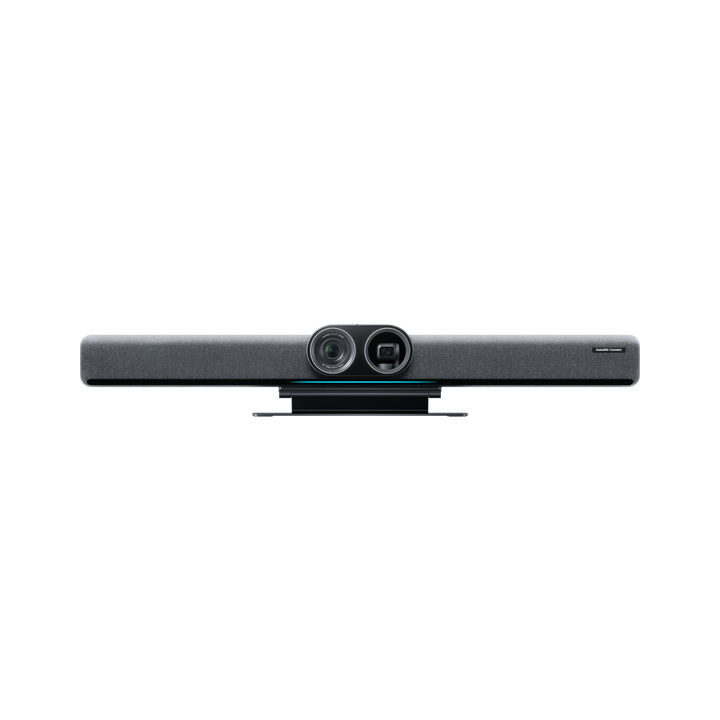

Insta360 Connect Dual-4K Camera AI Video Bar BYOD Bundle
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Insta360 Connect Dual-4K Camera AI Video Bar BYOD Bundle - 1 Year Local Warranty

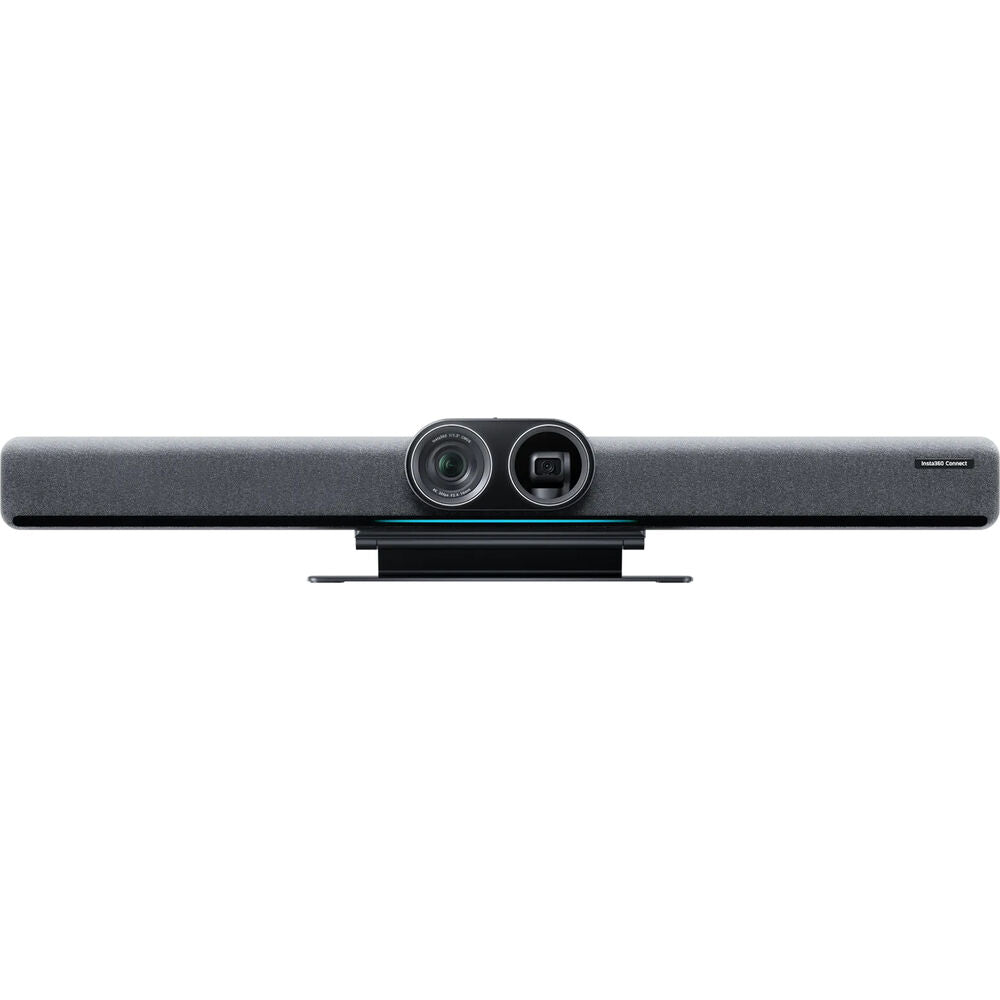

Two 4K Cameras in One Video Bar

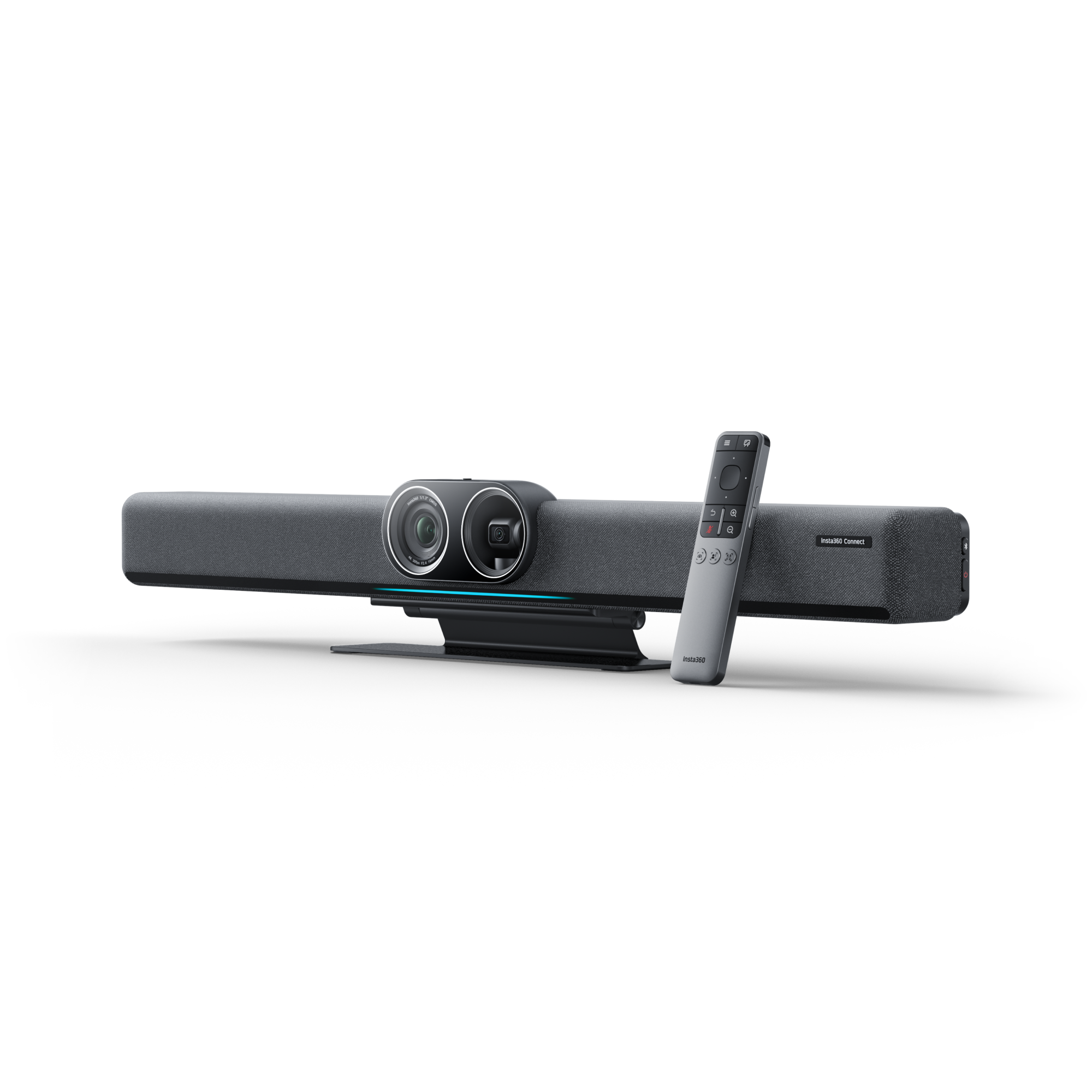

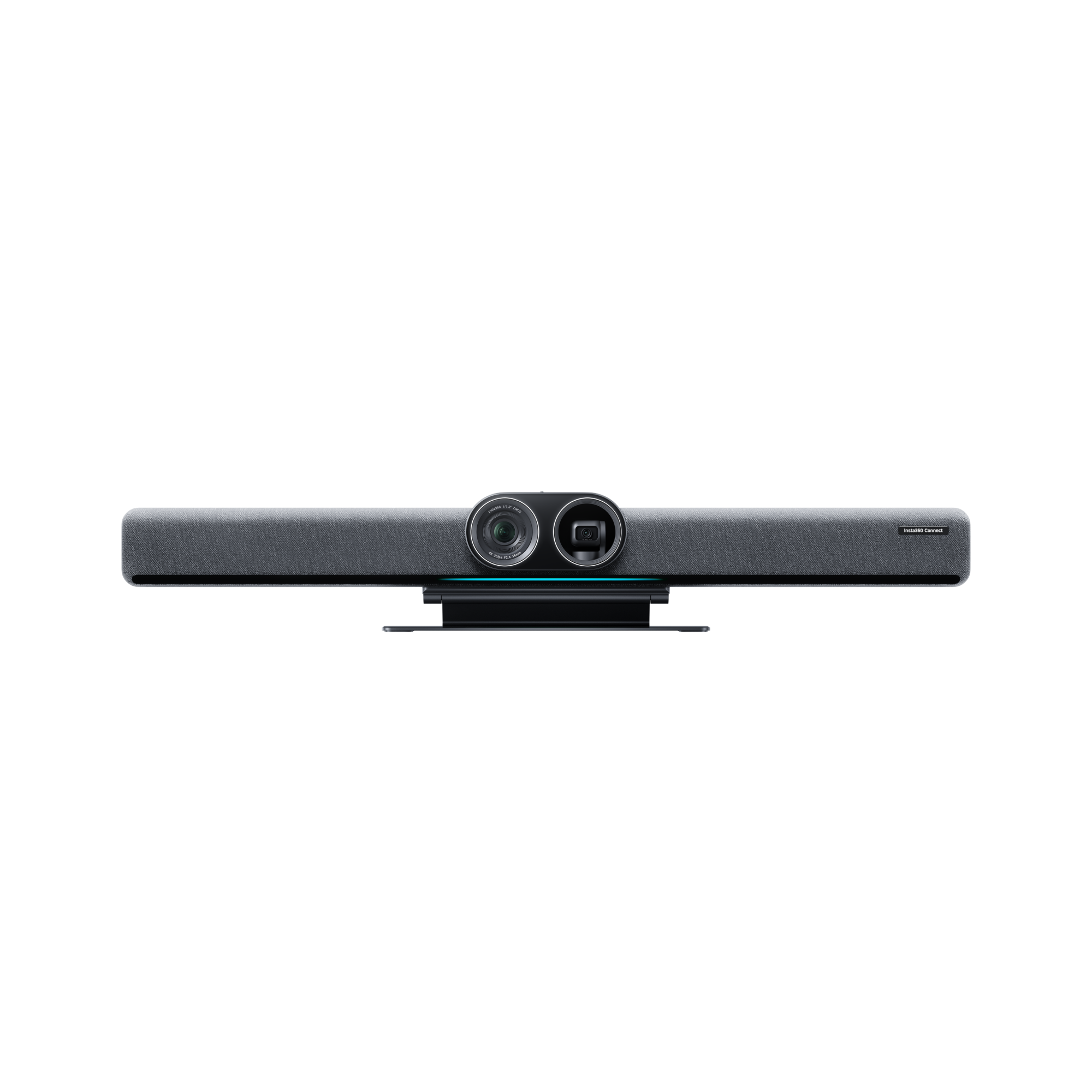

Insta360 Connect pairs a 110° wide-angle 4K camera with a 40° telephoto 4K gimbal camera, so it can show the whole room and still zoom in on whoever is speaking.
AI Speaker Tracking and Framing
Sound location, voiceprint, face, body and lip recognition drive speaker tracking, with group framing, gallery mode, multi-person tracking and a whiteboard mode for presentations.
14-Mic Array and 25 W Speaker
A 14-microphone array picks up voices up to 10 m away with noise elimination, and a built-in speaker delivers up to 25 W.
BYOD, Choose Your Bundle

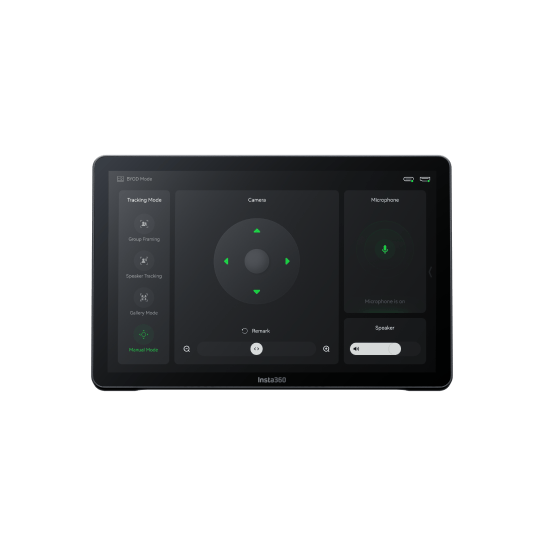

Connect a laptop by USB-C and run Zoom, Microsoft Teams, Google Meet or Skype. Select the Standard Bundle for a desk stand setup, add a TV or Wall Mount with 10 m cables, or add the Insta360 Touch Panel for in-room meeting control.
Planning several meeting rooms? Email sales@sourceit.com.sg for a project quote and site survey.
Insta360 Connect Datasheet — Technical Specifications
General
| Product Name | Insta360 Connect Dual-4K Camera AI Video Bar |
| Model | CINSAABA_VB03 |
| Platforms | Zoom Rooms certified; BYOD with Microsoft Teams, Google Meet, Skype and others |
| Local Warranty (Singapore) | 1 year |
Wide-Angle Camera
| Resolution | 4K 30 fps |
| Field of View | 110° HFOV |
| Sensor | 48 MP, 1/1.3-inch CMOS |
| Digital Zoom | 3x |
Telephoto Gimbal Camera
| Resolution | 4K 30 fps |
| Field of View | 40° HFOV |
| Sensor | 48 MP, 1/2.8-inch CMOS |
| Digital Zoom | 3x |
| Pan / Tilt | Pan ±35°, tilt ±20° |
Audio
| Microphones | 14-microphone array |
| Voice Pickup | Up to 10 m (33 ft) with 3A noise elimination |
| Speaker | 1 unit, 20 W rated, 25 W max |
Connectivity
| Video Coding | H.265, H.264 SVC, H.264 High Profile, H.264 AVC |
| Network | Gigabit Ethernet; Wi-Fi 2.4 / 5 GHz; Bluetooth 5.1; IPv4 / IPv6 |

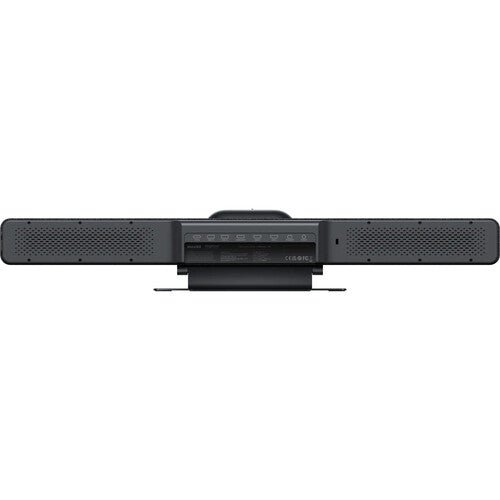

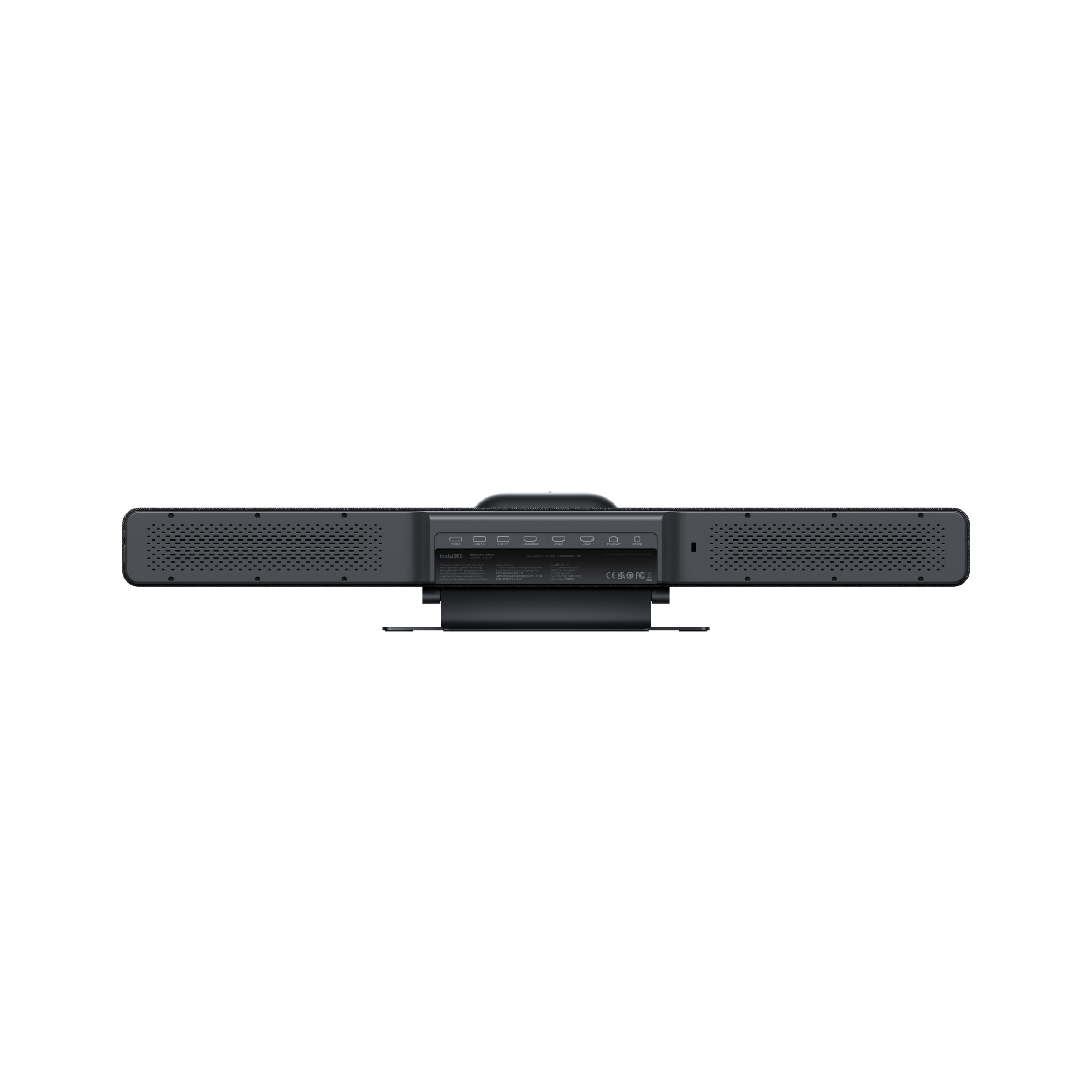

| Ports | 1 x HDMI in, 2 x HDMI out, USB-A 2.0, USB-A 3.0, USB-C 3.0, DC in, security slot |
| Power | DC 12 V / 7 A |
Physical & Environmental
| Dimensions | 685 x 77 x 86.1 mm |
| Weight | 2.27 kg |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -40–70 °C |
| Humidity | <90% |
Compatibility & Applications
Typical Rooms

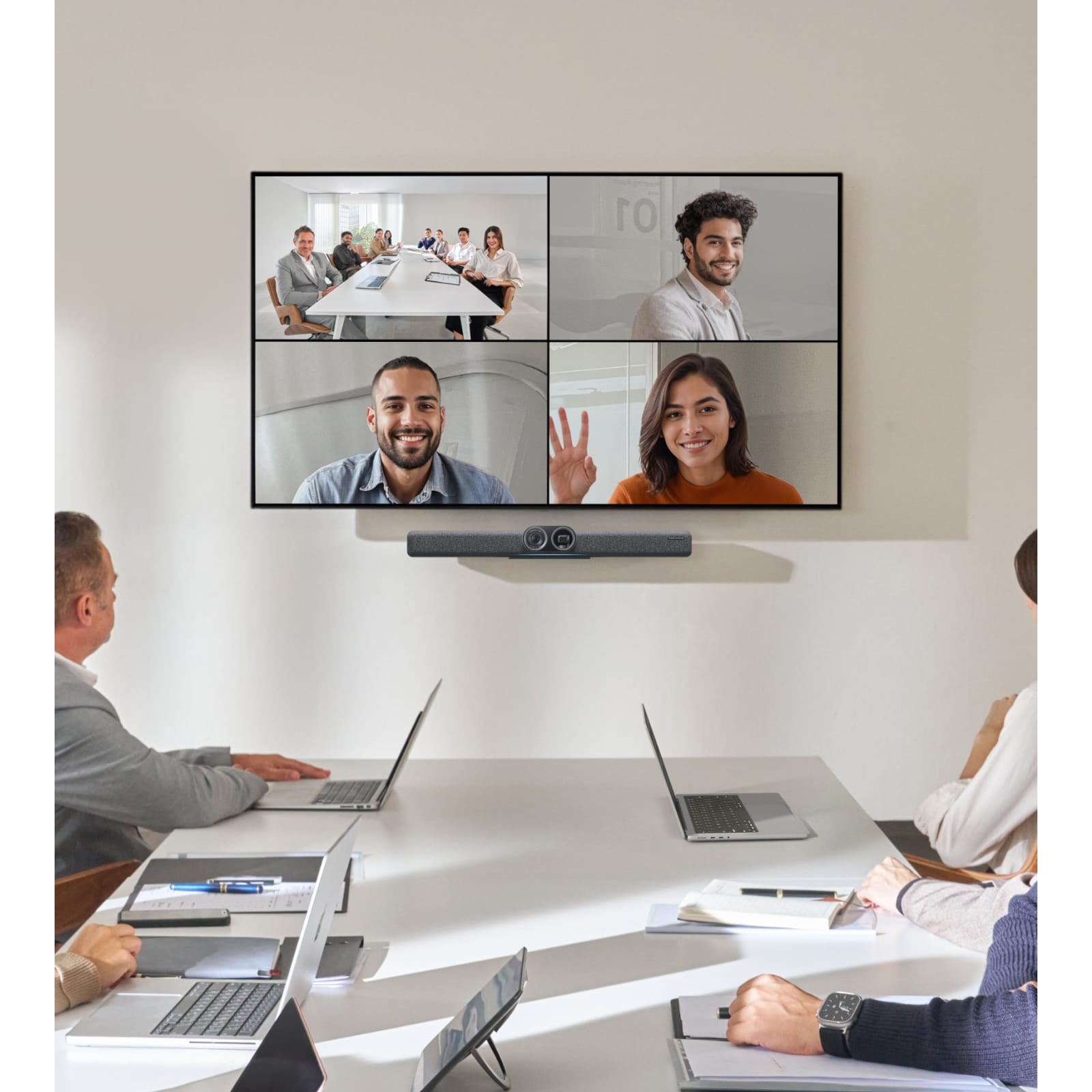

Small to large meeting rooms and boardrooms using BYOD laptops.
Works With
Zoom Rooms (certified), Microsoft Teams, Google Meet, Skype and other platforms over USB-C. Insta360 Wave for Business can cascade with Connect for extended voice pickup.
Selection Tip

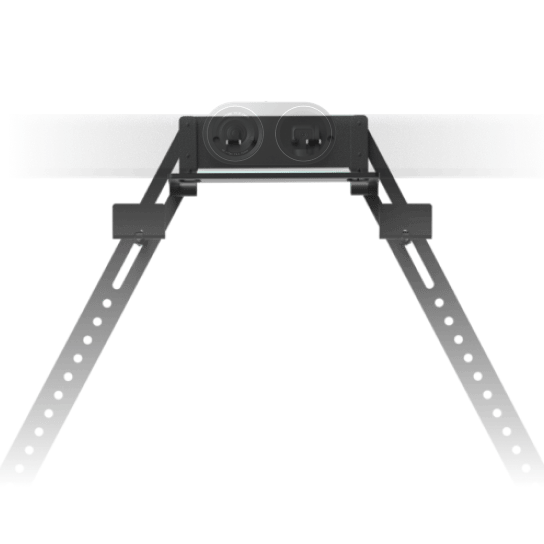

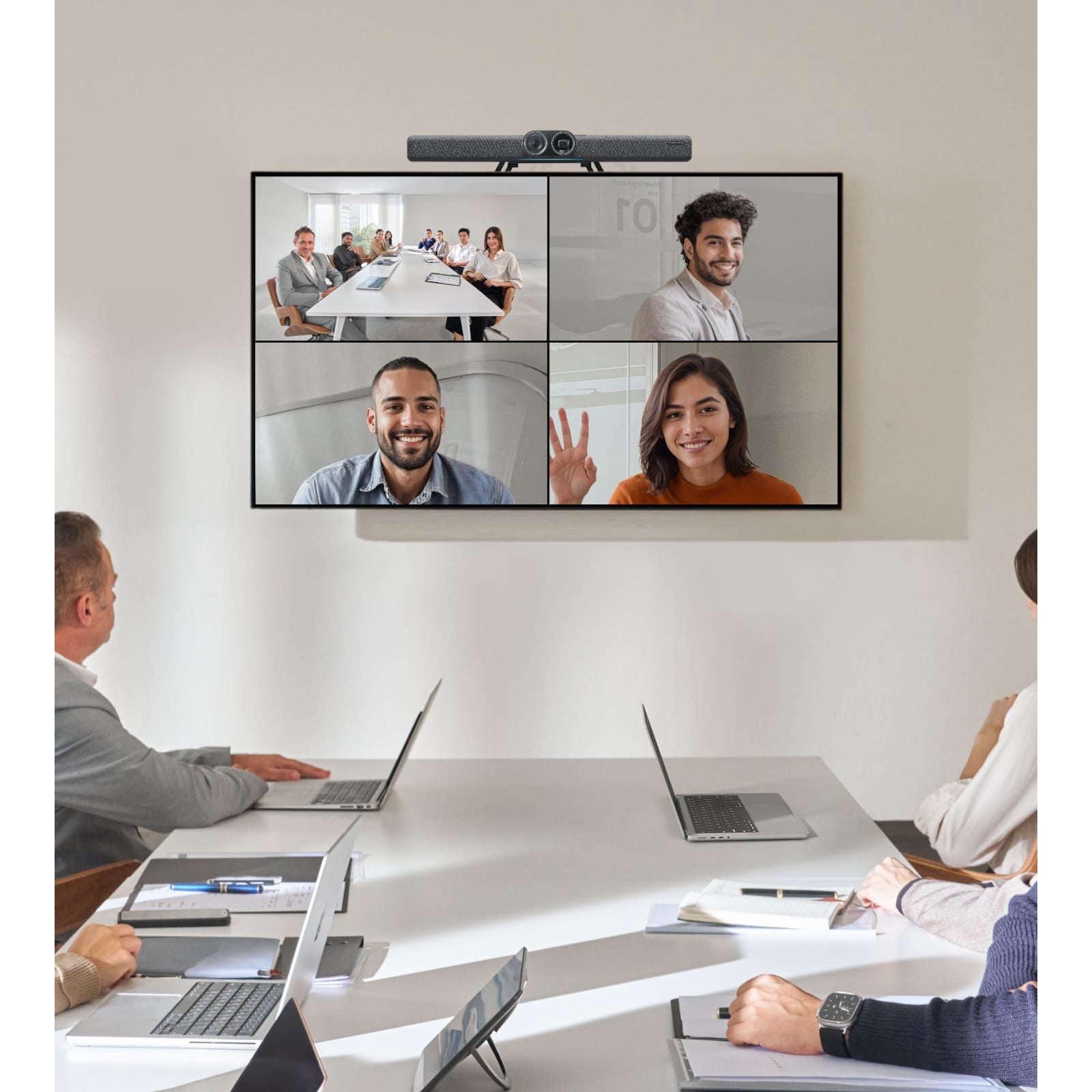

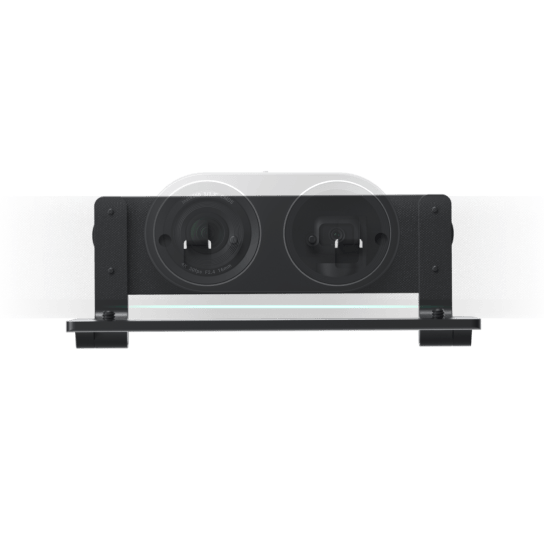

TV Mount fits most TV sizes, with a hook for placement above or below the screen. Wall Mount gives adjustable angles on the wall. The 10 m cables in the mount bundles reach a table-side laptop connection.
Package Contents & Insta360 Connect Bundle Options
In the Box (by bundle)
| Bundle | What is included |

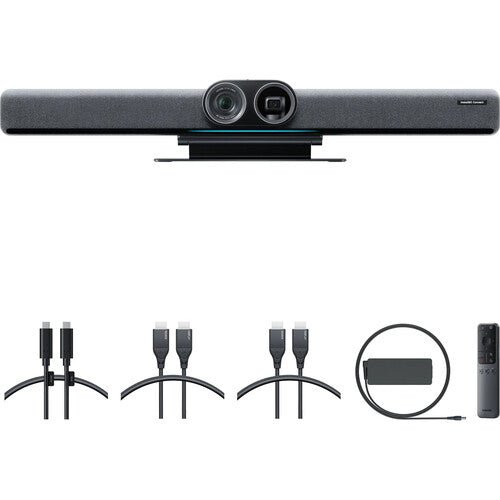

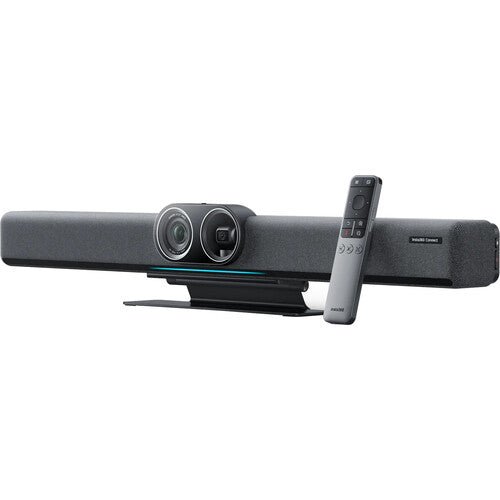

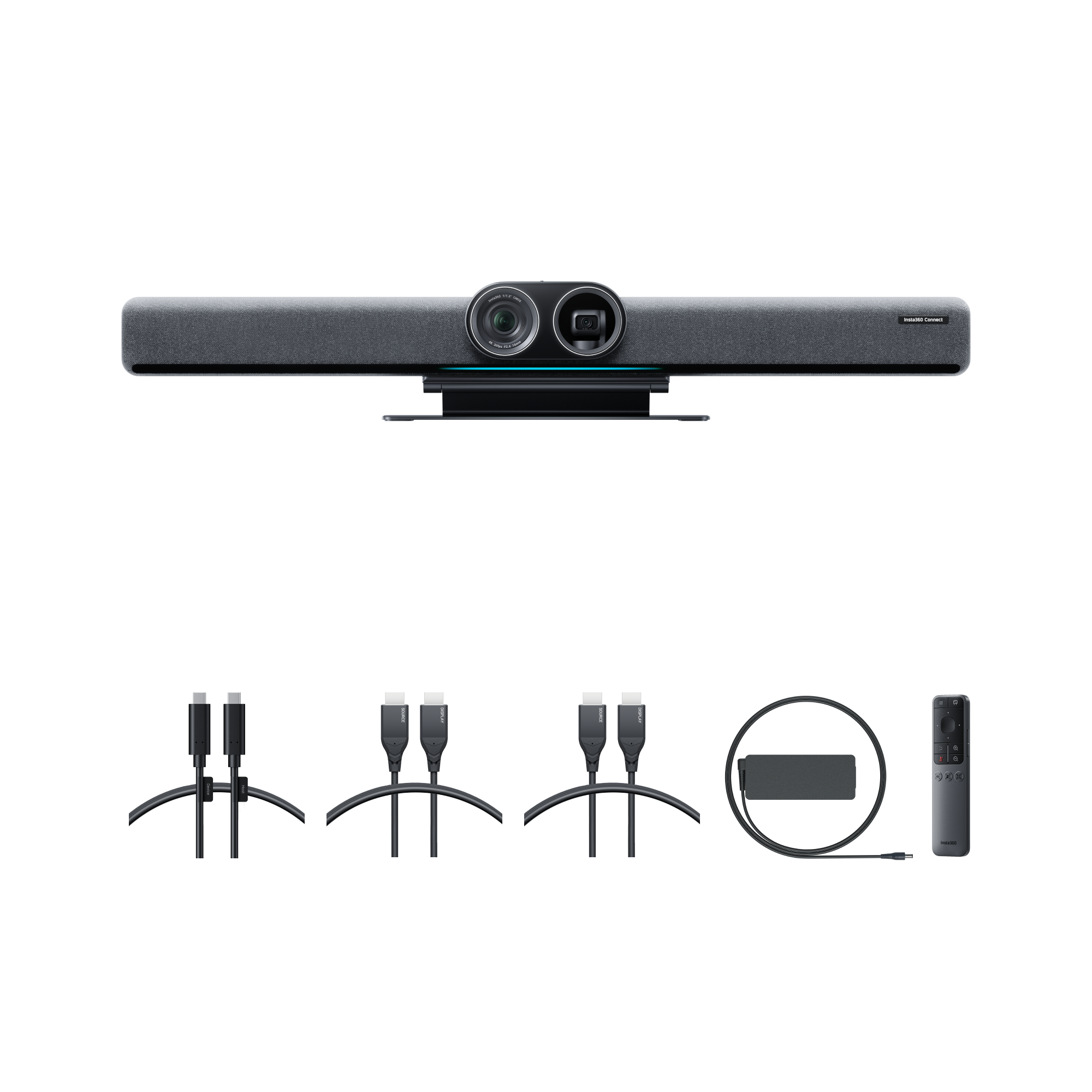

| Standard Bundle | Connect, remote control, desk stand, 2 x 1.8 m HDMI cables, 1 x 1.8 m USB-C cable, power adapter |
| Standard + TV Mount | Standard Bundle plus Connect TV Mount, 10 m USB-C cable, 10 m HDMI cable |
| Standard + Wall Mount | Standard Bundle plus Connect Wall Mount, 10 m USB-C cable, 10 m HDMI cable |
| Touch Panel + TV Mount | Standard Bundle plus Connect TV Mount, 10 m USB-C cable, 10 m HDMI cable, Insta360 Touch Panel |
| Touch Panel + Wall Mount | Standard Bundle plus Connect Wall Mount, 10 m USB-C cable, 10 m HDMI cable, Insta360 Touch Panel |
Datasheet & Downloads
| Insta360 product page | Insta360 Connect on insta360.com |
| Launch article | Introducing Insta360 Connect |
Need a datasheet sent directly? Email sales@sourceit.com.sg quoting CINSAABA_VB03.
Frequently Asked Questions — Insta360 Connect
Why two cameras?
The wide-angle camera covers the room while the telephoto gimbal camera zooms in on the active speaker.
Does it need a room PC?
No. It is a BYOD video bar: connect a laptop by USB-C and use your usual meeting app.
Which bundle should I choose?
Standard for a desk stand setup; add the TV or Wall Mount bundle for a fixed install with 10 m cables; add the Touch Panel bundle for in-room meeting control.
How far does the microphone reach?
Up to 10 m (33 ft) with the 14-microphone array.
What warranty do I get?
1 year local warranty. Supplied by SourceIT with a GST invoice.
