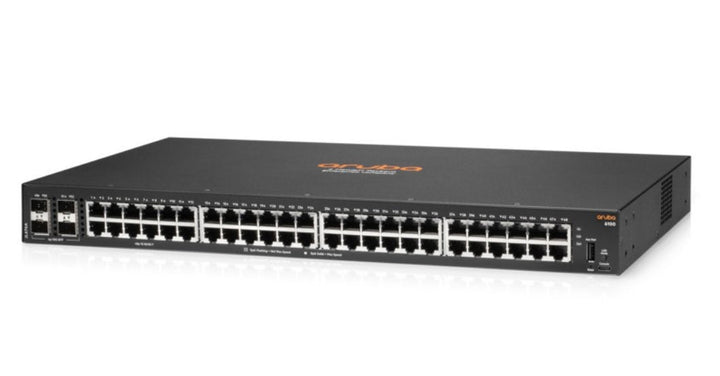

HPE Aruba Networking CX 6100 48-Port Gigabit Managed Switch with 4 SFP+ 10G Uplinks
Prices in SGD, excluding 9% GST.
PRODUCT DESCRIPTION
HPE Aruba Networking CX 6100 48G 4SFP+ Switch (JL676A) - Limited Lifetime Local Warranty
Entry-Level CX Access Switching for Branch Offices and SMB
The HPE Aruba Networking CX 6100 48G 4SFP+ Switch (JL676A) is part of HPE Aruba Networking's CX 6100 series, a family of entry-level access switches that HPE positions for enterprise branch offices and SMB networks. It provides 48 x 10/100/1000BASE-T + 4 x 1/10G SFP+, running the AOS-CX operating system used across HPE Aruba Networking CX switches.
A dedicated ASIC delivers very low latency, increased packet buffering and adaptive power consumption, and HPE states that no switch software licensing or subscriptions are required.
Gigabit Access for Desktops, Printers and Servers
With 48 x 1G RJ-45 + 4 x 1/10G SFP+, this non-PoE model suits wiring closets that need dependable Gigabit edge ports for wired users and devices, with 10G uplinks to the core.
Built-In 1/10GbE Uplinks and Stacking
Four built-in wire-speed 1/10GbE SFP+ uplinks help avoid bottlenecks at the access layer. HPE lists Virtual Switching Framework (VSF) support for up to six switches in a stack through chain or ring topology, so several switches can be managed as one.
Layer 2 Features, Static Routing and Flexible Management
HPE lists Layer 2 capabilities with static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritisation, sFlow and IPv6. Manage the switch from the cloud with HPE Aruba Networking Central, or locally through the web GUI or industry-standard CLI. Central cloud management is licensed separately; ask us to quote it with the switch.
Supplied in Singapore with a Limited Lifetime Warranty
SourceIT supplies the CX 6100 series locally with a GST invoice. HPE covers the CX 6100 series with its Limited Lifetime Warranty.
Need help choosing between the CX 6100, CX 6000 and Instant On switches? Email sales@sourceit.com.sg with your port count, PoE devices and uplink needs.
HPE Aruba Networking CX 6100 JL676A Datasheet — Technical Specifications
General
| Product Name | HPE Aruba Networking CX 6100 48G 4SFP+ Switch |
| Part Number | JL676A |
| Series | HPE Aruba Networking CX 6100 (AOS-CX managed access switch) |
| Manufacturer Warranty | Limited Lifetime (HPE Aruba Networking) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports & PoE
| Ports | 48 x 10/100/1000BASE-T + 4 x 1/10G SFP+ |
| PoE | None |
| Uplinks | 4 x 1/10G SFP+ (wire speed) |
Performance
| Switching Capacity | Refer to HPE QuickSpecs |
| Throughput | Refer to HPE QuickSpecs |
| Switching ASIC | Dedicated ASIC with very low latency, increased packet buffering and adaptive power consumption |
Power
| Power Supply | Internal AC power supply |
| Max Power | 44 W |
Physical & Environmental
| Form Factor | 1U |
| Dimensions | 4.40 (H) x 44.25 (W) x 24.73 (D) cm |
| Weight | 3.02 kg |
| Cooling / Acoustics | Refer to HPE QuickSpecs |
| Operating Temperature | 0 °C to 45 °C (up to 1.5 km / 5,000 ft) |
Management
| Options | HPE Aruba Networking Central (cloud), web GUI, CLI |
| Licensing | No switch software licence or subscription required (Central licensed separately) |
Layer 2 / Layer 3
| Layer 2 | Layer 2 access switching, VSF stacking up to six switches (chain or ring) |
| Layer 3 | Static routing, IPv6 |
| Security & Monitoring | ACLs, QoS and traffic prioritisation, sFlow |
Compatibility & Software Support
What It Is Suited To
Enterprise branch offices, SMB networks, retail stores, clinics and schools that want an entry-level managed access switch running AOS-CX, the same operating system used across HPE Aruba Networking CX campus switches. It pairs with HPE Aruba Networking access points managed from Central.
Management Software
Manage from HPE Aruba Networking Central (licensed separately), or stand-alone through the built-in web GUI or CLI. The SFP+ ports accept HPE Aruba Networking 1G SFP and 10G SFP+ transceivers and DAC cables; ask us to confirm the right optic for your fibre run.
Package Contents & CX 6100 Series Ordering Information
In the Box
HPE Aruba Networking CX 6100 48G 4SFP+ Switch with mounting accessory kit and documentation. Confirm the exact carton contents and rack-mount hardware with us before ordering if it matters to your installation.
HPE Aruba Networking CX 6100 Series — Ordering Information
| CX 6100 12G Class4 PoE 2G/2SFP+ 139W | 12 x 1G PoE + 2 x 1G RJ-45 + 2 x 1/10G SFP+ | Class 4 PoE, 139 W | JL679A |
| CX 6100 24G 4SFP+ | 24 x 1G RJ-45 + 4 x 1/10G SFP+ | None | JL678A |
| CX 6100 24G Class4 PoE 4SFP+ 370W | 24 x 1G PoE + 4 x 1/10G SFP+ | Class 4 PoE, 370 W | JL677A |
| CX 6100 48G 4SFP+ (this listing) | 48 x 1G RJ-45 + 4 x 1/10G SFP+ | None | JL676A |
| CX 6100 48G Class4 PoE 4SFP+ 370W | 48 x 1G PoE + 4 x 1/10G SFP+ | Class 4 PoE, 370 W | JL675A |
| CX 6100 48G Class4 PoE 4SFP+ 740W | 48 x 1G PoE + 4 x 1/10G SFP+ | Class 4 PoE, 740 W | R9Y04A |
Warranty Upgrade
HPE offers Foundation Care support services for the CX 6100 series. Ask us to quote them with the switch.
Datasheet & Downloads
| HPE QuickSpecs | HPE Aruba Networking CX 6100 Switch Series QuickSpecs |
| HPE data sheet | HPE Aruba Networking CX 6100 Switch Series Data Sheet |
| Installation guide | HPE Aruba Networking 6000/6100 Installation and Getting Started Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting JL676A.
Frequently Asked Questions — HPE Aruba Networking CX 6100 JL676A
Is this a Layer 3 switch?
It is a Layer 2 access switch with static routing, ACLs, QoS and IPv6 support.
Do I need a subscription to use it?
No. HPE states no switch software licensing or subscriptions are required. Cloud management with HPE Aruba Networking Central is optional and licensed separately.
Can I stack it?
Yes. HPE lists VSF stacking of up to six switches through chain or ring topology.
How much PoE does it provide?
It does not supply PoE. Choose a Class4 PoE model from the table above if you need to power access points, phones or cameras.
Is it fanless?
Refer to HPE QuickSpecs for cooling and acoustic details, or ask us. The 12-port PoE model (JL679A) is the fanless option in this series.
What warranty do I get?
HPE Limited Lifetime Warranty, supplied by SourceIT with local support and a GST invoice.
