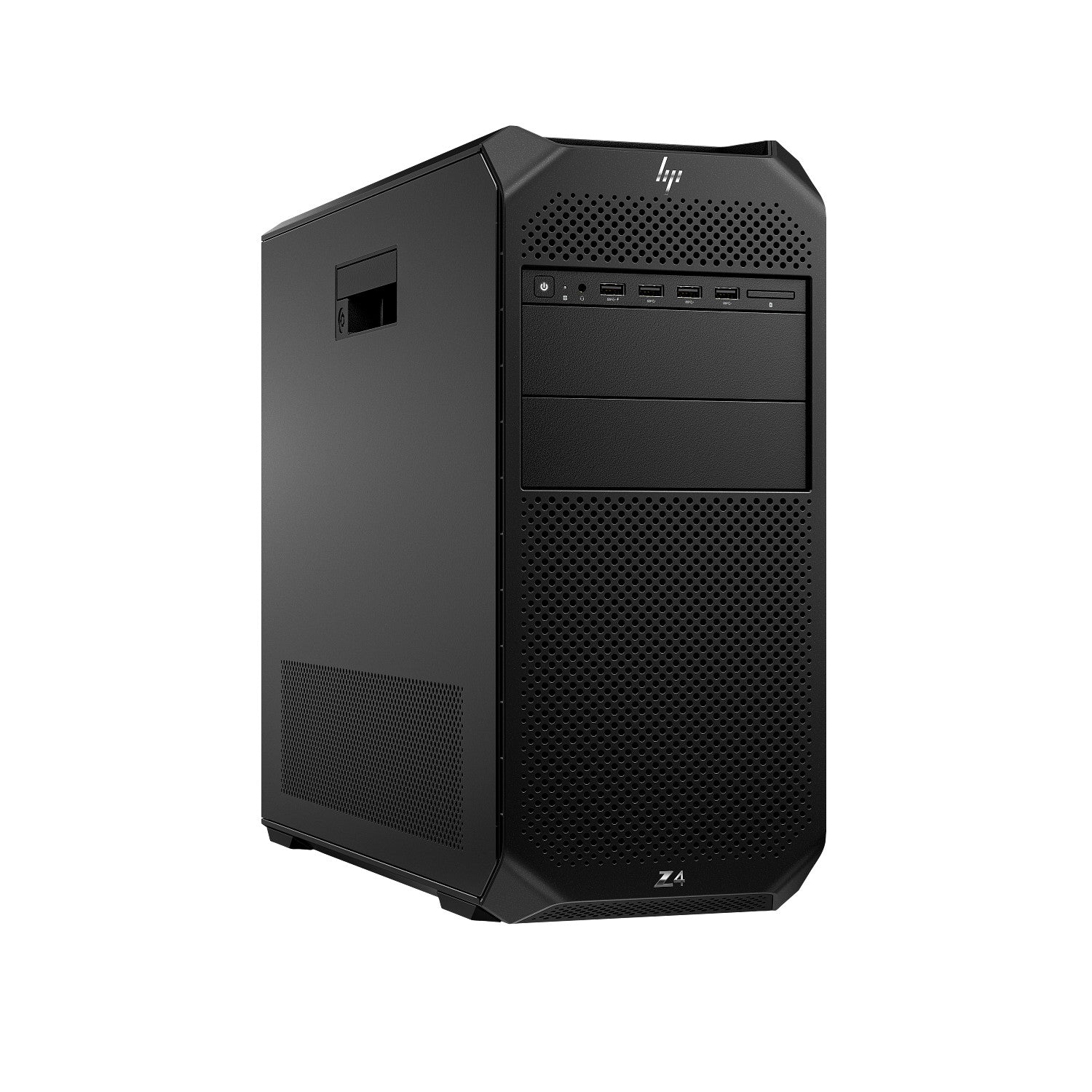

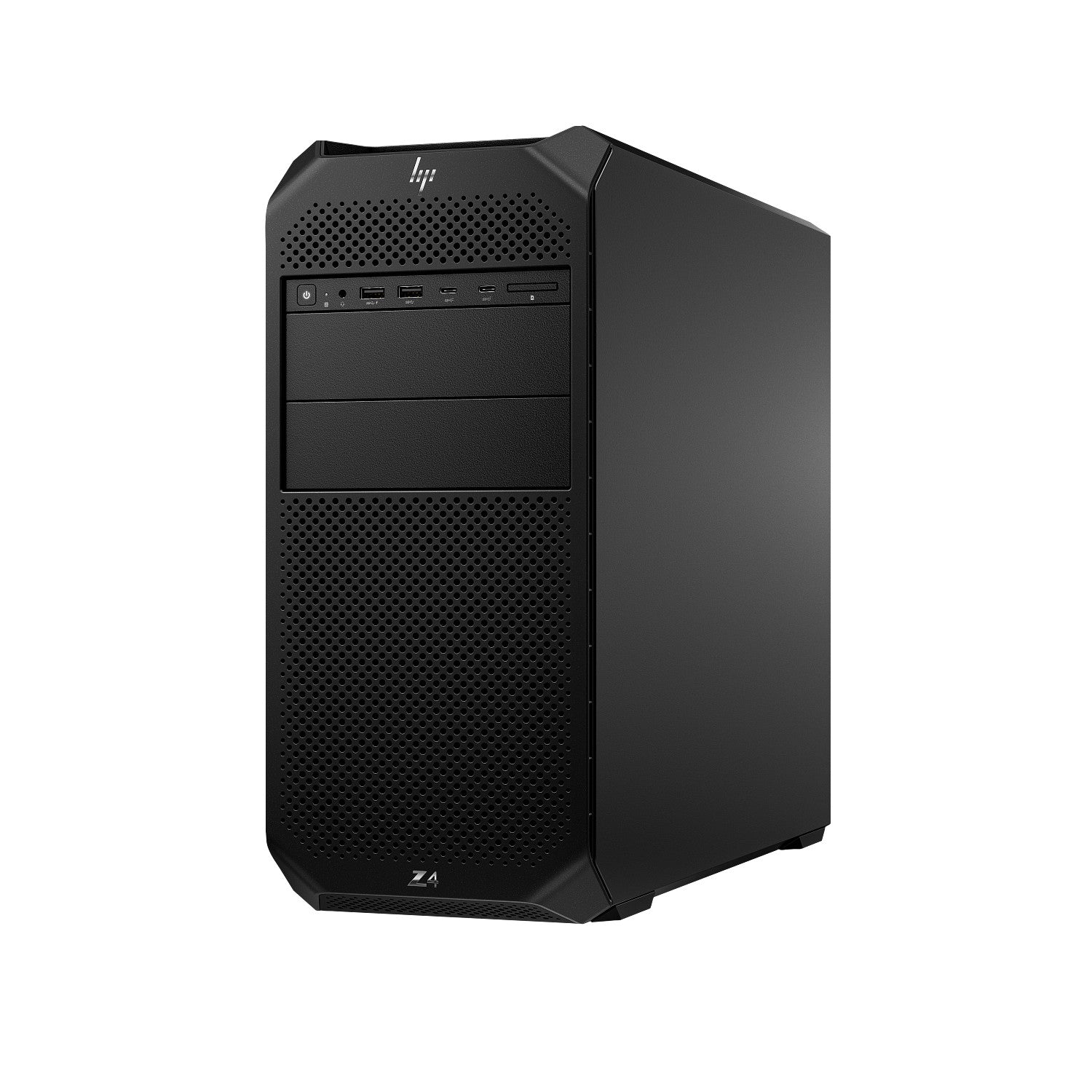

HP Z4 G5 Xeon W3-2425 32GB 1TB Workstation
PRODUCT DESCRIPTION
HP Z4 G5 Workstation Desktop PC W3-2425 32GB 1TB SSD (E62QWPT) - Local Warranty
Xeon W Workstation for Demanding Projects
The HP Z4 G5 is a single-socket tower built on the Intel W790 platform. This configuration uses the Intel Xeon W3-2425 (6 cores, 12 threads, up to 4.2 GHz) processor with 32 GB DDR5-4800 ECC memory, and eight DIMM slots leave room to scale.
Professional GPU and Fast NVMe Storage
It ships with a discrete NVIDIA RTX PRO 4000 Blackwell 24 GB graphics card and a 1 TB HP Z Turbo Drive PCIe Gen4 SSD for responsive project loading, rendering and simulation.
Engineered to Expand
One PCIe 5 x16 slot, two PCIe 4 x16 slots and two PCIe 4 x4 slots sit alongside multiple M.2 and 3.5-inch drive bays. Networking on this configuration is handled by wired Ethernet and Intel Wi-Fi 6E.
Specifying workstations for a design, engineering or AI team? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP Z4 G5 Datasheet — Technical Specifications
General
| Product Name | HP Z4 G5 Workstation Desktop PC |
| Part Number | E62QWPT |
| Form Factor | Tower |
| Local Warranty (Singapore) | HP 1 year (1/1/1) limited warranty: 1 year parts, labour and on-site repair, supplied by SourceIT with a GST invoice |
Configuration of E62QWPT
| Processor | Intel Xeon W3-2425 (up to 4.2 GHz with Intel Turbo Boost Technology, 15 MB L3 cache, 6 cores, 12 threads) |
| Chipset | Intel W790 |
| Memory | 32 GB DDR5-4800 MT/s ECC (2 x 16 GB) |
| Memory Slots | 8 DIMM |
| Storage | 1 TB HP Z Turbo Drive PCIe Gen4 TLC M.2 SSD |
| Graphics | NVIDIA RTX PRO 4000 Blackwell Generation (24 GB GDDR7 dedicated) |
| Operating System | Windows 11 Pro |
Connectivity & Ports
| Wireless | Intel Wi-Fi 6E AX210 (2x2) and Bluetooth 5.3 wireless card |
| Ethernet | Integrated Intel I219-LM GbE |

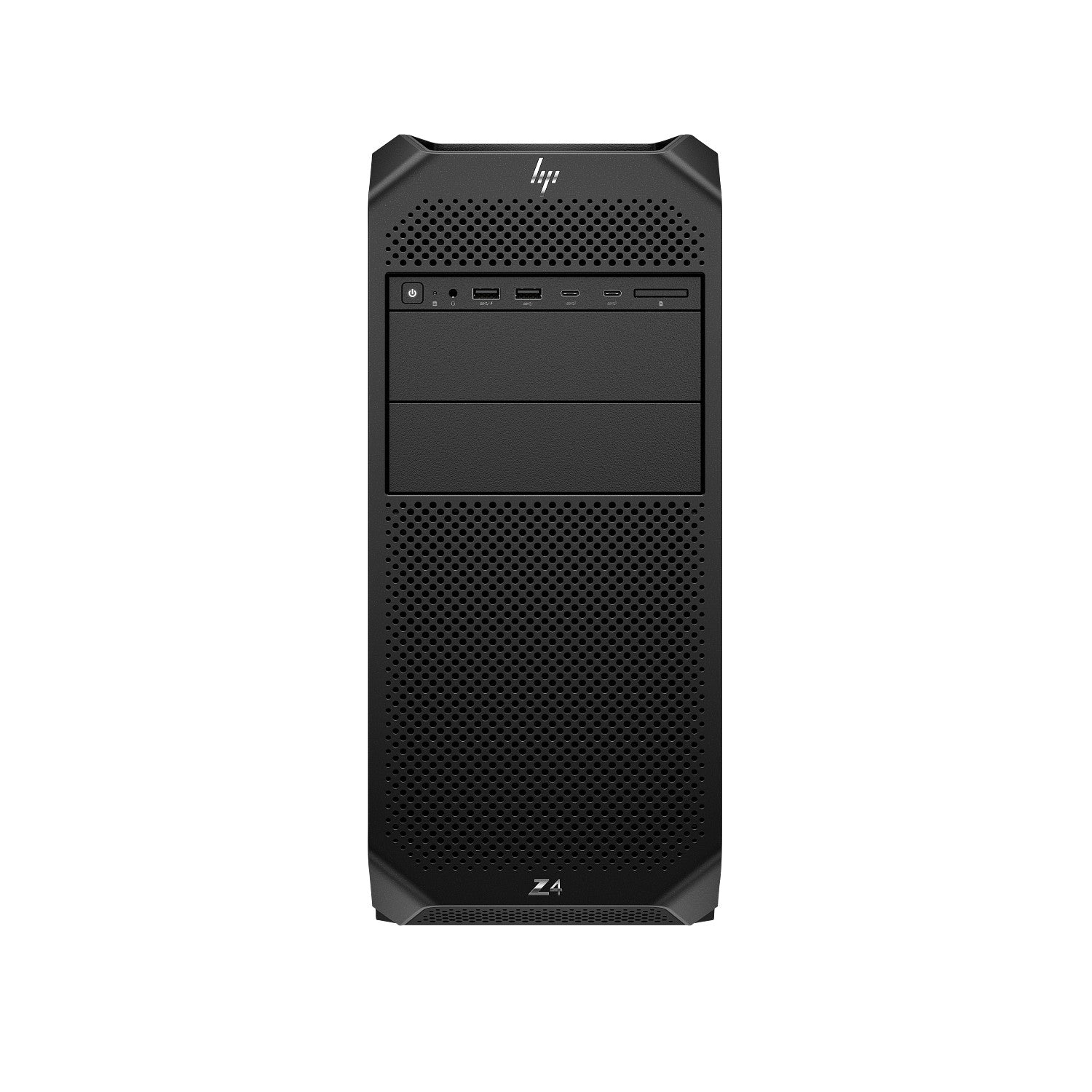

| Front Ports | 4 USB Type-A 5Gbps; 1 headphone/microphone combo |
| Front Premium I/O | 2 USB Type-C 20Gbps (USB Power Delivery); 2 USB Type-A 5Gbps; 1 headphone/microphone combo |

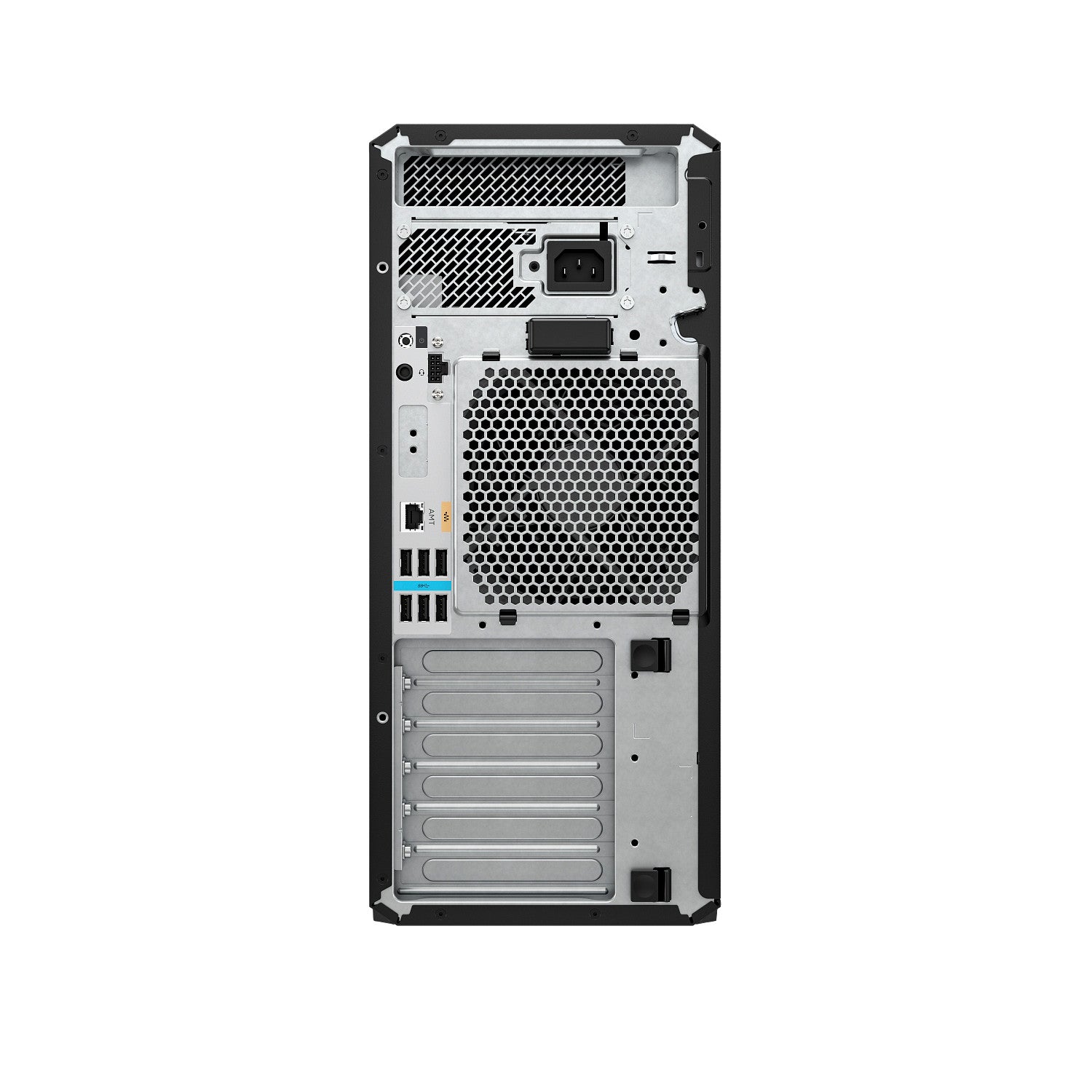

| Rear Ports | 1 RJ-45; 1 audio-in/out |
Expansion
| Expansion Slots | 1 PCIe 5 x16; 2 PCIe 4 x16; 2 PCIe 4 x4 |
| Internal Drive Bays | One 3.5-inch; four PCIe M.2 SSD; three 3.5-inch HDD |
| External Drive Bays | Two NVMe M.2 SSD; two 3.5-inch HDD; two 9.5 mm ODD |
Input, Audio & Power
| Keyboard | HP 125 Wired Keyboard |
| Mouse | HP 320M Wired Mouse |
| Audio | Realtek ALC3205-CG |
| Power | 1125 W internal power supply, up to 90% efficiency, active PFC |
Physical
| Dimensions (W x D x H) | 16.89 x 44.45 x 38.61 cm |
| Weight | Starting at 10.5 kg (exact weight depends on configuration) |
Security & Management
| Security | TPM 2.0; HP Sure Start; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Sure Recover; HP BIOSphere; HP Secure Erase; Kensington lock slot |
| Management | HP Driver Packs; HP System Software Manager; HP BIOS Configuration Utility; HP Smart Support |
Compatibility & Software Support
Operating System
Ships with Windows 11 Pro preinstalled.
Typical Use
Engineering simulation, 3D rendering, VFX, data science and AI model development that benefit from ECC memory and multi-card expansion.
Displays
Monitors connect to the outputs of the installed NVIDIA RTX PRO graphics card.
Package Contents & Ordering Information
In the Box
HP Z4 G5 workstation, HP 125 Wired Keyboard, HP 320M Wired Mouse, power cord and documentation.
HP Z Desktop Workstations at SourceIT
| Model | Configuration |
| Z2 Mini G1i DC9J1AT | Core Ultra 7 265K, 32GB, 512GB, RTX A1000 |
| Z2 Mini G1a E65XKPT | Ryzen AI Max+ PRO 395, 128GB, 4TB |
| Z2 SFF G1i DC9J8AT | Core Ultra 7 265, 32GB, 1TB, RTX A400 |
| Z2 Tower G1i DC9J3AT | Core Ultra 7 265K, 32GB, 1TB, RTX A400 |
| Z2 Tower G1i E62R4PT | Core Ultra 7 265, 32GB, 1TB, RTX PRO 2000 |
| Z4 G5 E62QWPT (this listing) | Xeon W3-2425, 32GB ECC, 1TB |
| Z4 G5 E62QZPT | Xeon W3-2423, 64GB ECC, 1TB, RTX PRO 2000 |
| Z4 G5 Tower DZ5Z2AT | Xeon W3-2423, 32GB ECC, 4TB, RTX PRO 2000 |
| Z4 G5 Tower DZ5Y8AT | Xeon W3-2425, 64GB ECC, 4TB, RTX PRO 2000, 10GbE |
Datasheet & Downloads
| HP product page | HP Z4 G5 (E62QWPT) on hp.com Singapore |
| HP QuickSpecs | HP Z4 G5 Workstation QuickSpecs |
| HP datasheet | HP Z4 G5 Workstation Datasheet (PDF) |
| Drivers & manuals | HP Support Singapore — software and driver downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting E62QWPT.
Frequently Asked Questions — HP Z4 G5
Which processor does E62QWPT have?
An Intel Xeon W3-2425 (6 cores, 12 threads, up to 4.2 GHz) on the Intel W790 chipset.
How much memory can I add?
32 GB DDR5-4800 MT/s ECC (2 x 16 GB) is installed, and the Z4 G5 has 8 DIMM slots in total.
Which graphics card is fitted?
A discrete NVIDIA RTX PRO 4000 Blackwell 24 GB.
What storage is installed?
1 TB HP Z Turbo Drive PCIe Gen4 TLC M.2 SSD. Further M.2 and 3.5-inch bays are available for expansion.
What warranty do I get?
HP 1 year (1/1/1) limited warranty covering parts, labour and on-site repair, supplied locally by SourceIT with a GST invoice. Ask us about HP Care Pack extensions.
