HP Z2 Mini G1a Ryzen AI Max+ PRO 395 128GB 4TB Workstation
PRODUCT DESCRIPTION
HP Z2 Mini G1a Workstation Desktop PC Ryzen AI Max+ PRO 395 128GB 4TB SSD (E65XKPT) - Local Warranty
AI Workstation Performance in a Mini
The HP Z2 Mini G1a is built around the AMD Ryzen AI Max+ PRO 395 with 16 cores, 32 threads and up to 5.1 GHz boost, plus an AMD Ryzen AI NPU rated at 50 TOPS, in a chassis of 8.55 x 16.8 x 20 cm that starts at 2.3 kg.
128 GB of Memory and Radeon 8060S Graphics
This configuration carries 128 GB of onboard LPDDR5x-8533 memory with integrated AMD Radeon 8060S Graphics, giving memory-hungry rendering, simulation and local AI workloads plenty of headroom.
4 TB SSD, Thunderbolt 4 and Wi-Fi 7
A 4 TB HP Z Turbo Drive PCIe Gen4 SSD is installed, with two Thunderbolt 4 ports, two Mini DisplayPort 2.1 outputs, wired Ethernet and Wi-Fi 7. The 300 W power supply is built in, so there is no external power brick.
Specifying workstations for a design, engineering or AI team? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
HP Z2 Mini G1a Datasheet — Technical Specifications
General
| Product Name | HP Z2 Mini G1a Workstation Desktop PC |
| Part Number | E65XKPT |
| Form Factor | Mini |
| Local Warranty (Singapore) | HP 1 year (1/1/1) limited warranty: 1 year parts, labour and on-site repair, supplied by SourceIT with a GST invoice |
Configuration of E65XKPT
| Processor | AMD Ryzen AI Max+ PRO 395 (up to 5.1 GHz max boost clock, 64 MB L3 cache, 16 cores, 32 threads) |
| AI Acceleration | AMD Ryzen AI (50 NPU TOPS) |
| Memory | 128 GB LPDDR5x-8533 MT/s (onboard) |
| Storage | 4 TB HP Z Turbo Drive PCIe Gen4 M.2 SSD |
| Graphics | AMD Radeon 8060S Graphics (integrated) |
| Operating System | Windows 11 Pro |
Connectivity & Ports
| Wireless | MediaTek Wi-Fi 7 MT7925 (2x2) and Bluetooth 5.4 wireless card |
| Ethernet | Realtek RTL8125BPH-CG; HP 2.5 GbE Flex IO port |

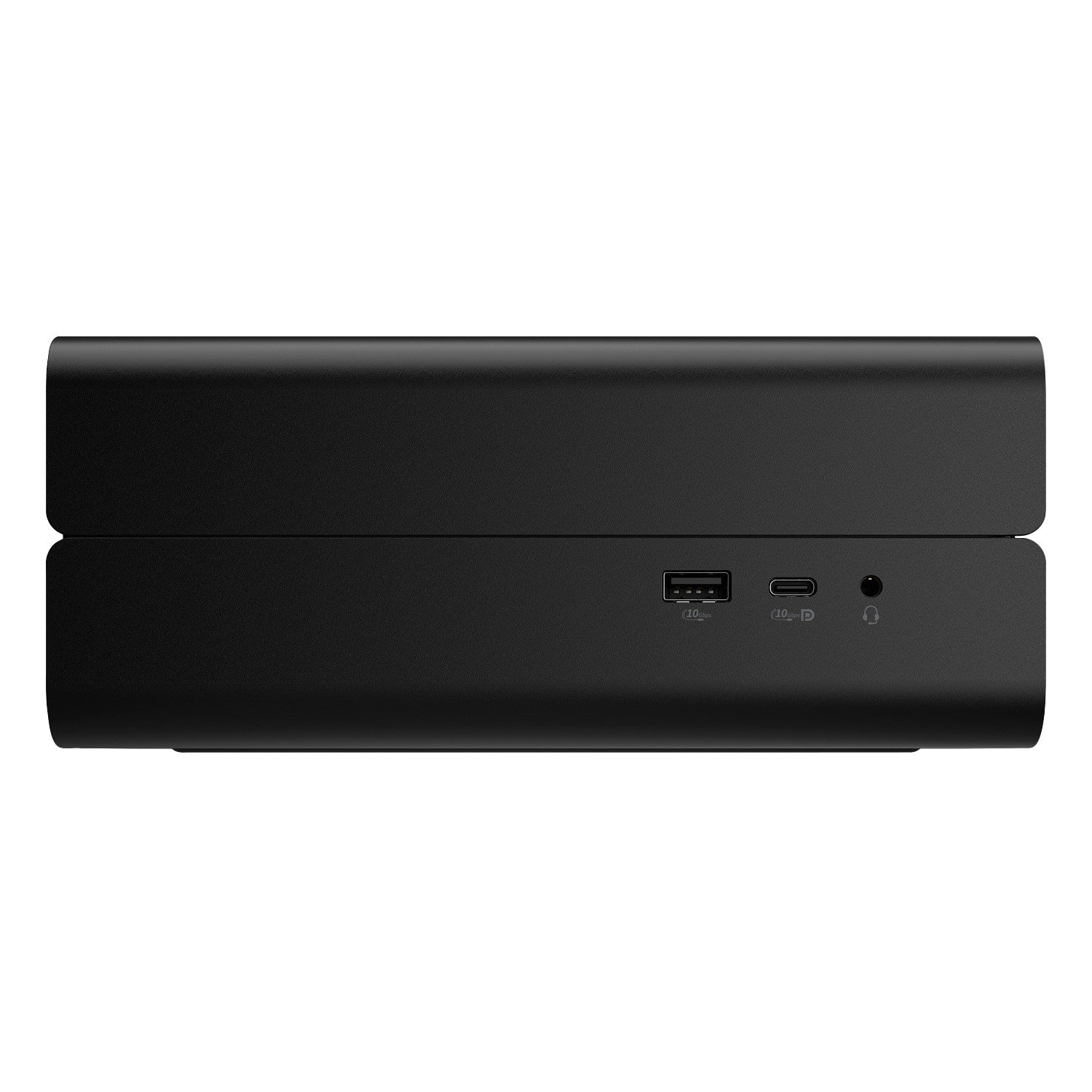

| Side Ports | 1 USB Type-C 10Gbps (USB Power Delivery, DisplayPort 2.1); 1 USB Type-A 10Gbps (charging); 1 headphone/microphone combo |

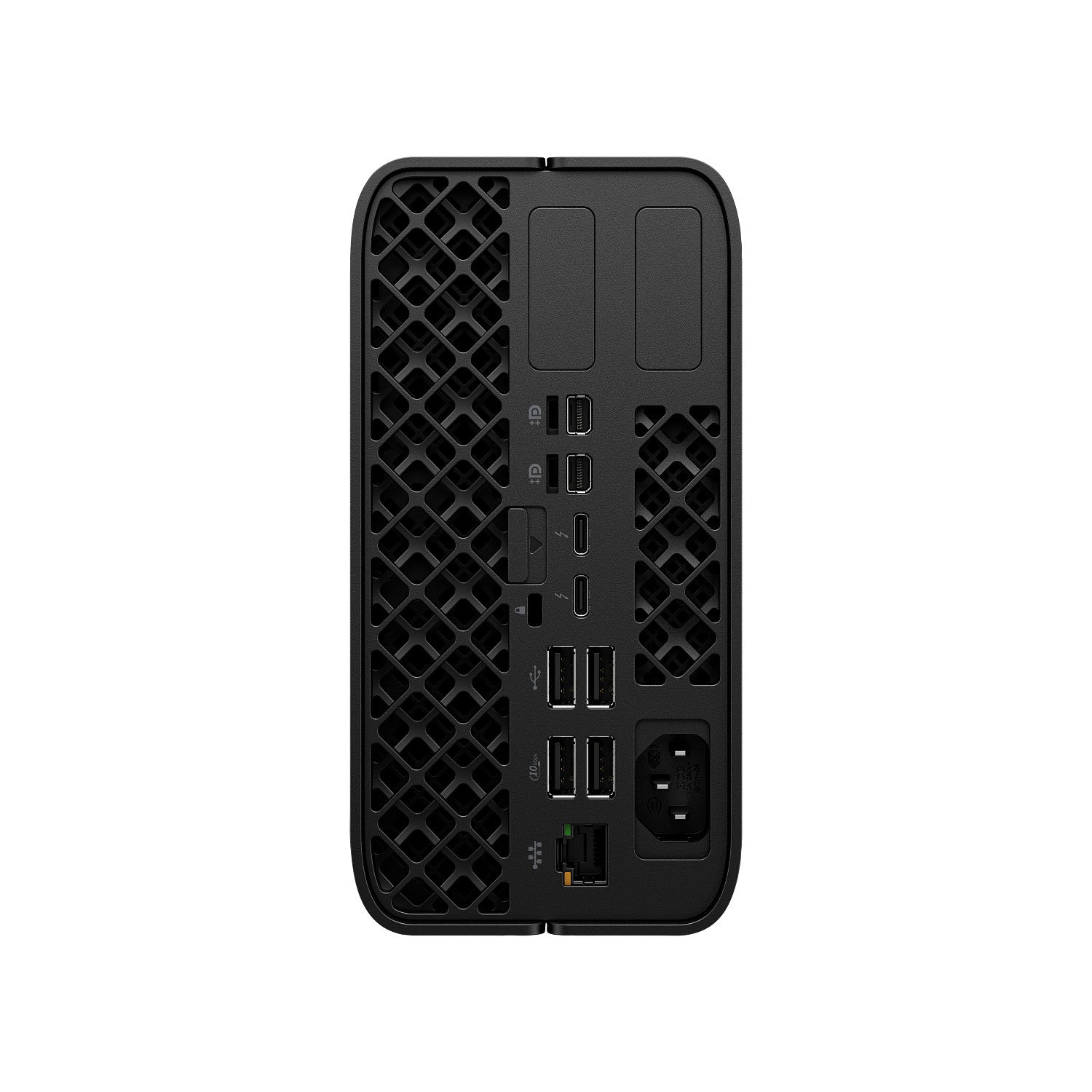

| Rear Ports | 2 Thunderbolt 4 with USB Type-C 40Gbps (USB Power Delivery, DisplayPort 2.1); 2 Mini DisplayPort 2.1; 2 USB Type-A 10Gbps; 2 USB Type-A 480Mbps; 1 RJ-45 |
Expansion
| Expansion Slots | 2 M.2 2280 PCIe 4 x4; 1 M.2 2230 for WLAN |
Input, Audio & Power
| Keyboard | HP 125 Wired Keyboard |
| Mouse | HP 320M Wired Mouse |
| Audio | Realtek ALC3205-VA2-CG, 2.0 W internal mono speaker |
| Power | 300 W internal power supply, up to 92% efficiency, active PFC |
Physical
| Dimensions (W x D x H) | 8.55 x 16.8 x 20 cm (standard desktop orientation) |
| Weight | Starting at 2.3 kg |
Compatibility & Software Support
Operating System
Ships with Windows 11 Pro preinstalled.
Typical Use
Local AI development and inference, 3D design, rendering and data-science work where a compact, high-memory workstation is needed.
Displays
Monitors connect over the two Mini DisplayPort 2.1 outputs or the USB Type-C / Thunderbolt 4 ports with DisplayPort 2.1.
Package Contents & Ordering Information
In the Box
HP Z2 Mini G1a workstation, HP 125 Wired Keyboard, HP 320M Wired Mouse, power cord and documentation.
HP Z Desktop Workstations at SourceIT
| Model | Configuration |
| Z2 Mini G1i DC9J1AT | Core Ultra 7 265K, 32GB, 512GB, RTX A1000 |
| Z2 Mini G1a E65XKPT (this listing) | Ryzen AI Max+ PRO 395, 128GB, 4TB |
| Z2 SFF G1i DC9J8AT | Core Ultra 7 265, 32GB, 1TB, RTX A400 |
| Z2 Tower G1i DC9J3AT | Core Ultra 7 265K, 32GB, 1TB, RTX A400 |
| Z2 Tower G1i E62R4PT | Core Ultra 7 265, 32GB, 1TB, RTX PRO 2000 |
| Z4 G5 E62QWPT | Xeon W3-2425, 32GB ECC, 1TB |
| Z4 G5 E62QZPT | Xeon W3-2423, 64GB ECC, 1TB, RTX PRO 2000 |
| Z4 G5 Tower DZ5Z2AT | Xeon W3-2423, 32GB ECC, 4TB, RTX PRO 2000 |
| Z4 G5 Tower DZ5Y8AT | Xeon W3-2425, 64GB ECC, 4TB, RTX PRO 2000, 10GbE |
Datasheet & Downloads
| HP product page | HP Z2 Mini G1a (E65XKPT) on hp.com Singapore |
| HP QuickSpecs | HP Z2 Mini G1a Workstation QuickSpecs |
| HP datasheet | HP Z2 Mini G1a Workstation Datasheet (PDF) |
| Drivers & manuals | HP Support Singapore — software and driver downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting E65XKPT.
Frequently Asked Questions — HP Z2 Mini G1a
Which processor does E65XKPT have?
An AMD Ryzen AI Max+ PRO 395 with 16 cores, 32 threads, up to 5.1 GHz and a 50 TOPS NPU.
Can the memory be upgraded later?
No. The 128 GB of LPDDR5x-8533 memory is onboard.
Is there a discrete graphics card?
No. Graphics are the integrated AMD Radeon 8060S.
Can I add a second SSD?
The system has two M.2 2280 PCIe 4 x4 slots; one holds the 4 TB HP Z Turbo Drive.
What warranty do I get?
HP 1 year (1/1/1) limited warranty covering parts, labour and on-site repair, supplied locally by SourceIT with a GST invoice. Ask us about HP Care Pack extensions.
