HP Z2 Mini G1a Ryzen AI Max PRO 380 16GB 1TB Workstation
Prices in SGD, excluding 9% GST.
PRODUCT DESCRIPTION
HP Z2 Mini G1a Workstation Desktop PC (C1LB9PT) - 3 Years Local Warranty
AMD Ryzen AI Max PRO in a Mini Workstation

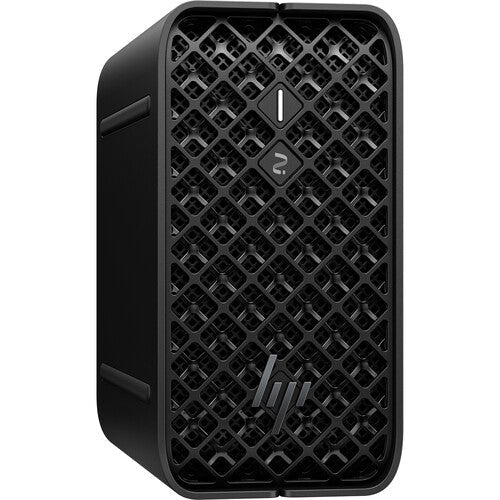

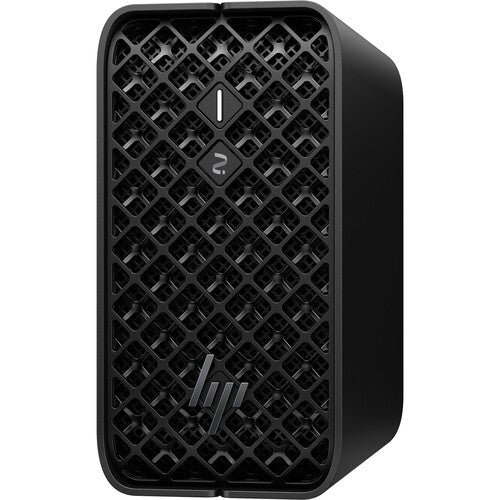

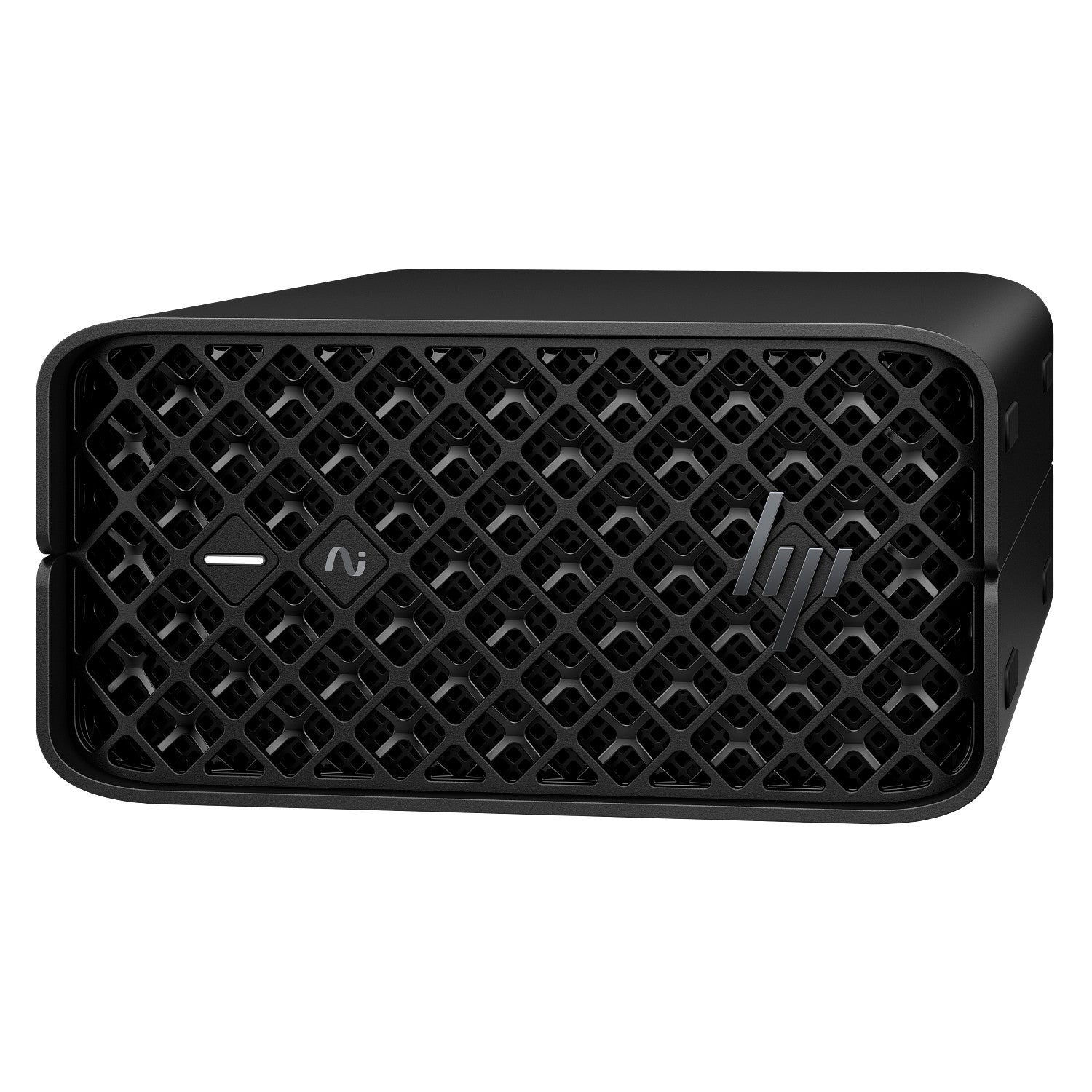

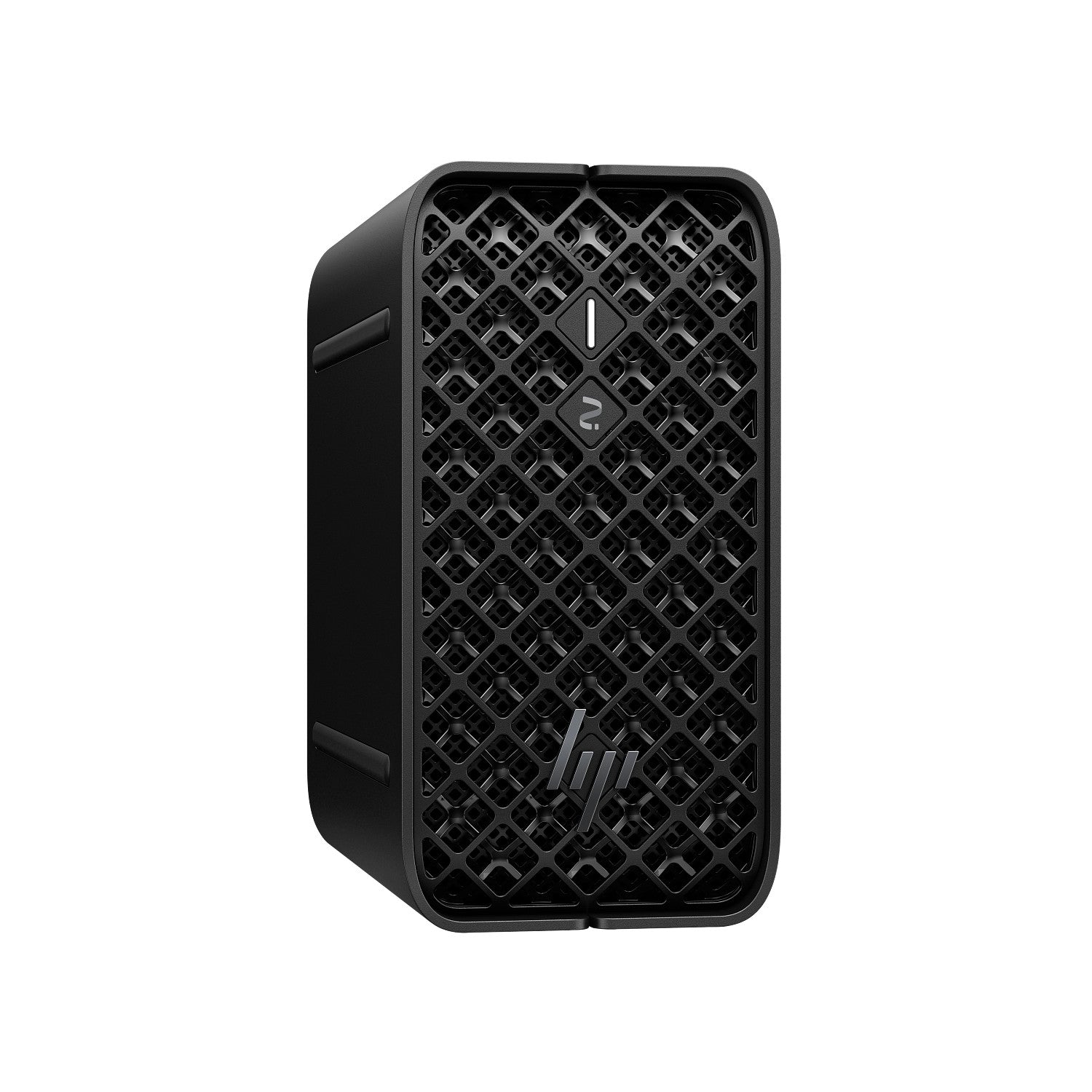

The HP Z2 Mini G1a is built around the AMD Ryzen AI Max PRO 380 with 6 cores, 12 threads and up to 4.9 GHz boost, integrated AMD Radeon 8040S Graphics and an AMD Ryzen AI NPU, in a chassis of 8.55 x 16.8 x 20 cm that starts at 2.3 kg.
Onboard Memory and 1 TB SSD
This configuration has 16 GB of onboard LPDDR5x memory (not upgradable) and a 1 TB PCIe Gen4 x4 M.2 SSD, with a second M.2 2280 slot free for extra storage.
Ports, Power and Warranty
Two Thunderbolt 4 ports, two Mini DisplayPort 2.1 outputs and wired Ethernet connect displays, storage and the network; the 300 W power supply is built in. No keyboard, mouse or Wi-Fi module is included in this configuration, and the unit carries 3 years of local onsite support through SourceIT.
HP Z2 Mini G1a Datasheet — Technical Specifications
General
| Product Name | HP Z2 Mini G1a Workstation Desktop PC |
| Part Number | C1LB9PT |
| Form Factor | Mini |
| Local Warranty (Singapore) | 3 years onsite hardware support (HP 1-year limited warranty plus bundled HP 3-year Onsite Care Pack with Predictive Detection Alerts), supplied by SourceIT with a GST invoice |
Configuration of C1LB9PT
| Processor | AMD Ryzen AI Max PRO 380 (up to 4.9 GHz max boost clock, 16 MB L3 cache, 6 cores, 12 threads) |
| AI Acceleration | AMD Ryzen AI NPU |
| Graphics | AMD Radeon 8040S Graphics (integrated) |
| Memory | 16 GB LPDDR5x onboard (not upgradable) |
| Storage | 1 TB HP PCIe Gen4 x4 M.2 2280 Value SSD |
| Operating System | Windows 11 Pro 64 |
| Security Software | HP Wolf Pro Security Edition (1-year subscription) |
Connectivity & Ports
| Wireless | Not included in this configuration |

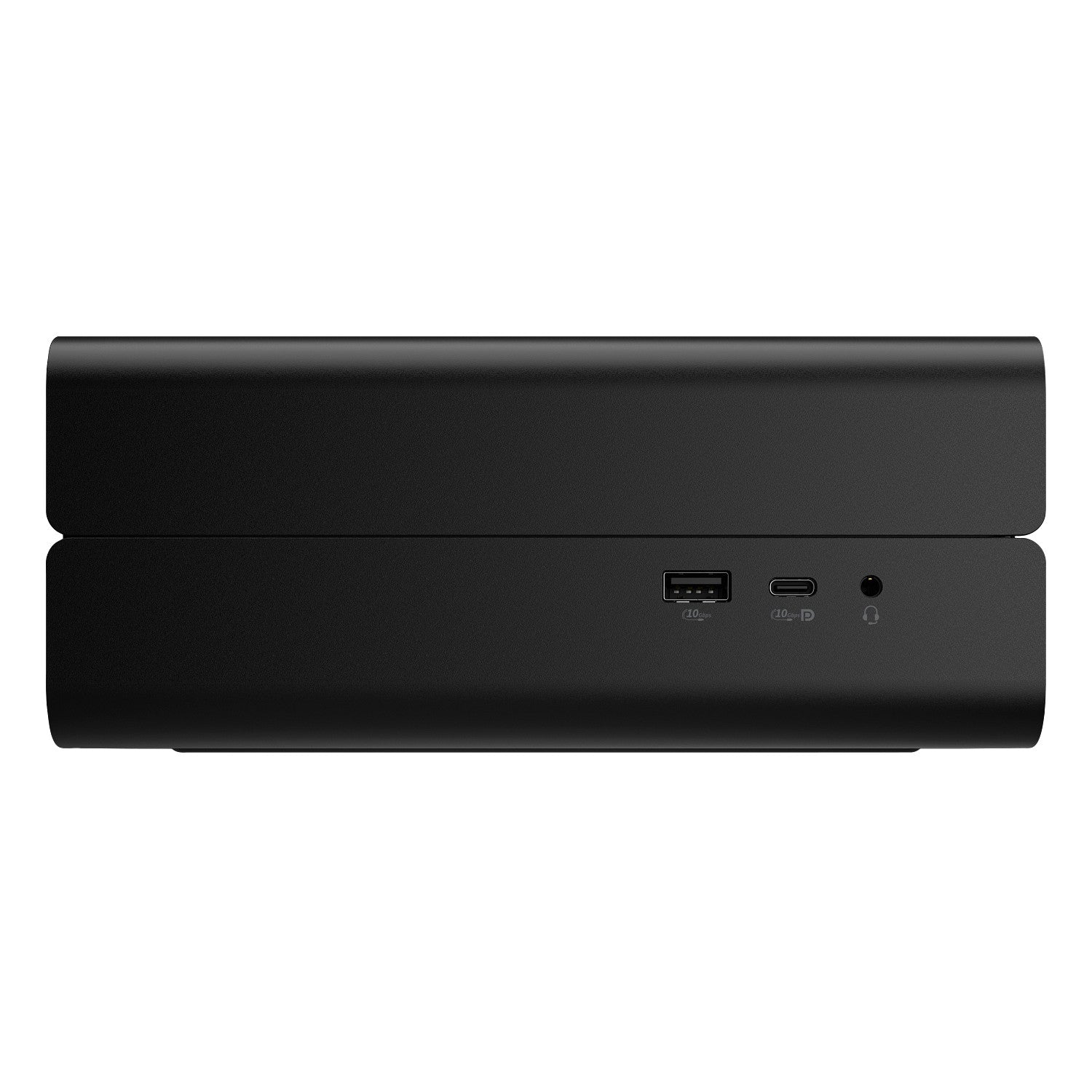

| Side Ports | 1 USB Type-C 10Gbps (USB Power Delivery, DisplayPort 2.1); 1 USB Type-A 10Gbps (charging); 1 headphone/microphone combo |

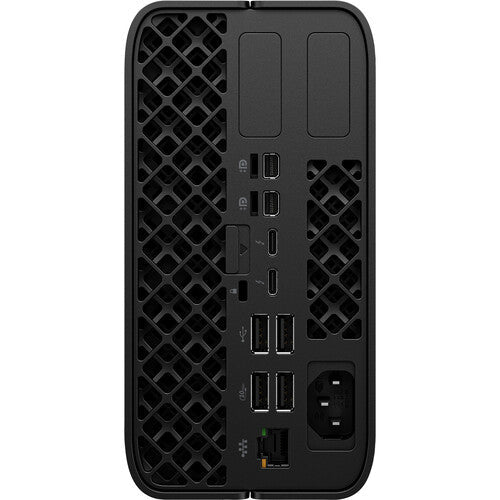

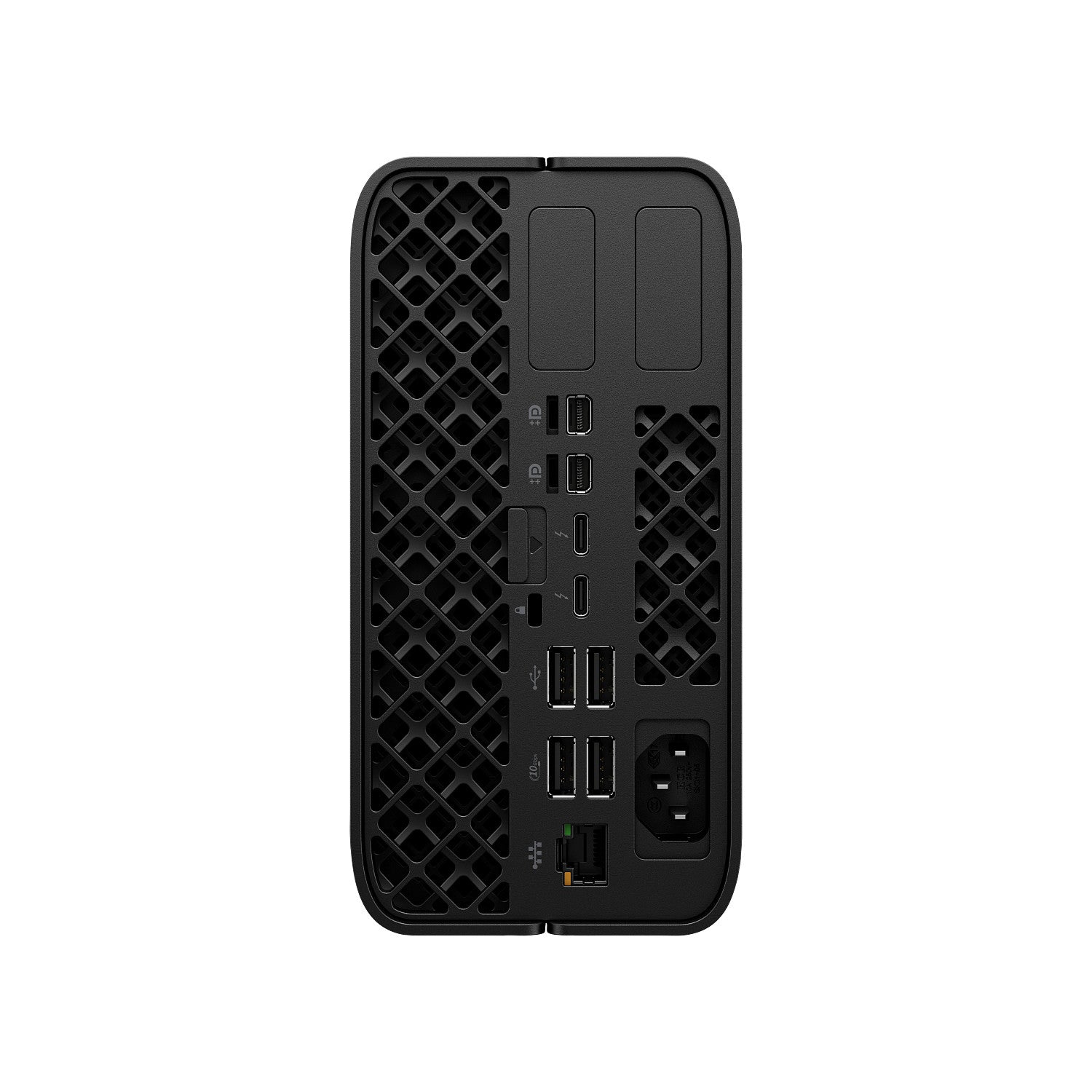

| Rear Ports | 2 Thunderbolt 4 with USB Type-C 40Gbps (USB Power Delivery, DisplayPort 2.1); 2 Mini DisplayPort 2.1; 2 USB Type-A 10Gbps; 2 USB Type-A 480Mbps; 1 RJ-45 |
| Flex I/O | No optional Flex I/O module fitted |
Expansion
| Expansion Slots | 2 M.2 2280 PCIe 4 x4 (1 in use); 1 M.2 2230 for WLAN |
Power & Physical
| Power | 300 W internal power supply |
| Dimensions (W x D x H) | 8.55 x 16.8 x 20 cm (standard desktop orientation) |
| Weight | Starting at 2.3 kg |
Compatibility & Software Support
Operating System
Ships with Windows 11 Pro 64 preinstalled.
Displays
Monitors connect over the two Mini DisplayPort 2.1 outputs (an HP miniDP-to-DP adapter is included) or the Thunderbolt 4 / USB Type-C ports with DisplayPort 2.1.
Typical Use

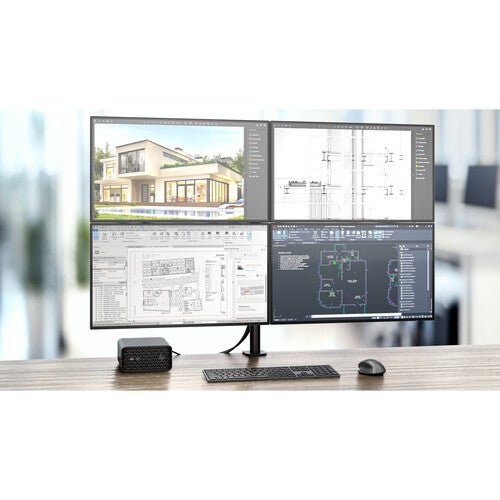

CAD, 3D design, visualisation and local AI development where a compact workstation fits on or under the desk.
Package Contents & Ordering Information
In the Box
HP Z2 Mini G1a workstation (C1LB9PT), HP miniDP-to-DP adapter, power cord and documentation. Keyboard and mouse are not included.

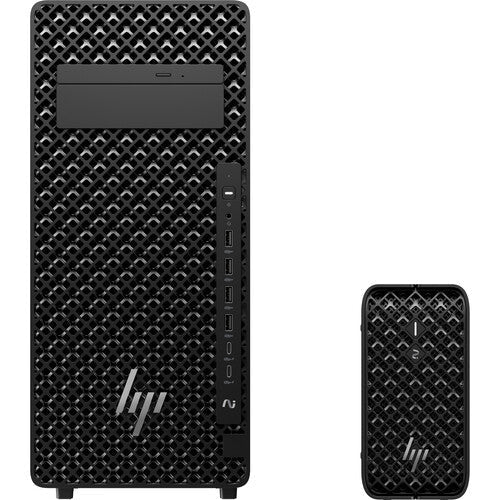

HP Z2 Desktop Workstations
| Model | Configuration |
| HP Z2 Mini G1i (DC9J1AT) | Core Ultra 7 265K, 32GB, 512GB, RTX A1000 |
| HP Z2 Mini G1a (C1LB9PT) (this listing) | Ryzen AI Max PRO 380, 16GB, 1TB |
| HP Z2 Mini G1a (E65XKPT) | Ryzen AI Max+ PRO 395, 128GB, 4TB |
| HP Z2 SFF G1i (DC9J8AT) | Core Ultra 7 265, 32GB, 1TB, RTX A400 |
| HP Z2 Tower G1i (DC9J3AT) | Core Ultra 7 265K, 32GB, 1TB, RTX A400 |
| HP Z2 Tower G1i (C88CSPT) | Core Ultra 7 265K, 32GB, 1TB, RTX A400, dual LAN |
| HP Z2 Tower G1i (E62R4PT) | Core Ultra 7 265, 32GB, 1TB, RTX PRO 2000 |
Datasheet & Downloads
| HP QuickSpecs | HP Z2 Mini G1a Workstation QuickSpecs |
| HP datasheet | HP Z2 Mini G1a Workstation Datasheet (PDF) |
| HP support | HP Z2 Mini G1a — HP Support, drivers and manuals |
Frequently Asked Questions — HP Z2 Mini G1a
Which processor does C1LB9PT have?
An AMD Ryzen AI Max PRO 380 with 6 cores, 12 threads, up to 4.9 GHz, 16 MB L3 cache and integrated AMD Radeon 8040S Graphics.
Can the memory be upgraded later?
No. The 16 GB of LPDDR5x memory is onboard and cannot be upgraded, so choose the memory size you need at purchase.
Can I add a second SSD?
Yes. There are two M.2 2280 PCIe 4 x4 slots; one holds the 1 TB SSD.
Are a keyboard, mouse and Wi-Fi included?
No. This configuration ships without keyboard and mouse and without a Wi-Fi module; it connects to the network over the RJ-45 port.
What warranty do I get?
3 years onsite hardware support (HP 1-year limited warranty plus bundled HP 3-year Onsite Care Pack with Predictive Detection Alerts), supplied by SourceIT with a GST invoice.
