H3C WA6126 Wi-Fi 6 6-Stream Cloud Access Point, 5.375 Gbps, 2.5GE PoE Uplink
PRODUCT DESCRIPTION
H3C WA6126 Wi-Fi 6 6-Stream Access Point (EWP-WA6126) - 5 Years Local Warranty
6 Streams, up to 5.375 Gbps
The H3C WA6126 is an 802.11ax (Wi-Fi 6) access point with dual-radio, 6 spatial streams — 4x4 5 GHz and 2x2 2.4 GHz — and built-in antennas, rated by H3C at up to 5.375 Gbps combined.
2.5GE Uplink
A 100/1000M/2.5G PoE-powered uplink (802.3at/af) plus a second Gigabit port keeps the wired side from bottlenecking the 160 MHz 5 GHz radio.
For Denser Spaces
H3C recommends 120 clients (up to 256), with OFDMA, MU-MIMO, BSS Colouring and Target Wake Time for busy offices, classrooms and hotels.
Cloud or Controller Managed
Manage it in Cloud AP mode on H3C Cloudnet, or in Fit AP mode from an H3C wireless controller.
H3C WA6126 Datasheet — Technical Specifications
General
| Product Name | H3C WA6126 Wi-Fi 6 6-Stream Access Point |
| Model | EWP-WA6126 |
| Part Number (BOM) | 9801A3WW |
| Product Positioning | Indoor dual-radio AP, 802.11a/b/g/n/ac/ac Wave 2/ax |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| Radios / MIMO | 5 GHz 4x4:4, up to 4.8 Gbps; 2.4 GHz 2x2:2, up to 0.575 Gbps |
| Channel Width | 5 GHz: 20/40/80/160 MHz; 2.4 GHz: 20/40 MHz |
| Frequency Bands | 2.4 GHz (2.400–2.4835 GHz) and 5 GHz (5.150–5.850 GHz, U-NII-1/2A/2C/3); available channels depend on the configured country |
| Antenna | Built-in omni-directional; peak gain 5 dBi (5 GHz) / 5 dBi (2.4 GHz); equivalent gain 4 dBi / 4 dBi |
| Max Transmit Power | 23 dBm (5 GHz) / 23 dBm (2.4 GHz), multi-chain combined, subject to local regulations |
| Power Adjustment | 1 dBm granularity |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax; 802.11d/e/h/i/w/u; 802.11k/v/r |
| Wi-Fi Certified | Wi-Fi 6, WMM, WPA, WPA2 and WPA3 – Enterprise, Personal (SAE), Enhanced Open (OWE) (Wi-Fi Alliance) |
Interfaces

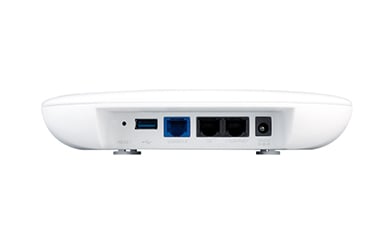

| Ethernet | 1 x 100/1000M/2.5G RJ45 (PoE input) + 1 x 100/1000M RJ45 |
| Console | 1 x RJ45 management console port |
| PoE Input | 2.5GE port: IEEE 802.3at/af |
| Local Power | 54 V DC |
Performance
| Max Combined Rate | 5.375 Gbps (4x4 160 MHz on 5 GHz + 2x2 40 MHz on 2.4 GHz) |
| Max Clients | 256 (actual number varies with environment) |
| Recommended Clients | 120 |
| SSIDs | Up to 4 per radio |
| MTBF (25 °C) | 864,581 hours |
Power & Physical
| Power Consumption | ≤20.1 W including USB; ≤17.6 W without USB |
| Dimensions (W x D x H) | 185 x 185 x 35 mm |
| Weight | 1.05 kg |
| Installation | Wall or ceiling mounting |
| Protection Class | IP41 |
| Kensington Lock | Supported |
| Operating Temperature | 0 to +50 °C |
| Storage Temperature | -40 to +70 °C |
| Humidity | 5% to 95% non-condensing |
Specifications from H3C's official WA6126 product page (Specification tab, h3c.com SMB Cloudnet wireless).
Compatibility & Software Support
Management
Per H3C's specification table, the AP runs in Fit AP mode, managed by an H3C wireless controller (AC) — H3C names the built-in AC of the WSG1800X series gateway, the MSR610 router and the F100-C series firewall — or in Cloud AP mode, managed through the H3C Cloudnet platform. In Cloud AP mode it also supports web management over HTTP/HTTPS, Syslog and NETCONF; SSH v2.0 / Telnet / FTP / TFTP remote debugging and local CLI are supported.
Security & Authentication
WPA2-Personal / Enterprise, WPA3-Personal / Enterprise and WPA3-Enhanced Open (OWE); 802.1X, MAC and Portal authentication (local or remote), PSK and Private-PSK; social-media login (Google/Facebook/Twitter) through Cloudnet in Cloud AP mode; WIPS rogue-device protection and management frame protection.
Roaming & Wi-Fi Features
802.11k/v smart roaming and 802.11r fast transition, band steering, load balancing, SSID/VLAN-based local forwarding, mesh (including multi-hop), multicast-to-unicast enhancement, WMM/QoS and per-client bandwidth management, IPv4/IPv6.
Package Contents & H3C Cloudnet Wi-Fi 6 AP Ordering Information
H3C Wi-Fi 6 Cloudnet AP Models at SourceIT
| Model | Ports | PoE | Part No. |
| EWP-WA6020 — WA6020 (ceiling/wall, 2+2 streams) | 1 x GE | PoE in 802.3af | 9801A5ND |
| EWP-WA6022H — WA6022H (wall-plate, 2+2 streams) | 2 x GE (1 uplink + 1 LAN) | PoE in 802.3af (GE1) | 9801A5NC |
| EWP-WA6120 — WA6120 (ceiling/wall, 2+2 streams) | 1 x GE | PoE in 802.3af | 9801A3WV |
| EWP-WA6126 — WA6126 (ceiling/wall, 4+2 streams) (this listing) | 1 x 2.5GE + 1 x GE | PoE in 802.3at/af (2.5GE) | 9801A3WW |
| EWP-WA6120H — WA6120H (wall-plate, 2+2 streams) | 5 x GE (1 uplink + 4 LAN) | PoE in 802.3at (GE1); PoE out 802.3af (GE5)* | 9801A3WX |
| EWP-WA6120X — WA6120X (outdoor IP67, 2+2 streams) | 2 x GE | PoE injector required | 9801A3WY |
| EWPA-IM-DesktopBracket — AP Desktop Bracket for WA6120H (2 sets per pack) | — | — | 9821A0PF |
* WA6120H PoE output on GE5: per H3C, units at hardware version A0 (serial 219801A3WX8235XXXXXX or earlier) do not support PoE_OUT; later non-A0 units do, marked "PSE" below GE5.
In the Box
H3C's ordering table lists the EWP-WA6126 with mounting brackets included. No power adapter is listed as standard. H3C does not publish a full package-contents list on the product page — ask us if you need it confirmed before ordering.
Power Options
Power by an 802.3at/af PoE switch on the 2.5GE port, or — per H3C's ordering table, selected on demand — the EWPAM1HPOE-GL 55V/30W single-port PoE injector or the RDW06305401170-C55-51 54V 60W high-power adapter.
Datasheet & Downloads
| H3C product page | WA6126 on h3c.com |
| H3C datasheet | WA6126 Datasheet Download (download.h3c.com) |
| Tolly report | WA6126 Tolly Report Download (download.h3c.com) |
Frequently Asked Questions — H3C WA6126
Do I need a 2.5G switch?
Not to run it — the uplink is 100/1000M/2.5G. A 2.5G PoE switch port lets the uplink carry more than 1 Gbps.
What PoE does it need?
H3C lists 802.3at/af PoE input on the 2.5GE port, or a 54 V DC local supply (H3C option: RDW06305401170-C55-51 54V 60W adapter).
Does it support 160 MHz channels?
Yes, on 5 GHz (20/40/80/160 MHz) per H3C's specification.
Can it be managed from the cloud?
Yes, in Cloud AP mode on H3C Cloudnet; Fit AP mode with an H3C AC is also supported.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
