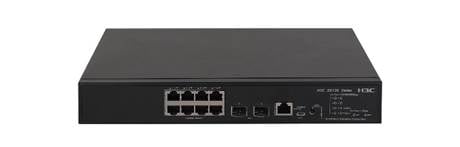

H3C S5130S-10MS-UPWR-EI 8-Port 2.5G UPoE Switch, 90 W PoE, 2 x 10G SFP+
PRODUCT DESCRIPTION
H3C S5130S-10MS-UPWR-EI 8-Port 2.5G Multi-Gigabit UPoE Switch (LS-5130S-10MS-UPWR-EI-GL) - 5 Years Local Warranty
8 x 2.5G UPoE Ports with 10G Uplinks
The H3C S5130S-10MS-UPWR-EI has 8 x 1G/2.5GBASE-T multi-gigabit ports with UPoE and 2 x 1G/10GBASE-X SFP+ uplinks. H3C rates it at 80 Gbps switching capacity and 60 Mpps forwarding.
Up to 90 W per Port
On AC power the switch provides a 370 W PoE budget, enough for 90 W (802.3bt) on 4 ports or 60 W on 6 ports. With a -54 to -57 V DC feed the budget rises to 740 W, enough for 90 W on all 8 ports, per H3C's PoE power capacity table.
IRF2 Stacking and Easy Management
IRF2 stacks up to 9 switches through standard Ethernet ports into one logical device. H3C lists CLI, web UI, Telnet and console configuration, SNMPv1/v2c/v3, NETCONF/YANG, gRPC telemetry and Zero Touch Provisioning for the S5130S-EI series.
Security and Protection
Series-level SSH, port security, ARP protection, EAD and Control Plane Protection, plus 6 kV surge protection on service ports, per H3C's S5130S-EI page.
H3C S5130S-10MS-UPWR-EI Datasheet — Technical Specifications
General
| Product Name | H3C S5130S-10MS-UPWR-EI Ethernet Switch |
| Model | LS-5130S-10MS-UPWR-EI-GL |
| Part Number (BOM) | 9801A3EW |
| Switch Type | Ethernet switch, H3C S5130S-EI series (ordered by H3C as "L2 Ethernet Switch") |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| Multi-Gigabit Ports | 8 x 1G/2.5GBASE-T (UPoE) |
| SFP+ Ports | 2 x 1G/10GBASE-X SFP+ |
| PoE (AC power) | 370 W total: 8 ports at 15.4 W (802.3af), 8 at 30 W (802.3at), 6 at 60 W or 4 at 90 W (802.3bt) |
| PoE (DC power) | 740 W total: 8 ports at 15.4 W, 30 W, 60 W or 90 W (802.3bt) |
Performance
| Switching Capacity | 80 Gbps (port) |
| Forwarding Rate | 60 Mpps |
| MAC Address Table | 16K entries (S5130S-EI series) |
| IPv4 Routing / ARP Entries | 1,024 / 1,024 (S5130S-EI series) |
| VLANs | 4,094 active |
| CPU / Flash / SDRAM | 1 core 800 MHz / 256 MB / 512 MB |
| Stacking | IRF2, up to 9 units, max. 16 Gbps stacking bandwidth |
Power & Physical
| Power Input | AC: 100–240 V AC, 50/60 Hz; DC: -54 to -57 V DC |
| Power Consumption | AC: min 22.2 W, max 447 W (PoE 370 W); DC: min 17.38 W, max 794.2 W (PoE 740 W) |
| Cooling | 3 fans |
| Port Surge Protection | 6 kV (service ports, series) |
| Dimensions (W x D x H) | 300 × 260 × 43.6 mm |
| Weight | ≤ 3.5 kg |
| MTBF | 52.27 years |
| Operating Temperature | -5 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Humidity | 5% to 95%, non-condensing |
Specifications from H3C's S5130S-EI Series Enhanced Gigabit Access Switches datasheet (May 2023) and the S5130S-EI product page on h3c.com; MAC, routing and VLAN figures are given by H3C for the S5130S-EI series as a whole.
Compatibility & Software Support
Management
Per H3C's S5130S-EI specification: configuration through CLI, web UI, Telnet and console port, SNMPv1/v2c/v3, NETCONF/YANG, telemetry via gRPC or NETCONF, sFlow and Zero Touch Provisioning. H3C does not list cloud management for this series.
Routing
H3C's S5130S-EI series specification lists static routing, RIP and OSPF (IPv4) and IPv6 static routing, RIPng and OSPFv3, while H3C's ordering list describes this model as an "L2 Ethernet Switch" — ask us before planning routing on it.
Typical Use
Powering Wi-Fi 6/6E/7 access points, PTZ cameras and other high-draw PoE devices that benefit from 2.5G links and up to 90 W per port.
Package Contents & H3C S5130S-EI Ordering Information
H3C S5130S-EI Ordering Information
| Model | Ports | PoE | Part No. |
| S5130S-10MS-UPWR-EI (this listing) | 8 x 1G/2.5G + 2 x 10G SFP+ | 370 W AC / 740 W DC | 9801A3EW |
Package contents and rack-mount brackets are not listed on H3C's product page or in the distributor book for this model — ask us if you need confirmation of the included power cord and mounting kit.
Datasheet & Downloads
| H3C product page | H3C S5130S-EI Series on h3c.com |
| H3C datasheet | H3C S5130S-EI Series Enhanced Gigabit Access Switches Datasheet (PDF) |
| Datasheet download | S5130S-EI datasheet (download.h3c.com) |
| Hardware guide | H3C S5130S-EI Switch Series Hardware Information and Specifications |
Frequently Asked Questions — H3C S5130S-10MS-UPWR-EI
How much PoE can it deliver?
On AC power, 370 W in total: 90 W (802.3bt) on up to 4 ports or 60 W on up to 6 ports, and 30 W PoE+ on all 8. On a -54 to -57 V DC feed, 740 W in total with 90 W available on all 8 ports.
Do the ports run at 2.5 Gbps?
Yes. The 8 RJ45 ports are 1G/2.5GBASE-T multi-gigabit; the 2 SFP+ uplinks take 1G or 10G modules.
Is it a Layer 3 switch?
H3C orders it as an L2 Ethernet switch, though the S5130S-EI series specification lists static routing, RIP and OSPF. Ask us to confirm before planning routing on this model.
Can I stack it?
Yes. IRF2 stacks up to 9 switches through standard Ethernet ports, with up to 16 Gbps stacking bandwidth on this model.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
