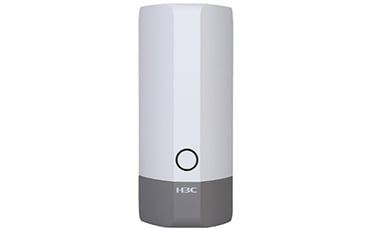

H3C WA6120X Wi-Fi 6 Outdoor Access Point, 2.975 Gbps Dual Radio, IP67, 2 x GE
PRODUCT DESCRIPTION
H3C WA6120X Wi-Fi 6 Outdoor Access Point (EWP-WA6120X) - Local Warranty
Outdoor Wi-Fi 6 at 2.975 Gbps
The H3C WA6120X is an 802.11ax outdoor access point with dual-radio, 4 spatial streams (2x2 5 GHz and 2x2 2.4 GHz) and built-in antennas, rated by H3C at up to 2.975 Gbps combined.
Weatherproof and Wide-Temperature
An IP67 enclosure, 6 kV surge protection and a -30 to +55 °C operating range suit outdoor courtyards, campuses, stadiums and scenic spots.
Pole or Wall Mount
A compact 101 x 110 x 250 mm, 1.1 kg body with two Gigabit ports mounts on a pole or wall.
Cloud or Controller Managed
Manage it in Cloud AP mode on H3C Cloudnet, or in Fit AP mode from an H3C wireless controller.
H3C WA6120X Datasheet — Technical Specifications
General
| Product Name | H3C WA6120X Wi-Fi 6 Outdoor Access Point |
| Model | EWP-WA6120X |
| Part Number (BOM) | 9801A3WY |
| Product Positioning | Outdoor dual-radio AP, 802.11a/b/g/n/ac/ac Wave 2/ax |
| Local Warranty (Singapore) | Local warranty, supplied by SourceIT with a GST invoice |
Wireless
| Radios / MIMO | 5 GHz 2x2:2, up to 2.4 Gbps; 2.4 GHz 2x2:2, up to 0.575 Gbps |
| Channel Width | 5 GHz: 20/40/80 MHz; 2.4 GHz: 20/40 MHz |
| Frequency Bands | 2.4 GHz (2.400–2.4835 GHz) and 5 GHz (5.150–5.850 GHz, U-NII-1/2A/2C/3); available channels depend on the configured country |
| Antenna | Built-in omni-directional; peak gain 6 dBi (5 GHz) / 4 dBi (2.4 GHz); equivalent gain 5 dBi / 3 dBi |
| Max Transmit Power | 27 dBm (5 GHz) / 27 dBm (2.4 GHz), multi-chain combined, subject to local regulations |
| Power Adjustment | 1 dBm granularity |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax; 802.11d/e/h/i/w/u; 802.11k/v/r |
| Wi-Fi Certified | Wi-Fi 6, WMM, WPA, WPA2 and WPA3 – Enterprise, Personal (SAE), Enhanced Open (OWE) (Wi-Fi Alliance) |
Interfaces
| Ethernet | 2 x 100/1000M RJ45 |
| Power Input | PoE injector required (H3C ADP060-55V-PoE-GL) |
Performance
| Max Combined Rate | 2.975 Gbps (2x2 80 MHz on 5 GHz + 2x2 40 MHz on 2.4 GHz) |
| Max Clients | 256 (actual number varies with environment) |
| Recommended Clients | 100 |
| SSIDs | Up to 4 per radio |
| MTBF (25 °C) | 864,581 hours |
Power & Physical
| Power Consumption | ≤16.32 W |
| Dimensions (W x D x H) | 101 x 110 x 250 mm |
| Weight | 1.1 kg |
| Installation | Pole or wall mounting |
| Protection Class | IP67 |
| Surge Protection | 6 kV |
| Operating Temperature | -30 to +55 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 0% to 100% non-condensing |
Specifications from H3C's official WA6120X product page (Specification tab, h3c.com SMB Cloudnet wireless).
Compatibility & Software Support
Management
Per H3C's specification table, the AP runs in Fit AP mode, managed by an H3C wireless controller (AC) — H3C names the built-in AC of the WSG1800X series gateway, the MSR610 router and the F100-C series firewall — or in Cloud AP mode, managed through the H3C Cloudnet platform. In Cloud AP mode it also supports web management over HTTP/HTTPS, Syslog and NETCONF; SSH v2.0 / Telnet / FTP / TFTP remote debugging and local CLI are supported.
Security & Authentication
WPA2-Personal / Enterprise, WPA3-Personal / Enterprise and WPA3-Enhanced Open (OWE); 802.1X, MAC and Portal authentication (local or remote), PSK and Private-PSK; social-media login (Google/Facebook/Twitter) through Cloudnet in Cloud AP mode; WIPS rogue-device protection and management frame protection.
Roaming & Wi-Fi Features
802.11k/v smart roaming and 802.11r fast transition, band steering, load balancing, SSID/VLAN-based local forwarding, mesh (including multi-hop), multicast-to-unicast enhancement, WMM/QoS and per-client bandwidth management, IPv4/IPv6.
Package Contents & H3C Cloudnet Wi-Fi 6 AP Ordering Information
H3C Wi-Fi 6 Cloudnet AP Models at SourceIT
| Model | Ports | PoE | Part No. |
| EWP-WA6020 — WA6020 (ceiling/wall, 2+2 streams) | 1 x GE | PoE in 802.3af | 9801A5ND |
| EWP-WA6022H — WA6022H (wall-plate, 2+2 streams) | 2 x GE (1 uplink + 1 LAN) | PoE in 802.3af (GE1) | 9801A5NC |
| EWP-WA6120 — WA6120 (ceiling/wall, 2+2 streams) | 1 x GE | PoE in 802.3af | 9801A3WV |
| EWP-WA6126 — WA6126 (ceiling/wall, 4+2 streams) | 1 x 2.5GE + 1 x GE | PoE in 802.3at/af (2.5GE) | 9801A3WW |
| EWP-WA6120H — WA6120H (wall-plate, 2+2 streams) | 5 x GE (1 uplink + 4 LAN) | PoE in 802.3at (GE1); PoE out 802.3af (GE5)* | 9801A3WX |
| EWP-WA6120X — WA6120X (outdoor IP67, 2+2 streams) (this listing) | 2 x GE | PoE injector required | 9801A3WY |
| EWPA-IM-DesktopBracket — AP Desktop Bracket for WA6120H (2 sets per pack) | — | — | 9821A0PF |
* WA6120H PoE output on GE5: per H3C, units at hardware version A0 (serial 219801A3WX8235XXXXXX or earlier) do not support PoE_OUT; later non-A0 units do, marked "PSE" below GE5.
In the Box
H3C's ordering table lists the WA6120X with mounting brackets included. H3C does not publish a full package-contents list on the product page — ask us if you need it confirmed before ordering.
Power Options
H3C lists the ADP060-55V-PoE-GL 55V 60W PoE adapter as required for the WA6120X; the distributor also marks that adapter 'Only for WA6120X'.
Datasheet & Downloads
| H3C product page | WA6120X on h3c.com |
| H3C datasheet | WA6120X Datasheet Download (download.h3c.com) |
| Tolly report | WA6120X Tolly Report Download (download.h3c.com) |
Frequently Asked Questions — H3C WA6120X
What do I need to power it?
H3C's ordering table marks the ADP060-55V-PoE-GL 55V 60W PoE adapter as required for the WA6120X. Ask us whether your existing PoE switch can be used instead.
Is it really weatherproof?
H3C rates it IP67 with 6 kV surge protection, operating from -30 to +55 °C and 0–100% humidity (non-condensing).
How is it mounted?
On a pole or a wall; H3C's ordering table lists mounting brackets as included.
Can it be managed from the cloud?
Yes, in Cloud AP mode on H3C Cloudnet; Fit AP mode with an H3C AC is also supported.
What warranty do I get?
Local warranty in Singapore, supplied by SourceIT with a GST invoice — ask us for the warranty term on this model.
