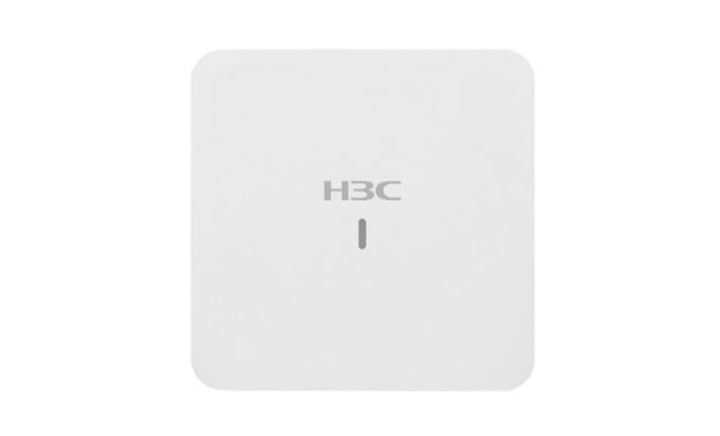

H3C WA6020 Wi-Fi 6 Dual-Radio Cloud Access Point, 1500 Mbps, 1 x GE PoE
PRODUCT DESCRIPTION
H3C WA6020 Wi-Fi 6 Dual-Radio Access Point (EWP-WA6020) - 5 Years Local Warranty
Wi-Fi 6 at up to 1500 Mbps
The H3C WA6020 is an 802.11ax (Wi-Fi 6) access point with dual-radio, 4 spatial streams (2x2 5 GHz and 2x2 2.4 GHz) and built-in antennas, rated by H3C at up to 1500 Mbps combined.
Built for Busy Rooms
OFDMA, uplink/downlink MU-MIMO, BSS Colouring and Target Wake Time help the AP serve many clients at once — H3C recommends 100 clients and supports up to 256.
Cloud or Controller Managed
Run it in Cloud AP mode on H3C Cloudnet with no controller to deploy, or in Fit AP mode under an H3C wireless controller for centralised configuration.
Ceiling or Wall Mount
A slim 180 x 180 x 32 mm, 0.5 kg housing with IP41 protection, a Kensington lock slot and a single Gigabit PoE (802.3af) uplink suits offices, retail stores and hotels.
H3C WA6020 Datasheet — Technical Specifications
General
| Product Name | H3C WA6020 Wi-Fi 6 Dual-Radio Access Point |
| Model | EWP-WA6020 |
| Part Number (BOM) | 9801A5ND |
| Product Positioning | Indoor dual-radio AP, 802.11a/b/g/n/ac/ac Wave 2/ax |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Wireless
| Radios / MIMO | 5 GHz 2x2:2, up to 1.2 Gbps; 2.4 GHz 2x2:2, up to 0.3 Gbps |
| Channel Width | 5 GHz: 20/40/80 MHz; 2.4 GHz: 20/40 MHz |
| Frequency Bands | 2.4 GHz (2.400–2.4835 GHz) and 5 GHz (5.150–5.850 GHz, U-NII-1/2A/2C/3); available channels depend on the configured country |
| Antenna | Built-in omni-directional; peak gain 5 dBi (5 GHz) / 4 dBi (2.4 GHz); equivalent gain 4 dBi / 3 dBi |
| Max Transmit Power | 23 dBm (5 GHz) / 23 dBm (2.4 GHz), multi-chain combined, subject to local regulations |
| Power Adjustment | 1 dBm granularity |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax; 802.11d/e/h/i/w/u; 802.11k/v/r |
| Wi-Fi Certified | Wi-Fi 6, WMM, WPA, WPA2 and WPA3 – Enterprise, Personal (SAE), Enhanced Open (OWE) (Wi-Fi Alliance) |
Interfaces
| Ethernet | 1 x 100/1000M RJ45, PoE input |
| Console | 1 x RJ45 management console port |
| PoE Input | IEEE 802.3af |
| Local Power | 54 V DC |
Performance
| Max Combined Rate | 1500 Mbps (2x2 80 MHz on 5 GHz + 2x2 40 MHz on 2.4 GHz) |
| Max Clients | 256 (actual number varies with environment) |
| Recommended Clients | 100 |
| SSIDs | Up to 4 per radio |
| MTBF (25 °C) | 864,581 hours |
Power & Physical
| Power Consumption | 12.95 W |
| Dimensions (W x D x H) | 180 x 180 x 32 mm |
| Weight | 0.5 kg |
| Installation | Wall or ceiling mounting |
| Protection Class | IP41 |
| Kensington Lock | Supported |
| Operating Temperature | 0 to +45 °C |
| Storage Temperature | -40 to +70 °C |
| Humidity | 5% to 95% non-condensing |
Specifications from H3C's official WA6020 product page (Specification tab, h3c.com SMB Cloudnet wireless).
Compatibility & Software Support
Management
Per H3C's specification table, the AP runs in Fit AP mode, managed by an H3C wireless controller (AC) — H3C names the built-in AC of the WSG1800X series gateway, the MSR610 router and the F100-C series firewall — or in Cloud AP mode, managed through the H3C Cloudnet platform. In Cloud AP mode it also supports web management over HTTP/HTTPS, Syslog and NETCONF; SSH v2.0 / Telnet / FTP / TFTP remote debugging and local CLI are supported.
Security & Authentication
WPA2-Personal / Enterprise, WPA3-Personal / Enterprise and WPA3-Enhanced Open (OWE); 802.1X, MAC and Portal authentication (local or remote), PSK and Private-PSK; social-media login (Google/Facebook/Twitter) through Cloudnet in Cloud AP mode; WIPS rogue-device protection and management frame protection.
Roaming & Wi-Fi Features
802.11k/v smart roaming and 802.11r fast transition, band steering, load balancing, SSID/VLAN-based local forwarding, mesh (including multi-hop), multicast-to-unicast enhancement, WMM/QoS and per-client bandwidth management, IPv4/IPv6.
Package Contents & H3C Cloudnet Wi-Fi 6 AP Ordering Information
H3C Wi-Fi 6 Cloudnet AP Models at SourceIT
| Model | Ports | PoE | Part No. |
| EWP-WA6020 — WA6020 (ceiling/wall, 2+2 streams) (this listing) | 1 x GE | PoE in 802.3af | 9801A5ND |
| EWP-WA6022H — WA6022H (wall-plate, 2+2 streams) | 2 x GE (1 uplink + 1 LAN) | PoE in 802.3af (GE1) | 9801A5NC |
| EWP-WA6120 — WA6120 (ceiling/wall, 2+2 streams) | 1 x GE | PoE in 802.3af | 9801A3WV |
| EWP-WA6126 — WA6126 (ceiling/wall, 4+2 streams) | 1 x 2.5GE + 1 x GE | PoE in 802.3at/af (2.5GE) | 9801A3WW |
| EWP-WA6120H — WA6120H (wall-plate, 2+2 streams) | 5 x GE (1 uplink + 4 LAN) | PoE in 802.3at (GE1); PoE out 802.3af (GE5)* | 9801A3WX |
| EWP-WA6120X — WA6120X (outdoor IP67, 2+2 streams) | 2 x GE | PoE injector required | 9801A3WY |
| EWPA-IM-DesktopBracket — AP Desktop Bracket for WA6120H (2 sets per pack) | — | — | 9821A0PF |
* WA6120H PoE output on GE5: per H3C, units at hardware version A0 (serial 219801A3WX8235XXXXXX or earlier) do not support PoE_OUT; later non-A0 units do, marked "PSE" below GE5.
In the Box
H3C's ordering table lists the WA6020 with mounting brackets included. No power adapter is listed as standard. H3C does not publish a full package-contents list on the product page — ask us if you need it confirmed before ordering.
Power Options
Power by an 802.3af PoE switch, or — per H3C's ordering table, selected on demand — the EWPAM1HPOE-GL 55V/30W single-port PoE injector or the ADP040-54B 54V 40W power adapter.
Datasheet & Downloads
| H3C product page | WA6020 on h3c.com |
| H3C datasheet | WA6020 Datasheet Download (download.h3c.com) |
| Tolly report | WA6020 Tolly Report Download (download.h3c.com) |
Frequently Asked Questions — H3C WA6020
Does it need a wireless controller?
No. In Cloud AP mode it is managed from the H3C Cloudnet platform without a controller; it can also run in Fit AP mode under an H3C AC.
How is it powered?
By 802.3af PoE on its Gigabit port, or by a 54 V DC local supply. H3C offers the EWPAM1HPOE-GL PoE injector and the ADP040-54B adapter as options.
How many users can it handle?
H3C recommends 100 clients and quotes a maximum of 256; actual numbers depend on the environment.
WA6020 or WA6120?
Both are 2x2 + 2x2 ceiling/wall APs with the same housing. H3C rates the WA6020 at 1500 Mbps and the WA6120 at 2.975 Gbps combined.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
