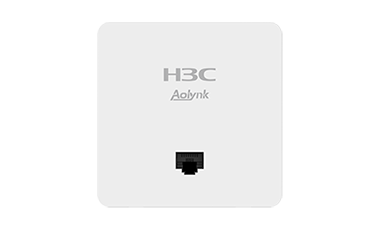

H3C Aolynk UAP612MG-AX30 Wi-Fi 6 Wall-Plate Access Point, 2976 Mbps, 2.5GE PoE + GE LAN
PRODUCT DESCRIPTION
H3C Aolynk UAP612MG-AX30 Wi-Fi 6 Wall-Plate Access Point (AOLYNK-UAP612MG-AX30) - 3 Years Local Warranty
Fits a Standard 86 mm Wall Box
The H3C Aolynk UAP612MG-AX30 is an ultra-thin Wi-Fi 6 (802.11ax) wall-plate access point sized for a standard 86 mm panel, so it can replace an existing wall plate in dormitories, hospital wards, hotel rooms and villas. A second Ethernet port on the plate connects a wired device in the room.
Dual-Radio, Four-Stream
H3C rates the UAP612MG-AX30 at a maximum access rate of 2976 Mbps: 5 GHz, 2x2, 2402 Mbps plus 2.4 GHz, 2x2, 574 Mbps, with built-in omni-directional antennas (3 dBi at 2.4 GHz, 4 dBi at 5 GHz). Wi-Fi 6 features listed by H3C include OFDMA, Spatial Reuse and TWT.
Cloud or Gateway Managed
Cloud management through the Aolynk Cloud platform is H3C's preferred mode, with remote monitoring and network optimisation. Alternatively, an Aolynk UR gateway manages the AP locally through its web interface, covering wireless service, RF, firmware, VLAN and reset settings. H3C advises checking the release notes for gateway compatibility.
Plug and Play, Self-Organising
The AP is plug and play when connected to the cloud platform or an Aolynk UR gateway, and a self-organising network of up to 32 devices discovers, builds topology and syncs configuration automatically. It is powered by IEEE 802.3af PoE.
H3C UAP612MG-AX30 Datasheet — Technical Specifications
General
| Product Name | H3C Aolynk UAP612MG-AX30 Wall-Plate Access Point |
| Model | UAP612MG-AX30 |
| Part Number (BOM) | 9801A7VW |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), dual radio, 4 streams |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Interfaces
| Uplink Port | 1 x 100/1000/2500 Mbps auto-negotiating Ethernet uplink (PoE powered) |
| LAN Port | 1 x 10/100/1000 Mbps auto-negotiating Ethernet LAN port |
| Antennas | Built-in omni-directional; 2.4 GHz: 3 dBi; 5 GHz: 4 dBi |
Performance
| Maximum Access Rate | 2976 Mbps |
| Radio 1 | 5 GHz, 2x2, 2402 Mbps |
| Radio 2 | 2.4 GHz, 2x2, 574 Mbps |
| Frequency Bands | 2.400–2.4835 GHz; 5.150–5.850 GHz (U-NII-1, 2A, 2C, 3; availability varies by country) |
| Transmit Power | 2.4 GHz: 18 dBm; 5 GHz: 17 dBm (excluding antenna gain; adjusted to local regulations), 10% adjustment steps |
| Max. Wireless Clients | 256 (theoretical) |
| Max. SSIDs | 8 across all radios (including 1 management Wi-Fi) |
| Self-Organising Network | Up to 32 managed devices |
Power & Physical
| Power Input | IEEE 802.3af PoE |
| Power Consumption | ≤ 11 W |
| Dimensions | 86 x 86 x 37 mm |
| Weight | 160 g |
| Mounting | Standard 86 mm wall box |
| Case Colour | White (default); black, gold and grey optional |
| Operating Temperature | 0 to 40 °C (storage -40 to 70 °C) |
| Humidity | 5% to 95% non-condensing |
| MTBF | > 613,200 hours at 25 °C |
| Certifications | CE, CB, RoHS |
Specifications from H3C's official UAP612MG-AX30 product page on h3c.com. Performance figures are H3C lab values and may differ on site.
Compatibility & Software Support
Management
Per H3C: cloud management via the Aolynk Cloud platform (preferred) and local web management through an Aolynk UR gateway. Firmware can be upgraded online or offline, with a new-firmware alert.
Wireless & Security
802.11a/b/d/e/g/h/i/n/ac/ax/k/v; WPA3, WPA2 and WPA with TKIP/CCMP, open and PSK authentication, MAC address blacklist/whitelist; SSID-to-VLAN binding, hidden SSID, per-user rate limiting, VLAN-based user isolation, DFS, 5 GHz-first and automatic/manual RRM optimisation.
Networking
802.1Q, SSID-based and port-based VLANs, Layer 2 forwarding, DHCP client and option 43, NTP, DNS, LLDP and IPv6 (address acquisition and data forwarding only).
Package Contents & H3C Aolynk Access Point Ordering Information
H3C Aolynk Access Point Models
| Model | Type & Ports | PoE Input | Part No. |
| UAP522G-AC13 | Ceiling, Wi-Fi 5 1267 Mbps; GE uplink | 802.3at | 9801A7W0 |
| UAP622G-AX15 | Ceiling, Wi-Fi 6 1500 Mbps; GE uplink | 802.3at | 9801A7VV |
| UAP622G-AX18 | Ceiling, Wi-Fi 6 1775 Mbps; GE uplink | 802.3at | 9801A7VX |
| UAP622MG-AX30 | Ceiling, Wi-Fi 6 2976 Mbps; 2.5GE uplink | 802.3at | 9801A7VY |
| UAP512G-AC13 | Wall-plate, Wi-Fi 5 1267 Mbps; GE uplink + GE LAN | 802.3af | 9801A7W1 |
| UAP612G-AX15 | Wall-plate, Wi-Fi 6 1500 Mbps; GE uplink + GE LAN | 802.3af | 9801A7W2 |
| UAP612MG-AX30 (this listing) | Wall-plate, Wi-Fi 6 2976 Mbps; 2.5GE uplink + GE LAN | 802.3af | 9801A7VW |
Package contents are not listed on H3C's UAP612MG-AX30 product page — ask us if you need confirmation of the included mounting hardware. The AP is PoE powered; H3C's page does not list a power adapter in the box.
Datasheet & Downloads
| H3C product page | UAP612MG-AX30 on h3c.com |
| H3C datasheet | UAP612MG-AX30 Datasheet Download (h3c.com) |
| Technical documents | UAP612 Series technical documents (h3c.com) |
| Software download | UAP612 Series software (h3c.com) |
Frequently Asked Questions — H3C UAP612MG-AX30
How is the UAP612MG-AX30 powered?
By IEEE 802.3af PoE on its uplink port. The Aolynk UR105G-P and UR210G-P PoE routers can power and manage it.
Do I need a controller?
No hardware controller is required. H3C's preferred mode is the Aolynk Cloud platform; it can also be managed locally from an Aolynk UR gateway's web interface.
How many users can connect?
H3C lists up to 256 wireless clients (theoretical) and up to 8 SSIDs. Real-world capacity depends on the site — ask us to help size your deployment.
Will it fit my existing wall box?
It is designed for a standard 86 mm panel box (86 x 86 x 37 mm).
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
