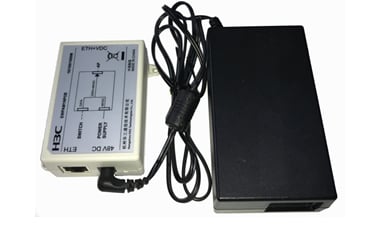

H3C ADP040-54V-PoE-GL 54V 40W Power Adapter with PoE Injector
PRODUCT DESCRIPTION
H3C ADP040-54V-POE-GL 40W PoE Power Adapter (ADP040-54V-PoE-GL) - 1 Year Local Warranty
Adapter and Injector in One Kit
The H3C ADP040-54V-POE-GL is a single-port centralized remote power adapter for indoor wireless APs: a 54 V / 40 W adapter plus a PoE injector that sends power and data over CAT5e cable.
For 10/100/1000M Networks
H3C rates it for 10/100/1000M networks, with power on pins 4, 5 (+) and 7, 8 (−).
Protected
Over-current, over-voltage and short-circuit protection, Level VI efficiency, and CE, TUV, UL and CCC safety approvals.
H3C ADP040-54V-POE-GL Datasheet — Technical Specifications
General
| Product Name | H3C Power Adapter ADP040-54V-POE-GL |
| Model | ADP040-54V-PoE-GL |
| Part Number (BOM) | 0231A9BR |
| Local Warranty (Singapore) | 1 year, supplied by SourceIT with a GST invoice |
Interfaces
| Network | 10/100/1000M over CAT5e |
| Power Pins | 4, 5 (+) and 7, 8 (−) |
| Input Connector | IEC320 C14 |
Performance
| Output | 54 V, 0.74 A rated, 40 W |
| Power Efficiency | Level VI |
| Protection | OCP, OVP, SCP |
Power & Physical
| Input | 90–264 VAC, 47–63 Hz |
| Max Input Current | 1.5 A at 115 VAC / 0.8 A at 230 VAC, full load |
| Dimensions | Adapter 110 x 62 x 31.5 mm; injector 79 x 70 x 31 mm |
| Weight | 282 g |
| Operating Temperature | −10 to 45 °C |
| Non-operating Temperature | −40 to 70 °C |
| Humidity | 5% to 95%, non-condensing |
| Altitude | Up to 5,000 m |
| EMC | EN 55032 / CISPR 32 (RE, CE); IEC 61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-11 |
| Safety Approvals | CE, TUV, UL, CCC |
Specifications from H3C's official Power Adapter ADP040-54V-POE-GL product page on h3c.com.
Compatibility & Software Support
Supported APs
Per H3C's ordering information: WA6120, WA6126, WA6120H, WA6020 and WA6022H.
Use
Place the injector between a non-PoE switch port and the AP; plug-and-play with no management interface.
Package Contents & H3C AP Power Adapter Ordering Information
H3C AP Power Adapter & PoE Injector Models
| Model | Type / Output | For APs (per H3C) | Part No. |
| EWPAM1HPOE-GL | PoE injector, 55 V / 30 W, 1 port | WA6120 / WA6126 / WA6120H / WA6020 / WA6022H | 9802A036 |
| ADP040-54B | DC power adapter, 54 V / 40 W, Phoenix connector | WA6120 / WA6120H / WA6020 | 0231AKQ8 |
| RDW06305401170-C55-51 | DC power adapter, 54 V / 63 W | WA6126 | 9802A02Y |
| ADP040-54V-PoE-GL (this listing) | Power adapter with PoE injector, 54 V / 40 W | WA6120 / WA6126 / WA6120H / WA6020 / WA6022H | 0231A9BR |
| ADP060-55V-PoE-GL | PoE power adapter, 55 V / 60 W | WA6120X | 9801A1PJ |
Adapter and PoE injector per H3C's product page; H3C notes the AC power cord depends on the country or region. Full package contents are not published — ask us if you need confirmation.
Datasheet & Downloads
| H3C product page | ADP040-54V-POE-GL on h3c.com |
| H3C datasheet | ADP040-54V-POE-GL datasheet download (h3c.com) |
| H3C WA6120 access point | WA6120 on h3c.com |
| H3C WA6126 access point | WA6126 on h3c.com |
Frequently Asked Questions — H3C ADP040-54V-POE-GL
Which H3C APs can it power?
Per H3C's ordering information: WA6120, WA6126, WA6120H, WA6020 and WA6022H.
Does it support 2.5G?
H3C rates this kit for 10/100/1000M networks. For a 2.5G-rated injector see the EWPAM1HPOE.
What cable do I need?
H3C specifies CAT5e cable between the injector and the AP.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
