GIGABYTE W775-V10-L01 NVIDIA DGX Station GB300 AI Supercomputer
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
GIGABYTE W775-V10-L01 NVIDIA DGX Station GB300 Grace Blackwell Ultra Deskside AI Supercomputer, 748GB Coherent Memory, 20 PFLOPS, Dual 400G ConnectX-8, Closed-Loop Liquid Cooling (W775-V10-L01) - Local Warranty
GIGABYTE W775-V10-L01 — NVIDIA DGX Station GB300 Deskside AI Supercomputer
The GIGABYTE W775-V10-L01 is GIGABYTE's deskside AI supercomputer built on NVIDIA DGX Station architecture around the NVIDIA GB300 Grace Blackwell Ultra Desktop Superchip. A 72-core NVIDIA Grace CPU (Arm Neoverse V2) and an NVIDIA Blackwell Ultra GPU share 748 GB of coherent memory over NVLink-C2C, delivering up to 20 petaFLOPS of FP4 AI compute and support for models of up to 1 trillion parameters — GIGABYTE's enterprise server engineering in a closed-loop liquid-cooled tower.
For Singapore enterprises, universities, government agencies and AI research labs, the W775-V10-L01 makes on-premise training, fine-tuning and inference of frontier-scale LLMs, agentic AI, computer vision and scientific simulation practical without a data-centre rack — with complete data sovereignty and no recurring cloud GPU cost.
748 GB Coherent Memory with ECC-Protected LPDDR5X
496 GB of LPDDR5X CPU memory with ECC at 396 GB/s and 252 GB of HBM3E GPU memory at 7.1 TB/s are unified over the 900 GB/s NVLink-C2C link into a single 748 GB coherent memory space, so trillion-parameter models, long-context RAG pipelines and large simulation datasets stay resident without CPU–GPU offloading. Multi-Instance GPU (MIG) partitions the Blackwell Ultra GPU into up to seven isolated instances for shared team use.
PCIe Gen5 and Gen6 NVMe Storage, Three PCIe Gen5 Expansion Slots
Two M.2 2280 PCIe Gen5 x4 slots off the Grace CPU support an OS RAID 1 pair, and two M.2 2280 PCIe Gen6 x4 slots off the ConnectX-8 provide ultra-fast dataset, checkpoint and vector-database storage; a further M.2 2230 E-key slot takes an optional Wi-Fi module. Three PCIe x16 slots — one with Gen5 x16 lanes for a display GPU and two with Gen5 x8 lanes — accept an NVIDIA RTX PRO Blackwell graphics card, additional NICs or accelerators.
Dual 400 Gb/s ConnectX-8 SuperNIC Networking and Onboard BMC Management
Two 400 Gb/s QSFP ports on the NVIDIA ConnectX-8 SuperNIC (up to 800 Gb/s aggregate) support RDMA, GPUDirect RDMA and GPUDirect Storage for distributed training and private AI clusters, alongside a Marvell AQC113 10 Gb/s LAN port and a dedicated 10/100/1000 Mb/s management LAN. Video is integrated in the onboard BMC with a Mini-DisplayPort output (1920 × 1080 @ 60 Hz), a micro-USB UART port serves console access, and front and rear USB 3.2 Gen2 / Gen1 ports plus Realtek ALC4080 audio round out the I/O.
Closed-Loop Liquid Cooling, 1600 W 80 PLUS Platinum, 245 × 500 × 531 mm Tower

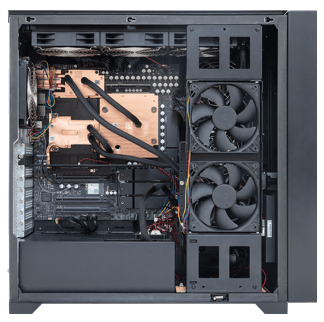

A closed-loop liquid cooling solution with three 120 mm system fans keeps the Grace Blackwell Ultra Superchip at full performance through sustained 24 × 7 training and inference. A single 1600 W ATX 80 PLUS Platinum power supply (C19 power cord, 20 A circuit required) feeds the system. The tower measures 245 mm wide, 500.4 mm high and 531 mm deep, weighs 29.2 kg net (34.4 kg gross), and is rated for 10–35 °C operation at 8–80 % non-condensing humidity. It ships with Ubuntu with NVIDIA AI Developer Tools and carries Powered by NVIDIA and Ubuntu 24.04 LTS Certified Hardware badges.
Available in Singapore Through SourceIT
SourceIT supplies the GIGABYTE W775-V10-L01 with a full GST invoice, local warranty support and enterprise procurement assistance. GIGABYTE states that warranty terms vary by product and region; SourceIT confirms the applicable GIGABYTE enterprise warranty term for Singapore in writing at quotation. For desktop-scale AI, see the NVIDIA DGX Spark or GIGABYTE AI TOP ATOM; for alternative GB300 stations, see the HP ZGX Fury G1n, MSI XpertStation WS300 and ASUS ExpertCenter Pro ET900N G3.
GIGABYTE W775-V10-L01 Datasheet — Technical Specifications
General
| Product Name | GIGABYTE W775-V10-L01 Deskside AI Supercomputer |
| Model / Part Number | W775-V10-L01 (GIGABYTE P/N 6NW775V10MR000L01) |
| Category | Deskside AI supercomputer / enterprise AI workstation (NVIDIA DGX Station GB300 platform) |
| Form Factor | Tower |
| Manufacturer Support | GIGABYTE enterprise warranty — term varies by region and is confirmed at quotation |
| Local Warranty (Singapore) | Local warranty support, procurement and GST invoice by SourceIT |
Processor & GPU
| Compute Platform | NVIDIA DGX Station architecture — NVIDIA GB300 Grace Blackwell Ultra Desktop Superchip |
| CPU | 1 × NVIDIA Grace CPU, 72 Arm Neoverse V2 cores |
| GPU | 1 × NVIDIA Blackwell Ultra GPU (fifth-generation Tensor Cores, second-generation Transformer Engine) |
| CPU–GPU Interconnect | NVIDIA NVLink-C2C, 900 GB/s (per NVIDIA DGX Station datasheet) |
| AI Performance | Up to 20 PFLOPS FP4 Tensor Core (with sparsity), per NVIDIA — 10 PFLOPS FP8/FP6, 5 PFLOPS FP16/BF16 |
| Model Support | AI models up to 1 trillion parameters, per NVIDIA |
| GPU Partitioning | Multi-Instance GPU (MIG) — up to 7 instances |
Memory
| Total Coherent Memory | Up to 748 GB unified CPU + GPU memory space |
| GPU Memory | 252 GB HBM3E, 7.1 TB/s |
| CPU Memory | 496 GB LPDDR5X with ECC, 396 GB/s |
Storage
| OS Storage | 2 × M.2 2280 PCIe Gen5 x4 (from CPU), OS RAID 1 support |
| Data Storage | 2 × M.2 2280 PCIe Gen6 x4 (from ConnectX-8) |
| Wireless Slot | 1 × M.2 2230 E-key PCIe Gen2 x1 (Wi-Fi module optional) |
| Installed Drives | SourceIT-supplied configuration: 4 × 1.92 TB NVMe M.2 SSD — confirmed at quotation (GIGABYTE publishes no factory drive configuration) |
Expansion
| PCIe Slots | 1 × PCIe x16 (Gen5 x16 lanes, for GPU); 2 × PCIe x16 (Gen5 x8 lanes) |
Networking
| High-Speed Networking | 2 × 400 Gb/s QSFP ports via NVIDIA ConnectX-8 SuperNIC (up to 800 Gb/s) |
| General Ethernet | 1 × 10 Gb/s LAN (Marvell AQC113) |
| Management LAN | 1 × 10/100/1000 Mb/s MLAN |
| Wireless | 2 × Wi-Fi antenna ports (module not stated as included) |
I/O Ports
| Front I/O | 1 × USB 3.2 Gen2 Type-C, 2 × USB 3.2 Gen1 Type-A, 2 × audio jacks, power button with LED, reset button |

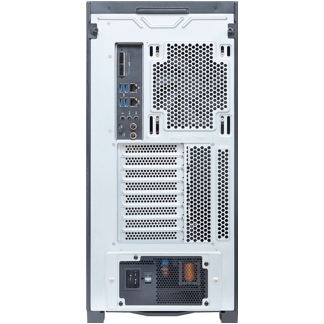

| Rear I/O | 4 × USB 3.2 Gen2 Type-A, 1 × micro USB (USB-to-UART), 1 × Mini-DP, 2 × QSFP, 1 × RJ45 10G, 1 × MLAN, 3 × audio jacks |
| Video | Integrated in onboard BMC — 1 × Mini-DisplayPort, 1920 × 1080 @ 60 Hz |
| Audio | Realtek ALC4080 codec |
Operating System & Software
| Operating System | Ubuntu with NVIDIA AI Developer Tools; Ubuntu 24.04 LTS Certified Hardware |
| Platform Badges | Powered by NVIDIA; Ubuntu Certified |
Power, Cooling, Physical & Environmental
| Power Supply | Single 1600 W ATX 80 PLUS Platinum; C19 power cord; 20 A circuit required |
| Cooling | Closed-loop liquid cooling; 3 × 120 × 120 × 25 mm system fans |
| Dimensions (W × H × D) | 245 × 500.4 × 531 mm; packaging 732 × 400 × 775 mm |
| Weight | 29.2 kg net; 34.4 kg gross |
| Operating Environment | 10 – 35 °C, 8 – 80 % non-condensing; non-operating −40 – 60 °C, 20 – 95 % |
Compatibility & Software Support
NVIDIA AI Software Stack
Ships with Ubuntu Linux and the NVIDIA AI Developer Tools preinstalled — the same NVIDIA software foundation used across the DGX family. CUDA, cuDNN, TensorRT and TensorRT-LLM, NVIDIA NeMo, NVIDIA NIM microservices, Triton Inference Server, RAPIDS and NGC containers run natively on the Grace Blackwell Ultra platform, alongside PyTorch, TensorFlow, JAX, vLLM, Hugging Face Transformers, DeepSpeed and ONNX Runtime. Docker and Kubernetes deployment are supported for containerised MLOps pipelines. NVIDIA AI Enterprise is available as a separate subscription for supported production deployments.
Arm64 Architecture — Plan Your Software Accordingly
The Grace CPU is an Arm Neoverse V2 processor, so the operating system, drivers and container images are arm64 (aarch64) builds. Mainstream AI frameworks and NVIDIA NGC containers are published for arm64, but proprietary x86-only applications will not run natively — check any commercial software you rely on before ordering. NVIDIA has announced a separate DGX Station for Windows SKU (Windows plus Windows Subsystem for Linux) for a later release; the units SourceIT supplies today ship with Ubuntu.
Clustering and Networking Compatibility
The two NVIDIA ConnectX-8 SuperNIC QSFP112 ports run at 400 Gb/s each (up to 800 Gb/s aggregate) with RDMA over Converged Ethernet, GPUDirect RDMA and GPUDirect Storage support, so two or more systems can be linked for distributed training, or connected to an NVMe-over-fabric storage array. QSFP112 transceivers or direct-attach cables are ordered separately to match your switch fabric — SourceIT will quote compatible optics alongside the system. The 10GbE RJ45 port covers everyday site networking, and the dedicated management LAN keeps out-of-band BMC traffic isolated from production data.
GIGABYTE Enterprise Platform
The W775-V10-L01 is engineered by GIGABYTE's enterprise (Giga Computing) division and sits alongside GIGABYTE's NVIDIA-based rack servers, so it integrates with standard BMC-based management workflows. GIGABYTE reports peak throughput of up to 9,000 tokens per second and a typical 1,000–1,200 W power draw under load on this platform.
Package Contents & Ordering Information
What Ships With the System
- GIGABYTE W775-V10-L01 deskside AI supercomputer with NVIDIA GB300 Grace Blackwell Ultra Desktop Superchip
- 1600 W 80 PLUS Platinum power supply (installed) and C19 power cord
- NVMe M.2 storage as per the SourceIT-supplied configuration (4 × 1.92 TB, confirmed at quotation)
- Quick installation guide and GIGABYTE warranty / enterprise support documentation
QSFP112 transceivers or DAC cables, a Wi-Fi module, additional NVMe SSDs and an optional NVIDIA RTX PRO Blackwell display GPU are quoted separately.
NVIDIA DGX Station GB300 Systems at SourceIT Singapore
The GIGABYTE W775-V10-L01 is quoted by SourceIT Singapore with GST invoice; drive configuration and GIGABYTE enterprise warranty terms are confirmed in writing at quotation.
- ASUS ExpertCenter Pro ET900N G3 — NVIDIA DGX Station GB300 platform, same 748 GB / 20 PFLOPS core compute
- MSI XpertStation WS300 — NVIDIA DGX Station GB300 platform, same 748 GB / 20 PFLOPS core compute
- HP ZGX Fury AI Station G1n — NVIDIA DGX Station GB300 platform, same 748 GB / 20 PFLOPS core compute
- NVIDIA DGX Spark — desktop-scale GB10 system (128 GB unified memory, 1 PFLOP FP4) for individual developers
Browse the full NVIDIA DGX Spark & DGX Station collection. For volume, project, research-grant or education pricing, GST invoicing and current lead times, email sales@sourceit.com.sg.
Datasheet & Downloads
Official GIGABYTE documentation for the W775-V10-L01:
Frequently Asked Questions — GIGABYTE W775-V10-L01
What is the GIGABYTE W775-V10-L01?
GIGABYTE's deskside AI supercomputer on the NVIDIA DGX Station GB300 platform: a 72-core Grace CPU and Blackwell Ultra GPU sharing 748 GB of coherent memory, up to 20 PFLOPS FP4, closed-loop liquid cooled, in a 29 kg tower — for training, fine-tuning and serving AI models of up to 1 trillion parameters on premises.
Is this a GIGABYTE AI TOP product?
No. GIGABYTE lists the W775-V10-L01 under its enterprise Tower Server range, engineered by Giga Computing; AI TOP is GIGABYTE's brand for consumer and prosumer AI desktops such as the GB10-based AI TOP ATOM, which SourceIT also stocks.
How does it compare to the NVIDIA DGX Spark or GIGABYTE AI TOP ATOM?
Different class entirely: the W775-V10-L01 delivers up to 20 PFLOPS FP4 and 748 GB coherent memory for models up to 1 trillion parameters, versus the GB10-based DGX Spark and AI TOP ATOM at 1 PFLOP and 128 GB (about 200 billion parameters). Choose a GB10 system for individual developers; the W775-V10-L01 for teams and production-scale AI.
What storage does it come with?
GIGABYTE supplies the platform with four M.2 2280 slots (two PCIe Gen5 x4 with OS RAID 1 support, two PCIe Gen6 x4) and publishes no factory drive configuration. Units supplied by SourceIT are configured with 4 × 1.92 TB NVMe M.2 SSDs; confirm the drive layout at quotation.
Is the W775-V10-L01 liquid cooled?
Yes — a closed-loop liquid cooling solution with three 120 mm system fans is built into the tower, so no external liquid-cooled rack is required.
Can multiple team members share one system?
Yes — Multi-Instance GPU (MIG) partitions the Blackwell Ultra GPU into up to seven isolated instances for concurrent users and workloads.
What power and environment does it need?
A single 1600 W 80 PLUS Platinum PSU on a dedicated 20 A circuit with a C19 power cord, in an air-conditioned space within 10–35 °C. GIGABYTE reports typical draw of 1,000–1,200 W under load.
What warranty does GIGABYTE provide?
GIGABYTE states that warranty terms vary by product and region and does not publish a fixed term for the W775-V10-L01. SourceIT confirms the applicable GIGABYTE enterprise warranty for Singapore in writing at quotation and provides local warranty support.
How do I purchase the W775-V10-L01 in Singapore?
SourceIT is an authorised IT reseller in Singapore and supplies the GIGABYTE W775-V10-L01 with GST invoice, local warranty support and enterprise procurement assistance — contact sales@sourceit.com.sg for configuration options, volume pricing and lead times.
