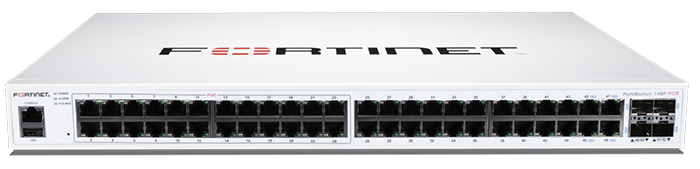

Fortinet FortiSwitch 148F-POE Secure Access Switch, 48x GE RJ45 (24x PoE+), 4x 10GE SFP+, 370W
PRODUCT DESCRIPTION
Fortinet FortiSwitch 148F-POE Secure Access Switch (FS-148F-POE) - Local Warranty
48 Gigabit Ports, 24 with PoE+
The Fortinet FortiSwitch 148F-POE (FS-148F-POE) combines 48 Gigabit Ethernet RJ45 ports with 4 x 10GE SFP+ uplinks. Ports 1–24 deliver IEEE 802.3af/at PoE/PoE+ from a budget of up to 370 W, ready for access points, IP phones and cameras.
Managed from Your FortiGate with FortiLink
Connect the FS-148F-POE to a FortiGate and the firewall becomes the switch controller: ports, VLANs and access policy are configured alongside your security policy, giving one place to manage and secure the wired network.
Desk or Rack
Rubber feet and rack-mount brackets are both in the box, so the switch can sit on a shelf or be mounted in an equipment rack.
Building out a FortiGate network? Email sales@sourceit.com.sg with your port count and PoE needs, and we will match the right FortiSwitch.
Fortinet FortiSwitch 148F-POE FS-148F-POE Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiSwitch 148F-POE |
| Part Number | FS-148F-POE |
| Series | FortiSwitch 148F Series (Secure Access) |
| Operating System | FortiSwitchOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 48 x GE RJ45 (ports 1–48) |
| Uplink Ports | 4 x 10 Gbps SFP+ (ports 49–52) |
| FortiLink | Ports 45–52 (RJ45 and SFP+) can be used for FortiLink |
| PoE | Ports 1–24, IEEE 802.3af/at (PoE/PoE+), PoE budget up to 370 W |
| Management | 1 x RJ45 console port |
| Other | USB 2.0 port |
Physical & Power
| Mounting | Desktop (rubber feet) or rack (brackets included) |
| Power Input | 100–240 V AC, 7 A max, 50/60 Hz |
| Operating Temperature | 0 °C to 45 °C |
Specifications are taken from Fortinet's FortiSwitch 148F Series QuickStart Guide and ordering documentation.
Compatibility & Software Support
What It Is Suited To
Sites that need 48 wired Gigabit ports with PoE+ on half of them, for access points, IP phones and cameras. If every port needs power, choose the FS-148F-FPOE.
Software & Management
FortiSwitch runs FortiSwitchOS. Connect it to a FortiGate over FortiLink and the FortiGate acts as the switch controller, so ports, VLANs and security policy are managed from the same interface as the firewall. An RJ45 console port is provided for CLI management.
Pairs With
FortiGate firewalls with FortiLink support, such as the FortiGate 70G, 90G and 120G, and FortiAP access points for a complete Fortinet branch network.
Package Contents & FortiSwitch Ordering Information
In the Box
Per Fortinet's FortiSwitch 148F Series QuickStart Guide: 1 x FortiSwitch 148F-POE, 1 x power cable, 4 x rubber feet, 2 x rack-mount brackets, 8 x bracket screws and 1 x QuickStart Guide.
Ordering Information
| Hardware only | FS-148F-POE |
FortiSwitch 148F Series — Ordering Information
| Model | Ports | PoE | Power | Part No. |
| FortiSwitch 148F | 48 x GE RJ45, 4 x 10GE SFP+ | None | Internal, 100–240 V AC | FS-148F |
| FortiSwitch 148F-POE (this listing) | 48 x GE RJ45, 4 x 10GE SFP+ | Ports 1–24, 802.3af/at, up to 370 W | Internal, 100–240 V AC | FS-148F-POE |
| FortiSwitch 148F-FPOE | 48 x GE RJ45, 4 x 10GE SFP+ | Ports 1–48, 802.3af/at, up to 740 W | Internal, 100–240 V AC | FS-148F-FPOE |
Need fewer ports? The FortiSwitch 108F and 124F series offer 8 and 24 ports, and the 124G series adds 2.5GE ports. Ask us for a quote.
Support Contracts
FortiCare support contracts for FortiSwitch are available separately. Ask us to quote them with the switch.
Datasheet & Downloads
| Fortinet data sheet | FortiSwitch Secure Access Series Data Sheet |
| Fortinet ordering guide | FortiSwitch Ordering Guide |
| QuickStart Guide | FortiSwitch 148F Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FS-148F-POE.
Frequently Asked Questions — Fortinet FortiSwitch 148F-POE FS-148F-POE
Which ports provide PoE?
Ports 1–24 support IEEE 802.3af/at PoE/PoE+, sharing a PoE budget of up to 370 W. For PoE+ on all 48 ports, choose the FS-148F-FPOE (740 W).
Can it be rack-mounted?
Yes. Rack-mount brackets and screws are included in the box.
What are the uplinks?
Four 10 Gbps SFP+ ports (ports 49–52). SFP+ transceivers are not included.
Can it be managed from a FortiGate?
Yes. Ports 45–52 can be used for FortiLink, letting a FortiGate act as the switch controller.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
