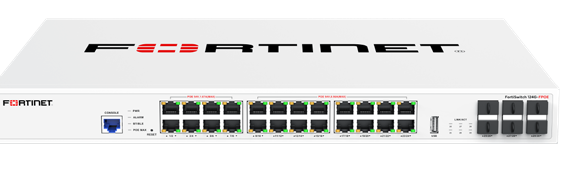

Fortinet FortiSwitch 124G-FPOE Secure Access Switch, 24x 2.5GE RJ45 PoE (8x 90W), 6x 10GE SFP+, 780W
PRODUCT DESCRIPTION
Fortinet FortiSwitch 124G-FPOE Secure Access Switch (FS-124G-FPOE) - Local Warranty
2.5GE with PoE on Every Port
The Fortinet FortiSwitch 124G-FPOE (FS-124G-FPOE) delivers PoE on all 24 x 2.5GE RJ45 ports, with 6 x 10GE SFP+ uplinks and a PoE budget of up to 780 W.
Ready for Wi-Fi 7 and High-Power Devices
Ports 1–8 support 802.3bt PoE++ at up to 90 W and ports 9–24 support 802.3af/at at up to 30 W, so high-draw access points such as the FortiAP 441K, PTZ cameras and displays can run from the switch.
Managed from Your FortiGate with FortiLink
Connect the FS-124G-FPOE to a FortiGate and manage ports, VLANs, PoE devices and access policy from the same interface as your firewall.
Building out a FortiGate network? Email sales@sourceit.com.sg with your port count and PoE needs, and we will match the right FortiSwitch.
Fortinet FortiSwitch 124G-FPOE FS-124G-FPOE Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiSwitch 124G-FPOE |
| Part Number | FS-124G-FPOE |
| Series | FortiSwitch 124G Series (Secure Access) |
| Operating System | FortiSwitchOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 24 x RJ45, 10M/100M/1G/2.5G (ports 1–24) |
| Uplink Ports | 6 x 10 Gbps SFP+ (ports 25–30) |
| PoE | Ports 1–8: 802.3bt PoE++ (up to 90 W); ports 9–24: 802.3af/at PoE/PoE+ (up to 30 W) |
| PoE Budget | Up to 780 W |
| Management | 1 x RJ45 console port |
| Other | USB 2.0 port (Type A), reset button, PWR and ALARM LEDs, per-port speed LEDs |
Physical & Power
| Mounting | Desktop (rubber feet) or rack (brackets included) |
| Power Input | 100–240 V AC, 12 A max, 50/60 Hz |
| Operating Temperature | 0 °C to 45 °C |
Specifications are taken from Fortinet's FortiSwitch 124G Series QuickStart Guide and ordering documentation.
Compatibility & Software Support
What It Is Suited To
Wi-Fi 7 and multi-gig deployments where access points, cameras and other devices need 2.5GE links and more power than PoE+ provides.
Software & Management
FortiSwitch runs FortiSwitchOS. Connect it to a FortiGate over FortiLink and the FortiGate acts as the switch controller, so ports, VLANs and security policy are managed from the same interface as the firewall. An RJ45 console port is provided for CLI management.
Pairs With
FortiGate firewalls with FortiLink support, such as the FortiGate 70G, 90G and 120G, and FortiAP access points for a complete Fortinet branch network.
Package Contents & FortiSwitch Ordering Information
In the Box
Per Fortinet's FortiSwitch 124G Series QuickStart Guide: 1 x FortiSwitch 124G-FPOE, 1 x AC power cable, 4 x rubber feet, 2 x rackmount brackets, 6 x bracket screws and 1 x QuickStart Guide.
Ordering Information
| Hardware only | FS-124G-FPOE |
FortiSwitch 124G Series — Ordering Information
| Model | Ports | PoE | Power | Part No. |
| FortiSwitch 124G | 24 x 2.5GE RJ45, 6 x 10GE SFP+ | None | Internal, 100–240 V AC | FS-124G |
| FortiSwitch 124G-FPOE (this listing) | 24 x 2.5GE RJ45, 6 x 10GE SFP+ | Ports 1–8 802.3bt (90 W), ports 9–24 802.3af/at (30 W), up to 780 W | Internal, 100–240 V AC | FS-124G-FPOE |
Need a lower-cost 24-port option or 48 ports? The FortiSwitch 124F series offers Gigabit models, and the 148F series offers 48 ports. Ask us for a quote.
Support Contracts
FortiCare support contracts for FortiSwitch are available separately. Ask us to quote them with the switch.
Datasheet & Downloads
| Fortinet data sheet | FortiSwitch Secure Access Series Data Sheet |
| Fortinet ordering guide | FortiSwitch Ordering Guide |
| QuickStart Guide | FortiSwitch 124G Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FS-124G-FPOE.
Frequently Asked Questions — Fortinet FortiSwitch 124G-FPOE FS-124G-FPOE
How much PoE power does it provide?
Up to 780 W in total. Ports 1–8 support 802.3bt at up to 90 W each and ports 9–24 support 802.3af/at at up to 30 W each.
Is it suitable for Wi-Fi 7 access points?
Yes. The 2.5GE ports and 802.3bt power on ports 1–8 suit high-performance access points such as the FortiAP 441K.
What speeds do the RJ45 ports support?
10 Mbps, 100 Mbps, 1 Gbps and 2.5 Gbps on all 24 ports.
Can it be rack-mounted?
Yes. Rackmount brackets and bracket screws are included; rack screws are not.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
