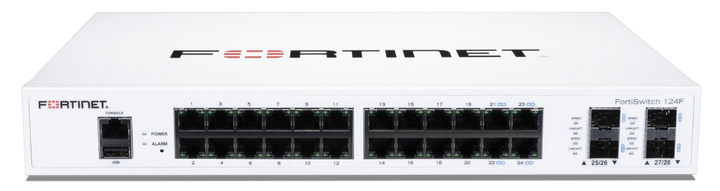

Fortinet FortiSwitch 124F Secure Access Switch, 24x GE RJ45, 4x 10GE SFP+, Fanless
PRODUCT DESCRIPTION
Fortinet FortiSwitch 124F Secure Access Switch (FS-124F) - Local Warranty
24 Gigabit Ports with 10GE Uplinks
The Fortinet FortiSwitch 124F (FS-124F) gives you 24 Gigabit Ethernet RJ45 ports and 4 x 10GE SFP+ uplinks in a fanless design, a quiet fit for offices, retail back rooms and branch comms cabinets.
Managed from Your FortiGate with FortiLink
Connect the FS-124F to a FortiGate and the firewall becomes the switch controller: ports, VLANs and access policy are configured alongside your security policy, giving one place to manage and secure the wired network.
Desk or Rack
Rubber feet and rack-mount brackets are both in the box, so the switch can sit on a shelf or be mounted in an equipment rack.
Building out a FortiGate network? Email sales@sourceit.com.sg with your port count and PoE needs, and we will match the right FortiSwitch.
Fortinet FortiSwitch 124F FS-124F Datasheet β Technical Specifications
General
| Product Name | Fortinet FortiSwitch 124F |
| Part Number | FS-124F |
| Series | FortiSwitch 124F Series (Secure Access) |
| Operating System | FortiSwitchOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 24 x GE RJ45 (ports 1β24) |
| Uplink Ports | 4 x 10 Gbps SFP+ (ports 25β28) |
| FortiLink | Ports 21β28 (RJ45 and SFP+) can be used for FortiLink |
| PoE | None |
| Management | 1 x RJ45 console port |
| Other | USB 2.0 port (reserved for future use); Power, Alarm, Speed and Link/Act LEDs |
Physical & Power
| Mounting | Desktop (rubber feet) or rack (brackets included) |
| Cooling | Fanless |
| Power Input | 100β240 V AC, 0.7 A max, 50/60 Hz |
| Operating Temperature | 0 Β°C to 45 Β°C |
Specifications are taken from Fortinet's FortiSwitch 124F Series QuickStart Guide and ordering documentation.
Compatibility & Software Support
What It Is Suited To
Offices, retail back rooms and branch sites that need 24 wired Gigabit ports with 10GE uplinks and silent operation. To power access points, IP phones or cameras, choose the FS-124F-POE or FS-124F-FPOE.
Software & Management
FortiSwitch runs FortiSwitchOS. Connect it to a FortiGate over FortiLink and the FortiGate acts as the switch controller, so ports, VLANs and security policy are managed from the same interface as the firewall. An RJ45 console port is provided for CLI management.
Pairs With
FortiGate firewalls with FortiLink support, such as the FortiGate 70G, 90G and 120G, and FortiAP access points for a complete Fortinet branch network.
Package Contents & FortiSwitch Ordering Information
In the Box
Per Fortinet's FortiSwitch 124F Series QuickStart Guide: 1 x FortiSwitch 124F, 1 x power cable, 4 x rubber feet, 2 x rack-mount brackets, 8 x bracket screws and 1 x QuickStart Guide.
Ordering Information
| Hardware only | FS-124F |
FortiSwitch 124F Series β Ordering Information
| Model | Ports | PoE | Power | Part No. |
| FortiSwitch 124F (this listing) | 24 x GE RJ45, 4 x 10GE SFP+ | None | Internal, 100β240 V AC | FS-124F |
| FortiSwitch 124F-POE | 24 x GE RJ45, 4 x 10GE SFP+ | Ports 1β12, 802.3af/at, up to 185 W | Internal, 100β240 V AC | FS-124F-POE |
| FortiSwitch 124F-FPOE | 24 x GE RJ45, 4 x 10GE SFP+ | Ports 1β24, 802.3af/at, up to 370 W | Internal, 100β240 V AC | FS-124F-FPOE |
Need faster access ports or more PoE? The FortiSwitch 124G series adds 2.5GE ports and 802.3bt PoE, and the 148F series offers 48 ports. Ask us for a quote.
Support Contracts
FortiCare support contracts for FortiSwitch are available separately. Ask us to quote them with the switch.
Datasheet & Downloads
| Fortinet data sheet | FortiSwitch Secure Access Series Data Sheet |
| Fortinet ordering guide | FortiSwitch Ordering Guide |
| QuickStart Guide | FortiSwitch 124F Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FS-124F.
Frequently Asked Questions β Fortinet FortiSwitch 124F FS-124F
Does the FortiSwitch 124F provide PoE?
No. The FS-124F has no PoE output. Choose the FS-124F-POE (12 PoE+ ports, 185 W) or FS-124F-FPOE (24 PoE+ ports, 370 W).
Is it fanless?
Yes, the FS-124F is fanless and silent.
Can it be rack-mounted?
Yes. Rack-mount brackets and screws are included in the box.
What are the uplinks?
Four 10 Gbps SFP+ ports (ports 25β28). SFP+ transceivers are not included.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
