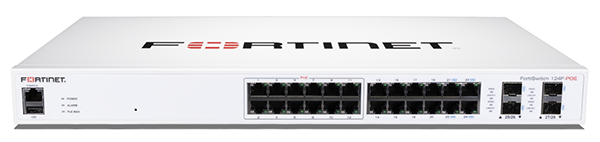

Fortinet FortiSwitch 124F-POE Secure Access Switch, 24x GE RJ45 (12x PoE+), 4x 10GE SFP+, 185W
PRODUCT DESCRIPTION
Fortinet FortiSwitch 124F-POE Secure Access Switch (FS-124F-POE) - Local Warranty
24 Ports, 12 with PoE+
The Fortinet FortiSwitch 124F-POE (FS-124F-POE) combines 24 Gigabit Ethernet RJ45 ports with 4 x 10GE SFP+ uplinks, and powers devices on ports 1–12 with 802.3af/at PoE+ from a budget of up to 185 W.
Power Access Points, Phones and Cameras
Run FortiAP access points, IP phones and cameras from the switch itself, with no separate injectors, while the remaining ports serve PCs, printers and other wired devices.
Managed from Your FortiGate with FortiLink
Connect the FS-124F-POE to a FortiGate and manage ports, VLANs, PoE devices and access policy from the same interface as your firewall.
Building out a FortiGate network? Email sales@sourceit.com.sg with your port count and PoE needs, and we will match the right FortiSwitch.
Fortinet FortiSwitch 124F-POE FS-124F-POE Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiSwitch 124F-POE |
| Part Number | FS-124F-POE |
| Series | FortiSwitch 124F Series (Secure Access) |
| Operating System | FortiSwitchOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 24 x GE RJ45 (ports 1–24) |
| Uplink Ports | 4 x 10 Gbps SFP+ (ports 25–28) |
| FortiLink | Ports 21–28 (RJ45 and SFP+) can be used for FortiLink |
| PoE | Ports 1–12, 802.3af/at (PoE+) |
| PoE Budget | Up to 185 W |
| Management | 1 x RJ45 console port |
| Other | USB 2.0 port (reserved for future use); Power, Alarm, Speed, Link/Act and PoE LEDs |
Physical & Power
| Mounting | Desktop (rubber feet) or rack (brackets included) |
| Power Input | 100–240 V AC, 4.0 A max, 50/60 Hz |
| Operating Temperature | 0 °C to 45 °C |
Specifications are taken from Fortinet's FortiSwitch 124F Series QuickStart Guide and ordering documentation.
Compatibility & Software Support
What It Is Suited To
Small and mid-size offices and branches with a mix of PoE devices (access points, IP phones, cameras) and ordinary wired devices. For PoE on all 24 ports, choose the FS-124F-FPOE.
Software & Management
FortiSwitch runs FortiSwitchOS. Connect it to a FortiGate over FortiLink and the FortiGate acts as the switch controller, so ports, VLANs and security policy are managed from the same interface as the firewall. An RJ45 console port is provided for CLI management.
Pairs With
FortiGate firewalls with FortiLink support, such as the FortiGate 70G, 90G and 120G, and FortiAP access points for a complete Fortinet branch network.
Package Contents & FortiSwitch Ordering Information
In the Box
Per Fortinet's FortiSwitch 124F Series QuickStart Guide: 1 x FortiSwitch 124F-POE, 1 x power cable, 1 x console cable (USB to RJ45), 4 x rubber feet, rack-mount brackets with bracket screws and 1 x QuickStart Guide.
Ordering Information
| Hardware only | FS-124F-POE |
FortiSwitch 124F Series — Ordering Information
| Model | Ports | PoE | Power | Part No. |
| FortiSwitch 124F | 24 x GE RJ45, 4 x 10GE SFP+ | None | Internal, 100–240 V AC | FS-124F |
| FortiSwitch 124F-POE (this listing) | 24 x GE RJ45, 4 x 10GE SFP+ | Ports 1–12, 802.3af/at, up to 185 W | Internal, 100–240 V AC | FS-124F-POE |
| FortiSwitch 124F-FPOE | 24 x GE RJ45, 4 x 10GE SFP+ | Ports 1–24, 802.3af/at, up to 370 W | Internal, 100–240 V AC | FS-124F-FPOE |
Need faster access ports or more PoE? The FortiSwitch 124G series adds 2.5GE ports and 802.3bt PoE, and the 148F series offers 48 ports. Ask us for a quote.
Support Contracts
FortiCare support contracts for FortiSwitch are available separately. Ask us to quote them with the switch.
Datasheet & Downloads
| Fortinet data sheet | FortiSwitch Secure Access Series Data Sheet |
| Fortinet ordering guide | FortiSwitch Ordering Guide |
| QuickStart Guide | FortiSwitch 124F Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FS-124F-POE.
Frequently Asked Questions — Fortinet FortiSwitch 124F-POE FS-124F-POE
How many ports provide PoE?
Ports 1–12 provide 802.3af/at PoE+, from a total budget of up to 185 W. Ports 13–24 are data-only.
Can it power FortiAP access points?
Yes, within the 802.3af/at standard and the 185 W budget. Check each access point's power draw when planning.
Can it be rack-mounted?
Yes. Rack-mount brackets and screws are included in the box.
What are the uplinks?
Four 10 Gbps SFP+ ports (ports 25–28). SFP+ transceivers are not included.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
