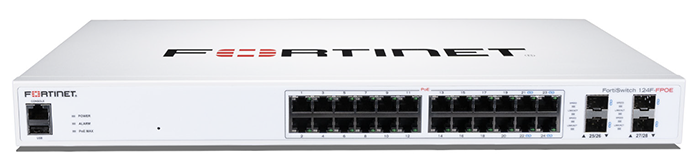

Fortinet FortiSwitch 124F-FPOE Secure Access Switch, 24x GE RJ45 PoE+, 4x 10GE SFP+, 370W
PRODUCT DESCRIPTION
Fortinet FortiSwitch 124F-FPOE Secure Access Switch (FS-124F-FPOE) - Local Warranty
PoE+ on All 24 Ports
The Fortinet FortiSwitch 124F-FPOE (FS-124F-FPOE) delivers 802.3af/at PoE+ on all 24 Gigabit RJ45 ports from a budget of up to 370 W, plus 4 x 10GE SFP+ uplinks.
Built for Dense PoE Deployments
Power a full floor of access points, IP phones and security cameras from one switch, with 10GE uplinks back to the core or FortiGate.
Managed from Your FortiGate with FortiLink
Connect the FS-124F-FPOE to a FortiGate and manage ports, VLANs, PoE devices and access policy from the same interface as your firewall.
Building out a FortiGate network? Email sales@sourceit.com.sg with your port count and PoE needs, and we will match the right FortiSwitch.
Fortinet FortiSwitch 124F-FPOE FS-124F-FPOE Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiSwitch 124F-FPOE |
| Part Number | FS-124F-FPOE |
| Series | FortiSwitch 124F Series (Secure Access) |
| Operating System | FortiSwitchOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 24 x GE RJ45 (ports 1–24) |
| Uplink Ports | 4 x 10 Gbps SFP+ (ports 25–28) |
| FortiLink | Ports 21–28 (RJ45 and SFP+) can be used for FortiLink |
| PoE | Ports 1–24, 802.3af/at (PoE+) |
| PoE Budget | Up to 370 W |
| Management | 1 x RJ45 console port |
| Other | USB 2.0 port (reserved for future use); Power, Alarm, Speed, Link/Act and PoE LEDs |
Physical & Power
| Mounting | Desktop (rubber feet) or rack (brackets included) |
| Power Input | 100–240 V AC, 7.0 A max, 50/60 Hz |
| Operating Temperature | 0 °C to 45 °C |
Specifications are taken from Fortinet's FortiSwitch 124F Series QuickStart Guide and ordering documentation.
Compatibility & Software Support
What It Is Suited To
Offices, schools, retail and branch sites where most wired ports power a device: access points, IP phones, cameras and door controllers. For 2.5GE ports or 802.3bt (90 W) devices, look at the FS-124G-FPOE.
Software & Management
FortiSwitch runs FortiSwitchOS. Connect it to a FortiGate over FortiLink and the FortiGate acts as the switch controller, so ports, VLANs and security policy are managed from the same interface as the firewall. An RJ45 console port is provided for CLI management.
Pairs With
FortiGate firewalls with FortiLink support, such as the FortiGate 70G, 90G and 120G, and FortiAP access points for a complete Fortinet branch network.
Package Contents & FortiSwitch Ordering Information
In the Box
Per Fortinet's FortiSwitch 124F Series QuickStart Guide: 1 x FortiSwitch 124F-FPOE, 1 x power cable, 1 x console cable (USB to RJ45), 4 x rubber feet, rack-mount brackets with bracket screws and 1 x QuickStart Guide.
Ordering Information
| Hardware only | FS-124F-FPOE |
FortiSwitch 124F Series — Ordering Information
| Model | Ports | PoE | Power | Part No. |
| FortiSwitch 124F | 24 x GE RJ45, 4 x 10GE SFP+ | None | Internal, 100–240 V AC | FS-124F |
| FortiSwitch 124F-POE | 24 x GE RJ45, 4 x 10GE SFP+ | Ports 1–12, 802.3af/at, up to 185 W | Internal, 100–240 V AC | FS-124F-POE |
| FortiSwitch 124F-FPOE (this listing) | 24 x GE RJ45, 4 x 10GE SFP+ | Ports 1–24, 802.3af/at, up to 370 W | Internal, 100–240 V AC | FS-124F-FPOE |
Need faster access ports or more PoE? The FortiSwitch 124G series adds 2.5GE ports and 802.3bt PoE, and the 148F series offers 48 ports. Ask us for a quote.
Support Contracts
FortiCare support contracts for FortiSwitch are available separately. Ask us to quote them with the switch.
Datasheet & Downloads
| Fortinet data sheet | FortiSwitch Secure Access Series Data Sheet |
| Fortinet ordering guide | FortiSwitch Ordering Guide |
| QuickStart Guide | FortiSwitch 124F Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FS-124F-FPOE.
Frequently Asked Questions — Fortinet FortiSwitch 124F-FPOE FS-124F-FPOE
How many ports provide PoE?
All 24 RJ45 ports provide 802.3af/at PoE+, from a total budget of up to 370 W.
What is the difference from the FS-124F-POE?
The FS-124F-POE has PoE+ on ports 1–12 with up to 185 W; the FS-124F-FPOE has PoE+ on all 24 ports with up to 370 W.
Can it be rack-mounted?
Yes. Rack-mount brackets and screws are included in the box.
What are the uplinks?
Four 10 Gbps SFP+ ports (ports 25–28). SFP+ transceivers are not included.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
