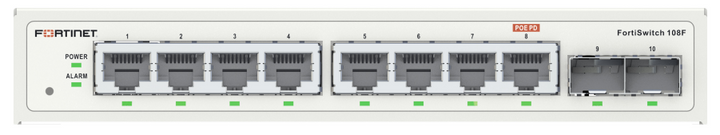

Fortinet FortiSwitch 108F Secure Access Switch, 8x GE RJ45, 2x GE SFP, Fanless
PRODUCT DESCRIPTION
Fortinet FortiSwitch 108F Secure Access Switch (FS-108F) - Local Warranty
Compact, Silent Access Switching
The Fortinet FortiSwitch 108F (FS-108F) is a fanless desktop switch with 8 Gigabit Ethernet RJ45 ports and 2 Gigabit SFP ports, ideal for small offices, meeting rooms, shop counters and branch cabinets where noise and space matter.
Managed from Your FortiGate with FortiLink
Connect the FS-108F to a FortiGate FortiLink port and the FortiGate becomes the switch controller: ports, VLANs and access policy are configured alongside the firewall, giving you one place to manage and secure the wired network.
Powered by Adapter or PoE
The FS-108F ships with a 12 V DC power adapter, and port 8 supports PoE PD input (802.3af/at), so the switch can also be powered from an upstream PoE switch where there is no convenient power outlet.
Building out a FortiGate network? Email sales@sourceit.com.sg with your port count and PoE needs, and we will match the right FortiSwitch.
Fortinet FortiSwitch 108F FS-108F Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiSwitch 108F |
| Part Number | FS-108F |
| Series | FortiSwitch 108F Series (Secure Access) |
| Operating System | FortiSwitchOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 8 x GE RJ45 (ports 1–8) |
| Uplink Ports | 2 x 1 Gbps SFP (ports 9–10) |
| PoE | Port 8: PoE PD input, 802.3af/at compliant (no PoE output) |
| Management | 1 x RJ45 console port (rear) |
| Other | Power, Alarm and Link/Act LEDs; grounding screw |
Physical & Power
| Form Factor | Desktop (rubber feet included) |
| Cooling | Fanless |
| Power Input | External 12 V DC adapter (100–240 V AC, 50–60 Hz input), or PoE on port 8 |
| Operating Temperature | 0 °C to 45 °C |
Specifications are taken from Fortinet's FortiSwitch 108F Series QuickStart Guide and ordering documentation.
Compatibility & Software Support
What It Is Suited To
Small offices, retail counters, meeting rooms and branch sites that need a handful of wired ports without fan noise. For powering access points, IP phones or cameras, choose the FS-108F-POE or FS-108F-FPOE.
Software & Management
FortiSwitch runs FortiSwitchOS. Connect it to a FortiGate over FortiLink and the FortiGate acts as the switch controller, so ports, VLANs and security policy are managed from the same interface as the firewall. A console port is provided for CLI management.
Pairs With
FortiGate firewalls with a FortiLink port, such as the FortiGate 30G, 50G, 70G and 90G, and FortiAP access points for a complete Fortinet branch network.
Package Contents & FortiSwitch Ordering Information
In the Box
Per Fortinet's FortiSwitch 108F Series QuickStart Guide: 1 x FortiSwitch 108F, 1 x console cable (USB to RJ45), 4 x rubber feet, 1 x 12 V DC power adapter with US/EU plugs and 1 x QuickStart Guide.
Ordering Information
| Hardware only | FS-108F |
FortiSwitch 108F Series — Ordering Information
| Model | Ports | PoE | Power | Part No. |
| FortiSwitch 108F (this listing) | 8 x GE RJ45, 2 x GE SFP | PoE-PD input on port 8 (no PoE output) | External 12 V DC adapter, or PoE on port 8 | FS-108F |
| FortiSwitch 108F-POE | 8 x GE RJ45, 2 x GE SFP | 4 x 802.3af/at ports, up to 65 W | Internal, 100–240 V AC | FS-108F-POE |
| FortiSwitch 108F-FPOE | 8 x GE RJ45, 2 x GE SFP | 8 x 802.3af/at ports, up to 130 W | Internal, 100–240 V AC | FS-108F-FPOE |
Need more ports? The FortiSwitch 124F, 124G and 148F series offer 24 and 48-port models with 10GE SFP+ uplinks, in non-PoE and PoE versions. Ask us for a quote.
Support Contracts
FortiCare support contracts for FortiSwitch are available separately. Ask us to quote them with the switch.
Datasheet & Downloads
| Fortinet data sheet | FortiSwitch Secure Access Series Data Sheet |
| Fortinet ordering guide | FortiSwitch Ordering Guide |
| QuickStart Guide | FortiSwitch 108F Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FS-108F.
Frequently Asked Questions — Fortinet FortiSwitch 108F FS-108F
Does the FortiSwitch 108F provide PoE?
No. Port 8 accepts PoE as a power input (PoE PD), but the FS-108F does not power other devices. Choose the FS-108F-POE or FS-108F-FPOE for PoE output.
Is it fanless?
Yes, the FS-108F is fanless and silent.
Can it be rack-mounted?
It is supplied as a desktop switch with rubber feet; rack-mount brackets are not included.
How is it managed?
Connect it to a FortiGate over FortiLink to manage it from the firewall. The console port provides CLI access.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
