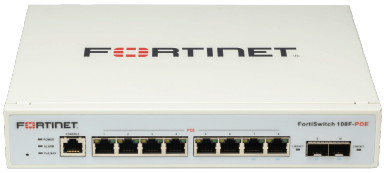

Fortinet FortiSwitch 108F-POE Secure Access Switch, 8x GE RJ45 (4x PoE+), 2x GE SFP, 65W
PRODUCT DESCRIPTION
Fortinet FortiSwitch 108F-POE Secure Access PoE Switch (FS-108F-POE) - Local Warranty
Compact PoE Switching for Small Sites
The Fortinet FortiSwitch 108F-POE (FS-108F-POE) is a fanless 8-port Gigabit switch with 2 Gigabit SFP uplinks and PoE/PoE+ on four of its RJ45 ports, sized for powering a few access points, IP phones or cameras in a small office or branch.
65 W PoE Budget
Fortinet specifies a maximum PoE budget of up to 65 W across the 802.3af/at ports, from an internal power supply that runs directly from 100–240 V AC, so there is no external brick to manage.
Managed from Your FortiGate with FortiLink
Plug it into a FortiGate FortiLink port and the FortiGate becomes the switch controller, letting you manage VLANs, PoE ports and access policy from the firewall alongside your FortiAP access points.
Not sure whether 65 W is enough? Email sales@sourceit.com.sg with the devices you need to power, and we will check the PoE budget for you.
Fortinet FortiSwitch 108F-POE FS-108F-POE Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiSwitch 108F-POE |
| Part Number | FS-108F-POE |
| Series | FortiSwitch 108F Series (Secure Access) |
| Operating System | FortiSwitchOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 8 x GE RJ45 (ports 1–8) |
| Uplink Ports | 2 x 1 Gbps SFP (ports 9–10) |
| PoE Ports | 4 of the 8 RJ45 ports, 802.3af/at (PoE/PoE+) |
| PoE Budget | Up to 65 W |
| Management | 1 x RJ45 console port |
| Other | Power, Alarm, PoE and Link/Act LEDs; grounding screw |
Physical & Power
| Form Factor | Desktop or rack mount (brackets included) |
| Cooling | Fanless |
| Power Input | Internal power supply, 100–240 V AC, 0.75 A max, 50–60 Hz |
| Operating Temperature | 0 °C to 45 °C |
Specifications are taken from Fortinet's FortiSwitch 108F Series QuickStart Guide and FortiSwitch ordering guide.
Compatibility & Software Support
What It Is Suited To
Small offices and branches powering a few PoE devices such as FortiAP access points, IP phones or cameras. If you need PoE on all eight ports or a larger budget, choose the FS-108F-FPOE (up to 130 W).
Software & Management
FortiSwitch runs FortiSwitchOS. Connect it to a FortiGate over FortiLink and the FortiGate acts as the switch controller, so ports, VLANs and security policy are managed from the same interface as the firewall. A console port is provided for CLI management.
Pairs With
FortiGate firewalls with a FortiLink port and FortiAP access points such as the FortiAP 231K, which draws 802.3at PoE+.
Package Contents & FortiSwitch Ordering Information
In the Box
Per Fortinet's FortiSwitch 108F Series QuickStart Guide: 1 x FortiSwitch 108F-POE, 1 x console cable (USB to RJ45), 2 x rack-mount brackets with 4 x rubber feet, 8 x bracket screws, 1 x power cable and 1 x QuickStart Guide.
Ordering Information
| Hardware only | FS-108F-POE |
FortiSwitch 108F Series — Ordering Information
| Model | Ports | PoE | Power | Part No. |
| FortiSwitch 108F | 8 x GE RJ45, 2 x GE SFP | PoE-PD input on port 8 (no PoE output) | External 12 V DC adapter, or PoE on port 8 | FS-108F |
| FortiSwitch 108F-POE (this listing) | 8 x GE RJ45, 2 x GE SFP | 4 x 802.3af/at ports, up to 65 W | Internal, 100–240 V AC | FS-108F-POE |
| FortiSwitch 108F-FPOE | 8 x GE RJ45, 2 x GE SFP | 8 x 802.3af/at ports, up to 130 W | Internal, 100–240 V AC | FS-108F-FPOE |
Need more ports? The FortiSwitch 124F, 124G and 148F series offer 24 and 48-port models with 10GE SFP+ uplinks, in non-PoE and PoE versions. Ask us for a quote.
Support Contracts
FortiCare support contracts for FortiSwitch are available separately. Ask us to quote them with the switch.
Datasheet & Downloads
| Fortinet data sheet | FortiSwitch Secure Access Series Data Sheet |
| Fortinet ordering guide | FortiSwitch Ordering Guide |
| QuickStart Guide | FortiSwitch 108F Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FS-108F-POE.
Frequently Asked Questions — Fortinet FortiSwitch 108F-POE FS-108F-POE
How many ports provide PoE?
Four of the eight RJ45 ports support 802.3af/at PoE/PoE+, with a total PoE budget of up to 65 W.
Is it fanless?
Yes, the FS-108F-POE is fanless.
Can it be rack-mounted?
Yes. Rack-mount brackets and screws are included, as are rubber feet for desktop use.
Does it need an external power adapter?
No. It has an internal power supply and connects directly to 100–240 V AC with the supplied power cable.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
