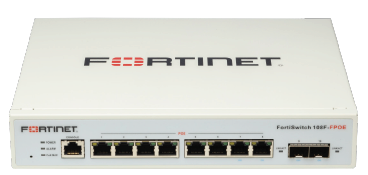

Fortinet FortiSwitch 108F-FPOE Secure Access Switch, 8x GE RJ45 PoE+, 2x GE SFP, 130W
PRODUCT DESCRIPTION
Fortinet FortiSwitch 108F-FPOE Secure Access Full PoE Switch (FS-108F-FPOE) - Local Warranty
PoE on Every Port
The Fortinet FortiSwitch 108F-FPOE (FS-108F-FPOE) is the full-PoE model of the 108F series: all eight Gigabit RJ45 ports support 802.3af/at PoE/PoE+, with 2 Gigabit SFP uplinks for connecting back to the core or FortiGate.
130 W PoE Budget
Fortinet specifies a maximum PoE budget of up to 130 W, double that of the FS-108F-POE, so you can power more access points, IP phones and cameras from one compact switch. It runs from an internal 100–240 V AC power supply.
Managed from Your FortiGate with FortiLink
Connected to a FortiGate FortiLink port, the switch is managed from the firewall, bringing wired ports, PoE devices and FortiAP wireless under one security policy.
Powering a mix of access points, phones and cameras? Email sales@sourceit.com.sg with your device list, and we will check the PoE budget for you.
Fortinet FortiSwitch 108F-FPOE FS-108F-FPOE Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiSwitch 108F-FPOE |
| Part Number | FS-108F-FPOE |
| Series | FortiSwitch 108F Series (Secure Access) |
| Operating System | FortiSwitchOS |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Interfaces
| Network Ports | 8 x GE RJ45 (ports 1–8) |
| Uplink Ports | 2 x 1 Gbps SFP (ports 9–10) |
| PoE Ports | All 8 RJ45 ports, 802.3af/at (PoE/PoE+) |
| PoE Budget | Up to 130 W |
| Management | 1 x RJ45 console port |
| Other | Power, Alarm, PoE and Link/Act LEDs; grounding screw |
Physical & Power
| Form Factor | Desktop or rack mount (brackets included) |
| Power Input | Internal power supply, 100–240 V AC, 1.4 A max, 50–60 Hz |
| Operating Temperature | 0 °C to 45 °C |
Specifications are taken from Fortinet's FortiSwitch 108F Series QuickStart Guide and FortiSwitch ordering guide.
Compatibility & Software Support
What It Is Suited To
Small offices and branches that need PoE on every port, for example several FortiAP access points plus IP phones or cameras. If you only need PoE on a few ports, the FS-108F-POE (4 PoE ports, 65 W) may be enough.
Software & Management
FortiSwitch runs FortiSwitchOS. Connect it to a FortiGate over FortiLink and the FortiGate acts as the switch controller, so ports, VLANs and security policy are managed from the same interface as the firewall. A console port is provided for CLI management.
Pairs With
FortiGate firewalls with a FortiLink port and FortiAP access points such as the FortiAP 231K, which draws 802.3at PoE+.
Package Contents & FortiSwitch Ordering Information
In the Box
Per Fortinet's FortiSwitch 108F Series QuickStart Guide: 1 x FortiSwitch 108F-FPOE, 1 x console cable (USB to RJ45), 2 x rack-mount brackets with 4 x rubber feet, 8 x bracket screws, 1 x power cable and 1 x QuickStart Guide.
Ordering Information
| Hardware only | FS-108F-FPOE |
FortiSwitch 108F Series — Ordering Information
| Model | Ports | PoE | Power | Part No. |
| FortiSwitch 108F | 8 x GE RJ45, 2 x GE SFP | PoE-PD input on port 8 (no PoE output) | External 12 V DC adapter, or PoE on port 8 | FS-108F |
| FortiSwitch 108F-POE | 8 x GE RJ45, 2 x GE SFP | 4 x 802.3af/at ports, up to 65 W | Internal, 100–240 V AC | FS-108F-POE |
| FortiSwitch 108F-FPOE (this listing) | 8 x GE RJ45, 2 x GE SFP | 8 x 802.3af/at ports, up to 130 W | Internal, 100–240 V AC | FS-108F-FPOE |
Need more ports? The FortiSwitch 124F, 124G and 148F series offer 24 and 48-port models with 10GE SFP+ uplinks, in non-PoE and PoE versions. Ask us for a quote.
Support Contracts
FortiCare support contracts for FortiSwitch are available separately. Ask us to quote them with the switch.
Datasheet & Downloads
| Fortinet data sheet | FortiSwitch Secure Access Series Data Sheet |
| Fortinet ordering guide | FortiSwitch Ordering Guide |
| QuickStart Guide | FortiSwitch 108F Series QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FS-108F-FPOE.
Frequently Asked Questions — Fortinet FortiSwitch 108F-FPOE FS-108F-FPOE
How many ports provide PoE?
All eight RJ45 ports support 802.3af/at PoE/PoE+, with a total PoE budget of up to 130 W.
What is the difference from the FS-108F-POE?
The FS-108F-POE has PoE on four ports with a 65 W budget; the FS-108F-FPOE has PoE on all eight ports with up to 130 W.
Can it be rack-mounted?
Yes. Rack-mount brackets and screws are included, as are rubber feet for desktop use.
Can it power Wi-Fi 7 access points?
It supplies 802.3at PoE+, which suits access points such as the FortiAP 231K. Higher-power models such as the FortiAP 441K need 802.3bt or two 802.3at feeds.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
