Fortinet FortiAP 441K Wi-Fi 7 Tri-Band 4x4 Indoor Access Point, 2x 10GE RJ45, Internal Antennas
PRODUCT DESCRIPTION
Fortinet FortiAP 441K Wi-Fi 7 Indoor Access Point (FAP-441K-S) - Local Warranty
High-Density Wi-Fi 7 for Demanding Spaces

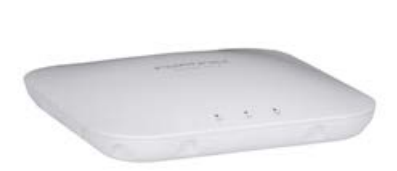

The Fortinet FortiAP 441K (FAP-441K-S) is Fortinet's high-performance Wi-Fi 7 (802.11be) indoor access point with internal antennas. Three 4x4 client radios cover 2.4 GHz, 5 GHz and 6 GHz, and a fourth dedicated 2x2 radio scans all three bands, making it suited to busy open-plan floors, lecture halls and meeting-heavy offices.
Up to 21.326 Gbps Combined Radio Rate
Fortinet rates the radios at up to 1.148 Gbps on 2.4 GHz, 8.648 Gbps on 5 GHz (up to 240 MHz channels) and 11.530 Gbps on 6 GHz with 320 MHz channels. Each client radio supports up to 512 clients, and the access point supports up to 24 SSIDs.
Dual 10GE Uplinks with Flexible PoE
Two 10/5/2.5/1 Gigabit RJ45 ports provide multi-gig uplinks. Power it from a single 802.3bt PoE source, or from two 802.3at PoE sources with dual PoE current sharing. Fortinet lists maximum power consumption at 41.7 W.
Managed from Your FortiGate
Like every FortiAP, the 441K is managed by a FortiGate acting as the wireless controller or through Fortinet cloud management, with Bluetooth Low Energy built in.
Designing a high-density Wi-Fi 7 network? Email sales@sourceit.com.sg with your floor plans and user counts, and we will help you size the access points and PoE switching.
Fortinet FortiAP 441K FAP-441K-S Datasheet — Technical Specifications
General
| Product Name | Fortinet FortiAP 441K |
| Part Number | FAP-441K-S |
| Wi-Fi Standard | 802.11be (Wi-Fi 7) |
| Antennas | Internal |
| Management | FortiGate integrated wireless controller or cloud managed |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Radios
| Radio 1 | 2.4 GHz, 4x4, 20/40 MHz — up to 1.148 Gbps |
| Radio 2 | 5 GHz, 4x4, 20/40/80/160/240 MHz — up to 8.648 Gbps |
| Radio 3 | 6 GHz, 4x4, 20/40/80/160/320 MHz — up to 11.530 Gbps |
| Radio 4 (scanning) | 2.4 / 5 / 6 GHz, 2x2, 20/40/80/160 MHz |
| Combined Max Data Rate | 21.326 Gbps |
| Bluetooth / BLE | Yes / Yes |
| Max SSIDs | Up to 24 |
| Max Clients | Up to 512 per radio (radios 1, 2 and 3) |
Interfaces
| Network | 2 x 10/5/2.5/1GE RJ45 (LAN1 and LAN2, both PoE input) |
| Management | 1 x RS-232 RJ45 serial console port |
| Other | GPS (SMA) connector for multi-GNSS; reset button; Power, LAN and Wi-Fi status LEDs; optional 12 V DC power input |
Power & Environment
| PoE Input | 802.3bt PoE (default), or 2 x 802.3at PoE with dual PoE current sharing |
| Optional Power Adapter | 12 V DC 4 A adapter (not included) |
| Max Power Consumption | 41.7 W |
| Mounting | Ceiling T-rail, 9/16" and 15/16" brackets included |
| Operating Temperature | 0 °C to 50 °C |
Maximum data rates are Fortinet theoretical PHY rates; real-world throughput depends on client capability, channel width and RF environment.
Compatibility & Software Support
What It Is Suited To
High-density indoor spaces such as open-plan offices, lecture theatres, conference venues and campuses that need 4x4 Wi-Fi 7 on all three bands. For standard offices, the 2x2 FortiAP 231K is a lower-cost option.
Controller & Management
Managed by a FortiGate acting as the wireless controller, or cloud managed. Wi-Fi 7 and 6 GHz operation require a FortiOS / FortiAP firmware release that supports the K-series; ask us to check your FortiGate firmware before ordering.
Powering the Access Point
For full operation plan an 802.3bt PoE source, or connect both LAN ports to 802.3at (PoE+) ports for dual PoE current sharing. A 12 V 4 A DC adapter is available as an option.
Package Contents & FortiAP Ordering Information
In the Box
Per Fortinet's FortiAP 441K/443K QuickStart Guide: 1 x FortiAP device, 1 x 9/16" ceiling mounting bracket, 1 x 15/16" ceiling mounting bracket, 8 x mounting screws with 8 x anchors and 1 x QuickStart Guide. A power adapter is not included.
Ordering Information
| Hardware only | FAP-441K-S |
FortiAP Wi-Fi 7 Indoor Range — Ordering Information
| Model | Radios | Max Data Rate (combined) | Uplink Ports | PoE Input | Part No. |
| FortiAP 231K | 3 radios, 2x2 on 2.4 / 5 / 6 GHz | 9.335 Gbps | 1 x 5/2.5/1GE RJ45 | 802.3at | FAP-231K-S |
| FortiAP 441K (this listing) | 3 radios 4x4 on 2.4 / 5 / 6 GHz + 1 x 2x2 scanning radio | 21.326 Gbps | 2 x 10/5/2.5/1GE RJ45 | 802.3bt, or dual 802.3at | FAP-441K-S |
Support Contracts
FortiCare support contracts for FortiAP are available separately. Ask us to quote them with the access points.
Datasheet & Downloads
| Fortinet wireless product matrix | FortiAP Wireless Product Matrix |
| QuickStart Guide | FortiAP 441K / 443K QuickStart Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting FAP-441K-S.
Frequently Asked Questions — Fortinet FortiAP 441K FAP-441K-S
What is the difference between the FortiAP 441K and 443K?
The 441K has internal antennas; the 443K is the external-antenna version of the same platform.
What PoE does it need?
Fortinet specifies 802.3bt PoE as the default, or two 802.3at PoE sources connected to both LAN ports with dual PoE current sharing.
How fast are the uplinks?
It has two 10/5/2.5/1 Gigabit RJ45 ports.
How many clients can it support?
Fortinet specifies up to 512 clients per client radio and up to 24 SSIDs.
What warranty do I get?
Supplied by SourceIT with local warranty support and a GST invoice. FortiCare support contracts can be added for extended coverage.
