Ergotron WM Low Profile Wall Mount, XL
PRODUCT DESCRIPTION
Ergotron WM Low Profile Wall Mount, XL (60-602-003) - 5 Years Local Warranty
Hole Patterns to 800 mm Wide for Large-Format Commercial Panels
The XL version of Ergotron's WM Low Profile Wall Mount extends the horizontal hole-pattern range to 800 mm — the specification that separates it from the standard 60-604-003 and the reason to choose it for the 75", 85" and larger commercial panels whose fixing points sit wider than 600 mm apart.
175 lb (79.4 kg) Capacity at a 1.25" (32 mm) Profile

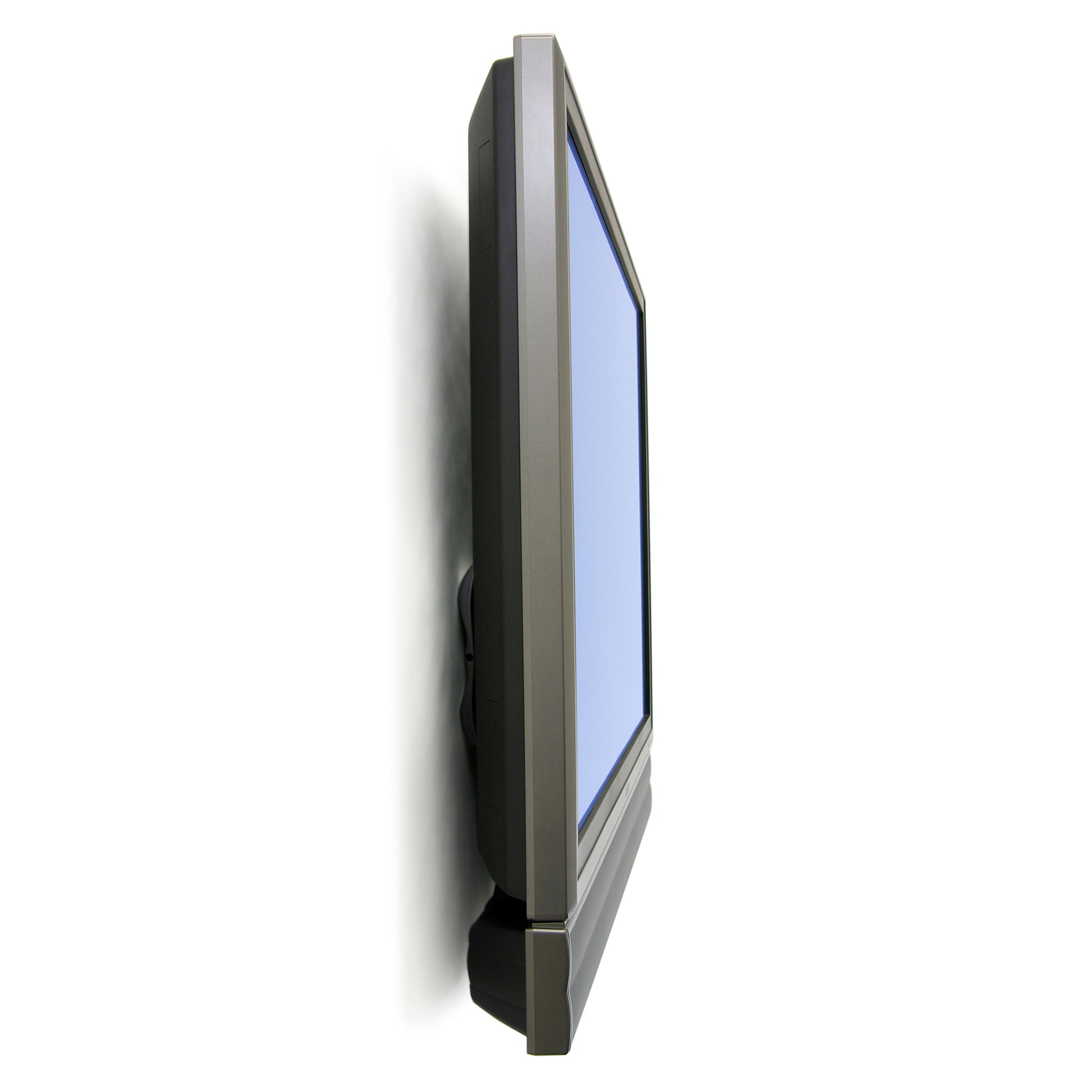

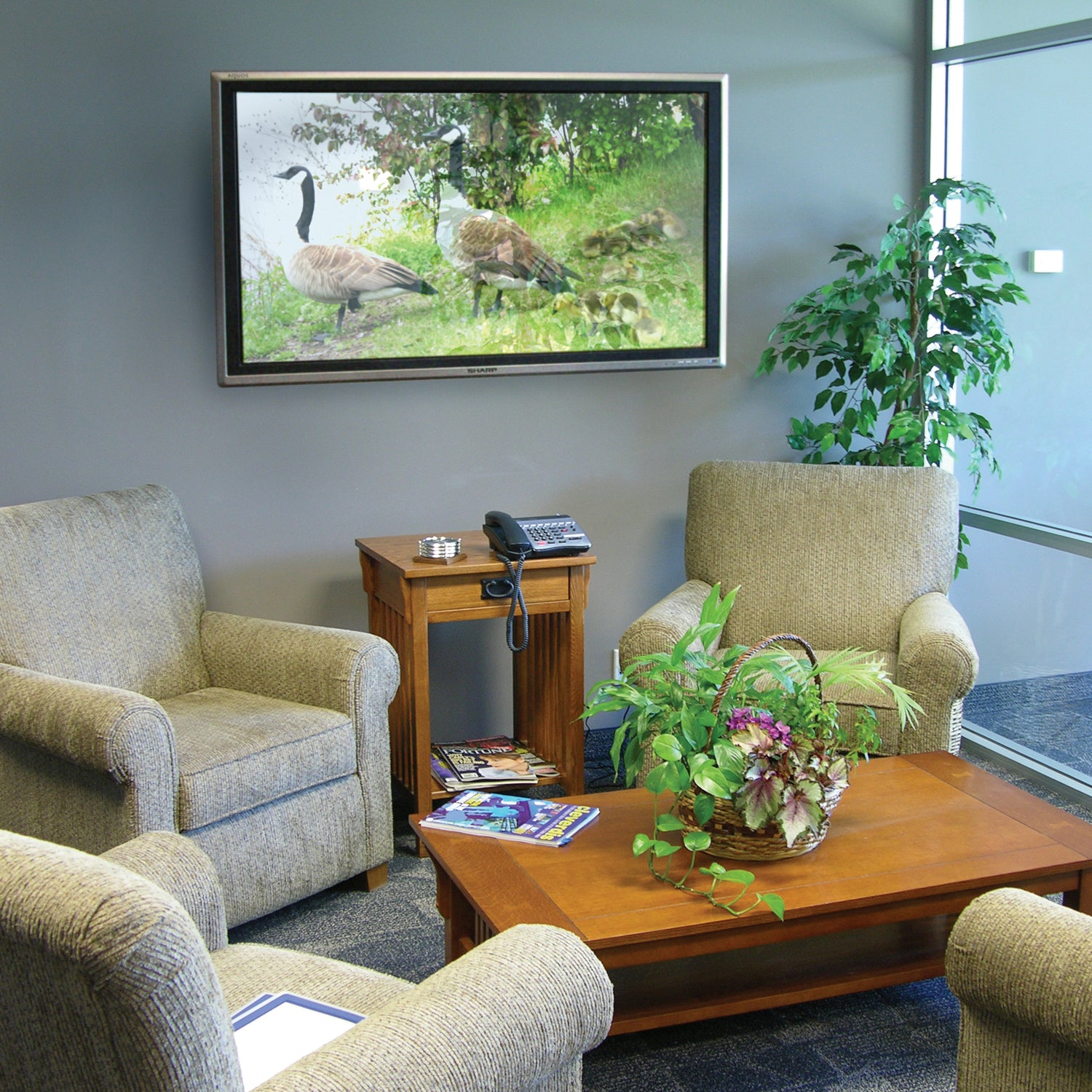

Despite the larger footprint, the XL keeps the same 175 lb (79.4 kg) load rating and the same 1.25" (32 mm) depth from wall. A very large panel still sits flush enough to read as architecture rather than equipment — useful in lobbies, boardrooms and showrooms where the display is on show as much as the content.
16" or 24" Stud Spacing, or Solid Concrete
Ergotron's guide for this model documents solid wood studs at either 16" or 24" (406 mm or 610 mm) on centre, or solid concrete at 3,000 psi with a minimum 4" (102 mm) material thickness. The wider stud option matters on large panels, where the fixing points rarely line up neatly with a single stud spacing.
Security Fasteners and a Complete Hardware Kit

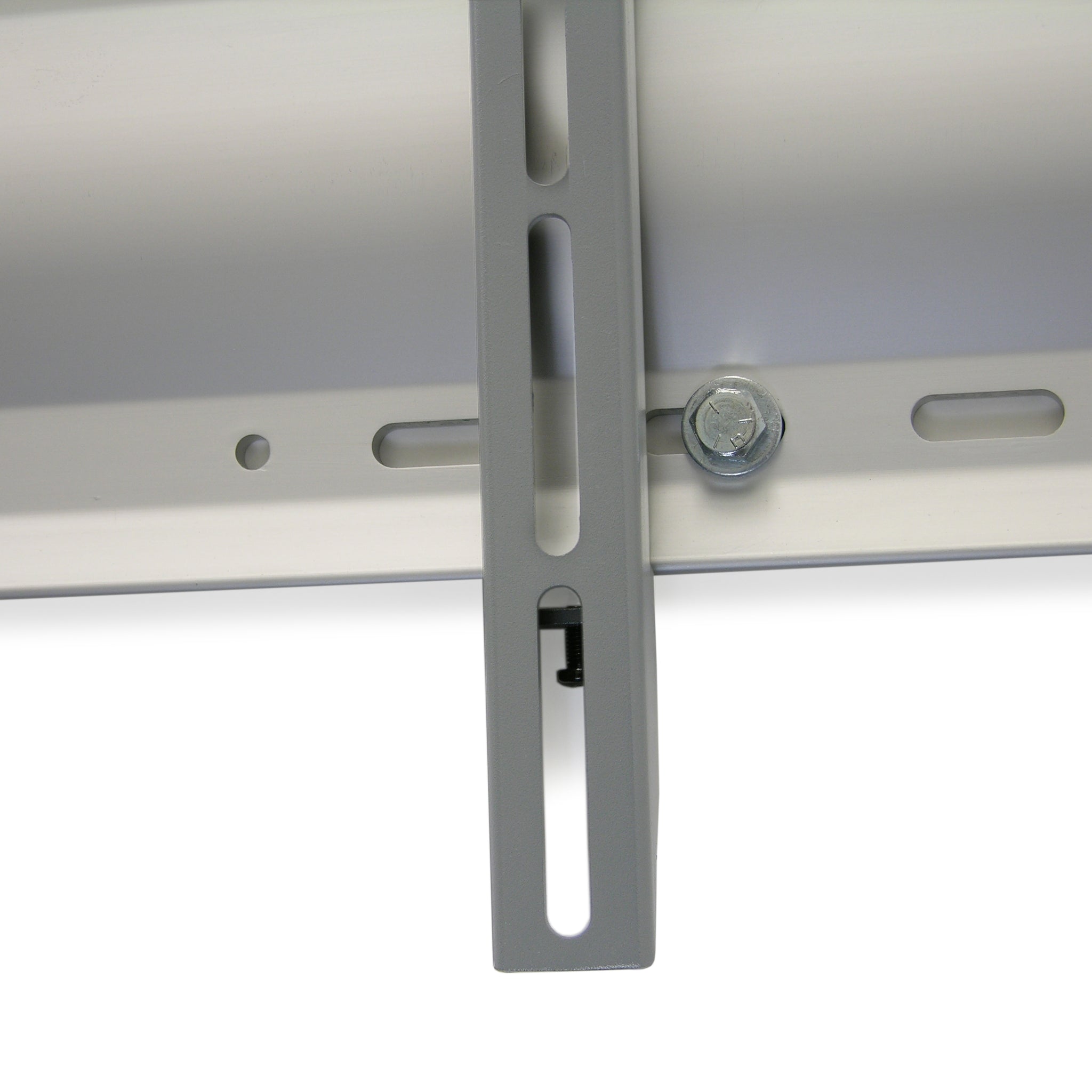

Two security screws with the matching pentagon tool, two Phillips locking screws, and a display fastener set spanning M4 to M8 with spacers and washers all ship in the box, so a large-format install needs no separate hardware run.
Ergotron WM Low Profile Wall Mount XL Datasheet — Technical Specifications
General
| Product | Ergotron WM Low Profile Wall Mount, XL |
| Part Number | 60-602-003 |
| Ergotron Model | 60-602 (also documented as WM Large Display Low Profile Wall Mount) |
| Mount Type | Fixed flat-panel wall mount |
| Number of Displays | 1 |
| Colour | Silver |
| Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Display Compatibility
| Maximum Weight Capacity | 175 lb (79.4 kg) |
| Screen Size | 42" and larger |
| VESA Standard | VESA MIS-D / MIS-E / MIS-F |

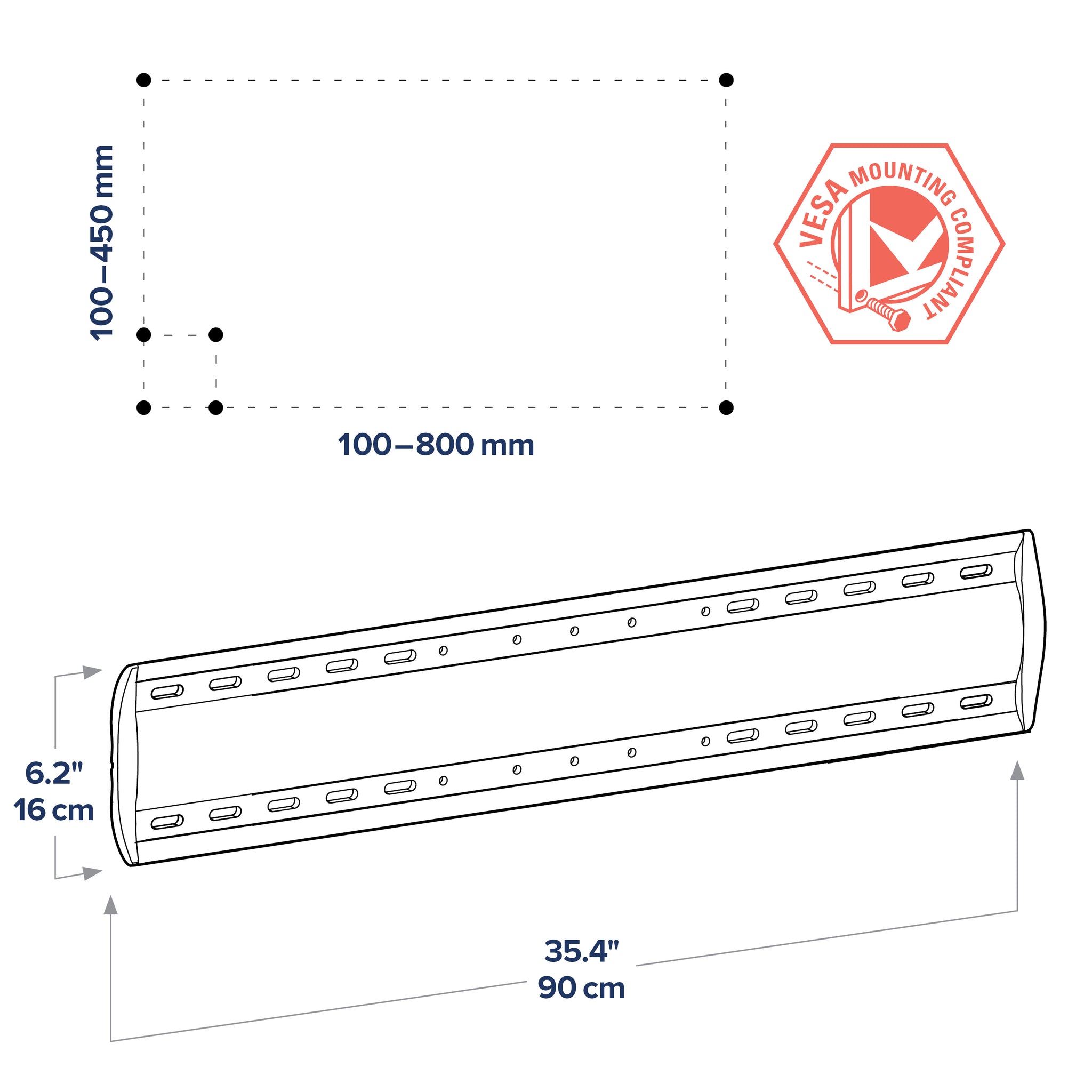

| Hole Pattern — Horizontal | 100 mm (min.) to 800 mm (max.) |
| Hole Pattern — Vertical | 100 mm (min.) to 450 mm (max.) |
| Display Screw Sizes | M4, M5, M6 and M8 supplied in multiple lengths |
Adjustment & Motion
| Motion | Fixed — no tilt, pan or lift |

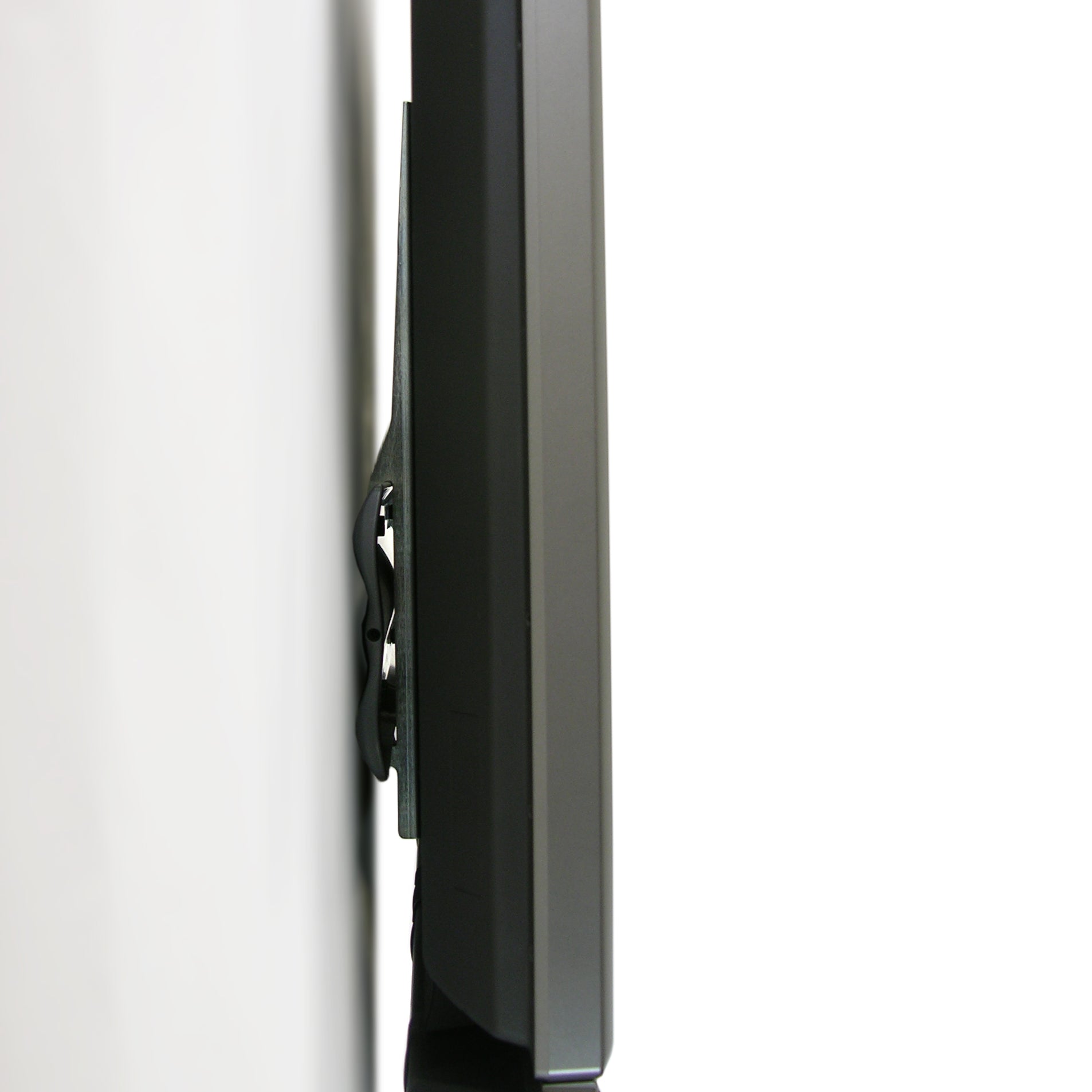

| Profile / Depth from Wall | 1.25" (32 mm) |
Design & Durability
| Wall Type I | Solid wood studs (2" x 4") at 16" or 24" (406 mm / 610 mm) on centre |
| Wall Type II | Solid concrete, 3,000 psi, minimum 4" (102 mm) thickness |
| Security | 2 security screws with pentagon tool, 2 Phillips locking screws |
| Reference Document | Ergotron installation guide 888-60-510-M-01 rev. E |
Compatibility & Fit
The XL exists for one reason: display hole patterns wider than 600 mm. It accepts 100–800 mm horizontally and 100–450 mm vertically to VESA MIS-D/E/F, and carries up to 175 lb (79.4 kg). Ergotron recommends it for panels of 42" and larger and publishes no upper screen-size limit — the governing figures are the hole pattern and the weight.
If your panel's holes fall within 600 mm horizontally, the standard WM Low Profile Wall Mount (60-604-003) does the same job for less. Check the panel's mounting pattern on its own datasheet before ordering — screen size is a poor predictor of hole spacing on large-format displays.
Single display, fixed — no tilt or pan — so set the height for the seated or standing audience before drilling. Ultrawide and curved panels mount normally inside the pattern and weight limits. On the wall side, this model supports wood studs at either 16" or 24" on centre, or solid concrete at least 4" thick. Steel-stud walls require the separate Steel Stud Wall Mounting Kit (60-591-003).
Package Contents & WM Low Profile Ordering Information

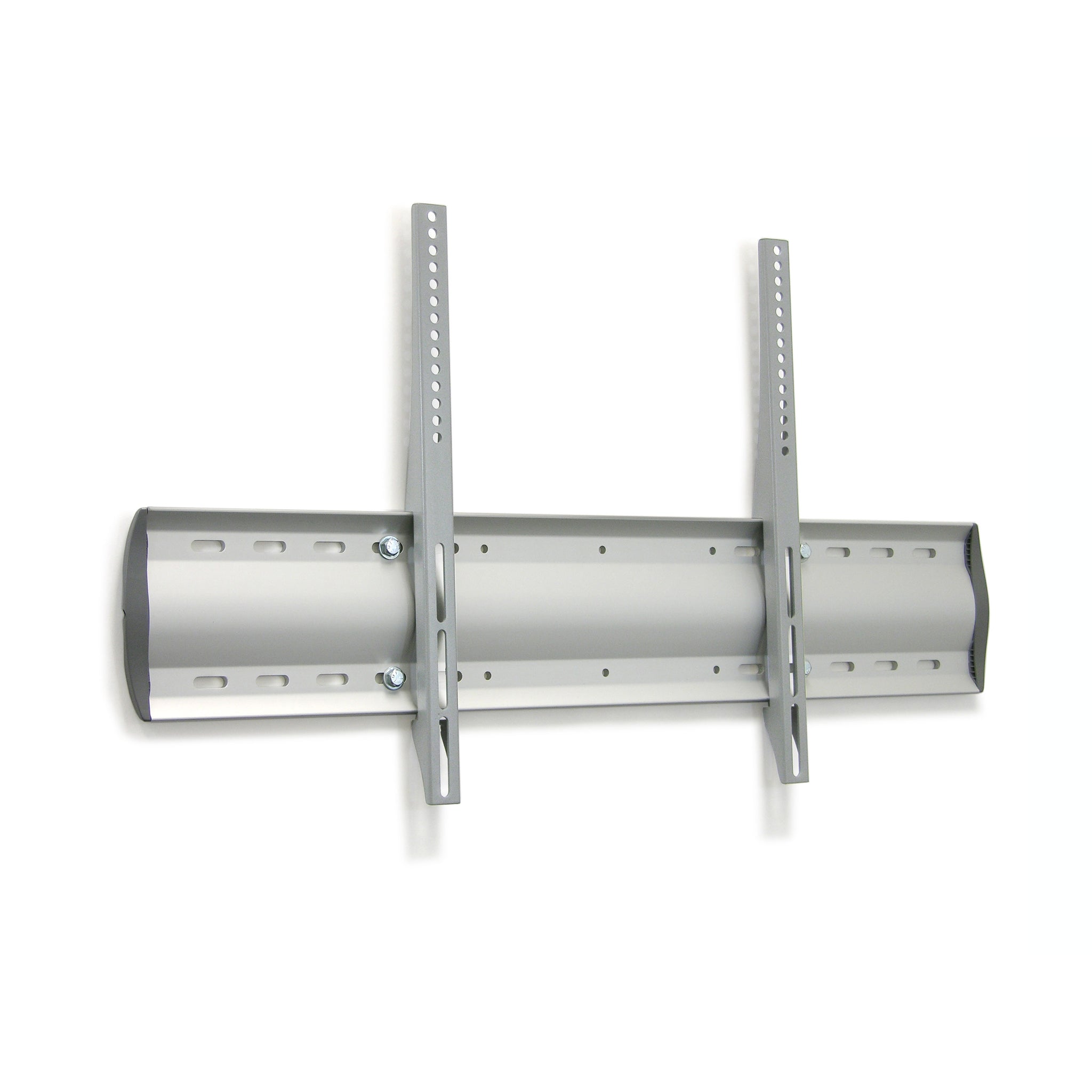

In the box: wall plate, two display brackets and a hardware fastener kit.
Fastener kit contents: 4 x each of M4 x 20, M4 x 40, M5 x 20, M5 x 40, M6 x 20, M6 x 45, M8 x 25, M8 x 50 and M8 x 80 screws; 4 x each of four spacer sizes and two washer sizes; M8 x 50 mm and M8 x 80 mm wall fasteners for wood and concrete; 2 x security screws; 2 x Phillips locking screws; 1 x pentagon tool.
WM Low Profile Ordering Information
| 60-602-003 (this listing) | WM Low Profile Wall Mount, XL — silver, 100–800 mm horizontal pattern, 42" and larger |
| 60-604-003 | WM Low Profile Wall Mount — silver, 100–600 mm horizontal pattern, 32" and larger |
Related Ergotron Wall Mounts at SourceIT
| 60-614 | Neo-Flex Fixed Wall Mount, UHD — 175 lb (79.4 kg), up to 80" |
| 60-600-009 | SIM90 Signage Integration Mount — display plus mini PC |
Wall Fixing Accessories
| 60-591-003 | Steel Stud Wall Mounting Kit — for steel-stud walls |
Datasheet & Downloads
- Ergotron WM Low Profile Wall Mount XL product page (60-602)
- Ergotron installation guide 888-60-510-M (PDF)
Note that some third-party sites serve installation guide 888-60-182P against this part number. That document covers Ergotron parts 60-578, 60-580 and 60-581, not 60-602, and gives a different 750 mm hole-pattern figure. The correct guide for 60-602 is 888-60-510-M, linked above.
Frequently Asked Questions — Ergotron WM Low Profile Wall Mount XL
What makes the XL different from the standard WM Low Profile Wall Mount?
The horizontal hole-pattern range: 100–800 mm on the XL against 100–600 mm on the standard model, and a recommended screen size of 42" and larger rather than 32" and larger. Load capacity (175 lb / 79.4 kg) and wall profile (1.25" / 32 mm) are identical.
Which one do I need for an 85" commercial display?
Check the panel's mounting pattern rather than its size. Most 85" commercial panels use a pattern wider than 600 mm, which needs the XL — but the figure is on the display's datasheet and is the only reliable way to decide.
How much weight does it hold?
175 lb (79.4 kg), the same as the standard model. Verify your panel's weight from its own specification sheet.
What wall construction does it need?
Solid wood studs at 16" or 24" (406 mm or 610 mm) on centre, or solid concrete of at least 3,000 psi and 4" (102 mm) thickness. Fixings for both are supplied. Steel-stud walls need Ergotron's separate kit (60-591-003).
Does it tilt?
No. It is a fixed mount, which is what keeps a very large panel at 1.25" (32 mm) from the wall.
Is it secure in a public space?
Two security screws with the matching pentagon tool and two Phillips locking screws are supplied, so the panel cannot be removed with ordinary tools.
Does it come with a warranty in Singapore?
Yes. Every Ergotron WM Low Profile Wall Mount XL sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the WM Low Profile Wall Mount XL with a 5-year manufacturer warranty.
