Ergotron SV43/44 Supplemental Double Tall Drawer
PRODUCT DESCRIPTION

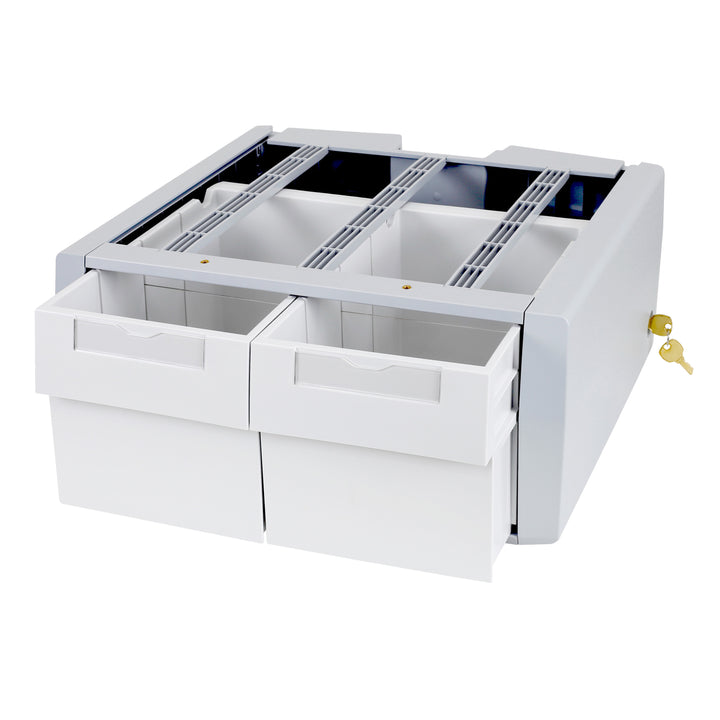

Ergotron SV43/44 Supplemental Double Tall Drawer (97-984) - Local Warranty
Adds Two medium compartments Beneath the Drawer You Already Have
Ergotron's description: "The supplemental drawer attaches under a cart's primary drawer to provide additional secure storage space." The Double Tall configuration provides two medium drawers side by side, hanging below the existing module rather than replacing it.
Two Medium Compartments Across One Module
Ergotron's double configuration divides the same module width into two medium drawers side by side — not two stacked drawers, and not one double-width drawer. It is the middle option between the Single's one large area and the Triple's three small ones, and it is usually the right compromise for a mixed medication round.
"Tall" Means a Deeper Drawer Row, and Fewer Rows Overall
Ergotron's SV43 documentation states the cart can be fitted with up to three rows of tall drawers, against up to five rows of standard-height drawers. So a tall row buys depth for bulkier items and costs you row count. Ergotron does not publish the actual tall-versus-standard height in millimetres — ask us and we will request it before you commit to a configuration.
Ergotron SV43/44 Supplemental Double Tall Drawer Datasheet — Technical Specifications
General
| Product | Ergotron SV43/44 Supplemental Double Tall Drawer |
| Part Number | 97-984 |
| Configuration | Double Tall — two medium drawers side by side |
| Role | Supplemental drawer — attaches beneath an existing drawer module |
| Cart Family | SV43/44 carts |
| Ergotron Description | "The supplemental drawer attaches under a cart's primary drawer to provide additional secure storage space." |
| Warranty | Local warranty — see note below |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Fit & Configuration
| Mounting | Attaches under the cart's primary drawer |
| Cart Generation | StyleView SV43 (non-powered) and SV44 (powered) carts |
Cart Locking System (a cart feature, not a drawer feature)
| Auto-Locking | SV43 and SV44 carts use an auto-locking drawer system for medication management |
| Access Control | SV43: variable-length PINs for up to 1,000 users with StyleLink software, 100 users without. SV44: PIN administration via eKinnex |
| Interlock | Open only one drawer at a time; all drawers in a row must close before another row unlocks |
| Auto-Lock Timeout | The system re-locks after 15 seconds if drawers are left open |
| Warranty on Auto-Lock Electronics | Ergotron's schedule gives 1 year on electronic components such as auto-lock drawers and auto-lock systems, under StyleView Carts |
Published Specification Limits
| Drawer Dimensions | Not published by Ergotron for this part number |
| Weight Capacity | Not published by Ergotron for this part number |
| Materials, Colour, Box Contents | Not published by Ergotron |
| Keys / Key Count | Not published by Ergotron — the SV43 and SV44 locking systems are PIN-based at cart level, not keyed at drawer level |
| Tall Height Figure | Not published by Ergotron — only the row-count trade-off (3 tall rows against 5 standard rows) is documented |
Compatibility & Fit
What the configuration name means. Ergotron's single, double and triple describe how many drawers sit side by side within one module, not how many are stacked: single gives one large area, double gives two medium drawers, triple gives three small ones, all in the same module width. "Tall" changes the height of the row rather than the number of drawers — Ergotron documents up to three tall rows against up to five standard rows on an SV43.
Supplemental, not primary. Ergotron describes this drawer as attaching under an existing drawer. It is not a standalone module: a cart with no drawers at all needs a primary drawer first, and this adds capacity below it.
Fits both generations. Ergotron's name for this drawer — SV43/44 Supplemental — is the compatibility statement: it serves the non-powered SV43 and the powered SV44. Ergotron describes it as providing additional secure storage, without naming a mechanism; the auto-locking behaviour belongs to the cart system.
What Ergotron does not publish. No drawer dimensions, no weight capacity, no materials, no colour and no box contents for any part number in this matrix — we checked all 35. We would rather show you that gap than fill it from a distributor sheet. If a dimension or a load figure decides your configuration, ask us and we will get it from Ergotron before you order.
Package Contents & StyleView SV43/44 Ordering Information
Ergotron publishes no box-contents list for this drawer. It ships as the drawer module with the hardware to mount it beneath an existing drawer module.
Retrofit note: Ergotron states that drawers can be added or removed as needs change, and warns that adding drawers may reduce the cart's total height adjustment. Plan the final drawer count before installation rather than after.
SV43/44 Supplemental Drawer Ordering Information
| 97-851 | Single — one large drawer |
| 97-974 | Single Tall — one large drawer |
| 97-983 | Double — two medium drawers side by side |
| 97-984 (this listing) | Double Tall — two medium drawers side by side |
| 97-849 | Triple — three small drawers side by side |
SV43 Primary Drawers — the module this attaches beneath (non-powered carts)
| 97-900 | Single, LCD carts |
| 97-902 | Single, laptop carts |
| 97-972 | Single Tall, LCD carts |
| 97-973 | Single Tall, laptop carts |
| 97-979 | Double, LCD carts |
| 97-980 | Double, laptop carts |
SV44 Primary Drawers — powered carts
| 97-866 | Single, LCD carts |
| 97-868 | Single, laptop carts |
| 97-970 | Single Tall, LCD carts |
| 97-971 | Single Tall, laptop carts |
| 97-975 | Double, LCD carts |
| 97-976 | Double, laptop carts |
StyleView Carts at SourceIT
| SV44-1232-3 | StyleView Cart with LCD Arm, LiFe Powered |
| SV42-6302-3 | StyleView Cart with LCD Pivot, LiFe Powered |
Datasheet & Downloads
- Ergotron SV43/44 Supplemental Double Tall Drawer product page (97-984)
- Ergotron StyleView SV43 series datasheet (PDF)
- Ergotron StyleView SV44 series datasheet (PDF)
Ergotron publishes no datasheet or installation guide against this drawer part number. The cart datasheets above are the authoritative source for the configuration rules, row limits and locking behaviour described on this page — they document the cart, not the drawer module.
Frequently Asked Questions — Ergotron SV43/44 Supplemental Double Tall Drawer
What does "Double Tall" mean on this drawer?
Double means two medium drawers side by side in one module — not two stacked, and not one double-width drawer. Tall refers to the height of the drawer row: Ergotron documents up to three tall rows against up to five standard rows on an SV43, so tall rows give depth and cost row count.
Is this a primary or a supplemental drawer?
A supplemental drawer. It attaches under an existing drawer module and cannot be the only drawer on the cart — a primary module has to be there first.
Does this drawer lock?
The locking belongs to the cart, not to the drawer module. SV43 and SV44 carts use an auto-locking drawer system with PIN access — SV43 via StyleLink (up to 1,000 users with the software, 100 without) and SV44 via eKinnex — with an interlock that allows only one drawer open at a time and re-locks after 15 seconds. Ergotron publishes no key or key count for any drawer in this range.
What are the drawer's internal dimensions and how much will it hold?
Ergotron publishes neither, for any part number in this 35-SKU matrix. If your configuration depends on a dimension or a load figure, ask us and we will request it from Ergotron rather than quote a distributor's number.
Can I add this to a cart already in service?
Yes — retrofit is the stated purpose. Ergotron notes that drawers can be added or removed as needs change, and warns that adding drawers may reduce the cart's total height adjustment.
How many drawer rows can the cart take?
Ergotron documents up to five standard rows (or three tall rows) on an SV43, and up to five single-height drawers on an SV44.
Does it come with a warranty in Singapore?
Yes. Every Ergotron SV43/44 Supplemental Double Tall Drawer sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron's warranty schedule has no category covering drawer modules themselves — it gives 1 year on cart electronic components such as auto-lock drawers and auto-lock systems, under StyleView Carts — so we do not quote a manufacturer duration for the drawer on this page; ask us and we will confirm the current term with Ergotron for your order.
