Ergotron SV HD Monitor Kit with Pivot
PRODUCT DESCRIPTION
Ergotron SV HD Monitor Kit with Pivot (98-088) - Local Warranty
Heavy-Duty Single-Display Mounting, With Screen Rotation

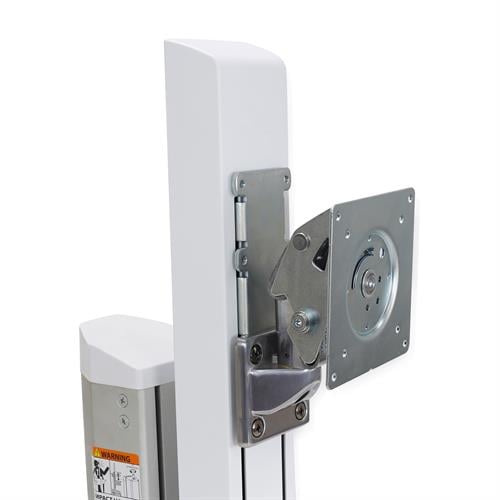

This is Ergotron's HD monitor kit for StyleView carts with a pivot at the display — the German edition of Ergotron's own page calls it the "HD Monitor Kit mit Schwenkvorrichtung". The pivot lets the screen turn between landscape and portrait at the point of care, without unbolting anything.
Portrait Is What Clinical Documents Are Shaped Like
Charts, lab reports, medication lists and scanned consent forms are all portrait documents. On a landscape-only cart screen they arrive shrunk or scrolled. A pivot lets one clinician turn the display for a document review and turn it back for the EMR — the reason this version exists.
Raises the Cart's Centre of Gravity — Ergotron Says So Explicitly
Ergotron's guidance for its HD monitor accessory with pivot carries a specific caution: the accessory allows the cart to be configured with a high centre of gravity, and the stated maximum capacity must not be exceeded. On a cart that is pushed between rooms and over thresholds, that is a stability warning, not boilerplate.
Ergotron SV HD Monitor Kit with Pivot Datasheet — Technical Specifications
General
| Product | Ergotron SV HD Monitor Kit with Pivot |
| Part Number | 98-088 |
| Type | Heavy-duty single-display monitor kit with display pivot, for StyleView carts |
| Number of Displays | 1 |
| Screen Rotation | Pivot at the display — landscape to portrait |
| Warranty | Local warranty — see note below |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Published Specification Limits
| Ergotron Product Copy | Ergotron publishes the product name only for this part number — no description sentence, no spec table |
| Weight Capacity | Not published against this part number — see Compatibility & Fit for the figures Ergotron's pivot accessory guide prints |
| VESA Pattern, Screen Size | Not published by Ergotron against this part number |
| Degrees of Motion | Not published by Ergotron against this part number |
| Dimensions, Weight, Materials, Box Contents | Not published by Ergotron |
| Note | The previous version of this listing described the kit as securing medications, records and valuables. That copy belonged to a lockable drawer product and has been removed |
Compatibility & Fit
Ergotron publishes no spec table against 98-088. It does publish a user's guide, "StyleView HD Monitor Accessory with Monitor Pivot", document 888-98-045-G-00 rev. E, covering a single-monitor arm with an LCD pivot on a StyleView lift assembly. We quote its figures with the document number attached, because the guide does not print a sales part number:
- Total weight of the monitor when mounted: 14–24 lb (6.3–10.8 kg)
- Caution, verbatim: the accessory allows the cart to be configured with a high centre of gravity; do not exceed the maximum capacity of 24 lb
- If combined display and CPU weight exceeds 27 lb (10.4 kg), the CPU must move to a rear-mounted CPU holder, ordered separately
- Roughly 5" of vertical adjustment at the mount, with motion figures of 24.6°, 19.6° and 5.2° printed on the drawing
Note the minimum as well as the maximum: a display lighter than the bottom of that range will not sit correctly on a counterbalanced lift. A very light panel is as much a problem as a heavy one.
Ergotron publishes no per-SKU cart compatibility list. Cart battery type is part of the question — related Ergotron HD monitor accessory guidance excludes certain LiFe-powered configurations — so send us the cart part number and the display's weight and VESA pattern, and we will confirm the combination with Ergotron before you order.
Package Contents & StyleView Monitor Kit Ordering Information

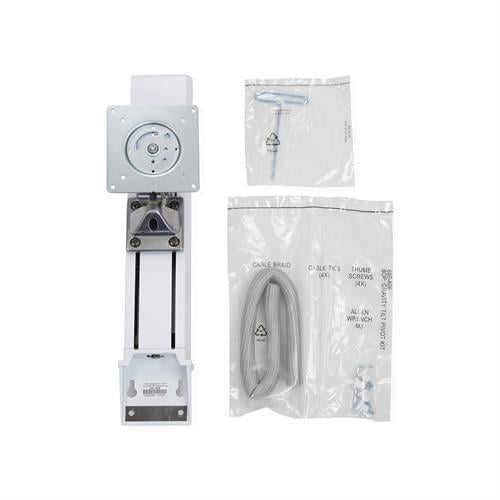

Ergotron publishes no box-contents list against this part number. Its pivot accessory guide shows an arm, an LCD pivot and a lift assembly with the associated screws and hex wrenches.
StyleView Monitor Kit Ordering Information
| 98-088 (this listing) | SV HD Monitor Kit with Pivot — single display, screen rotation |
| 98-029 | SV HD Monitor Kit — single heavy-duty display, no pivot |
| 98-030 | SV Dual Monitor Kit — two screens |
StyleView Carts at SourceIT
| SV42-6302-3 | StyleView Cart with LCD Pivot, LiFe Powered |
| SV41-6200-0 | StyleView Cart with LCD Arm, full-featured medical cart |
| SV41-6100-0 | StyleView Laptop Cart |
| 24-818-211 | StyleView Pole Cart |
Datasheet & Downloads
- Ergotron SV HD Monitor Kit with Pivot product page (98-088)
- Ergotron StyleView HD Monitor Accessory with Monitor Pivot guide 888-98-045-G (PDF)
The guide above is Ergotron's single-monitor pivot accessory document and is the source of the weight range and the centre-of-gravity caution quoted on this page. It does not print a sales part number, so we cite it by document number rather than as this SKU's datasheet.
Frequently Asked Questions — Ergotron SV HD Monitor Kit with Pivot
What does the pivot add over the standard HD Monitor Kit?
Rotation at the display, so the screen can be turned between landscape and portrait without removing it. If you never work in portrait, the standard HD kit (98-029) does the job for less.
How heavy can the monitor be?
Ergotron publishes no figure against this part number. Its pivot accessory guide (888-98-045-G) states a total mounted monitor weight of 14–24 lb (6.3–10.8 kg) and instructs that 24 lb must not be exceeded.
Is there a minimum monitor weight?
Yes, effectively — the guide's range starts at 14 lb (6.3 kg). A counterbalanced lift under-loaded will not hold position properly, so a very light panel is as much of a problem as a heavy one.
Does it affect cart stability?
Ergotron warns explicitly that this accessory allows the cart to be configured with a high centre of gravity. On a cart pushed between rooms and over thresholds, keep to the stated capacity and consider where the CPU is mounted.
Where should the CPU go?
Ergotron's guidance: if the combined display and CPU weight exceeds 27 lb (10.4 kg), move the CPU to a rear-mounted CPU holder, ordered separately.
Which StyleView carts does it fit?
Not published by Ergotron against this part number, and cart battery type matters. Send us the cart part number and we will confirm with Ergotron.
Does it come with a warranty in Singapore?
Yes. Every Ergotron SV HD Monitor Kit with Pivot sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron's current published warranty schedule sets terms by product category — carts, mounts, desks — and has no category covering cart accessories, so we do not quote a manufacturer duration on this page; ask us and we will confirm the current term with Ergotron for your order.
