Ergotron StyleView® Vertical Lift, High Traffic Area Black
PRODUCT DESCRIPTION
Ergotron StyleView® Vertical Lift, High Traffic Area Black (60-593-195) - 5 Years Local Warranty
Wall-Mounted Sit-Stand Workstation for Corridors and High-Traffic Areas
The Ergotron StyleView Vertical Lift, High Traffic Area (60-593-195) is a wall-mounted computing workstation built for corridors, nurse stations, ward entrances and any busy Singapore workspace where floor space cannot be given up to a cart or desk. It carries a display of up to 24″ together with a keyboard and mouse, and delivers 9″ (22,9 cm) of smooth vertical adjustment so staff of different heights can work comfortably seated or standing without tools or presets.
Folds to a 4-Inch Profile for Corridor Compliance

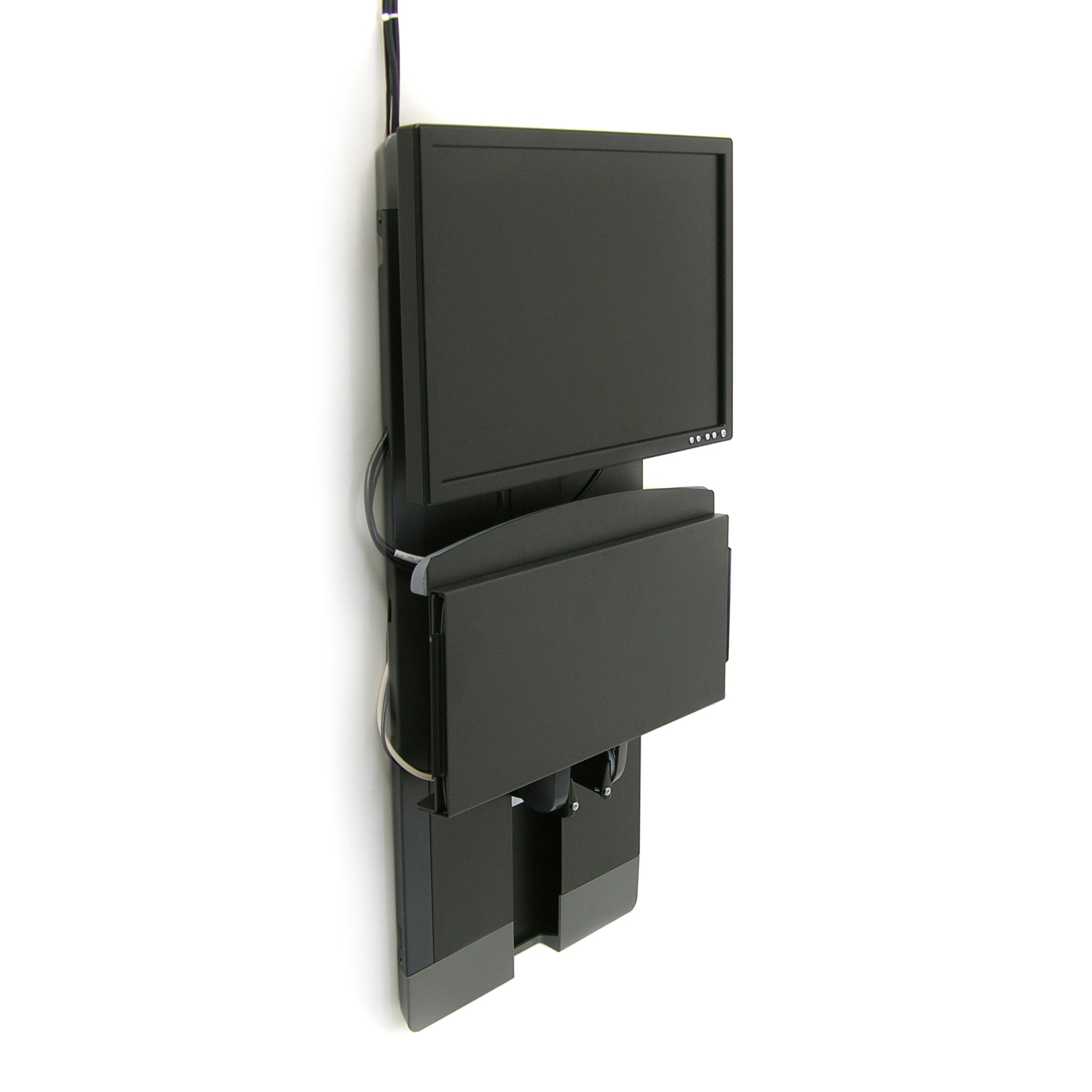

When the workstation is closed it retracts to a profile as little as 4″ (10,2 cm) deep. That shallow footprint is the whole point of the High Traffic Area variant: it keeps walkways, corridors and egress routes clear, which matters in hospital wards, clinics, laboratories and school corridors where projection into the circulation path is tightly controlled. The black finish keeps the unit visually quiet against modern interiors.
Back-Tilt Keyboard Tray and Extra Reach
The slide-out keyboard tray tilts from 0 to −10° to hold wrists in a neutral position through long shifts, and can be pulled out an extra 5″ (13 cm) when a user needs more room to type. Where a fully hands-free close is wanted, Ergotron offers the Vertical Lift Auto-Retracting Keyboard Kit (97-487-800) as a separate accessory.
Steel Build with Integrated Cable Management
Steel construction gives the lift the durability required for shared, multi-user, round-the-clock use, and the integrated cable management system can be configured on either the left or the right so the installation suits the wall you actually have. Concealed cabling also leaves fewer traps for dust and makes wipe-down cleaning far quicker — a practical advantage in infection-controlled environments.
Supplied in Singapore by SourceIT
SourceIT supplies the StyleView Vertical Lift range in Singapore with local warranty support and a GST invoice, and can quote the matching white finish, additional units for a ward roll-out, or the auto-retracting keyboard kit on the same purchase order.
Ergotron StyleView® Vertical Lift Datasheet — Technical Specifications
General
| Product | Ergotron StyleView® Vertical Lift, High Traffic Area |
| Part Number | 60-593-195 |
| Finish | Black |
| Product Type | Wall-mounted sit-stand computer workstation |
| Mounting | Wall mount |
| Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Supplied by SourceIT with local warranty and GST invoice |
Display Compatibility
| Typical Display Size | ≤ 24″ |
| Weight Capacity | 5–30 lbs (2,3–13,6 kg) |
| VESA Pattern | VESA FDMI, MIS-D, 100/75, C (hole pattern 10 x 10 cm & 7,5 x 7,5 cm) |
| Number of Displays | One |
Adjustment & Motion
| Height Adjustment (Lift) | 9″ (22,9 cm) of smooth vertical adjustment |
| Keyboard Tray Tilt | Back-tilt adjustable 0 to −10° |
| Keyboard Tray Extension | Slide-out tray extends out an extra 5″ (13 cm) |
| Retracted Depth | As little as 4″ (10,2 cm) when folded |
Design & Durability
| Construction | Steel construction for long-lasting durability |
| Cable Management | Integrated cable management system, configurable on either side |
| Shipping Dimensions | 39.5″ x 16″ x 10.75″ (100 x 40,6 x 27,3 cm) |
| Shipping Weight | 35.1 lbs (16 kg) |
Specifications taken from the official Ergotron StyleView Vertical Lift datasheet. Figures Ergotron does not publish for this model are omitted rather than estimated.
Compatibility & Fit
The High Traffic Area Vertical Lift takes a single display of up to 24″ weighing between 5 and 30 lbs (2,3–13,6 kg). Displays lighter than 5 lbs or heavier than 30 lbs fall outside the counterbalance range and will not hold position correctly, so check the monitor's stated weight (without its original stand) before ordering.
Mounting is to the display's VESA FDMI MIS-D pattern — 100 x 100 mm or 75 x 75 mm. Most business and clinical 22–24″ monitors use one of these two patterns. A monitor that ships with only a proprietary pattern, or with no VESA holes at all, needs a manufacturer adapter plate before it can be fitted.
This is a wall-mounted product only — there is no desk-clamp, grommet or pole option, and no mobile base. Because wall substrates in Singapore vary widely (reinforced concrete, block, drywall over steel stud, and hollow partition), Ergotron's own guidance is that the mounting method must be confirmed with a qualified engineering, architectural or construction professional for your specific wall. SourceIT can advise on this at quotation stage.
Ultrawide and curved panels are generally outside the design intent here: the 24″ typical size limit is what Ergotron publishes, and a wide 34″ panel would also compromise the 4″ folded profile that makes this variant suitable for corridors. For larger displays or a longer sit-stand range, look at the Sit-Stand Vertical Lift, High Traffic Area, which offers 18″ (46 cm) of travel.
The unit accommodates a keyboard and mouse on the slide-out tray. It does not include a CPU holder, worksurface or drawers; those are separate Ergotron accessories.
Package Contents & StyleView Vertical Lift Ordering Information
In the box: StyleView Vertical Lift wall-mount assembly with integrated slide-out keyboard/mousing tray, display mounting hardware for VESA 100 x 100 mm and 75 x 75 mm patterns, wall mounting hardware, integrated cable management components, and the Ergotron installation guide.
StyleView Vertical Lift range at SourceIT
| 60-593-195 | StyleView Vertical Lift, High Traffic Area — Black (this listing) — 9" (22,9 cm) lift |
| 60-593-216 | StyleView Vertical Lift, High Traffic Area — White — 9" (22,9 cm) lift |
| 60-609-195 | StyleView Vertical Lift, Patient Room — Black — 9" (22,9 cm) lift |
| 60-609-216 | StyleView Vertical Lift, Patient Room — White — 9" (22,9 cm) lift |
| 61-080-062 | StyleView Sit-Stand Vertical Lift, Patient Room — White — 18" (46 cm) lift |
| 61-080-085 | StyleView Sit-Stand Vertical Lift, Patient Room — Black — 18" (46 cm) lift |
| 61-081-062 | StyleView Sit-Stand Vertical Lift, High Traffic Area — White — 18" (46 cm) lift |
| 61-081-085 | StyleView Sit-Stand Vertical Lift, High Traffic Area — Black — 18" (46 cm) lift |
Related accessories at SourceIT
| 97-487-800 | Vertical Lift Auto-Retracting Keyboard Kit — adds automatic keyboard tray retraction |
Datasheet & Downloads
Frequently Asked Questions — Ergotron StyleView® Vertical Lift
What is the difference between the Black (60-593-195) and White (60-593-216) versions?
Finish only. Both are the same StyleView Vertical Lift, High Traffic Area with identical mechanics, capacity and travel. Choose the finish that suits the interior — the White version is also stocked by SourceIT.
How is this different from the Patient Room Vertical Lift (60-609)?
The High Traffic Area model folds to a shallower profile — as little as 4″ (10,2 cm) — and takes a 5–30 lbs (2,3–13,6 kg) display. The Patient Room model (60-609) carries a heavier 8–33 lbs (3,6–14,9 kg) display and adds keyboard panning up to 120° and monitor panning up to 50° so a clinician can angle the screen towards a patient. Pick High Traffic Area where corridor clearance governs; pick Patient Room where screen sharing at the bedside governs.
What size and weight of monitor does it take?
A single display of typically 24″ or less, weighing 5–30 lbs (2,3–13,6 kg), mounted to a VESA 100 x 100 mm or 75 x 75 mm pattern.
Can it hold two monitors?
No. The StyleView Vertical Lift is a single-display workstation. For dual-screen work at a wall, an Ergotron dual wall arm is the better route — SourceIT can advise on a suitable model.
Does it work as a sit-stand workstation?
It gives 9″ (22,9 cm) of vertical travel, which suits staff of different heights and short standing tasks. If you need a full seated-to-standing range at the wall, the StyleView Sit-Stand Vertical Lift, High Traffic Area (61-081) provides 18″ (46 cm) of Constant Force™ lift.
What do I need to check before installing it on my wall?
The substrate. Ergotron states that because mounting surfaces vary so widely, the final mounting method must be confirmed with an appropriate engineering, architectural or construction professional. Confirm the wall build-up before the install date, especially on drywall partitions.
Does it come with a warranty in Singapore?
Yes. Every Ergotron StyleView Vertical Lift sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the StyleView Vertical Lift with a 5-year manufacturer warranty.
