Ergotron StyleView® Sit-Stand Vertical Lift, High Traffic Area White
PRODUCT DESCRIPTION
Ergotron StyleView® Sit-Stand Vertical Lift, High Traffic Area White (61-081-062) - 5 Years Local Warranty
18 Inches of Constant Force™ Sit-Stand Travel on the Wall

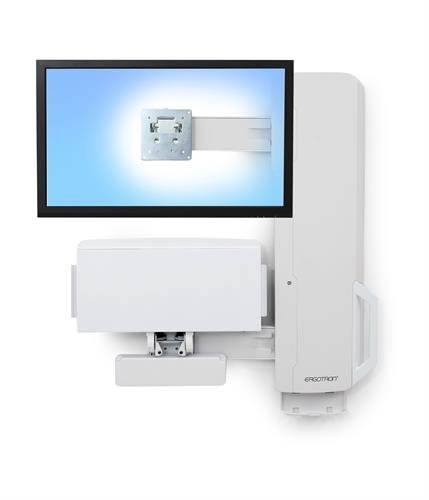

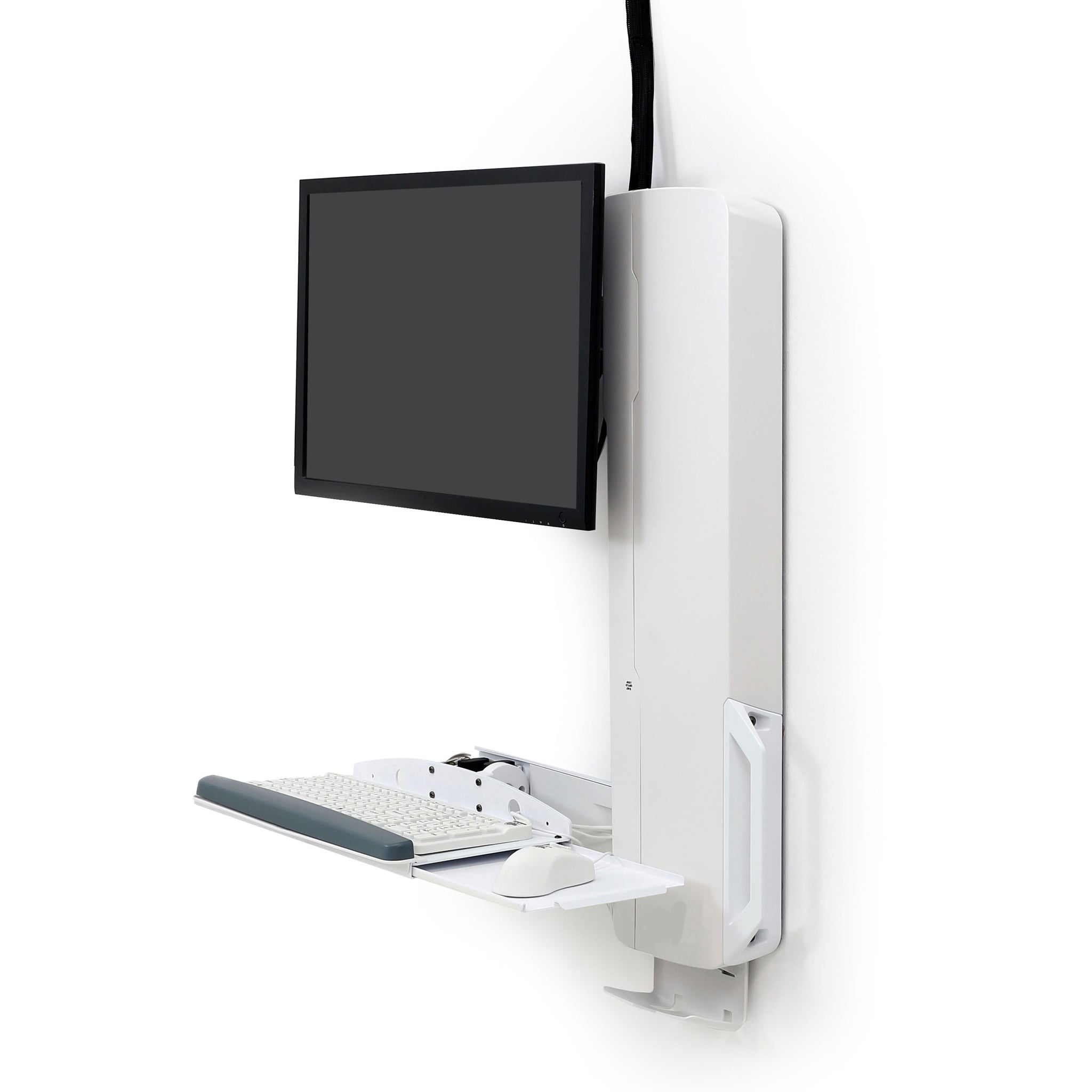

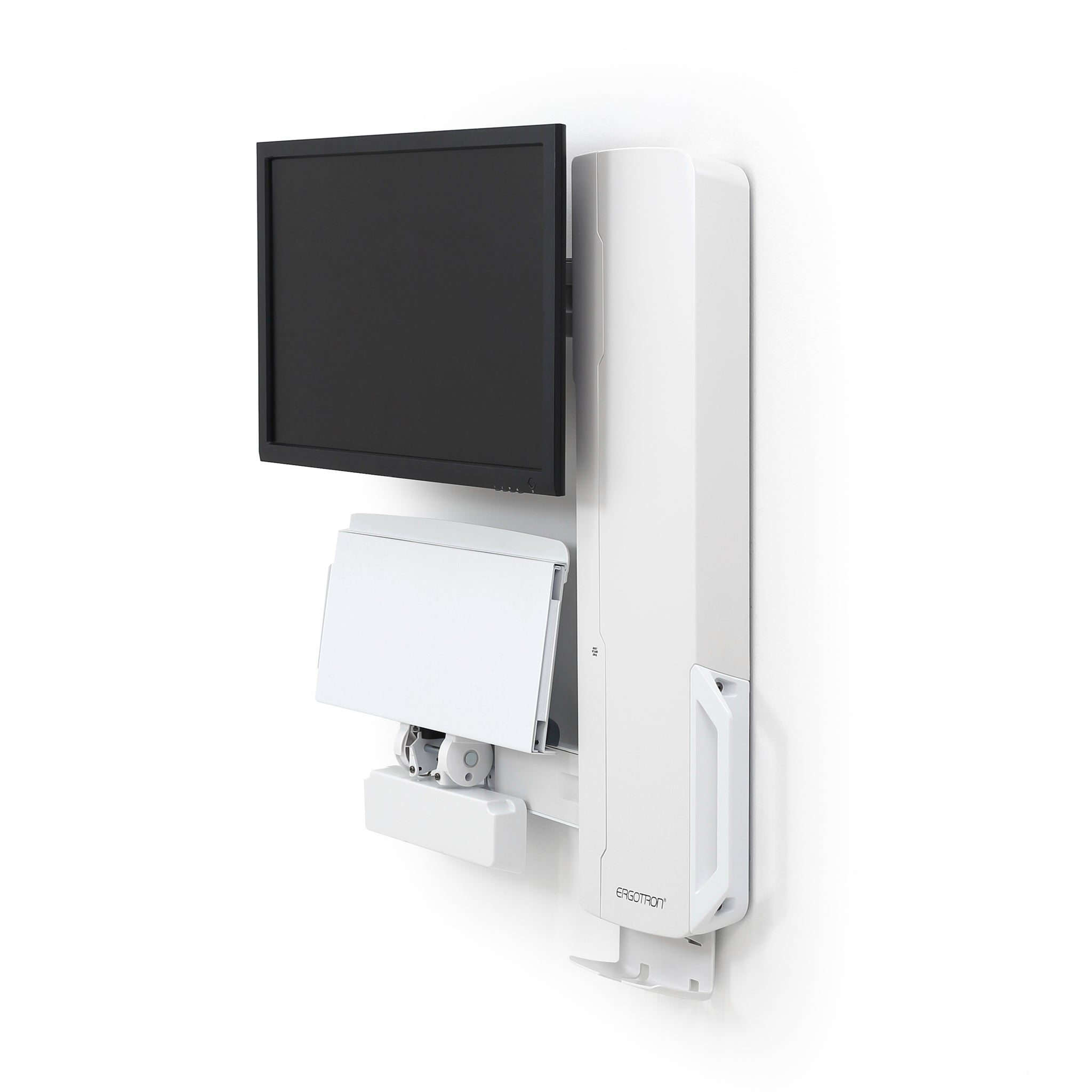

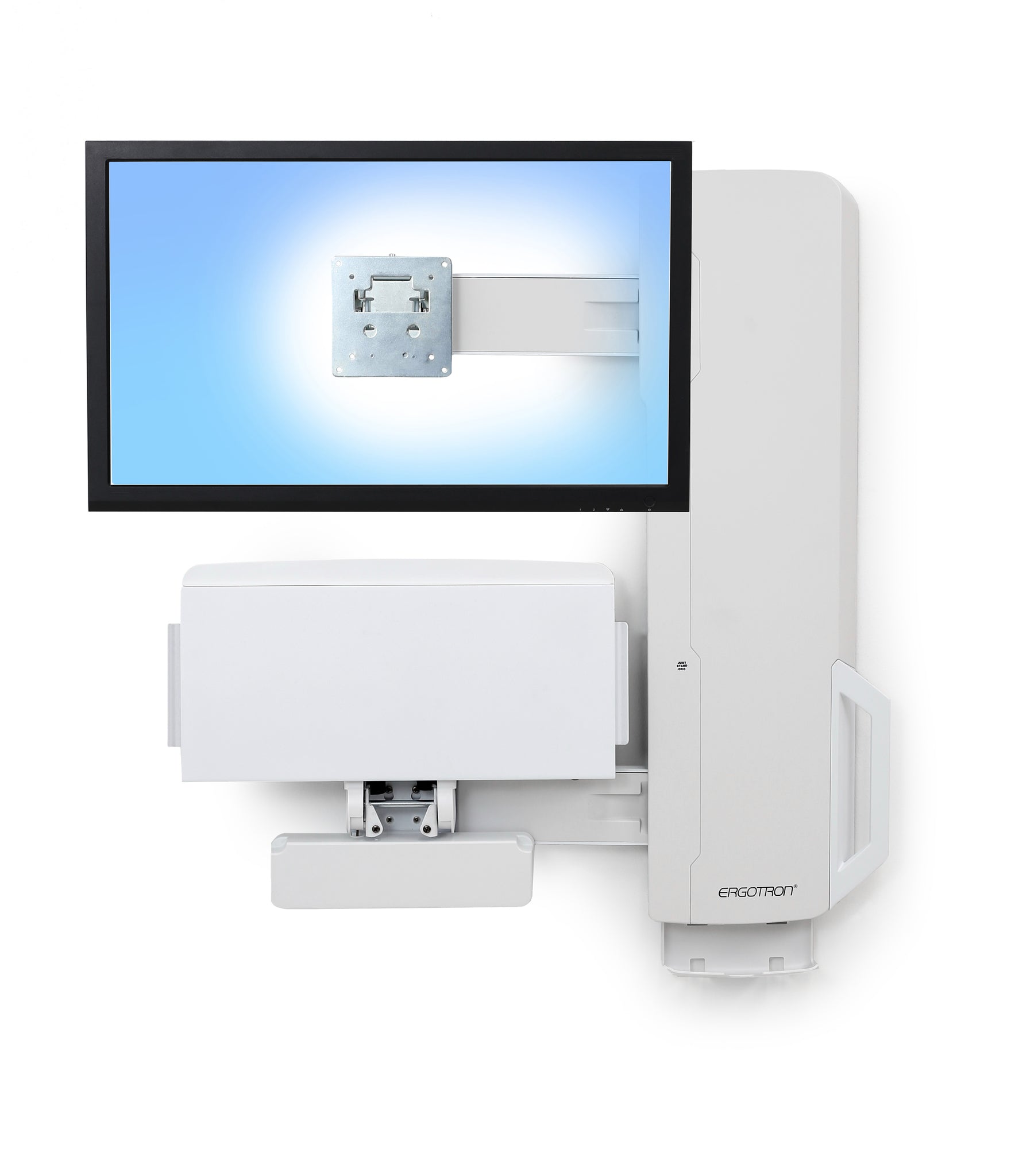

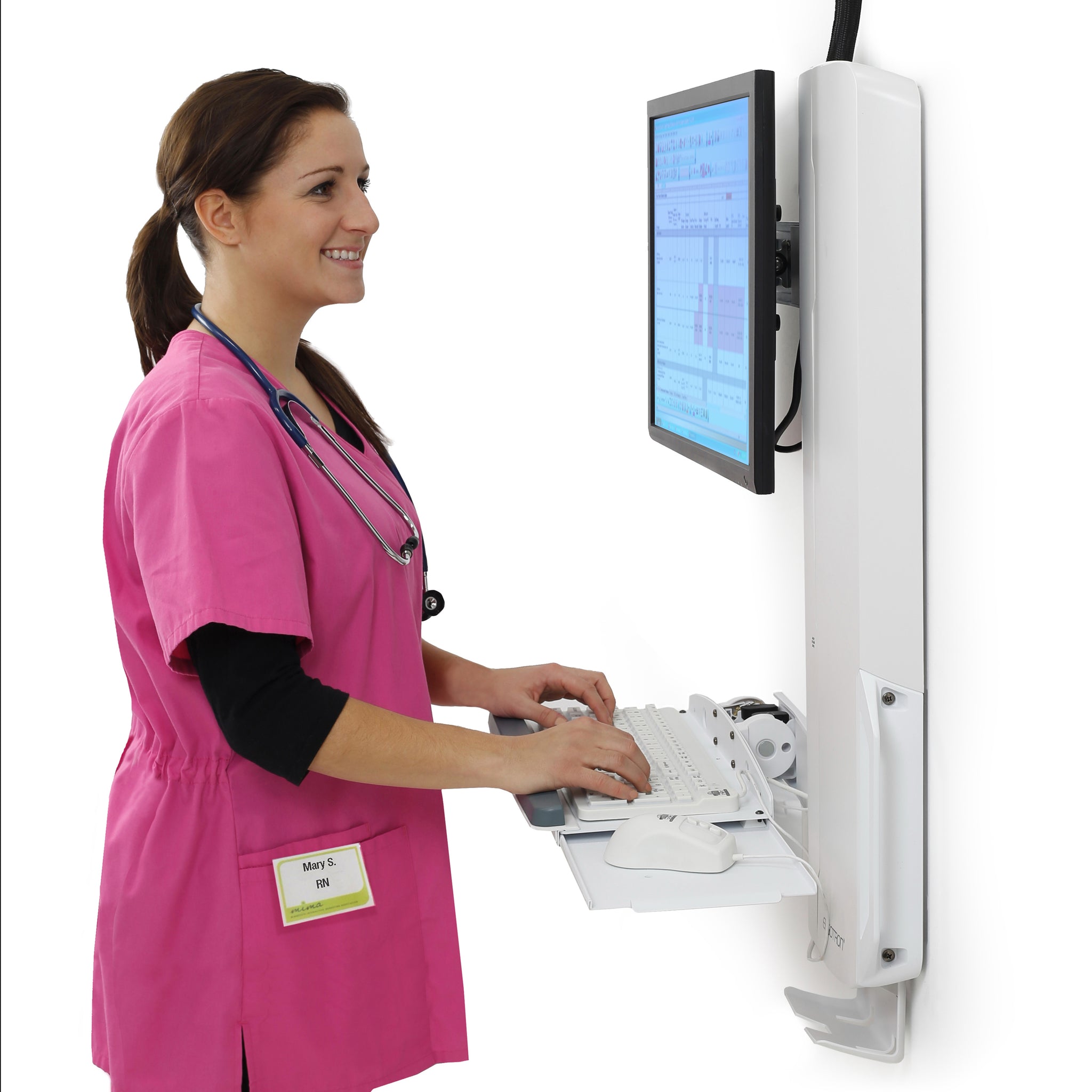

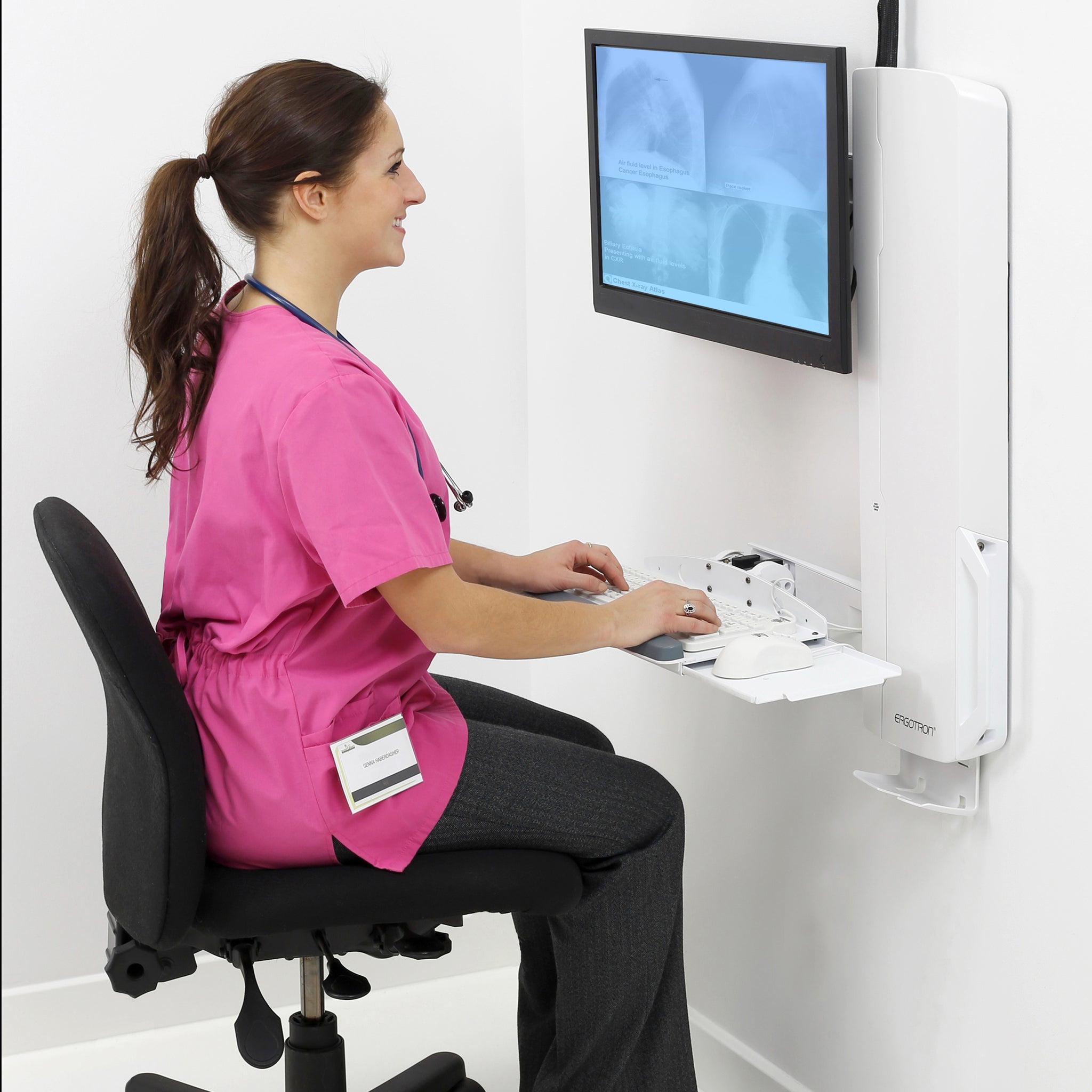

The Ergotron StyleView Sit-Stand Vertical Lift, High Traffic Area (61-081-062) is a wall-mounted workstation with a full 18″ (46 cm) of height adjustment — enough to move a user from a comfortable seated posture to a genuine standing one without leaving the wall. Ergotron's patented Constant Force™ lift technology means that travel happens with a light touch and holds position anywhere in the range, with no cranks, gas-strut re-tensioning or power supply involved.
Designed for High Traffic Area Use
The High Traffic Area variant is built for corridors and circulation zones. Closed, it retracts to a 4″ (10,2 cm) profile so it keeps walkways and egress routes clear, and it offers a wider 30° tilt range (+20° / −10°) for viewing angles that change with the user's height and standing position.
Space Returned to the Room
Because the whole workstation lives on the wall, no floor area is given up to a cart or desk — a decisive advantage in Singapore's compact clinical rooms, laboratories, ward corridors and back-of-house work areas. Closed, the unit sits 4″ (10,2 cm) deep, keeping the wall line clean and the room easy to clean around.
Cable Management That Makes Cleaning Simple
The integrated cable management system conceals and organises cords, which both tidies the installation and removes the cable tangle that slows down wipe-down cleaning. In infection-controlled environments that is a practical, daily benefit rather than a cosmetic one.
Supplied in Singapore by SourceIT
SourceIT supplies the full StyleView Sit-Stand Vertical Lift range locally with warranty support and a GST invoice, and can quote the matching black finish or a multi-unit roll-out on one purchase order.
Ergotron StyleView® Sit-Stand Vertical Lift Datasheet — Technical Specifications
General
| Product | Ergotron StyleView® Sit-Stand Vertical Lift, High Traffic Area |
| Part Number | 61-081-062 |
| Finish | White |
| Product Type | Wall-mounted sit-stand computer workstation |
| Mounting | Wall mount |
| Lift Technology | Patented Constant Force™ lift technology |
| Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Supplied by SourceIT with local warranty and GST invoice |
Display Compatibility
| Typical Display Size | ≤ 24″ |
| Weight Capacity | 5–30 lbs (2,3–13,6 kg) |
| VESA Pattern | VESA MIS-D |
| Number of Displays | One |
Adjustment & Motion
| Height Adjustment (Lift) | 18″ (46 cm) |
| Tilt | 30° (+20° / −10°) |
| Display Pan | 50° |
| Keyboard Pan | 120° |
| Keyboard Tray Extension | Extends up to 5″ when deployed |
| Storage Depth (retracted) | 4″ (10,2 cm) |
Design & Durability
| Cable Management | Cable management system conceals and organises cords and makes cleaning simple |
| Shipping Dimensions | 32″ x 17.75″ x 8.25″ (81 x 45 x 22 cm) |
| Shipping Weight | 40 lbs (18 kg) |
Specifications taken from the official Ergotron StyleView Sit-Stand Vertical Lift datasheet. Figures Ergotron does not publish for this model are omitted rather than estimated.
Compatibility & Fit
This is a single-display workstation. It takes a monitor of typically 24″ or less weighing 5–30 lbs (2,3–13,6 kg), mounted to a VESA MIS-D pattern. Weigh the panel without its factory stand — a display below the lower figure will drift upward and one above the upper figure will not hold height.
Monitors without a VESA MIS-D pattern require the display manufacturer's own adapter plate before they can be fitted.
Mounting is wall-only: there is no desk-clamp, grommet, pole or mobile-base option for this model. Ergotron's guidance for its wall-mounted StyleView products is that the mounting method must be confirmed against your actual substrate with a qualified engineering, architectural or construction professional — worth settling before installation on partition walls.
Ultrawide and curved panels sit outside the published 24″ typical size and would also compromise the 4″ (10,2 cm) retracted depth that gives this model its space advantage.
The station accommodates a keyboard and mouse on the integrated tray. CPU holders, worksurfaces and drawers are separate Ergotron accessories. If your requirement is bedside screen sharing and a heavier display, compare the StyleView Sit-Stand Vertical Lift, Patient Room. If 18″ of travel is more than you need, the StyleView Vertical Lift (60-593) offers a 9″ (22,9 cm) range in the same wall-mounted format.
Package Contents & StyleView Vertical Lift Ordering Information
In the box: StyleView Sit-Stand Vertical Lift wall-mount assembly with Constant Force™ lift and integrated keyboard/mousing tray, display mounting hardware (VESA MIS-D), wall mounting hardware, cable management components, and the Ergotron installation guide.
StyleView Vertical Lift range at SourceIT
| 60-593-195 | StyleView Vertical Lift, High Traffic Area — Black — 9" (22,9 cm) lift |
| 60-593-216 | StyleView Vertical Lift, High Traffic Area — White — 9" (22,9 cm) lift |
| 60-609-195 | StyleView Vertical Lift, Patient Room — Black — 9" (22,9 cm) lift |
| 60-609-216 | StyleView Vertical Lift, Patient Room — White — 9" (22,9 cm) lift |
| 61-080-062 | StyleView Sit-Stand Vertical Lift, Patient Room — White — 18" (46 cm) lift |
| 61-080-085 | StyleView Sit-Stand Vertical Lift, Patient Room — Black — 18" (46 cm) lift |
| 61-081-062 | StyleView Sit-Stand Vertical Lift, High Traffic Area — White (this listing) — 18" (46 cm) lift |
| 61-081-085 | StyleView Sit-Stand Vertical Lift, High Traffic Area — Black — 18" (46 cm) lift |
Related accessories at SourceIT
| 97-487-800 | Vertical Lift Auto-Retracting Keyboard Kit — auto-retracting keyboard tray for StyleView Vertical Lift installations |
Datasheet & Downloads
Frequently Asked Questions — Ergotron StyleView® Sit-Stand Vertical Lift
What is the difference between the White (61-081-062) and Black (61-081-085) versions?
Finish only. Both share the same 18″ (46 cm) Constant Force™ lift, capacity and motion. The Black version is also stocked by SourceIT.
How does this differ from the StyleView Sit-Stand Vertical Lift, Patient Room?
The Patient Room version retracts to 6″ (15,2 cm), carries a heavier 8–33 lbs (3,6–14,9 kg) display and has a 10° tilt range, and is aimed at bedside screen sharing. Both give the same 18″ (46 cm) of travel — see the Patient Room model.
What monitor size and weight does it take?
A single display of typically 24″ or less, weighing 5–30 lbs (2,3–13,6 kg), on a VESA MIS-D pattern.
Can it hold two screens?
No — this is a single-display workstation. For dual-screen work at a wall, an Ergotron dual wall arm is the right product; SourceIT can advise.
How does it compare with the 9″ StyleView Vertical Lift (60-593)?
The StyleView Vertical Lift gives 9″ (22,9 cm) of adjustment — good for accommodating different users and short standing tasks. This Sit-Stand model doubles that to 18″ (46 cm) for genuine seated-to-standing working.
What should I check before mounting it?
The wall substrate. Ergotron requires that the mounting method be confirmed for your specific wall with a qualified engineering, architectural or construction professional, particularly on drywall or partition construction.
Does it come with a warranty in Singapore?
Yes. Every Ergotron StyleView Sit-Stand Vertical Lift sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the StyleView Sit-Stand Vertical Lift with a 5-year manufacturer warranty.
