Ergotron LX Dual Desk Mount Stacking Arm Polished Aluminum
PRODUCT DESCRIPTION
Ergotron LX Dual Stacking Arm, Tall Pole for Displays up to 40" Polished Aluminum (45-549-026) - 10 Years Local Warranty

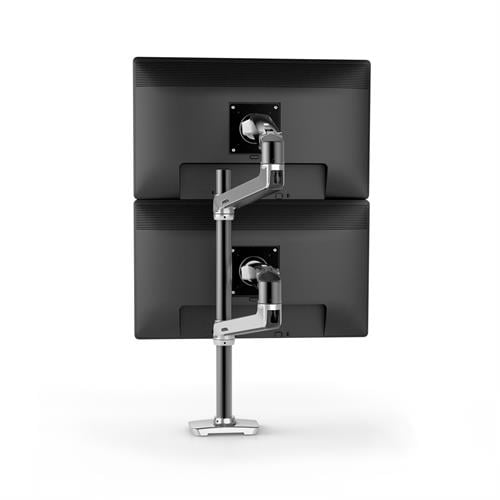

Large Stacked Displays on a 58 cm Tall Pole
The tall pole version of the LX Dual Stacking Arm takes displays of up to 40 inches - well beyond the 24-inch ceiling of the standard stacking arm - and raises them on a 58 cm (23 in) pole so the upper screen sits at a genuinely comfortable eye level. It is the configuration for control rooms, trading desks, editing suites and any workstation where two large panels need to occupy a single desk position.
Expandable to Three or Four Monitors
Unlike the standard stacking arm, this model is designed to grow. Adding an LX Arm, Extension and Collar Kit converts it to a three-monitor pole, and a second kit takes it to four. Ergotron rates the pole at 6.4-20 kg with two arms, 9.6-20 kg with three and 12.7-20 kg with four, so the load ceiling holds as you scale up.
Heavy-Duty Mounting, Constant Force™ Motion
A heavy-duty two-piece clamp desk bracket with dual mounting clamps anchors the taller pole securely, and a grommet mount plate is included in the box on every finish. Each arm retains the Constant Force™ feel - 33 cm (13 in) of lift, 75° of tilt, 360° pan and rotation, and up to 64 cm (25 in) of extension - so even large panels move with a fingertip and stay where you leave them.
Vertical Layout for Narrow and Shared Desks
Stacking two 40-inch displays vertically keeps the desk footprint to a single pole position, which matters on the 1200-1400 mm desks common in Singapore offices and on benching systems where horizontal space is shared. Cables route beneath the arms, keeping a large multi-screen setup looking deliberate rather than cluttered.
Ergotron LX Dual Stacking Arm, Tall Pole Datasheet — Technical Specifications
General
| Product Type | Dual-monitor desk mount arm, vertical stacking, tall pole |
| Number of Displays | Two (2) as supplied; expandable to three or four with accessory arm kits |
| Pole Height | 58 cm (23 in) |
| Mounting Options | Heavy-duty two-piece mounting clamp desk bracket with dual mounting clamps; grommet mount plate included |
| Lift Technology | Constant Force™ technology |
| Cable Management | Cables route beneath the arm, out of the way |
| Part Number | 45-549-026 |
| Finish | Polished Aluminum |
| Warranty | 10-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Supplied by SourceIT Pte Ltd with local Singapore warranty and GST invoice |
Display Compatibility
| Weight Capacity - Two Arms | 6.4-20 kg (14-44 lbs) |
| Weight Capacity - Three Arms | 9.6-20 kg (21-44 lbs) |
| Weight Capacity - Four Arms | 12.7-20 kg (28-44 lbs) |
| Maximum Display Size | Up to 40 in per display |
| VESA Pattern | VESA FDMI MIS-D, 100/75, C (100 x 100 mm and 75 x 75 mm) |
| Orientation | Portrait and landscape (360° rotation) |
Adjustment & Motion
| Height Adjustment (Lift) | 33 cm (13 in) |
| Tilt | 75° total (70° up / 5° down) |
| Pan | 360° |
| Rotation | 360° (portrait / landscape) |
| Extension / Reach | Up to 64 cm (25 in) |
Design & Durability
| Shipping Weight | 10.9 kg (24 lbs) |
| Shipping Dimensions | 76 x 41 x 17 cm (29.9 x 16.1 x 6.5 in) |
Compatibility & Fit

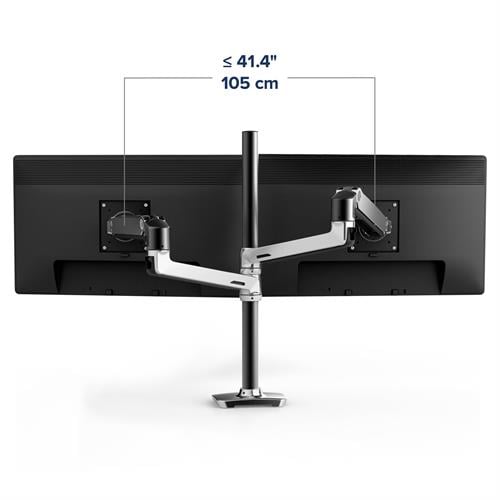

The LX Dual Stacking Arm, Tall Pole mounts two displays of up to 40 inches, one above the other, on a 58 cm (23 in) pole. As supplied with two arms it carries a total load of 6.4 kg to 20 kg (14-44 lbs). Both arms use the VESA FDMI MIS-D pattern in 100 x 100 mm or 75 x 75 mm.
Mounting uses a heavy-duty two-piece clamp desk bracket with dual mounting clamps, and a grommet mount plate and hardware are included in the box on all three finishes. The heavier bracket reflects the taller pole and larger displays this model is designed for - check that your desk edge is solid and unobstructed where the bracket lands.
This is the expandable member of the LX stacking family. Adding an LX Arm, Extension and Collar Kit (97-940-026 in polished aluminium, 98-130-216 in white) takes the pole to three displays; a further kit takes it to four. Total capacity is 9.6-20 kg with three arms and 12.7-20 kg with four. An Ergotron Notebook Tray (50-193-200) can replace a monitor position if you dock a laptop.
Package Contents & LX Series Ordering Information
In the Box
- Two (2) LX arms and extensions
- 58 cm (23 in) pole
- Heavy-duty two-piece mounting clamp desk bracket with dual mounting clamps
- Pole collar and cap
- Grommet mount plate and hardware
- Monitor mounting hardware and instructions
LX Dual Stacking Arm, Tall Pole — Finishes & Part Numbers
| Part Number | Finish |
| 45-549-026 (this listing) | Polished Aluminium |
| 45-509-224 | Matte Black |
| 45-509-216 | White |
Related LX Dual-Monitor Mounts in the SourceIT Catalogue
| Part Number | Model |
| 45-248-026 | LX Dual Stacking Arm, Polished Aluminium (up to 24 in) |
| 45-245-026 | LX Dual Side-by-Side Arm, Polished Aluminium |
| 45-295-026 | LX Desk Monitor Arm, Tall Pole, Polished Aluminium (single display) |
Accessories & Mounting Options
| Part Number | Accessory |
| 97-940-026 | LX Arm, Extension and Collar Kit, Polished Aluminium - expands to 3 or 4 displays |
| 98-130-216 | LX Arm, Extension and Collar Kit, White - expands to 3 or 4 displays |
| 50-193-200 | Ergotron Notebook Tray - replaces a monitor position with a laptop |
Datasheet & Downloads
- Ergotron LX Dual Stacking Arm, Tall Pole — Official Product Page
- Ergotron LX Dual Stacking Arm, Tall Pole — Official Datasheet (PDF)
- Ergotron LX Multi-Monitor Configuration Guide (PDF)
Need a formal quotation, bulk pricing or an installation quote for Singapore delivery? Contact SourceIT Pte Ltd and quote part number 45-549-026.
Frequently Asked Questions — Ergotron LX Dual Stacking Arm, Tall Pole
How is this different from the standard LX Dual Stacking Arm?
Three things: the pole is 58 cm (23 in) rather than 33 cm, it takes displays up to 40 inches rather than 24, and it can be expanded to three or four monitors. The standard version (45-248-026 and siblings) is fixed at two screens of up to 24 inches.
How much weight will it carry?
As supplied with two arms, 6.4 kg to 20 kg (14-44 lbs) in total across the pole. With three arms fitted the range is 9.6-20 kg, and with four arms it is 12.7-20 kg. Note these are pole totals, not per-display figures.
Which finishes are available and do they differ?
Polished aluminium (45-549-026), matte black (45-509-224) and white (45-509-216). They are mechanically identical and all three include the heavy-duty clamp bracket and the grommet mount plate.
How do I expand it to three or four monitors?
Add an LX Arm, Extension and Collar Kit - 97-940-026 in polished aluminium or 98-130-216 in white - for each additional display. One kit gives three monitors; two kits give four.
What mounting options are included and will it fit my desk?
A heavy-duty two-piece mounting clamp desk bracket with dual mounting clamps for clamping to a desk edge, plus a grommet mount plate and hardware for fitting through an existing cable hole. Because this pole is taller and the displays heavier, make sure the desk edge or grommet position is structurally sound.
Do my monitors need VESA mounts?
Yes - VESA FDMI MIS-D, 100 x 100 mm or 75 x 75 mm. Larger displays sometimes use VESA 200 x 200 mm or a proprietary pattern, so check your panel's specification before ordering and source an adapter plate from the display manufacturer if needed.
Does the Ergotron LX Dual Stacking Arm, Tall Pole come with a Singapore warranty?
Yes. Every Ergotron LX Dual Stacking Arm, Tall Pole sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the LX Dual Stacking Arm, Tall Pole with a 10-year manufacturer warranty.
