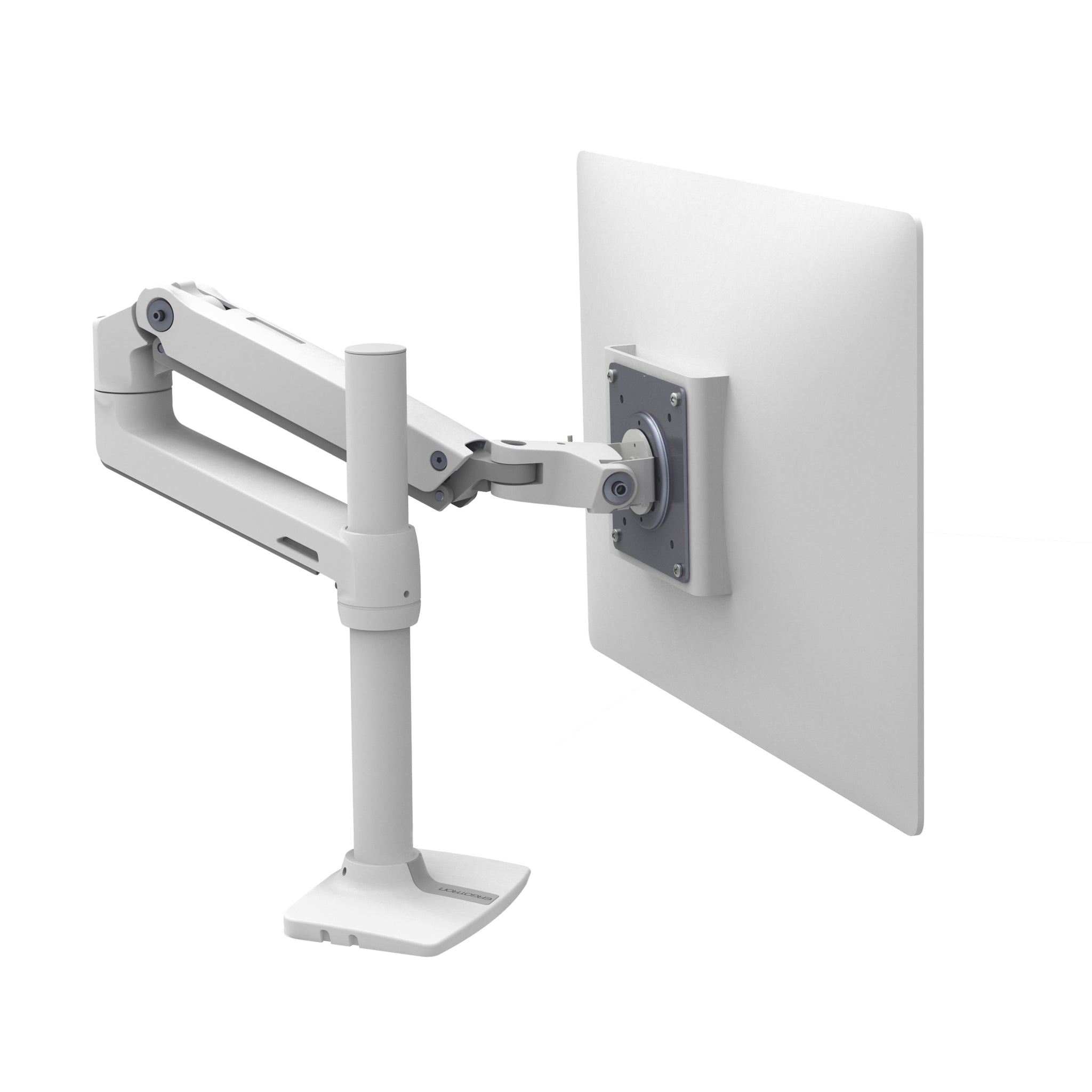

Ergotron LX Desk Monitor Arm, Tall Pole White
PRODUCT DESCRIPTION
Ergotron LX Desk Monitor Arm, Tall Pole for Displays up to 34" White (45-537-216) - 10 Years Local Warranty
Extra Vertical Height for Taller Users and Standing Desks
The tall pole version of the Ergotron LX Desk Monitor Arm swaps the standard 20 cm pole for a 34 cm pole, lifting your display significantly higher above the worksurface. That extra headroom matters for taller users, for sit-stand desks where the screen needs to travel further, and for anyone who has been propping a monitor on books to reach eye level. Combined with 33 cm (13 in) of height adjustment on the arm itself, it gives one of the widest vertical positioning ranges of any single-monitor desk arm.
Constant Force™ Motion: Fingertip Adjustment That Stays Put
Ergotron's patented Constant Force™ lift-and-pivot technology lets you move the monitor with one finger and leave it exactly where you set it, with no knobs to loosen and no drift over the working day. The arm delivers 360° pan, 360° rotation between portrait and landscape, and 75° of tilt, and it is rated to pass Ergotron's 10,000-cycle motion test so it keeps that feel for years.
Reclaim Desk Space in Compact Singapore Offices
Lifting the monitor off its factory stand frees the entire footprint beneath the screen for documents, a laptop or a second keyboard. With up to 64 cm (25 in) of extension and a retraction to under 66 mm from the pole, you can pull the display forward for detailed work and push it flat against a partition when the desk is needed for something else - a real advantage in hot-desking and shared-office layouts.
Fits Displays up to 34 Inches and 11.3 kg
The arm supports monitors from 3.2 kg to 11.3 kg (7-25 lbs) at sizes up to 34 inches, covering everything from a standard 24-inch office panel to a 34-inch ultrawide. Mounting is via the VESA FDMI MIS-D 100 x 100 mm or 75 x 75 mm pattern, and cables route beneath the arm and out of sight for a clean desk.
Ergotron LX Desk Monitor Arm, Tall Pole Datasheet — Technical Specifications
General
| Product Type | Single-monitor desk mount arm, tall pole |
| Number of Displays | One (1) |
| Pole Height | 34 cm tall pole |
| Mounting Options | Two-piece desk clamp (included on all finishes); grommet mount included on 45-295-026, sold separately on 45-537-216 and 45-537-224 |
| Desk Clamp Thickness | 8-51 mm (0.31-2 in) |
| Grommet Thickness | 11-41 mm (0.5-1.63 in) |
| Lift Technology | Patented Constant Force™ lift-and-pivot motion technology |
| Cable Management | Cables route beneath the arm, out of the way |
| Part Number | 45-537-216 |
| Finish | White |
| Warranty | 10-Year Manufacturer Warranty (Ergotron) |
| Local Warranty (Singapore) | Supplied by SourceIT Pte Ltd with local Singapore warranty and GST invoice |
Display Compatibility
| Weight Capacity | 3.2-11.3 kg (7-25 lbs) |
| Maximum Display Size | Up to 34 in diagonal |
| VESA Pattern | VESA FDMI MIS-D, 100/75, C (100 x 100 mm and 75 x 75 mm) |
| Orientation | Portrait and landscape (360° rotation) |

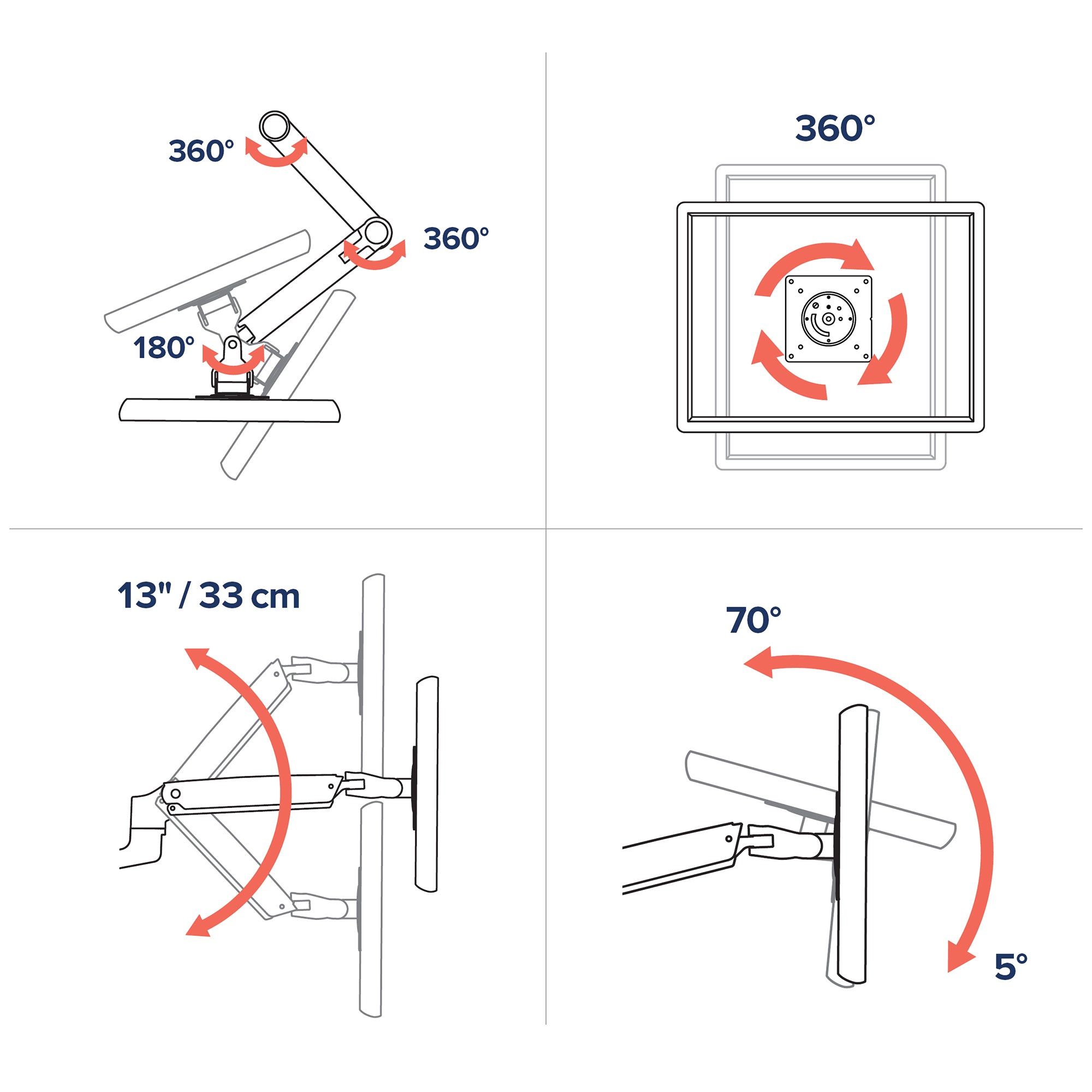

Adjustment & Motion
| Height Adjustment (Lift) | 33 cm (13 in) |
| Tilt | 75° total (70° up / 5° down) |
| Pan | 360° |
| Rotation | 360° (portrait / landscape) |
| Extension / Reach | Up to 64 cm (25 in); 65 cm (25.6 in) maximum reach |
| Retraction | Less than 66 mm (2.6 in) minimum approach |
Design & Durability
| Durability Testing | Passes Ergotron's 10,000-cycle motion test |
| Shipping Weight | 5.2 kg |
| Shipping Dimensions | 55 x 29 x 15 cm |
Compatibility & Fit
The Ergotron LX Desk Monitor Arm, Tall Pole mounts a single display of up to 34 inches weighing between 3.2 kg and 11.3 kg (7-25 lbs). It attaches using the industry-standard VESA FDMI MIS-D pattern, so it fits any monitor with 100 x 100 mm or 75 x 75 mm mounting holes. Monitors that use a proprietary pattern, or none at all, will need a VESA adapter plate from the display manufacturer before mounting.
Two mounting methods are supported. The included two-piece desk clamp fits desk edges from 8 mm to 51 mm thick, which covers almost every office desk and workstation in Singapore. The grommet mount, supplied with the polished aluminium 45-295-026 and available separately for the white and matte black finishes, passes through an existing cable hole in worksurfaces 11 mm to 41 mm thick and is the neater option for shared benching. Confirm your desk has clearance behind the mounting point for the 34 cm pole.
Ultrawide and curved displays are supported as long as their weight stays within the 11.3 kg limit and their VESA pattern matches. Because a wide panel places its mass further from the pivot, mount it centrally and re-tension the arm after fitting. Note that when the arm carries more than 20 lbs, the lower end of the vertical lift range is reduced by up to 114 mm (4.5 in) per Ergotron's dimensional data.
Package Contents & LX Series Ordering Information

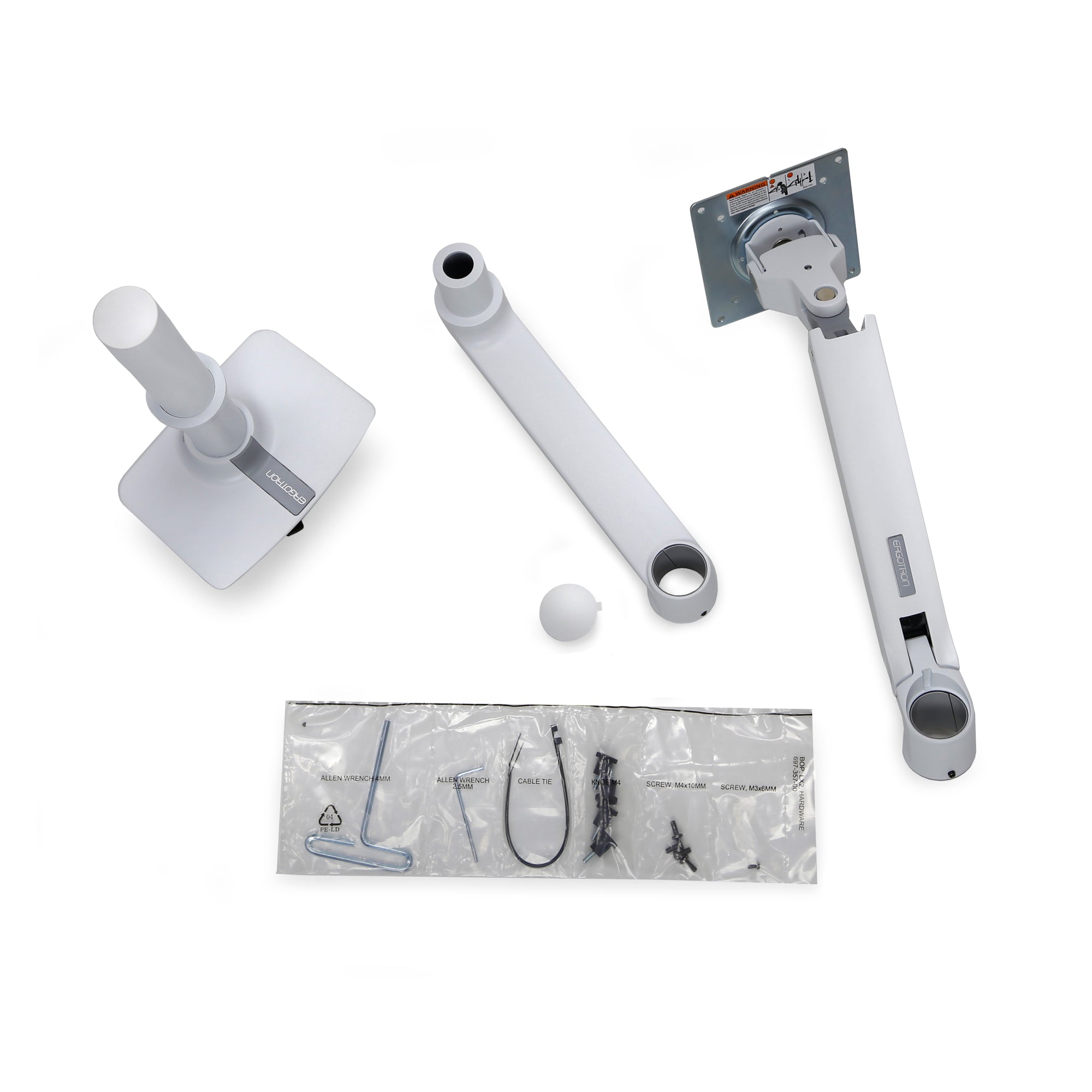

In the Box
- One (1) LX monitor arm and extension
- 34 cm tall pole
- Standard two-piece desk clamp
- Grommet mount (included with 45-295-026 only; sold separately for 45-537-216 and 45-537-224)
- Monitor mounting hardware and instructions
LX Desk Monitor Arm, Tall Pole — Finishes & Part Numbers
| Part Number | Finish |
| 45-295-026 | Polished Aluminium |
| 45-537-224 | Matte Black |
| 45-537-216 (this listing) | White |
Other LX Single-Monitor Desk Arms in the SourceIT Catalogue
| Part Number | Model |
| 45-241-026 | LX Desk Mount Monitor Arm, Polished Aluminium (20 cm pole) |
| 45-241-224 | LX Desk Mount Monitor Arm, Matte Black (20 cm pole) |
| 45-490-216 | LX Desk Mount Monitor Arm, White (20 cm pole) |
Accessories & Mounting Options
| Part Number | Accessory |
| 50-193-200 | Ergotron Notebook Tray - adds a laptop position to an LX pole |
| 45-289-026 | LX Extension, Polished Aluminium - adds reach to an LX arm |
Datasheet & Downloads
- Ergotron LX Desk Monitor Arm, Tall Pole — Official Product Page
- Ergotron LX Desk Monitor Arm, Tall Pole — Official Datasheet (PDF)
- LX Desk Mount Monitor Arm, Tall Pole — Dimensional Drawing (PDF)
Need a formal quotation, bulk pricing or an installation quote for Singapore delivery? Contact SourceIT Pte Ltd and quote part number 45-537-216.
Frequently Asked Questions — Ergotron LX Desk Monitor Arm, Tall Pole
What is the difference between the tall pole version and the standard LX Desk Monitor Arm?
Only the pole. The tall pole models (45-295-026, 45-537-216, 45-537-224) use a 34 cm pole; the standard LX Desk Monitor Arm (45-241-026, 45-241-224, 45-490-216) uses a 20 cm pole. Weight capacity, display size, lift, tilt, pan, rotation and extension are identical across both.
Which finishes are available and do they differ in specification?
Three: polished aluminium (45-295-026), matte black (45-537-224) and white (45-537-216). The mechanical specifications are the same. The only functional difference is in the box - the polished aluminium version ships with the grommet mount included, while the white and matte black versions ship with the desk clamp only and take the grommet mount as a separate accessory.
What size and weight of monitor does it take?
Displays up to 34 inches diagonal weighing 3.2 kg to 11.3 kg (7-25 lbs). There is a minimum as well as a maximum: a monitor lighter than 3.2 kg may not have enough mass for the Constant Force mechanism to hold position smoothly.
Will it fit my desk, and do I need a grommet hole?
The supplied two-piece clamp fits desk edges 8-51 mm thick and needs no drilling. If you prefer to mount through an existing cable hole, the grommet option handles worksurfaces 11-41 mm thick. Either method works; the clamp is faster to install and the grommet is tidier.
Does my monitor need a VESA mount?
Yes. The arm uses the VESA FDMI MIS-D pattern in either 100 x 100 mm or 75 x 75 mm. Most business monitors include one of these. If your display has no VESA holes, you will need an adapter bracket from the monitor manufacturer before it can be mounted.
Can I add a second monitor later?
Not to this arm - it is a single-display mount. If you need two screens, look at the LX Dual Side-by-Side Arm for two screens at the same height, or the LX Dual Stacking Arm, Tall Pole for one display above the other.
Does the Ergotron LX Desk Monitor Arm, Tall Pole come with a Singapore warranty?
Yes. Every Ergotron LX Desk Monitor Arm, Tall Pole sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the LX Desk Monitor Arm, Tall Pole with a 10-year manufacturer warranty.
