Ergotron DS100 Clamping Double Pivot
PRODUCT DESCRIPTION
Ergotron DS100 Clamping Double Pivot (47-051-200) - Local Warranty
Adds a Screen Anywhere Along a DS100 Pole
The DS100 Clamping Double Pivot clamps at any point along an Ergotron DS100 pole and carries a display of up to 23 lb (10.4 kg). That is what makes a DS100 desk stand extensible: a two-screen stand becomes a three-screen stand without replacing the base, and each screen sits at the height its user wants rather than the height the crossbar dictates.
Full Tilt, Pan and Portrait / Landscape Rotation
The double pivot gives the display tilt, pan and rotation, including portrait-to-landscape rotation — the motion that matters on trading desks, code review stations and any workflow where one screen reads long documents and the others run wide.
VESA 75 mm and 100 mm, With the Screws in the Box
The pivot mounts VESA 75 x 75 mm and 100 x 100 mm displays, and ships with both the M4 x 10 mm and #8-32 screw sets so most monitors attach without a hardware run. Ergotron's guide is explicit that the correct screw size for your monitor must be used and that the pivot tension should be adjusted after installation.
Built for the DS100 28" Pole
Ergotron's DS100 parts list specifies that this pivot attaches to the 28" pole (part 20-137-200). Confirm which pole your desk stand uses before ordering — DS100 stands ship with both 14" and 28" poles depending on configuration.
Ergotron DS100 Clamping Double Pivot Datasheet — Technical Specifications
General
| Product | Ergotron DS100 Clamping Double Pivot |
| Part Number | 47-051-200 |
| Type | Pole-clamping double pivot for DS100 desk stands |
| Number of Displays | 1 per pivot |
| Colour | Black |
| Shipping Weight | 5 lb (2.3 kg) |
| Warranty | Local warranty — see note below |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Display Compatibility
| Weight Capacity | 23 lb (10.4 kg) per display |
| VESA Patterns | 75 x 75 mm and 100 x 100 mm |
| Display Screws Supplied | 4 x M4 x 10 mm; 4 x #8-32 (3/32") |
Adjustment & Motion
| Motion | Tilt, pan and rotation |
| Screen Rotation | Portrait / landscape |
| Degrees of Motion | Not published by Ergotron for this part |
| Tension | Adjust pivot tension after installing the display |
Design & Durability
| Mounting | Clamps at any point along a DS100 pole |
| Specified Pole | DS100 28" pole, part 20-137-200 |
| Reference Documents | Ergotron DS100 parts list; user guide 888-47-051-00 rev. D |
Compatibility & Fit
Two things decide fit. The display must be 23 lb (10.4 kg) or lighter and use a VESA 75 x 75 mm or 100 x 100 mm pattern — the standard patterns on desktop monitors up to roughly 32", though weight rather than screen size is the limit Ergotron publishes. The pivot must then clamp to a DS100 pole; Ergotron's parts list specifies the 28" pole, part 20-137-200.
Because it clamps rather than bolts to a fixed point, you can add a screen to an existing DS100 stand, or set each screen's height independently — useful where one user runs a portrait document screen beside two landscape screens. Ultrawide and heavier panels are the common failure: check the panel's actual weight against 23 lb before ordering, as many 34" ultrawides exceed it.
Ergotron publishes the kinds of motion for this pivot — tilt, pan, rotation, portrait/landscape — but not the degrees, so we do not state figures here. Related DS100 parts we stock include the Grommet Mount Base (60-350-200) and the Long Crossbar Extender (97-447-200).
Package Contents & DS100 Ordering Information

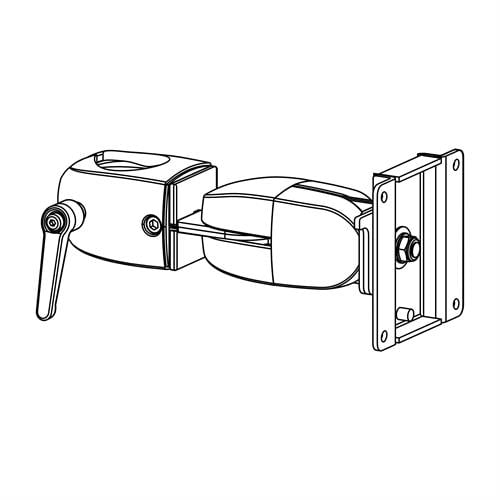

In the box: the clamping double-pivot assembly with its adjustment knobs, plus 4 x M4 x 10 mm and 4 x #8-32 (3/32") display screws. Ergotron does not publish a further itemised contents list for this part.
DS100 Ordering Information
| 47-051-200 (this listing) | DS100 Clamping Double Pivot — black, 23 lb (10.4 kg) per display |
| 60-350-200 | Grommet Mount Base for DS100 |
| 97-447-200 | DS100 Crossbar Extender, Long |
DS100 Desk Stands at SourceIT
| 33-322-200 | DS100 Dual-Monitor Desk Stand — horizontal |
| 33-091-200 | DS100 Dual-Monitor Desk Stand — vertical |
| 33-323-200 | DS100 Triple-Monitor Desk Stand |
| 33-324-200 | DS100 Quad-Monitor Desk Stand |
Datasheet & Downloads
- Ergotron DS100 Clamping Double Pivot product page (47-051)
- Ergotron DS100 Series Pole Clamp Pivot user guide 888-47-051 (PDF)
- Ergotron DS100 parts list (PDF)
- Ergotron DS100 Desk Stands datasheet 05-030-EA (PDF)
The DS100 parts list and user guide are the authoritative documents for this part. The DS100 Desk Stands datasheet covers the stands themselves and does not list 47-051-200, so figures quoted there for the series should not be read as specifications of this pivot.
Frequently Asked Questions — Ergotron DS100 Clamping Double Pivot
How much weight does the DS100 Clamping Double Pivot hold?
23 lb (10.4 kg) per display, confirmed in both Ergotron's DS100 parts list and its mounting order guide. Please note that an earlier version of this listing stated 31 lb (14 kg) and a 24" screen limit; neither figure appears in any Ergotron document and both have been corrected.
What VESA patterns does it take?
VESA 75 x 75 mm and 100 x 100 mm. Both the M4 x 10 mm and #8-32 screw sets are supplied.
Which pole does it attach to?
Ergotron's DS100 parts list specifies the 28" pole, part 20-137-200. DS100 stands ship with 14" or 28" poles depending on configuration, so check yours before ordering.
Can I use it to add a third screen to an existing DS100 stand?
Yes — that is its main use. It clamps at any point along the pole, so you can add a display or reposition one without replacing the base or the crossbar.
How far does it tilt and pan?
Ergotron confirms that it tilts, pans and rotates between portrait and landscape, but publishes no degree figures for this specific part. We would rather leave the numbers out than quote the series-level figures from the desk-stand datasheet, which are not attributed to this pivot.
Will it hold a 34" ultrawide?
Only if that panel weighs 23 lb (10.4 kg) or less, which many 34" ultrawides exceed. Check the display's own datasheet for its weight without the stand.
Does it come with a warranty in Singapore?
Yes. Every Ergotron DS100 Clamping Double Pivot sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron's current published warranty schedule does not state a term for this accessory — the DS100 desk stands themselves are documented at five years — so we do not quote a manufacturer duration on this page; ask us and we will confirm the current term with Ergotron for your order.
