Ergotron DS100 Crossbar Extender, Long
PRODUCT DESCRIPTION
Ergotron DS100 Crossbar Extender, Long (97-447-200) - Local Warranty
Takes a DS100 28" Crossbar Out to 55"
The Long Crossbar Extender increases the width of Ergotron's DS100 28" Crossbar (part 60-409-200) to 55". That is the difference between a two-screen desk stand and a genuinely wide multi-display bench — without changing the base, the pole or the desk.
Includes a Centre Display Bracket for a Third Screen

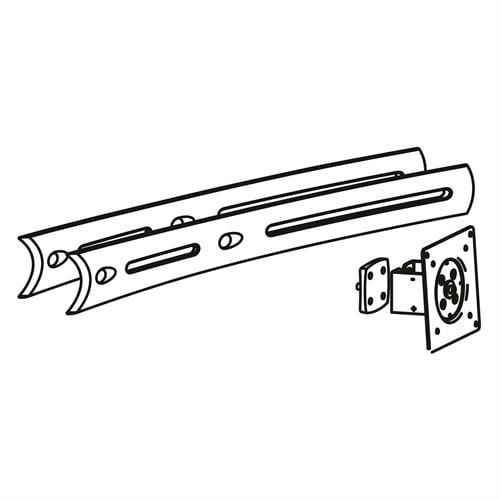

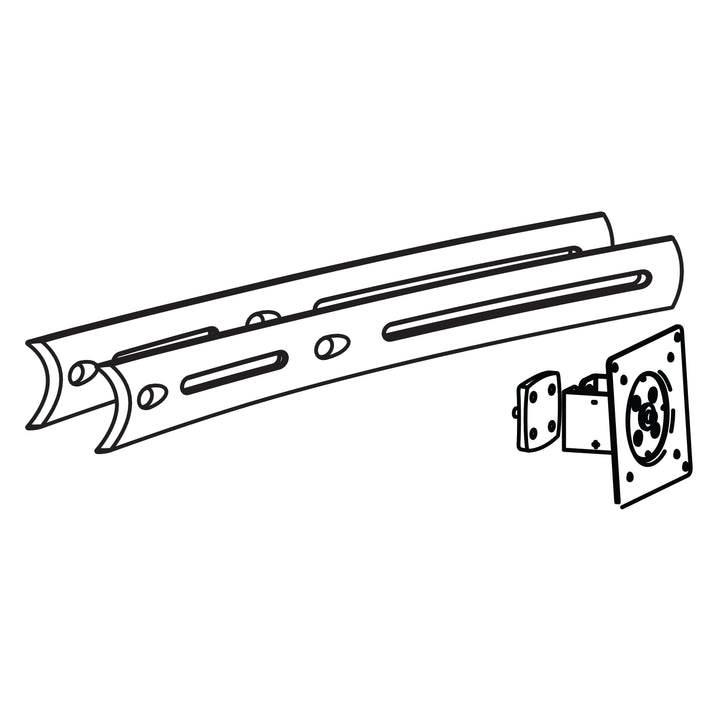

The extender ships with a centre pivot for mounting an LCD in the middle of the crossbar. So the extra width is not just space: it is a mounting position, which is what turns a dual stand into a triple.
The Cheaper Route to a Wider Trading or Control Desk
For dealing desks, security control rooms and NOC positions in Singapore, extending an installed DS100 stand costs a fraction of replacing it and keeps the desks, cable routes and grommets exactly as they are. Order two Sliding Pivots separately if you are also adding outboard screens.
Ergotron DS100 Crossbar Extender Long Datasheet — Technical Specifications
General
| Product | Ergotron DS100 Crossbar Extender, Long |
| Part Number | 97-447-200 |
| Type | Crossbar width extender with centre display pivot |
| Colour | Black |
| Shipping Weight | 6 lb (2.7 kg) |
| Warranty | Local warranty — see note below |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Fit & Function
| Extends | DS100 28" Crossbar, part 60-409-200 |
| Resulting Crossbar Width | 55" |
| Included | Centre pivot for mounting an LCD in the middle of the crossbar |
| Short Version | 97-446-200 extends the same crossbar to 46" |
Published Specification Limits
| Load Capacity | Not published by Ergotron for this part — capacity is governed by the crossbar, pivots and pole |
| Dimensions and Materials | Not published by Ergotron for this part |
| Reference Documents | Ergotron DS100 parts list; Mounting Solutions Orderguide E-03-005 |
Compatibility & Fit
This extender fits the Ergotron DS100 28" Crossbar, part 60-409-200, and takes its width to 55". Ergotron's parts list also notes that the 28" crossbar attaches to a 28" pole and requires two Sliding Pivots, ordered separately, for the outboard displays.
Choose between the two extender lengths by the finished width you need: the Long extender (this part) gives 55", the Short extender 97-446-200 gives 46". Ergotron's own product page also mentions a 46" crossbar as a starting point, but its parts list and order guide both specify the 28" crossbar 60-409-200 only — so if you are working from an existing installation, check what crossbar you actually have before ordering.
Display fit is decided by the pivots, not by the extender: the centre pivot supplied here carries one LCD, and each outboard screen needs its own DS100 pivot. Ergotron publishes no separate load rating for the extender itself.
Package Contents & DS100 Ordering Information
In the box: the long crossbar extender with a centre pivot (described on Ergotron's product page as a centre display bracket) for mounting an LCD in the middle of the crossbar. Ergotron publishes no further itemised contents list.
DS100 Ordering Information
| 97-447-200 (this listing) | DS100 Crossbar Extender, Long — extends 28" crossbar to 55" |
| 97-446-200 | DS100 Crossbar Extender, Short — extends 28" crossbar to 46" (order on request) |
| 60-409-200 | DS100 28" Crossbar (order on request) |
DS100 Parts and Stands at SourceIT
| 47-051-200 | DS100 Clamping Double Pivot — 23 lb (10.4 kg) per display |
| 60-350-200 | Grommet Mount Base for DS100 |
| 33-322-200 | DS100 Dual-Monitor Desk Stand — horizontal |
| 33-323-200 | DS100 Triple-Monitor Desk Stand |
| 33-324-200 | DS100 Quad-Monitor Desk Stand |
Datasheet & Downloads
- Ergotron DS100 Crossbar Extender Long product page (97-447)
- Ergotron DS100 parts list (PDF)
- Ergotron Mounting Solutions Orderguide E-03-005 (PDF)
Ergotron publishes no individual datasheet or installation guide for this extender; the parts list and order guide above are the authoritative sources for its fit, resulting width, finish and shipping weight.
Frequently Asked Questions — Ergotron DS100 Crossbar Extender Long
What does the Long Crossbar Extender do?
It increases the width of an Ergotron DS100 28" Crossbar (60-409-200) to 55", and includes a centre pivot so you can mount a display in the middle of the crossbar.
What is the difference between the Long and Short extenders?
Finished width. Long (97-447-200) gives 55"; Short (97-446-200) gives 46". Both work with the same 28" crossbar.
Do I get a pivot for the extra screen?
A centre pivot is included. Outboard displays each need their own DS100 pivot — Ergotron's parts list specifies two Sliding Pivots for the 28" crossbar, ordered separately.
How much weight will it take?
Ergotron publishes no load rating for the extender itself. The governing limits are those of the pivots carrying each display — for example the DS100 Clamping Double Pivot (47-051-200) is rated 23 lb (10.4 kg) per display.
Will it fit a 46" crossbar?
Ergotron's product page mentions a 46" crossbar, but its parts list and order guide both specify only the 28" crossbar 60-409-200. If your stand has a different crossbar, send us a photo or the part number and we will confirm before you order.
Can I add this to an installed desk stand without dismantling it?
Yes — that is the point of it. The extender bolts onto the existing crossbar, so the base, pole, desk clamp or grommet and cable routing stay as they are.
Does it come with a warranty in Singapore?
Yes. Every Ergotron DS100 Crossbar Extender, Long sold by SourceIT comes with local Singapore warranty and a GST invoice. Ergotron's current published warranty schedule (rev. 4 August 2026) sets terms by product category and has no category covering accessories or kits of this type, so we do not quote a manufacturer duration on this page — ask us and we will confirm the current term with Ergotron for your order.
