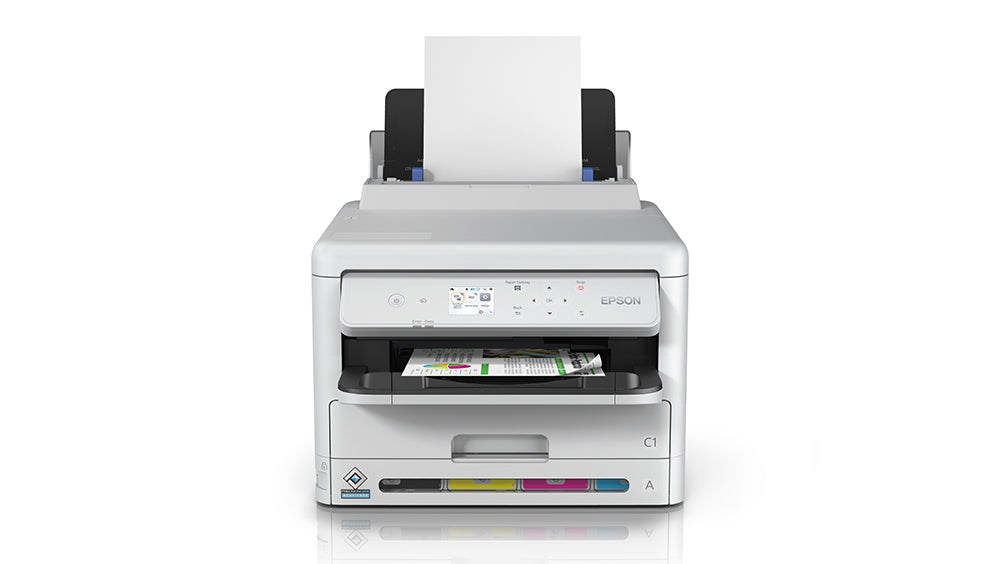

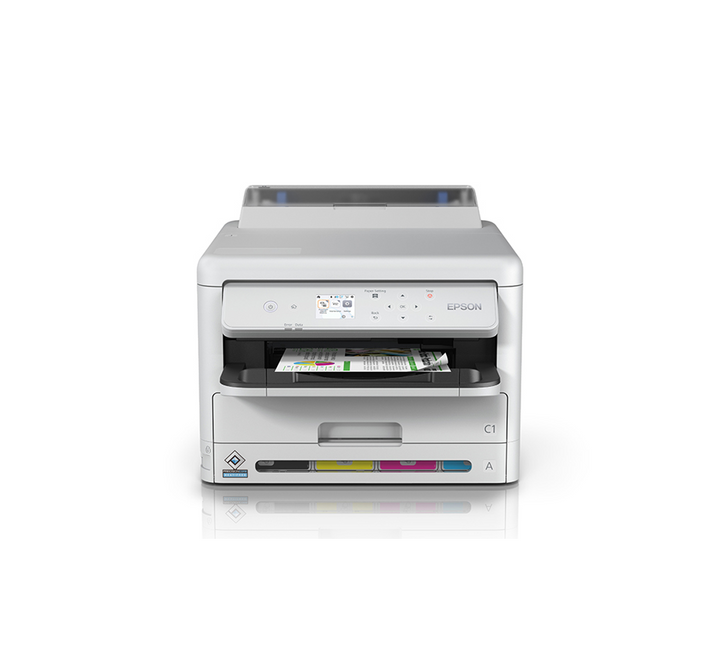

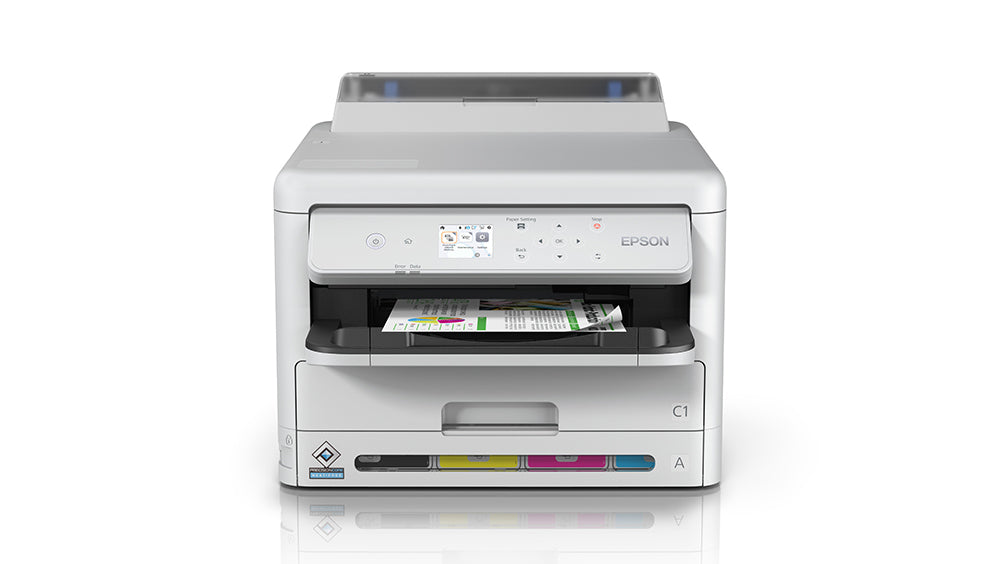

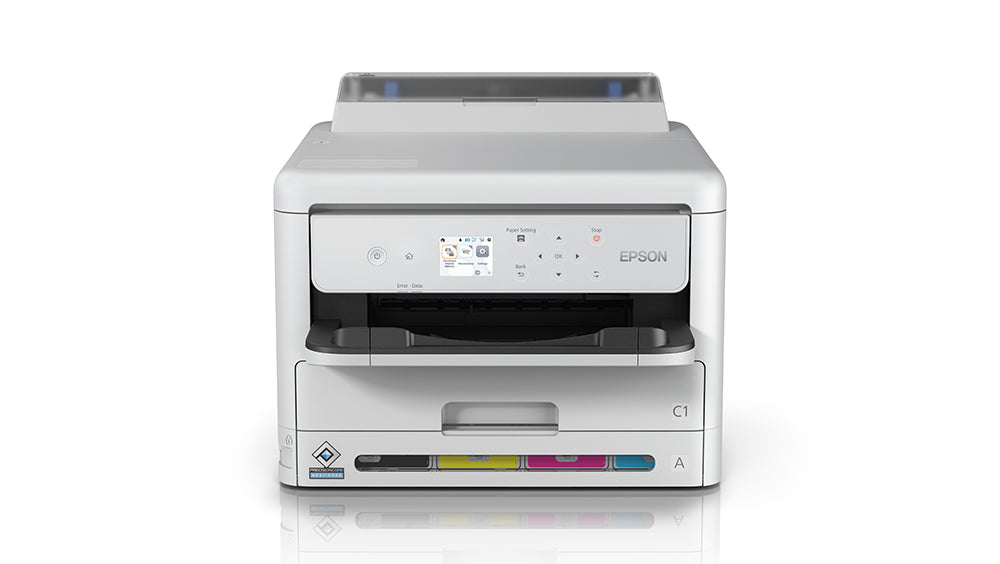

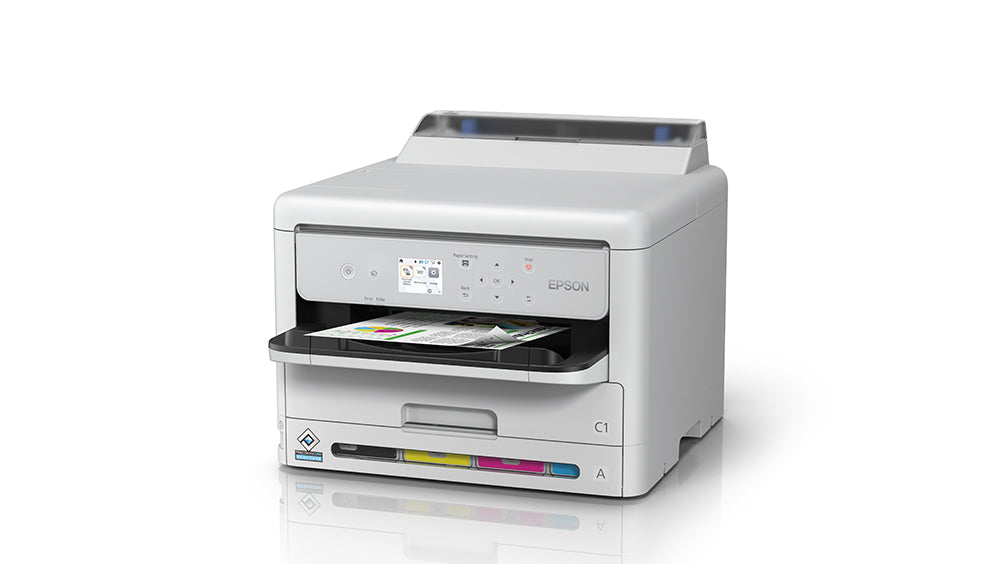

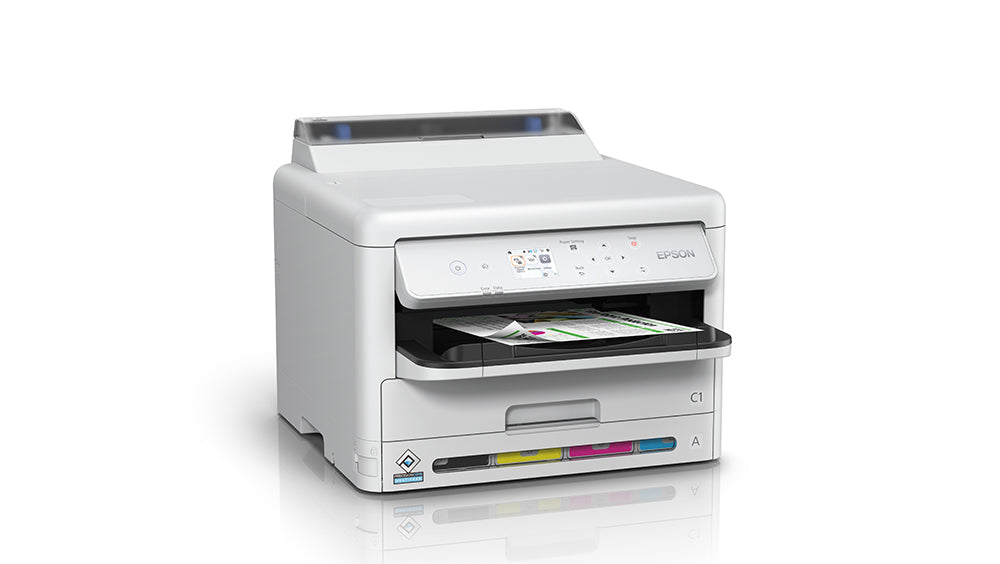

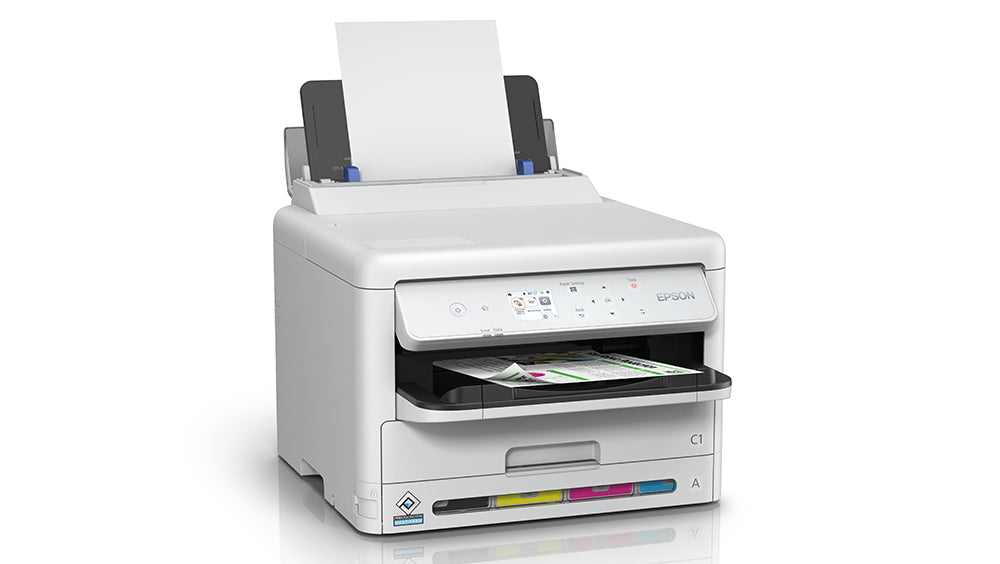

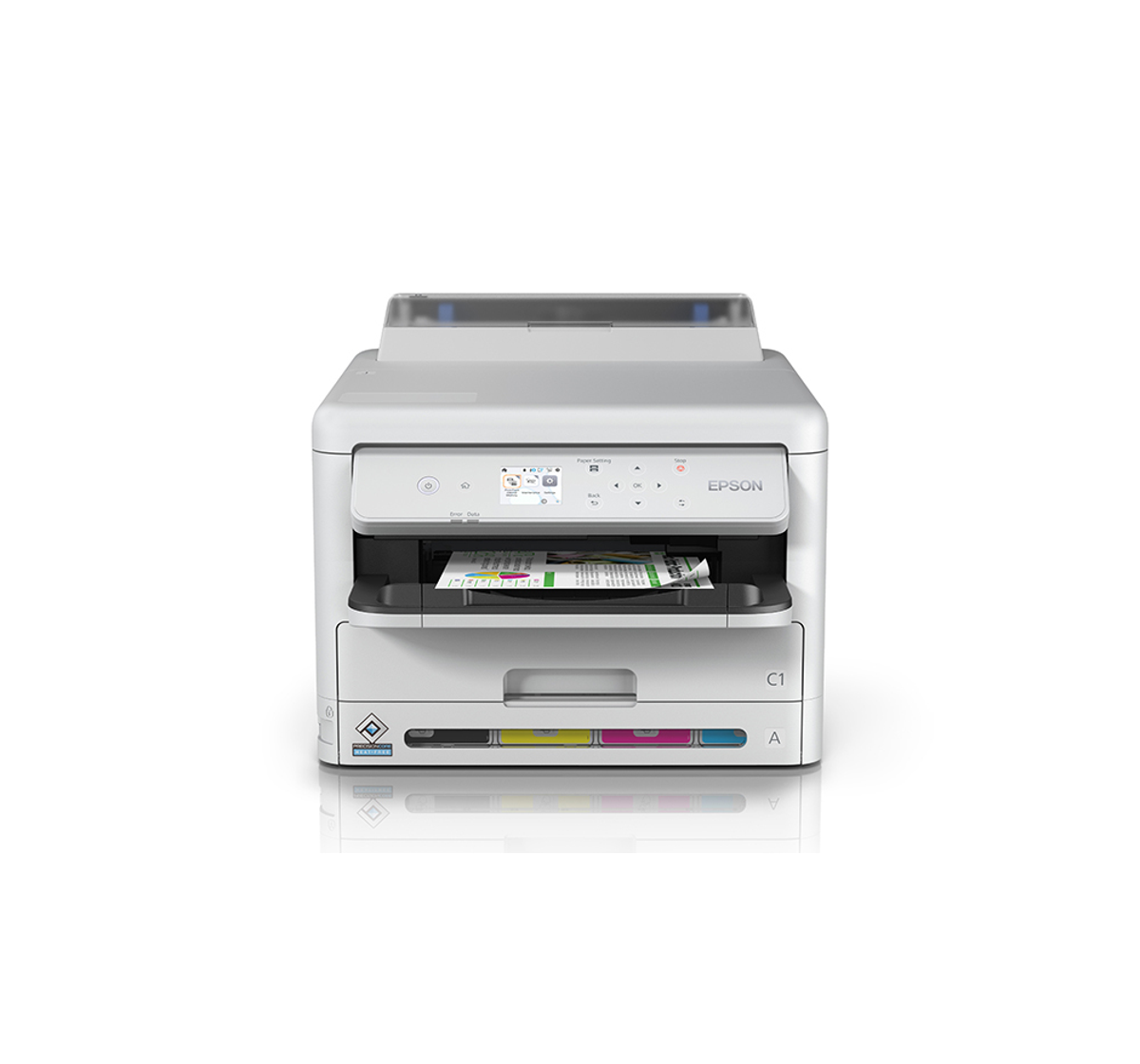

Epson WorkForce Pro WF-C5390 A4 Colour Single Function Printer
PRODUCT DESCRIPTION
Epson WorkForce Pro WF-C5390 A4 Colour Single Function Printer (C11CK25502) - 2 Years Local Warranty
The Epson WorkForce Pro WF-C5390 A4 Colour Single Function Printer - WHERE RELIABILITY MEETS PERFORMANCE.
PRECISIONCORE PRINTHEAD TECHNOLOGY
PrecisionCore builds on Epson's longstanding reputation for output quality, at the speeds and reliability required for commercial and industrial printing. Prints at up to 25ipm with a 4.8-second first page-out time, and up to 40 million precise dots per second.
BUILT FOR THE ENVIRONMENT
Remarkably low TEC values of just 0.2kWh with 25W typical power consumption - significantly lower than laser equivalents. Uses no heat and reduces environmental impact through fewer consumables.
INNOVATIVE REPLACEABLE INK SYSTEM
Standard ink packs deliver up to 3,000 pages per colour, while XL black cartridges reach 10,000 pages. Uses DURABrite Ultra ink for water- and smudge-resistant output.
VERSATILE PAPER HANDLING
Automatic duplex printing for A4 documents. Expandable to 1,830-sheet input capacity with optional cassette units. 2.4" colour LCD screen.
VERSATILE CONNECTIVITY
Equipped with Ethernet, Wi-Fi, and Wi-Fi Direct (supports up to 8 devices simultaneously).
ROBUST SECURITY FEATURES
Confidential job printing with PIN release, IP address filtering, panel admin mode with password protection, and access control supporting up to 10 user accounts.
CLOUD AND MOBILE SOLUTIONS
Supports Epson Smart Panel mobile app, Epson Email Print, Remote Print Driver, Apple AirPrint, Mopria Print Services, and Microsoft Universal Print.
Ideal For
Offices and workgroups in Singapore that want fast, low-energy business inkjet printing with on-site support. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
WorkForce Pro WF-C5390 Datasheet — Technical Specifications
General
| Model | WorkForce Pro WF-C5390 |
| Official Product Name | Epson WorkForce Pro WF-C5390 A4 Colour Single Function Printer |
| Epson Product Code | C11CK25502 |
| Brand | Epson |
| Warranty | 2 Years Local Warranty (Singapore) - 24 months on-site |
Printing Technology
| Printer Type | |
| Print Method | PrecisionCore Printhead |
| Printer Language | ESC/P-R |
| Print Direction | Bi-directional printing |
| Nozzle Configuration | 800 nozzles each colour (Black, Cyan, Magenta, Yellow) |
| Maximum Resolution | 4,800 x 1,200 dpi |
| Minimum Ink Droplet Volume | 3.8 pl |
| Printer Control Language Emulations | PCL5 / PCL6, Compatible with PostScript Level 3 |
| Automatic 2-sided Printing | Yes (up to A4) |
Print Speed
| Draft, A4 (Black / Colour) | Up to 34 ppm / 34 ppm |
| ISO 24734, A4 Simplex (Black / Colour) | Up to 25 ipm / 25 ipm |
| ISO 24734, A4 Duplex (Black / Colour) | Up to 16 ipm / 16 ipm |
| First Page Out Time from Ready Mode (Black / Colour) | Approx. 4.8 sec / 5.3 sec |
Paper Handling
| Paper Feed Method | Friction feed |
| Number of Paper Trays | 2 (Front 1, Rear 1) |
| Paper Hold Capacity (Input) | Cassette 1: 250 sheets (80g/m²), 50 sheets Premium Glossy Photo Paper; Rear Slot: 80 sheets (80g/m²) |
| Output Capacity | 150 sheets (80g/m²), 20 sheets Premium Glossy Photo Paper |
| Paper Size | Plain Paper: A6, A5, A4, B6, B5, Half Letter, 16K, Indian Legal, Letter, 8.5 x 13in, Legal; Photo Paper: 4 x 6", 16:9 Wide, 5 x 7", 8 x 10"; Envelopes: #10, DL, C6, C5, C4 |
| Maximum Paper Size | 215.9 x 6,000 mm (8.5 x 236.2") |
| Print Margin | 3mm top, left, right, bottom |
Connectivity
| USB | USB 2.0 |
| Network | Ethernet, Wi-Fi IEEE 802.11b/g/n, Wi-Fi Direct (up to 8 devices) |
| Network Protocol | TCP/IPv4, TCP/IPv6, LPD, IPP, PORT9100, WSD |
| Network Management Protocols | SNMP, HTTP, DHCP, BOOTP, APIPA, PING, DDNS, mDNS, SNTP, SLP, WSD, LLTD |
Security Features
| Panel Admin Mode | Yes |
| IP Filter | Yes |
| Confidential Print | Yes |
| Access Control | Yes |
Mobile and Cloud Solutions
| Epson Connect Features | Epson Smart Panel, Epson Email Print, Remote Print Driver |
| Other Mobile Solutions | Apple AirPrint, Mopria Print Service, Microsoft Universal Print |
Control Panel
| LCD Screen | 2.4" TFT Colour LCD |
Power
| Rated Voltage | AC 220 - 240V |
| Rated Frequency | 50 - 60 Hz |
| Typical Electricity Consumption (TEC) | 0.2kWh |
| Operating Power Consumption | 25W |
| Sleep | 1.1W |
| Power Off | 0.2W |
| Standby | 9.8W |
| Electric Power Consumption | 0.18 kW/h |
General
| Dimensions (W x D x H) | 425 x 535 x 357 mm |
| Weight | 15.3kg |
| Noise Level (PC Printing / Plain Paper Default) | 6.3 B(A), 53 dB(A) |
| Maximum Monthly Duty Cycle | 45,000 pages |
Supported Operating Systems
| Windows | Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 |
| Mac | Mac OS X 10.9.5 or later, macOS 11.x or later |
| Chrome OS | Chrome OS ver 89 or later (Printing and Scanning only) |
Consumables
| Standard Capacity Black | 3,000 pages (C13T11F100) |
| Standard Capacity Cyan | 3,000 pages (C13T11F200) |
| Standard Capacity Magenta | 3,000 pages (C13T11F300) |
| Standard Capacity Yellow | 3,000 pages (C13T11F400) |
| XL Black | 10,000 pages (C13T11H100) |
| Maintenance Box | C12C938211 |
Optional Accessories
| 500-Sheet Paper Cassette Unit | C12C932871 |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the WorkForce Pro WF-C5390. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Printer Language | ESC/P-R |
| Printer Control Language Emulations | PCL5 / PCL6, Compatible with PostScript Level 3 |
| USB | USB 2.0 |
| Epson Connect Features | Epson Smart Panel, Epson Email Print, Remote Print Driver |
| Other Mobile Solutions | Apple AirPrint, Mopria Print Service, Microsoft Universal Print |
| Chrome OS | Chrome OS ver 89 or later (Printing and Scanning only) |
Package Contents & Ordering Information
Ordering Information
| Model | WorkForce Pro WF-C5390 |
| Epson Product Code | C11CK25502 |
| Recommended Retail Price (incl. GST) | S$451.00 |
| Consumables | Ink (DURABrite Ultra): Black C13T11F100 (3,000 pages), Cyan C13T11F200 (3,000), Magenta C13T11F300 (3,000), Yellow C13T11F400 (3,000), XL Black C13T11H100 (10,000). Maintenance Box C12C938211. Option: 500-Sheet Paper Cassette Unit C12C932871. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — WorkForce Pro WF-C5390
What warranty does the WorkForce Pro WF-C5390 come with?
2 Years Local Warranty from Epson Singapore: 24 months on-site. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the WorkForce Pro WF-C5390 use?
Ink (DURABrite Ultra): Black C13T11F100 (3,000 pages), Cyan C13T11F200 (3,000), Magenta C13T11F300 (3,000), Yellow C13T11F400 (3,000), XL Black C13T11H100 (10,000). Maintenance Box C12C938211. Option: 500-Sheet Paper Cassette Unit C12C932871. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
