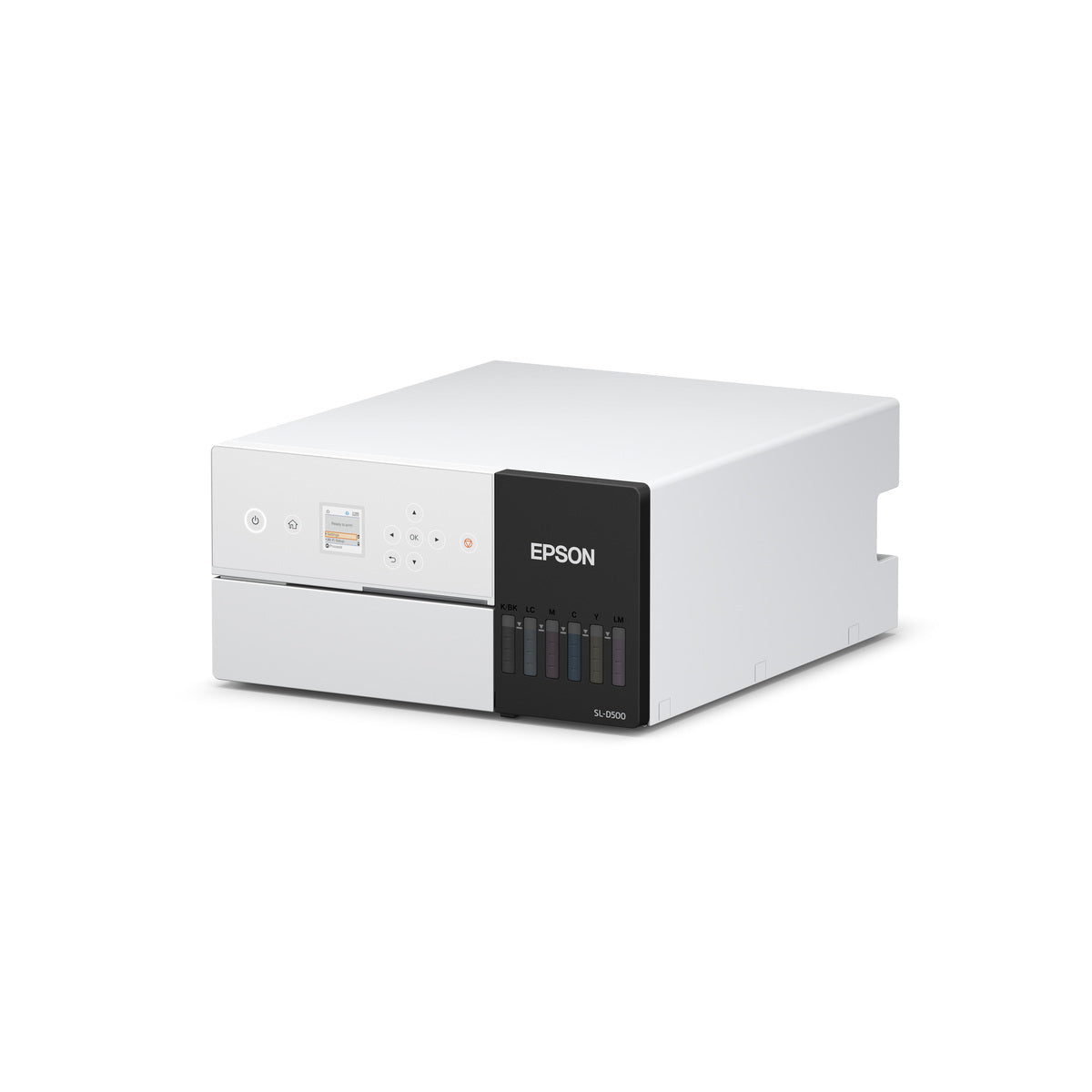

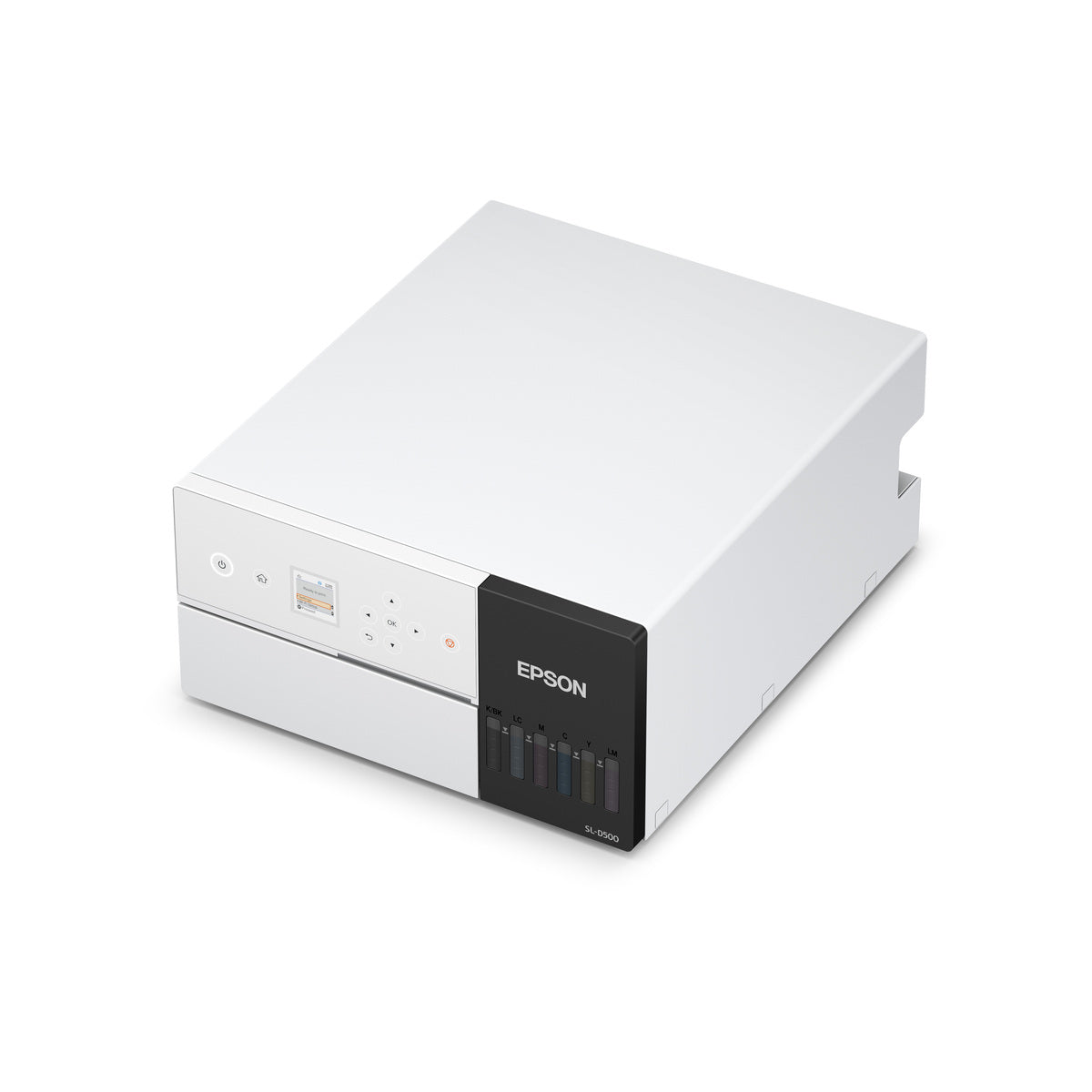

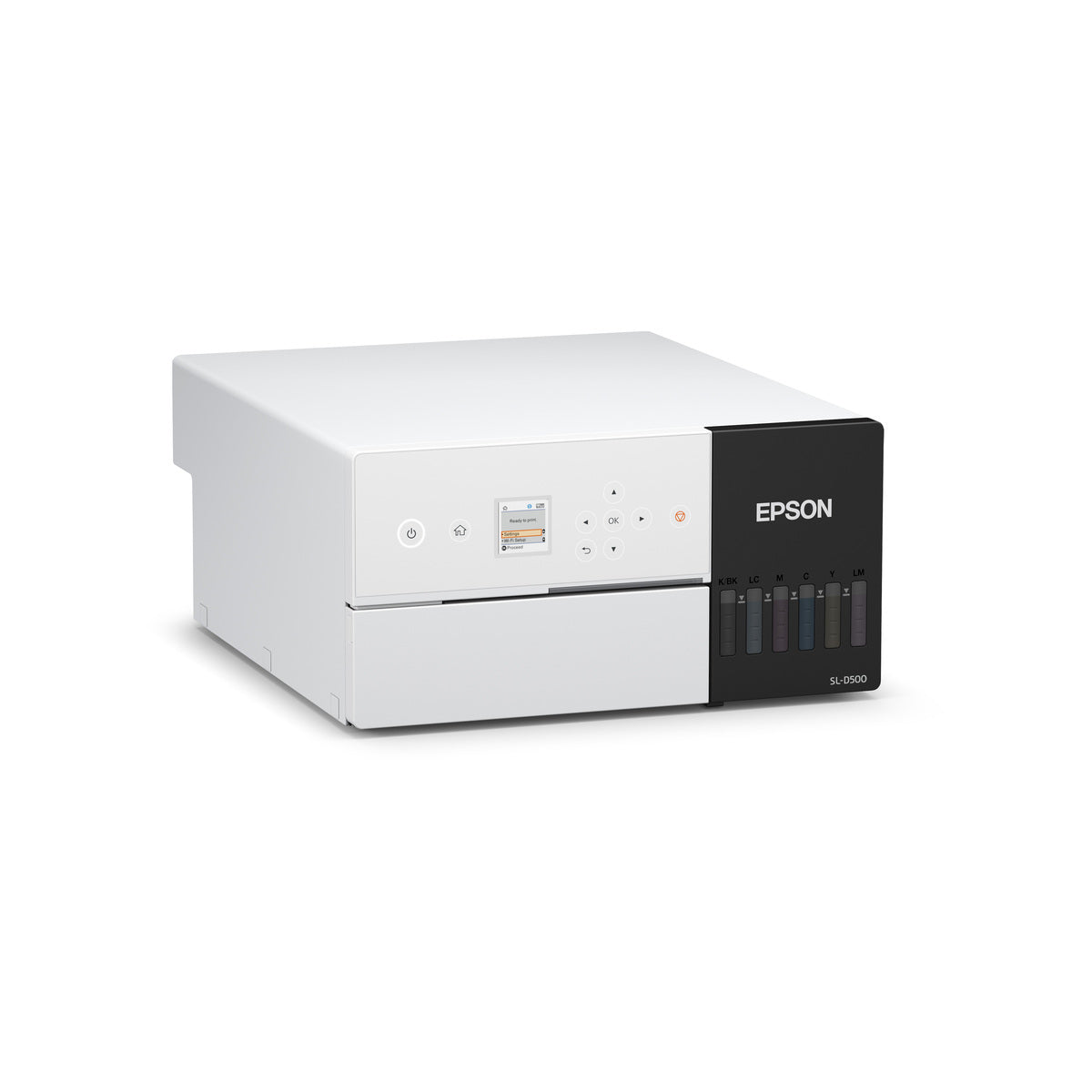

Epson SureLab SL-D530 Photo Minilab Printer
PRODUCT DESCRIPTION
Epson SureLab SL-D530 Photo Minilab Printer (C11CK56402) - 3 Years Local Warranty
The Epson SureLab D530 - Self-serve convenience for fast and easy vibrant prints.
Lightweight and Compact
The SureLab D530 has a compact size and only weights 7kg, allowing the printer to be carried around easily, which significantly improves machine portability and versitility. Perfect for self-photo kiosks, self-photo studios, mobile event printing and many more.
Flexible Layout
Thanks to SL-D530's metal frame and light weight design, printers can be stacked on top of each other, up to 3 units, giving users the flexibility to arrange a fleet of printers into different layouts.

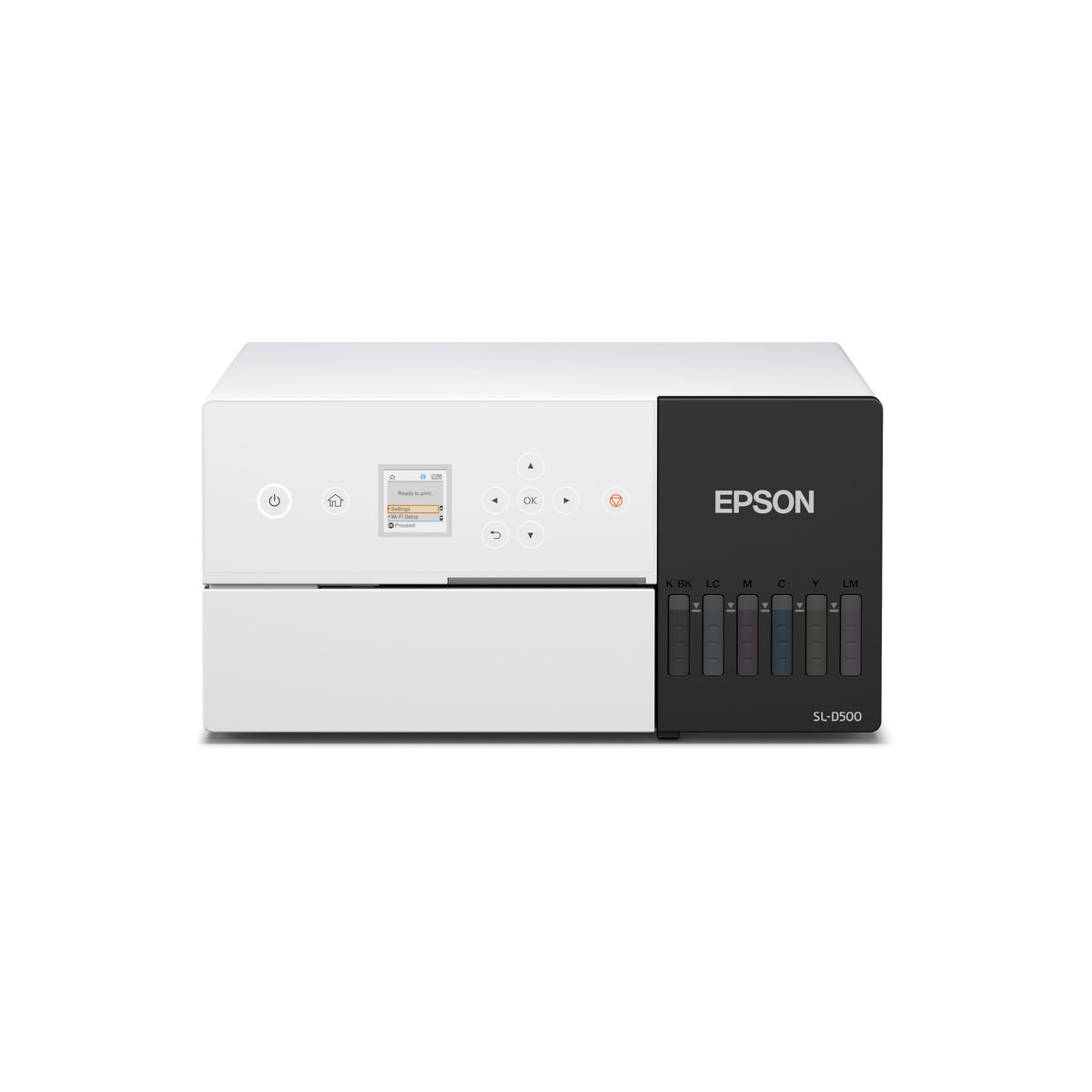

Front Operation Design
The SL-D530 has a front operation design which allows for easy media & ink refilling and maintenance box replacement. Such printer functions can also be carried out when machines are stacked on top of each other or arranged side-by-side.
Printed Applications
The SL-D530 is able to print on both 3R (3.5"x5") and 4R (4"x6") cut sheet photo paper and with the built-in duplex function, users can expand their printed application with photo books, calendars and many more.
Wireless Connectivity
The SL-D530 supports WiFi direct printing from smart devices such as laptop, PC and mobile devices. Users with IOS devices can print directly from their devices using Air Print while users with Android devices can print via the Epson iPrint application.
Ideal For
Photo studios, event photographers, kiosks and retail photo counters that need fast professional photo printing. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureLab SL-D530 Datasheet — Technical Specifications
General
| Model | SureLab SL-D530 |
| Official Product Name | Epson SureLab D530 |
| Epson Product Code | C11CK56402 |
| Brand | Epson |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years carry-in |
Warranty
| Standard | 3-years Limited Warranty |
Dimensions and Weight
| Dimensions (W x D x H) | 299 x 400 x 154 mm |
| Weight | 7.0kg |
| Storage Dimension (W x D x H) | 299 x 350 x 154 mm |
Utility Software
| Bundled in CD | Windows® - Printer Driver, Installer Package, Software Updater, EpsonNet Print, EpsonNet setup, EpsonNet Config SE, Manual Package, System Software; Mac OS X - Installer Package |
| Web delivery | Windows Supported OS: Windows® 11, Windows® 10, Windows® 8.1 (32bit/64bit); Mac Supported OS: Macintosh Mac OS X (10.9.5 or later), Mac OS 11.X |
Noise
| Noise Level | Sound Pressure Level: < 46dB(A) or less |
Printable Area and Accuracy
| Maximum Printable Length | 152mm |
Environmental Characteristics
| Temperature | Operating: 10°C – 35°C; Storage: -20°C – 40°C |
| Humidity | Operating: 20–80% (No Condensation); Storage: 5–85% (No Condensation) |
Media Handling
| Width | 89mm – 102mm |
| Length | 127mm – 152mm |
| Thickness | 0.20mm – 0.265mm |
| Feed Method | Friction Feed |
| Paper Path | Auto Sheet Feeder |
Printing
| Printing Technology | Micro Piezo Inkjet Technology, Variable-Sized Droplet Technology |
| Print Head | Micro Piezo Printhead |
| Nozzle Configuration | 1,080 nozzles (180 nozzles x 6 channels x 1 head) |
| Maximum Print Resolution | High Quality: 1,440 x 720 dpi; Standard: 720 x 720 dpi; Draft: 720 x 360 dpi |
| Minimum Ink Droplet Size | 2.5pl |
| Print Speed | 19.4 sec (Standard print mode, SureLab Photo Paper Gloss 250gsm 4"x6") |
| Margin (Cut Sheet) | Full-scale borderless on all sides; Bordered printing (Top, Bottom, Right, Left): Min. 3mm |
Paper Handling
| Borderless Sizes | Width: 89, 100, 102mm |
Ink
| Ink Type | Epson UltraChrome D6r-S Dye Ink |
| Colours | Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Black |
| Ink Capacity | 70ml |
| Ink Case | Ink Bottle |
Connectivity
| Memory | 0.5GB |
| Interface | Hi-Speed USB, 100BASE-TX/10BASE-T, IEEE802.11b/g/n |
| Print Languages (Standard) | ESC/P-R |
Printer Details
| Display | Colour / 1.44-inch |
Electrical Specifications
| Power | Operating: Approx. 18W; Ready: Approx. 3.8W; Sleep: Approx. 1.4W; Standby: Approx. 0.2W |
| Voltage | AC 100 to 120V, 220 to 240V, 50/60Hz |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureLab SL-D530. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | Hi-Speed USB, 100BASE-TX/10BASE-T, IEEE802.11b/g/n |
Package Contents & Ordering Information
Ordering Information
| Model | SureLab SL-D530 |
| Epson Product Code | C11CK56402 |
| Recommended Retail Price (incl. GST) | S$1,291.85 |
| Consumables | Epson UltraChrome D6r-S Dye Ink, 70ml bottles in 6 colours (C, M, Y, LC, LM, K); part numbers/yields not published on the product page. |
In the Box
- Maintenance Box
- Setup Guide
- Paper Manual CD
- AC Cable
Datasheet & Downloads
Frequently Asked Questions — SureLab SL-D530
What warranty does the SureLab SL-D530 come with?
3 Years Local Warranty from Epson Singapore: 3 years carry-in. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureLab SL-D530 use?
Epson UltraChrome D6r-S Dye Ink, 70ml bottles in 6 colours (C, M, Y, LC, LM, K); part numbers/yields not published on the product page. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
