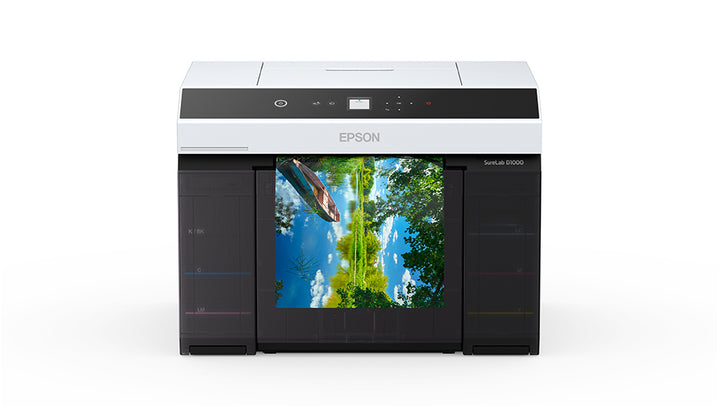

Epson SureLab SL-D1030 Professional Minilab Printer
PRODUCT DESCRIPTION
Epson SureLab SL-D1030 Professional Minilab Printer (C11CJ33402) - Local Warranty
The SureLab SL-D1030 Professional Minilab Printer - Deliver perfect photo solutions to your customers.
SINGLE PRINTER, ABUNDANT APPLICATIONS
Expand what your business can offer to customers with Epson's Surelab SL-D1030. Compact and reliable, the photo lab printer delivers colour-accurate photos with precision at increased productivity. Utilising Epson's Micro Piezo™ printhead technology, studios and photo printing businesses can now produce high-quality vivid and sharp prints that meet various production needs.
DOUBLE-SIDED PRINTING*
Produce borderless double-sided prints with the Surelab SL-D1030. Create a variety of novelty items from vivid photo books to eye-catching greeting cards is now made easy and hassle-free with SL-D1030 printer. *Duplex feeder is required for double-sided printing. Only cut sheet media applicable for double-sided printing.
RICH IMAGE QUALITY
Combining the Epson Micro Piezo™ printhead technology with Epson UltraChrome D6r-S ink set, the SL-D1030 prints with a wide colour gamut, achieving intense sharp blacks on all prints. Ensuring impeccable quality and reliable endurance on every photo, your customers can rely on the prints for stunning photos and long-lasting memories.
COMPACT FOOTPRINT
With a compact footprint of just 0.19m2* and a mere 23.1kg*, the SL-D1030 model with duplex feeder takes up minimal space and is an ideal companion for your business. *With duplex feeder. Without duplex feeder: Footprint is 0.16m2. Weight is 17.6kg.
GREATER PRODUCTIVITY
With an improved printing speed, the SL-D1030 takes productivity to the next level. The printer also features high productivity that delivers up to 385 prints per hour³ – 7% more efficient as compared to its predecessor model - the SL-D830. ³Based on internal testing using 6x4-inch media
USER-FRIENDLY FEATURES

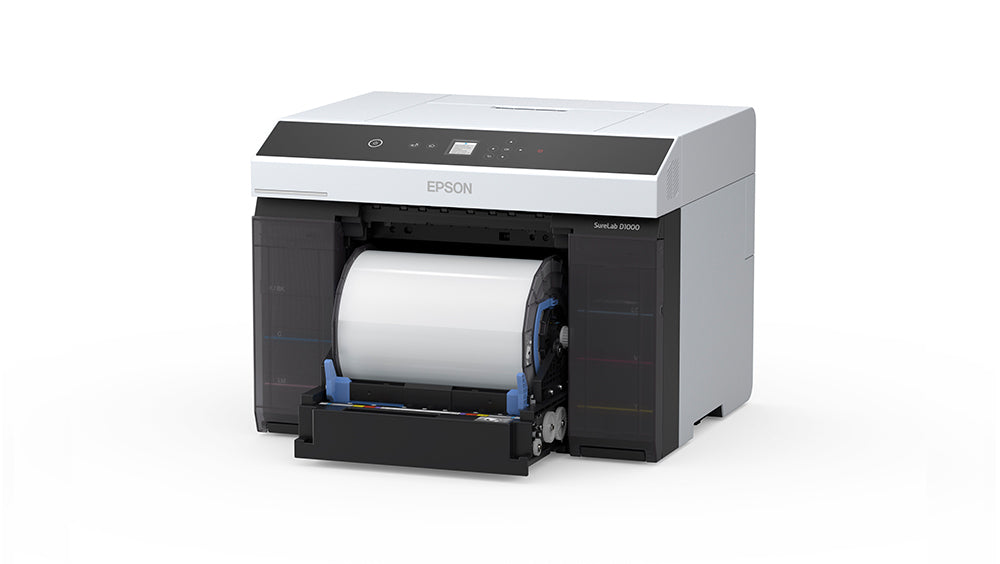

1.44" Colour LCD Display: An easy-to-operate colour LCD display allows immediate access to important information about your printer and print jobs. Easy Ink Refill: Manage your ink refills with 250ml ink supply unit, reducing downtime and improving efficiency for your business. Front Paper Load: Enjoy the convenience with the front-loading tray for your SL-D1030, allowing fast and easy access of adding and removing media while you print.
FLEXIBLE CONNECTIVITY
Easily connect and print what you need via Wi-Fi without having to deal with messy cabling in your workstation and kiosks.
Ideal For
Photo studios, event photographers, kiosks and retail photo counters that need fast professional photo printing. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureLab SL-D1030 Datasheet — Technical Specifications
General
| Model | SureLab SL-D1030 |
| Official Product Name | SureLab SL-D1030 Professional Minilab Printer |
| Epson Product Code | C11CJ33402 |
| Brand | Epson |
| Warranty | Local Warranty (Singapore) |
Printing
| Printing Technology | Technology 1: Micro Piezo Inkjet Technology; Technology 2: Variable-Sized Droplet Technology |
| Print Head | Micro Piezo Printhead |
| Nozzle Configuration | 1080 nozzles (180 nozzles x 6 channels x 1 head) |
| Maximum Print Resolution | 1,440 x 720 dpi |
| Print Speed - Photo Paper (Simplex, Colour, Borderless) | High Speed: 127 x 178 mm (5"x7") - 300 pph; 152 x 102 mm (6"x4") - 460 pph; 203 x 254 mm (8"x10") - 165 pph. Standard: 127 x 89 mm (5"x3.5") - 480 pph; 152 x 102 mm (6"x4") - 385 pph. High Quality: 127 x 89 mm (5"x3.5") - 250 pph; 152 x 102 mm (6"x4") - 200 pph |
| Print Speed - Matte Paper (Simplex, Colour, Borderless) | High Quality: 152 x 102 mm (6"x4") - 200 pph |
| Print Speed - Photo Paper (Duplex, Colour, Borderless) | Standard: A4 - 30 pph; A5 - 38 pph |
Ink
| Ink Type | Epson UltraChrome D6r-S Dye Ink |
| Colours | Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Black |
| Ink Capacity | 250ml |
Media Handling
| Width | Printable: Roll: Max. 1,000mm, Min. 50mm / Manual Feed: 1,000mm / Auto Sheet Feeder (ASF): 297mm |
| Thickness | Roll: 0.22mm – 0.25mm / Manual: 0.20mm – 0.50mm / ASF: 0.20mm – 0.265mm |
| Media Dimensions | Width: 89mm – 210mm; Length: 148mm – 297mm |
| Maximum Diameter / Weight | Max. 170mm / Max. 4kg |
| Paper Thickness (Roll) | 89mm to 210mm |
| Paper Width (Cut Sheet) | Width: 89mm – 210mm; Length: 148mm – 1,000mm |
Connectivity
| Memory | 1GB |
| Interface | Hi-Speed USB, 100BASE-TX/10BASE-T, IEEE802.11b/g/n, Wi-Fi |
| Printer Languages | ESC/P-R |
Dimensions and Weight
| Dimensions (W x D x H) | Single-sided Model: Roll: 460 x 683 x 359 mm; Manual Feed: 460 x 726 x 393 mm. Double-sided Model: Roll: 460 x 747 x 441 mm; Manual Feed: 460 x 747 x 475 mm; ASF: 460 x 747 x 441 mm |
| Weight | Single-sided model: 17.6kg; Double-sided model: 23.1kg; Main unit: 17.6kg, Duplex Feeder: 5.5kg |
Power
| Rated Voltage | AC 100V to AC 240V |
Electrical Specifications
| Power | Operating: Approx. 80W; Ready: Approx. 14W; Sleep: Approx. 1.2W; Standby: Approx. 0.2W |
| Voltage | AC 100 to 120V, 220 to 240V, 50/60Hz |
Utility Software
| Utility Software (Bundled in CD) | Windows®: Printer Driver, Installer Package, Software Updater, EpsonNet Print, EpsonNet setup, EpsonNet Config SE, Manual Package, System Software, Mac OS X: Installer Package |
| Utility Software (Web delivery) | Window Supported OS: Windows® 10, Windows® 8.1 for each 32bit/64bit; Mac Supported OS: Macintosh Mac OS X (10.9.5 or later), Mac OS 11.X |
Environmental Characteristics
| Temperature | Operating: 10 ºC – 35 ºC; Storage: -20 ºC – 40 ºC |
| Humidity | Operating: 20 – 80% (No Condensation); Storage: 5 – 85% (No Condensation) |
Noise Level
| Sound Pressure Level | < 50dB(A) or less |
Consumables
| Black Ink Cartridge | C13T46P100 |
| Cyan Ink Cartridge | C13T46P200 |
| Light Cyan Ink Cartridge | C13T46P500 |
| Magenta Ink Cartridge | C13T46P300 |
| Yellow Ink Cartridge | C13T46P400 |
| Light Magenta Ink Cartridge | C13T46P600 |
| Replacement Ink Maintenance Tank | C13S400086 |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureLab SL-D1030. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | Hi-Speed USB, 100BASE-TX/10BASE-T, IEEE802.11b/g/n, Wi-Fi |
| Printer Languages | ESC/P-R |
| Utility Software (Bundled in CD) | Windows®: Printer Driver, Installer Package, Software Updater, EpsonNet Print, EpsonNet setup, EpsonNet Config SE, Manual Package, System Software, Mac OS X: Installer Package |
| Utility Software (Web delivery) | Window Supported OS: Windows® 10, Windows® 8.1 for each 32bit/64bit; Mac Supported OS: Macintosh Mac OS X (10.9.5 or later), Mac OS 11.X |
Package Contents & Ordering Information
Ordering Information
| Model | SureLab SL-D1030 |
| Epson Product Code | C11CJ33402 |
| Recommended Retail Price (incl. GST) | S$5,601.39 |
| Consumables | UltraChrome D6r-S dye ink, 250ml ink supply units: C13T46P100 Black, C13T46P200 Cyan, C13T46P300 Magenta, C13T46P400 Yellow, C13T46P500 Light Cyan, C13T46P600 Light Magenta. Replacement Ink Maintenance Tank C13S400086. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — SureLab SL-D1030
What warranty does the SureLab SL-D1030 come with?
Local Warranty from Epson Singapore. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureLab SL-D1030 use?
UltraChrome D6r-S dye ink, 250ml ink supply units: C13T46P100 Black, C13T46P200 Cyan, C13T46P300 Magenta, C13T46P400 Yellow, C13T46P500 Light Cyan, C13T46P600 Light Magenta. Replacement Ink Maintenance Tank C13S400086. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
