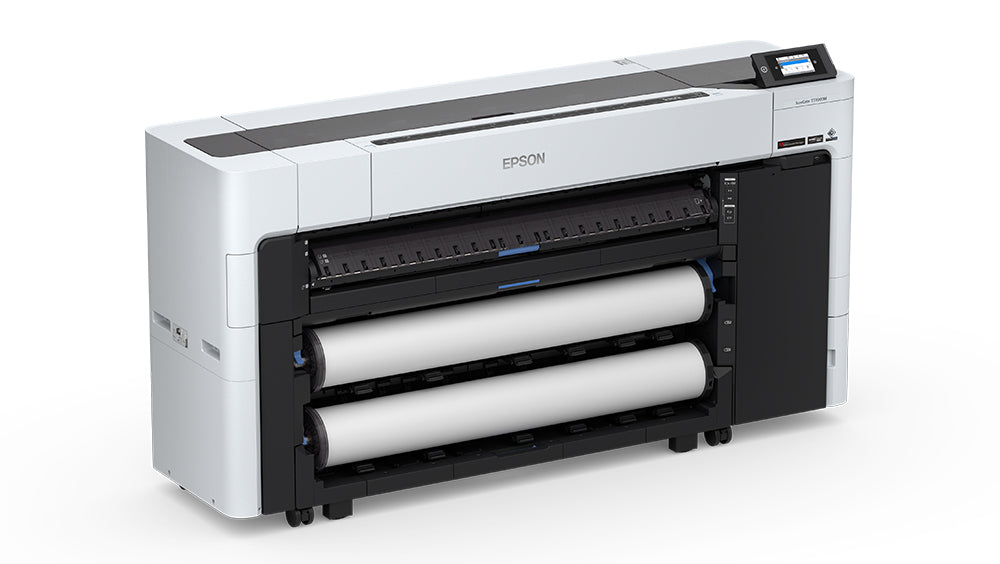

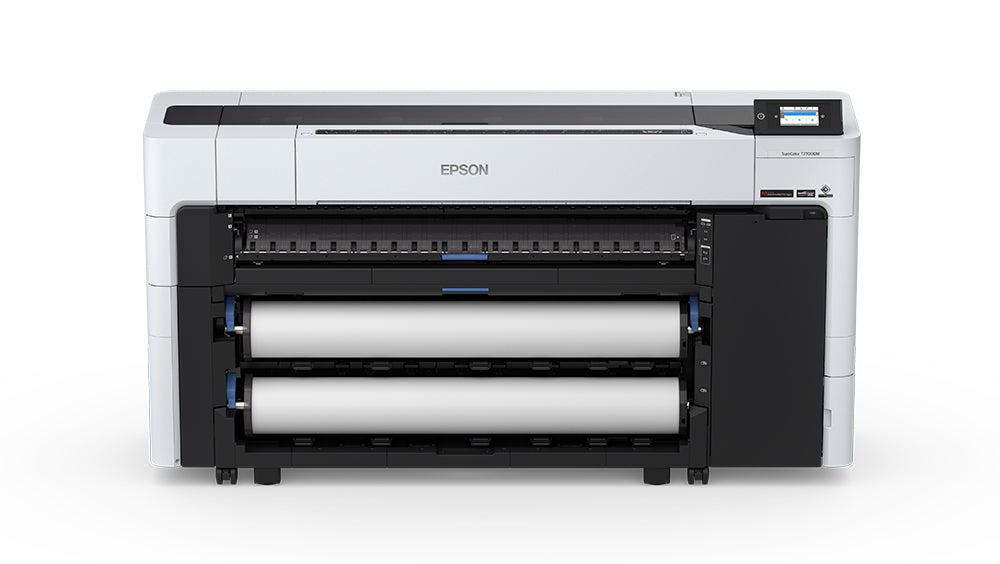

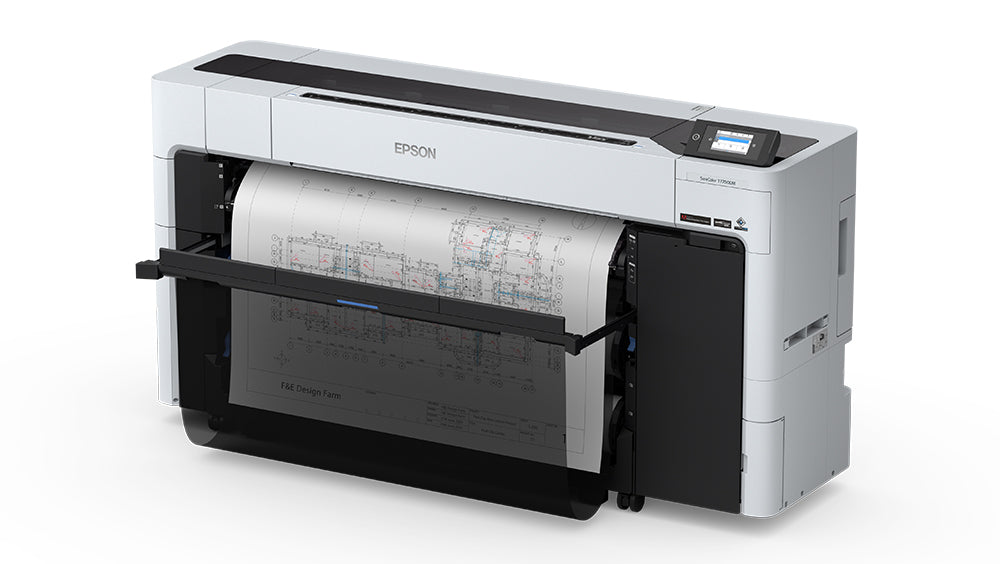

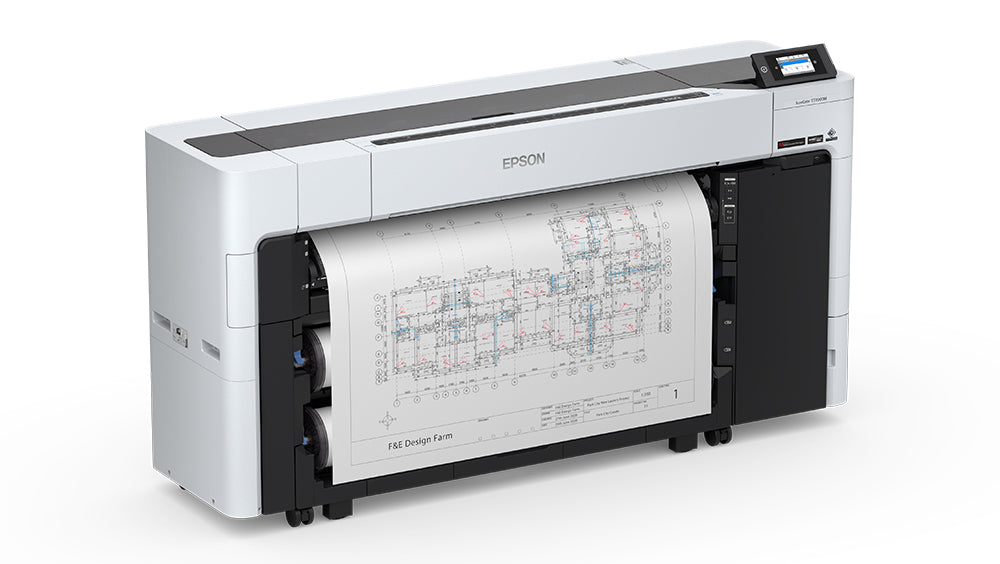

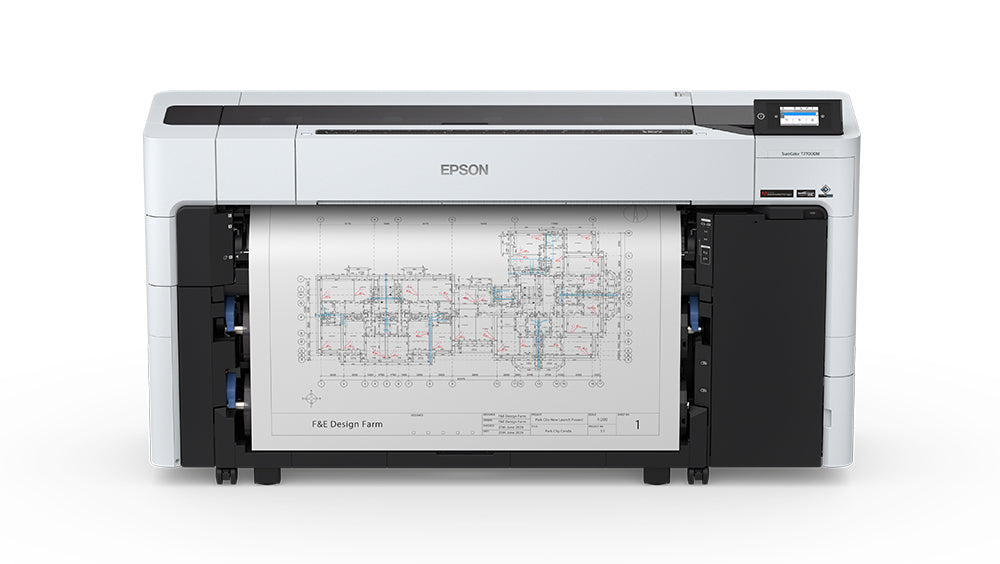

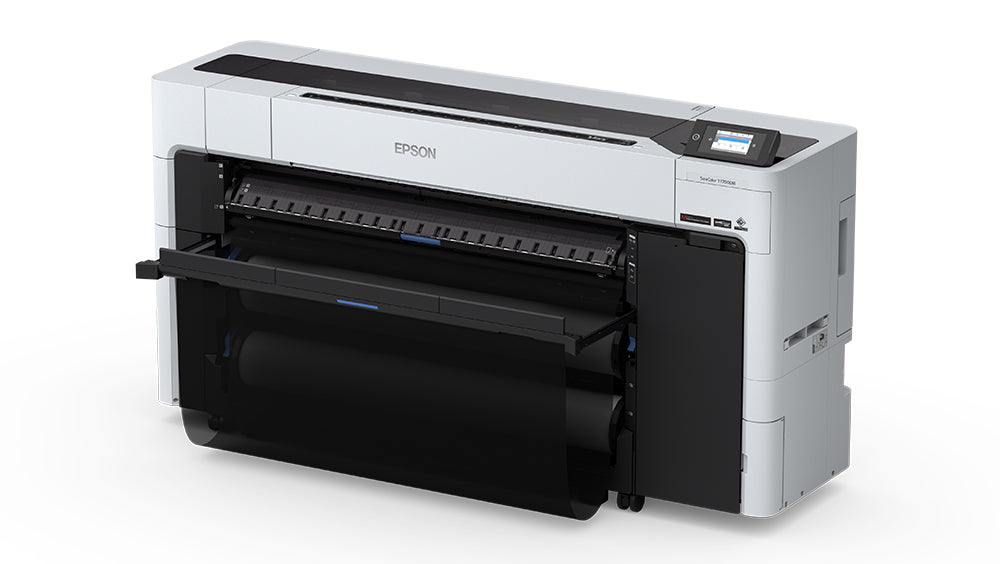

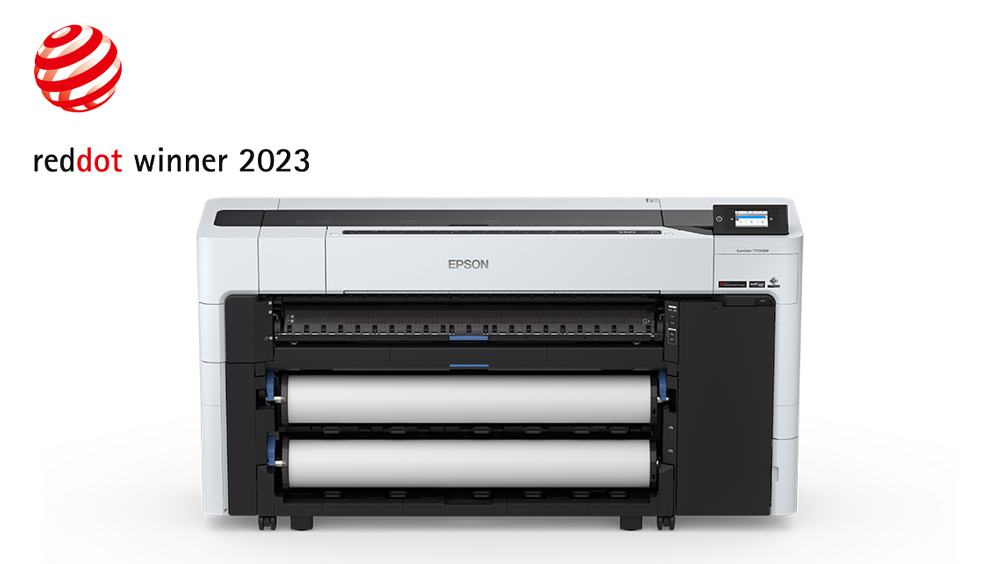

Epson SureColor SC-T7730DM 44" Dual Roll Multifunction Technical Printer

SKU: C11CH84402

  • S$10,741.00
    Unit price per
  • Save S$1,661.52
Shipping calculated at checkout.

PRODUCT DESCRIPTION

Epson SureColor SC-T7730DM 44" Dual Roll Multifunction Technical Printer (C11CH84402) - 2 Years Local Warranty

The Epson SureColor SC-T7730DM 44" Dual Roll Multifunction Technical Printer - Precision Printing with Ultra Productive Scanning Solution.

Outstanding Print Quality and Performance

Achieving the finest details both on paper and special media, the UltraChrome XD3 inks with new red ink produces prints in rich and vivid colours, especially for POP materials. Featuring six colours, including the all-new gamut-expanding red ink, businesses can print everything from everyday technical drawings to graphics and renderings. Water-, smudge- and fade-resistant, this cutting-edge pigment ink produces durable, vibrant, and long-lasting prints.

Self-Encrypting SSD

With the self-encrypting SSD, enjoy improved performance and handling of large print data. The 960GB additional storage memory allows the capability to create folders for PC-less production printing with its data secured by AES-256 and protected by a TPM chip. Users can also opt to set up password protection for specific folders in the in-built storage

Improved Performance with Adobe PostScript

Delivering prints with improved accuracy for transparent and overprint layers, as well as faster processing time for PDF and PS output. This includes additional support for printing of EPS, PDF, PS, TIFF, JPEG and Cals-G4 data.

Built-in Large Format Scanner

Digitise and share your designs and documents with the built-in Large Format Scanner. Make a copy or convert originals of up to 36" width to digital format directly from the panel, PC or mobile devices. Simplify your scanning workflow with Document Capture Pro Solutions.

Improved Media Handling

With dual-roll capability, operators' workload is reduced and productivity is maximised. Using the function for automatic selection of different media types and sizes, operators can also use the second reel as a take-up reel for unattended non-stop operation. The sensor detection also allows operators to easily load and unload media for a fuss-free operation.

Full Frontal Operation Design

Intuitive front loading improves convenience for operators with an innovative full frontal operation design. For non-stop productivity and increased efficiency, operational downtime is reduced with high capacity ink cartridges, storage space for consumables, and dual rollers. Operators can easily check printer status on the 4.3" LCD touch screen, and print directly from USB storage devices.

Print Management

Epson Print Admin* is a centralised print management solution that creates a secure printing and scanning environment through user authentication. Improve convenience with document distribution and pull printing, set rules and quota for better cost savings. A serverless version is available for organisations that require simple print management.

Ideal For

Architects, engineers, construction firms and CAD/GIS teams in Singapore that print technical drawings, plans and posters. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.

SureColor SC-T7730DM Datasheet — Technical Specifications

General

Model SureColor SC-T7730DM
Official Product Name Epson SureColor SC-T7730DM 44" Dual Roll Multifunction Technical Printer
Epson Product Code C11CH84402
Brand Epson
Warranty 2 Years Local Warranty (Singapore) - 2 years

Consumables

Maintenance Box C13S210115
Borderless Maintenance Box C13S210116
Replacement Printer Cutter Blade C13S210117
110ml Cyan Ink Cartridge C13T51F200
110ml Magenta Ink Cartridge C13T51F300
110ml Yellow Ink Cartridge C13T51F400
110ml Photo Black Ink Cartridge C13T51F100
110ml Matte Black Ink Cartridge C13T51F800
110ml Red Ink Cartridge C13T51FF00
350ml Cyan Ink Cartridge C13T50Y200
350ml Magenta Ink Cartridge C13T50Y300
350ml Yellow Ink Cartridge C13T50Y400
350ml Photo Black Ink Cartridge C13T50Y100
350ml Matte Black Ink Cartridge C13T50Y800
350ml Red Ink Cartridge C13T50YF00
700ml Cyan Ink Cartridge C13T50R200
700ml Magenta Ink Cartridge C13T50R300
700ml Yellow Ink Cartridge C13T50R400
700ml Photo Black Ink Cartridge C13T50R100
700ml Matte Black Ink Cartridge C13T50R800
700ml Red Ink Cartridge C13T50RF00

Printer Width

Printer Width 44"

Connectivity

USB Interface USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n)
Memory Physical: 6GB (Printer) + 4GB (Adobe PostScript unit) + 3GB (Scanner) + 960GB (SSD); Virtual memory for HP-GL/2: 128GB, Scanner: 8GB
Mobile Epson Smart Panel, Apple AirPrint
USB Direct Supported Format: PDF, TIFF, JPEG, HP-GL/2, HP RTL
Printer Languages ESC/R raster, HP-GL/2, HP RTL, Adobe PostScript 3, Adobe PDF 1.7
Wi-Fi Direct Wi-Fi Direct (Simple AP)
Control Panel 4.3" Touch Screen

Printing

Print Head PrecisionCore MicroTFP Printhead
Nozzle Configuration 9,600 Nozzles (400 nozzles x 24 channels x 1 head)
Maximum Print Resolution 2,400 x 1,200 dpi
Minimum Ink Droplet Size 3.5 pl
Print Speed B0 Size: Plain Paper: 35 sec (Draft), 46 sec (Speed), 258 sec (High Quality); Premium Glossy Photo Paper 170gsm: 152 sec (Speed), 281 sec (Quality), 614 sec (Max Quality). CAD A1 Landscape Size: Plain Paper 300x600 dpi Line Draw/Draft: 16 sec, 600x600 dpi Line Draw/Speed: 23 sec. A0 Size: Plain Paper 300x600 dpi Line Draw/Draft: 28 sec, 600x600 dpi Line Draw/Speed: 43 sec. Poster B0: Premium Glossy Photo Paper 170gsm: 1200x1200dpi, EPSON Standard (sRGB)/Quality: 281 sec
Line Accuracy ±0.1% or ±0.26 mm
Minimum Line Width 0.08mm (0.02mm)
Margin (Roll Paper) Top, Bottom: Min. 3mm; Right, Left: Min. 0mm
Margin (Cut Sheet) Top: Min. 3mm, Bottom: Min. 12.7mm; Right, Left: Min. 0mm

Paper Handling

Media Thickness Roll: 0.07mm – 0.8mm, Cut Sheet: 0.07mm – 0.8mm, Poster Board: 0.8mm – 1.5mm
Paper Path Roll (Double Roll), Cut Sheet (Manual Feed), Poster Board (Manual Feed)
Borderless Print Sizes (mm) 1118, 1030, 914, 841, 728, 700, 610, 594, 515, 508, 500, 432, 406, 356, 330, 300, 254
Maximum Roll Diameter / Weight 2/3" Core, Max. 170mm/12.5kg
Paper Width Roll: 254 – 1,118mm; Cutsheet: 203 – 1,118mm

Dimensions and Weight

Dimensions (W x D x H) 1,848 x 829 x 975mm
Weight Approx. 165kg

Electrical Specifications

Rated Voltage AC 100-240V 50/60Hz
Rated Current 3.4-1.6A
Electric Power Consumption Operating: Approx. 90W; Ready: Approx. 44W; Sleep: Approx. 2.0W; Standby: Approx. 0.3W

Ink System

Ink Type UltraChrome XD3 Pigment Ink
Colours Cyan, Magenta, Yellow, Red, Matte Black, Photo Black

Environmental Conditions

Temperature Operating: 10°C to 35°C, Storage: -20°C to 40°C
Humidity Operating: 20% to 80% (no condensation), Storage: 5% to 85% (no condensation)
Sound Pressure Operating: Approx. 50dB(A)
Sound Power Operating: Approx. 6.6B(A)

Operating System Requirements

Operating System Windows XP (32bit/64bit) / Vista / 7 / 8 / 8.1 / 10 / 11; Windows Server 2003 SP2 or later / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later

Scanning

Light Source Dual LED
Optical Resolution 600 dpi
Scan Speed (200dpi) 4.5 ips (Colour) / 10 ips (Mono)
Maximum Document Size 30.5m
Scan to Destination Scan to Network Folder/FTP, Scan to Email, Scan to Memory Device, Scan to Computer (Document Capture Pro), Scan to Computer (WSD)

Copy

Scaling 25 to 755%
Maximum Copies 99 copies

Supported OS and Applications

Software Solutions Compatibility LFP Accounting Tool, Epson Device Admin, Epson Print Admin, Epson Print Admin Serverless, Document Capture Pro, Document Capture Pro Server, Epson Cloud Solution PORT, Epson Edge Print Pro
Compatibility & Software Support

Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-T7730DM. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).

USB Interface USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n)
Mobile Epson Smart Panel, Apple AirPrint
USB Direct Supported Format: PDF, TIFF, JPEG, HP-GL/2, HP RTL
Printer Languages ESC/R raster, HP-GL/2, HP RTL, Adobe PostScript 3, Adobe PDF 1.7
Wi-Fi Direct Wi-Fi Direct (Simple AP)
Operating System Windows XP (32bit/64bit) / Vista / 7 / 8 / 8.1 / 10 / 11; Windows Server 2003 SP2 or later / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later
Software Solutions Compatibility LFP Accounting Tool, Epson Device Admin, Epson Print Admin, Epson Print Admin Serverless, Document Capture Pro, Document Capture Pro Server, Epson Cloud Solution PORT, Epson Edge Print Pro
Package Contents & Ordering Information

Ordering Information

Model SureColor SC-T7730DM
Epson Product Code C11CH84402
Recommended Retail Price (incl. GST) S$13,481.00
Consumables UltraChrome XD3 ink - 110ml: C C13T51F200, M C13T51F300, Y C13T51F400, PK C13T51F100, MK C13T51F800, R C13T51FF00; 350ml: C C13T50Y200, M C13T50Y300, Y C13T50Y400, PK C13T50Y100, MK C13T50Y800, R C13T50YF00; 700ml: C C13T50R200, M C13T50R300, Y C13T50R400, PK C13T50R100, MK C13T50R800, R C13T50RF00; Maintenance Box C13S210115; Borderless Maintenance Box C13S210116; Replacement Printer Cutter Blade C13S210117

In the Box

  • Printer
  • Initial ink packs
  • AC power cable
  • Setup guide
  • Software CD-ROM
  • Maintenance box
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-T7730DM

What warranty does the SureColor SC-T7730DM come with?

2 Years Local Warranty from Epson Singapore: 2 years. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.

Which consumables does the SureColor SC-T7730DM use?

UltraChrome XD3 ink - 110ml: C C13T51F200, M C13T51F300, Y C13T51F400, PK C13T51F100, MK C13T51F800, R C13T51FF00; 350ml: C C13T50Y200, M C13T50Y300, Y C13T50Y400, PK C13T50Y100, MK C13T50Y800, R C13T50YF00; 700ml: C C13T50R200, M C13T50R300, Y C13T50R400, PK C13T50R100, MK C13T50R800, R C13T50RF00; Maintenance Box C13S210115; Borderless Maintenance Box C13S210116; Replacement Printer Cutter Blade C13S210117 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.

Is stock held locally?

SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.

Can SourceIT quote for multiple units or a project?

Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
