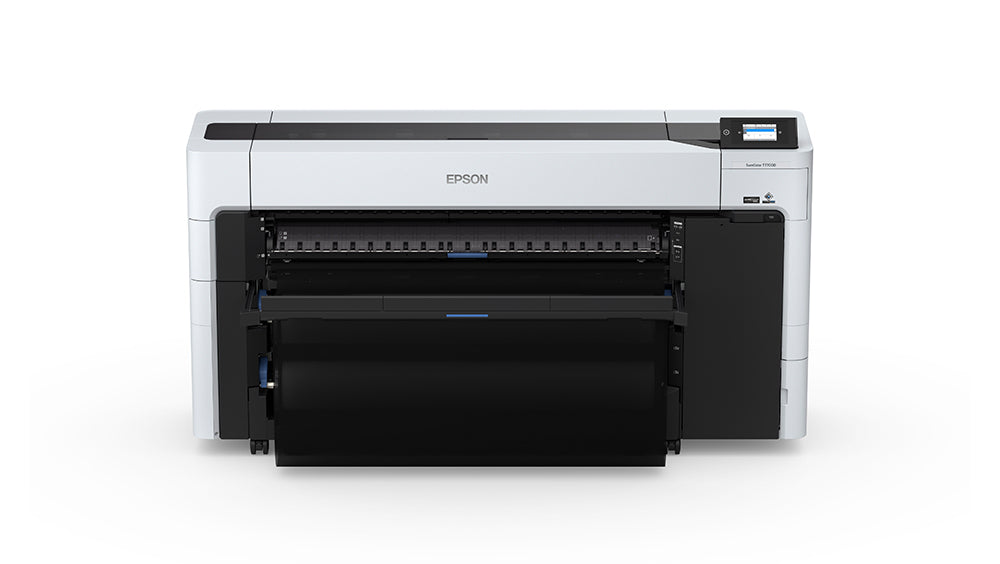

Epson SureColor SC-T7730D Technical Printer
PRODUCT DESCRIPTION
Epson SureColor SC-T7730D Technical Printer (C11CH83402) - 2 Years Local Warranty
The Epson SureColor SC-T7730D Technical Printer - Cutting Edge Innovation for High Volume and Secured Printing.
Overview
Be ready to amplify your ideas and showcase them in spectacular precision with SC-T7730D technical printer. Equipped with PrecisionCore MicroTFP printheads for precise printing and vivid colour-accurate prints using the UltraChrome XD3 inks, the SC-T7730D brings top-class accuracy and efficiency in every print. On top of its versatile printing capabilities, the printer comes equipped with user-friendly functions and secured management for businesses to enjoy a seamless printing process. Get ready to be mesmerised by the exceptional line printing accuracy and top-class efficiency.
Key Features
Outstanding print speeds for CAD documents of up to 16s (A1 prints) and 28s (A0 prints). Improved image quality with 6 colour UltraChrome XD3 inks. Faster processing of PDF and PS output with the new Adobe Embedded Print Engine. Enhanced security with self-encrypting SSD and print authentication. Wide 44" dual roll design for enhanced productivity.
PrecisionCore Micro TFP Printhead
Now with the larger-sized 2.64" printheads, the SC-T7730D deliver increased productivity with faster speed in industry-leading precise droplet formation. Using the variable-sized droplets technology, businesses can expect crisp line accuracy, sharp text and vibrant photo quality in all their prints.
Self-Encrypting SSD
With the self-encrypting SSD, enjoy improved performance and handling of large print data. The 960GB additional storage memory allows the capability to create folders for PC-less production printing with its data secured by AES-256 and protected by a TPM chip. Users can also opt to set up password protection for specific folders in the in-built storage.
Outstanding Print Quality and Performance
Achieving the finest details both on paper and special media, the UltraChrome XD3 inks with new red ink produce prints in rich and vivid colours, especially for POP materials. Featuring six colours, including the all-new gamut-expanding red ink, businesses can print everything from everyday technical drawings to graphics and renderings. Water, smudge and fade-resistant, this cutting-edge ink set produces durable, vibrant, and long-lasting prints.
Improved Performance with Adobe PostScript
Delivering prints with improved accuracy for transparent and overprint layers, the SC-T7730D commands a faster processing time for PDF and PS output. This includes additional support for printing of EPS, PDF, PS, TIFF, JPEG and Cals-G4 data.
Improved Media Handling

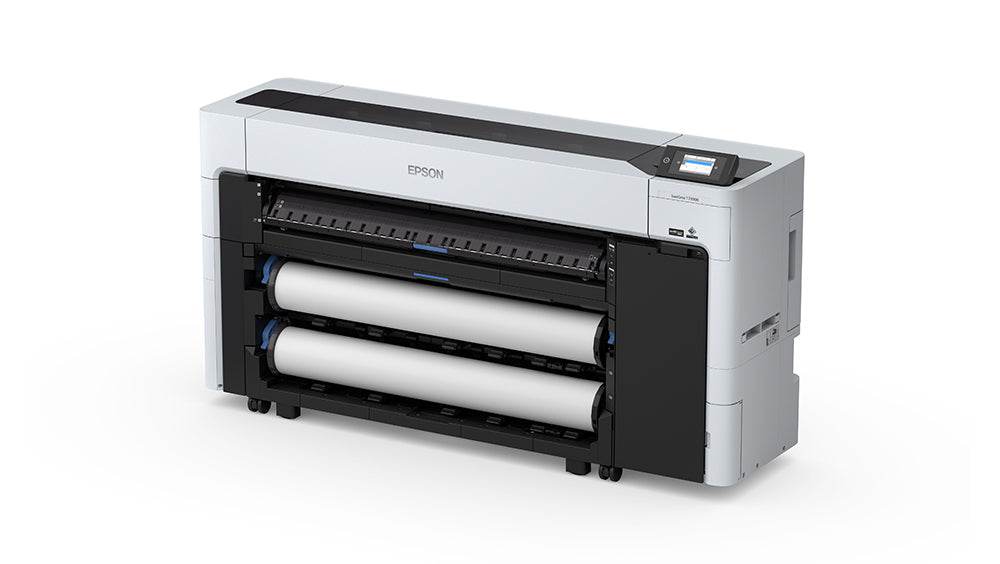

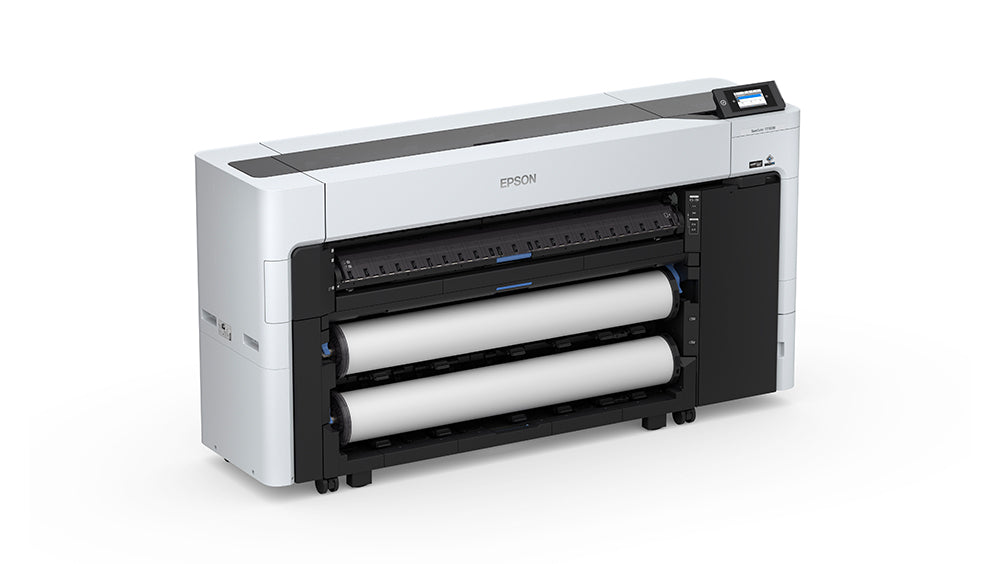

With dual-roll capability, operators' workload is reduced and productivity is maximised. Using the function for automatic selection of different media types and sizes, operators can also use the second reel as a take-up reel for unattended non-stop operation. The sensor detection also allows operators to easily load and unload media for a fuss-free operation.
Ideal For
Architects, engineers, construction firms and CAD/GIS teams in Singapore that print technical drawings, plans and posters. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-T7730D Datasheet — Technical Specifications
General
| Model | SureColor SC-T7730D |
| Official Product Name | Epson SureColor SC-T7730D Technical Printer |
| Epson Product Code | C11CH83402 |
| Brand | Epson |
| Warranty | 2 Years Local Warranty (Singapore) - 2 years |
Consumables
| Maintenance Box | C13S210115 |
| Borderless Maintenance Box | C13S210116 |
| Replacement Printer Cutter Blade | C13S210117 |
| 110ml Cyan Ink Cartridge | C13T51F200 |
| 110ml Magenta Ink Cartridge | C13T51F300 |
| 110ml Yellow Ink Cartridge | C13T51F400 |
| 110ml Photo Black Ink Cartridge | C13T51F100 |
| 110ml Matte Black Ink Cartridge | C13T51F800 |
| 110ml Red Ink Cartridge | C13T51FF00 |
| 350ml Cyan Ink Cartridge | C13T50Y200 |
| 350ml Magenta Ink Cartridge | C13T50Y300 |
| 350ml Yellow Ink Cartridge | C13T50Y400 |
| 350ml Photo Black Ink Cartridge | C13T50Y100 |
| 350ml Matte Black Ink Cartridge | C13T50Y800 |
| 350ml Red Ink Cartridge | C13T50YF00 |
| 700ml Cyan Ink Cartridge | C13T50R200 |
| 700ml Magenta Ink Cartridge | C13T50R300 |
| 700ml Yellow Ink Cartridge | C13T50R400 |
| 700ml Photo Black Ink Cartridge | C13T50R100 |
| 700ml Matte Black Ink Cartridge | C13T50R800 |
| 700ml Red Ink Cartridge | C13T50RF00 |
Printer Width
| Printer Width | 44" |
Connectivity
| USB Interface | USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n) |
| Memory | 4GB + 960GB (Option SSD) |
| Mobile | Epson Smart Panel, Apple AirPrint |
| USB Direct | Supported Format: PDF, TIFF, JPEG, HP-GL/2, HP RTL |
| Printer Languages | ESC/R raster, HP-GL/2, HP RTL, Adobe PostScript 3, Adobe PDF 1.7 |
| Wi-Fi Direct | Wi-Fi Direct (Simple AP) |
| Control Panel | 4.3" Touch Screen |
Printing
| Print Head | PrecisionCore MicroTFP Printhead |
| Nozzle Configuration | 9,600 Nozzles (400 nozzles x 24 channels x 1 head) |
| Maximum Print Resolution | 2,400 x 1,200 dpi |
| Minimum Ink Droplet Size | 3.5 pl |
| Print Speed | CAD (A1): Plain Paper 300x600dpi Line Draw/Draft: 16s, 600x600dpi Line Draw/Speed: 23s. CAD A0: Plain Paper 300x600dpi Line Draw/Draft: 28s, 600x600dpi Line Draw/Speed: 43s. Poster B0: Plain Paper 300x600dpi EPSON Vivid/Speed: 46s. B0: Plain Paper: 35s (Draft), 46s (Speed), 258s (High Quality); Premium Glossy Photo Paper 170gsm: 152s (Speed), 281s (Quality), 614s (Max Quality) |
| Line Accuracy | ±0.1% or ±0.26 mm |
| Minimum Line Width | 0.08mm (0.02mm) |
| Margin (Roll Paper) | Top, Bottom: Min. 3mm; Right, Left: Min. 0mm |
| Margin (Cut Sheet) | Top: Min. 3mm, Bottom: Min. 12.7mm; Right, Left: Min. 0mm |
Paper Handling
| Media Thickness | Roll: 0.07mm – 0.8mm, Cut Sheet: 0.07mm – 0.8mm, Poster Board: 0.8mm – 1.5mm |
| Paper Path | Roll (Double Roll), Cut Sheet (Manual Feed), Poster Board (Manual Feed) |
| Borderless Print Sizes (mm) | 1118, 1030, 914, 841, 728, 700, 610, 594, 515, 508, 500, 432, 406, 356, 330, 300, 254 |
| Maximum Roll Diameter / Weight | 2/3" Core, Max. 170mm/12.5kg |
| Paper Width | Roll: 254 – 1,118mm; Cutsheet: 203 – 1,118mm |
Dimensions and Weight
| Dimensions (W x D x H) | 1,848 x 829 x 975mm |
| Weight | Approx. 155 kg |
Electrical Specifications
| Rated Voltage | AC 100-240V 50/60Hz |
| Rated Current | 3.4-1.6A |
| Electric Power Consumption | Operating: Approx. 70W; Ready: Approx. 32W; Sleep: Approx. 2.0W; Standby: Approx. 0.3W |
Ink System
| Ink Type | UltraChrome XD3 Pigment Ink |
| Colours | Cyan, Magenta, Yellow, Red, Matte Black, Photo Black |
Environmental Conditions
| Temperature | Operating: 10°C to 35°C, Storage: -20°C to 40°C |
| Humidity | Operating: 20% to 80% (no condensation), Storage: 5% to 85% (no condensation) |
| Sound Pressure | Operating: Approx. 50dB(A) |
| Sound Power | Operating: Approx. 6.6dB(A) |
Operating System Requirements
| Operating System | Windows XP (32bit/64bit) / Vista / 7 / 8 / 8.1 / 10 / 11; Windows Server 2003 SP2 or later / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-T7730D. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| USB Interface | USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n) |
| Mobile | Epson Smart Panel, Apple AirPrint |
| USB Direct | Supported Format: PDF, TIFF, JPEG, HP-GL/2, HP RTL |
| Printer Languages | ESC/R raster, HP-GL/2, HP RTL, Adobe PostScript 3, Adobe PDF 1.7 |
| Wi-Fi Direct | Wi-Fi Direct (Simple AP) |
| Operating System | Windows XP (32bit/64bit) / Vista / 7 / 8 / 8.1 / 10 / 11; Windows Server 2003 SP2 or later / 2008 / 2012 / 2016 / 2019 / 2022; Mac OS X 10.6.8 or later |
Package Contents & Ordering Information
Ordering Information
| Model | SureColor SC-T7730D |
| Epson Product Code | C11CH83402 |
| Recommended Retail Price (incl. GST) | S$12,048.00 |
| Consumables | UltraChrome XD3 ink - 110ml: C C13T51F200, M C13T51F300, Y C13T51F400, PK C13T51F100, MK C13T51F800, R C13T51FF00; 350ml: C C13T50Y200, M C13T50Y300, Y C13T50Y400, PK C13T50Y100, MK C13T50Y800, R C13T50YF00; 700ml: C C13T50R200, M C13T50R300, Y C13T50R400, PK C13T50R100, MK C13T50R800, R C13T50RF00; Maintenance Box C13S210115; Borderless Maintenance Box C13S210116; Replacement Printer Cutter Blade C13S210117 |
In the Box
- Printer
- Initial ink cartridge
- AC power cable
- Setup guide
- Software CD-ROM
- Maintenance box
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-T7730D
What warranty does the SureColor SC-T7730D come with?
2 Years Local Warranty from Epson Singapore: 2 years. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-T7730D use?
UltraChrome XD3 ink - 110ml: C C13T51F200, M C13T51F300, Y C13T51F400, PK C13T51F100, MK C13T51F800, R C13T51FF00; 350ml: C C13T50Y200, M C13T50Y300, Y C13T50Y400, PK C13T50Y100, MK C13T50Y800, R C13T50YF00; 700ml: C C13T50R200, M C13T50R300, Y C13T50R400, PK C13T50R100, MK C13T50R800, R C13T50RF00; Maintenance Box C13S210115; Borderless Maintenance Box C13S210116; Replacement Printer Cutter Blade C13S210117 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
