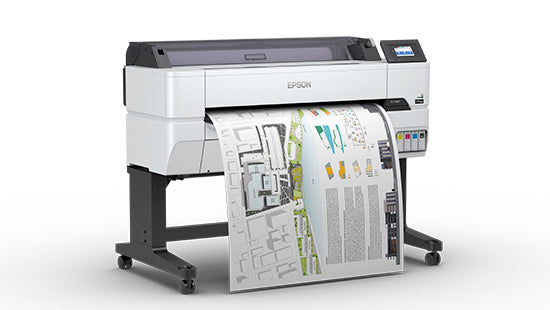

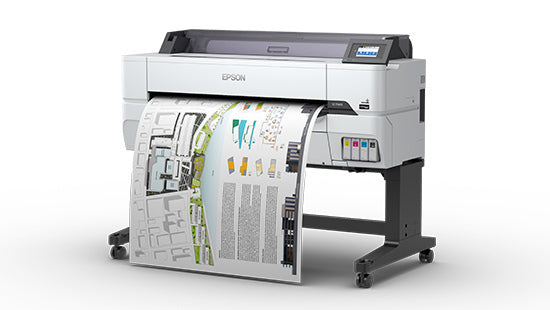

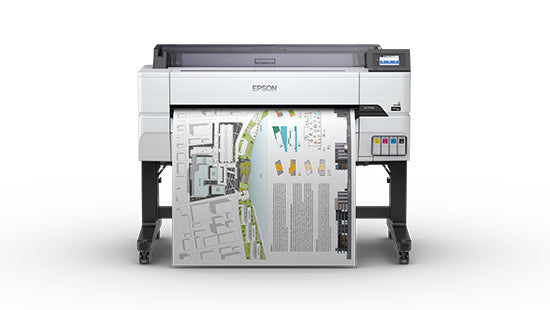

Epson SureColor SC-T5435 36” Technical Printer (C11CJ56402) - 3 Years Local Warranty
The Epson SureColor SC-T5435 36” Technical Printer - Go Big on Exceptional Accuracy.
Small Footprint
Sleek and minimally designed, the SC-T5435 has a comfortable size that fits into tight work spaces effortlessly.
User Convenience In Mind
Designed with the user in mind, the printer will hold on to print jobs until it is ready for collection, to prevent it from dropping to the ground.
Control At Your Fingertips
A 4.3 inch touch panel on the SC-T5435 gives you the convenience of an easy setup and a PC-less operation that just makes things extra efficient.
Ergonomic Design
The SC-T5435 smart design can cater to users of different heights to help make it comfortable for them to load the media as well as to operate the printers.
Enlarge Your Documents Seamlessly
Using compatible Epson business inkjet multifunction printers or business scanners for the SC-T3435 and SC-T5435, you can seamlessly enlarge documents at the touch of a button directly from the T-Series printers without the need of a computer.
Outstanding Quality
With an improved formulation that works especially well with plain paper and special media such as tracing paper, the UltraChrome XD2 uses pigment ink for CMYK to provide quality, and to deliver accurate and sharp line printing that is suitable for vector images or luster data. The all-pigment UltraChrome XD2 ink achieves less bleed through and is also water resistant, allowing it to better withstand harsh weather conditions compared to dye-inks.
Wireless Connectivity
The SC-T5435 is integrated with Wi-Fi and Wi-Fi Direct, making it convenient to print right from smart devices from anywhere in the office. The Wi-Fi Direct function acts as an access point, allowing devices to connect directly to the printer without a router. Additionally, the T-series printers come equipped to allow direct wireless printing from any Apple devices through Apple AirPrint, without the need for any additional drivers.
Ideal For
Architects, engineers, construction firms and CAD/GIS teams in Singapore that print technical drawings, plans and posters. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-T5435 Datasheet — Technical Specifications
General
| Model |
SureColor SC-T5435 |
| Official Product Name |
Epson SureColor SC-T5435 36” Technical Printer |
| Epson Product Code |
C11CJ56402 |
| Brand |
Epson |
| Warranty |
3 Years Local Warranty (Singapore) - 3 years |
Consumables
| Black Ink Cartridge |
110ml: C13T41Q500 | 350ml: C13T41D500 | 700ml: C13T41C500 |
| Cyan Ink Cartridge |
110ml: C13T41Q200 | 350ml: C13T41D200 | 700ml: C13T41C200 |
| Magenta Ink Cartridge |
110ml: C13T41Q300 | 350ml: C13T41D300 | 700ml: C13T41C300 |
| Yellow Ink Cartridge |
110ml: C13T41Q400 | 350ml: C13T41D400 | 700ml: C13T41C400 |
| Maintenance Box |
C13T699700 |
| Auto Cutter Spare Blade |
C13S902007 |
| Borderless Replacement Pad Kit |
C13S400064 |
Printer Width
Connectivity
| Memory |
1GB |
| Interface |
USB 3.0, Ethernet (100BASE-TX /1000BASE-T), Wi-Fi (IEEE802.11b/g/n) |
| USB Direct |
Yes |
| Printer Languages |
ESC/P raster HP-GL/2, HP RTL |
| Scanner Integration |
Document Scanner – Epson WorkForce DS-530, DS-6500, DS-60000 | Business Inkjet Printers – WF-R8591, WF-C869R, WF-C878R, WF-C879R, WF-C17590, WF-C20590, WF-C20600, WF-C20750, WF-C21000, WF-C20590 |
| Wi-Fi Direct |
Wi-Fi Direct (Simple AP) |
| Control Panel |
4.3" Touch Screen |
Printing
| Print Head |
PrecisionCore TFP Printhead |
| Nozzle Configuration |
3,200 nozzles (800 nozzles x 4 channels x 1 head) |
| Maximum Print Resolution |
2,400 x 1,200 dpi |
| Minimum Ink Droplet Size |
4.0 pl |
| Line Accuracy |
±0.1% or ±0.26 mm |
| Minimum Line Width |
0.07 mm (0.02 mm addressable) |
Paper Handling
| Media Thickness |
Roll: 0.08 mm to 0.3 mm / Cutsheet: 0.08 mm to 0.3 mm |
| Media Type |
Inkjet Coated Paper, Tracing Paper, Plain Paper |
| Side Margin |
Roll Paper: 3 mm (Borderless: 0 mm) | Cut Sheet: 3 mm (Top) / 20 mm (Bottom) / 3 mm (Left/Right) | Borderless: 3 mm (Top) / 20 mm (Bottom) / 0 mm (Left/Right) |
| Borderless Print |
Yes |
| Maximum Roll Diameter / Weight |
2/3" Core, Max. 170 mm/12kg |
| Paper Width |
Roll: 254 mm to 914 mm | Cutsheet: 210 mm to 914 mm |
Electrical Specifications
| Rated Voltage, Frequency and Current |
AC 100-240V, 50/60Hz, 2.8A |
| Electric Power Consumption |
Operating: Approx. 38W | Ready: Approx. 13W | Sleep: Approx. 1.3W | Power Off: Approx. 0.25W |
Environmental Conditions
| Temperature |
Operating: 10ºC - 35ºC, Storage: -20ºC - 40ºC |
| Humidity |
Operating: 20 - 80% (No Condensation), Storage: 5 - 85% (No Condensation) |
| Sound Pressure |
Operating: Approx. 49dB(A), Sleep: Approx. 32dB(A) |
| Sound Power |
Operating: Approx. 7.5B(A) |
Warranty
| Warranty |
3-years Warranty |
Options
| Roll Feed Spindle (36") |
C12C933301 |
Print Speed
| POP |
36 sec (A0) |
| CAD |
22 sec (A1) |
Software Information
| Supported OS |
Windows XP SP3 or later / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 / 2019, Mac OS X 10.6.8 or later |
| Printer Management Tools |
Epson Edge Dashboard, LFP Accounting Tool, Epson Device Admin, Epson Cloud Solution PORT |
Printer Dimensions and Weight (without ink)
| Dimensions With Stand (W x D x H) |
1,385 x 750 x 1,070 mm |
| Weight With Stand |
76 kg |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-T5435. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface |
USB 3.0, Ethernet (100BASE-TX /1000BASE-T), Wi-Fi (IEEE802.11b/g/n) |
| USB Direct |
Yes |
| Printer Languages |
ESC/P raster HP-GL/2, HP RTL |
| Wi-Fi Direct |
Wi-Fi Direct (Simple AP) |
| Supported OS |
Windows XP SP3 or later / Vista / 7 / 8 / 8.1 / 10, Windows Server 2003 / 2008 / 2012 / 2016 / 2019, Mac OS X 10.6.8 or later |
Package Contents & Ordering Information
Ordering Information
| Model |
SureColor SC-T5435 |
| Epson Product Code |
C11CJ56402 |
| Recommended Retail Price (incl. GST) |
S$6,598.00 |
| Consumables |
UltraChrome XD2: Black 110ml C13T41Q500 / 350ml C13T41D500 / 700ml C13T41C500; Cyan C13T41Q200 / C13T41D200 / C13T41C200; Magenta C13T41Q300 / C13T41D300 / C13T41C300; Yellow C13T41Q400 / C13T41D400 / C13T41C400; Maintenance Box C13T699700; Auto Cutter Spare Blade C13S902007; Borderless Replacement Pad Kit C13S400064 |
In the Box
- Printer
- Printer Stand
- Initial Ink Cartridge
- AC Power Cable
- Setup Guide
- Software CD-Rom
- Maintenance Box
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-T5435
What warranty does the SureColor SC-T5435 come with?
3 Years Local Warranty from Epson Singapore: 3 years. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-T5435 use?
UltraChrome XD2: Black 110ml C13T41Q500 / 350ml C13T41D500 / 700ml C13T41C500; Cyan C13T41Q200 / C13T41D200 / C13T41C200; Magenta C13T41Q300 / C13T41D300 / C13T41C300; Yellow C13T41Q400 / C13T41D400 / C13T41C400; Maintenance Box C13T699700; Auto Cutter Spare Blade C13S902007; Borderless Replacement Pad Kit C13S400064 Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
