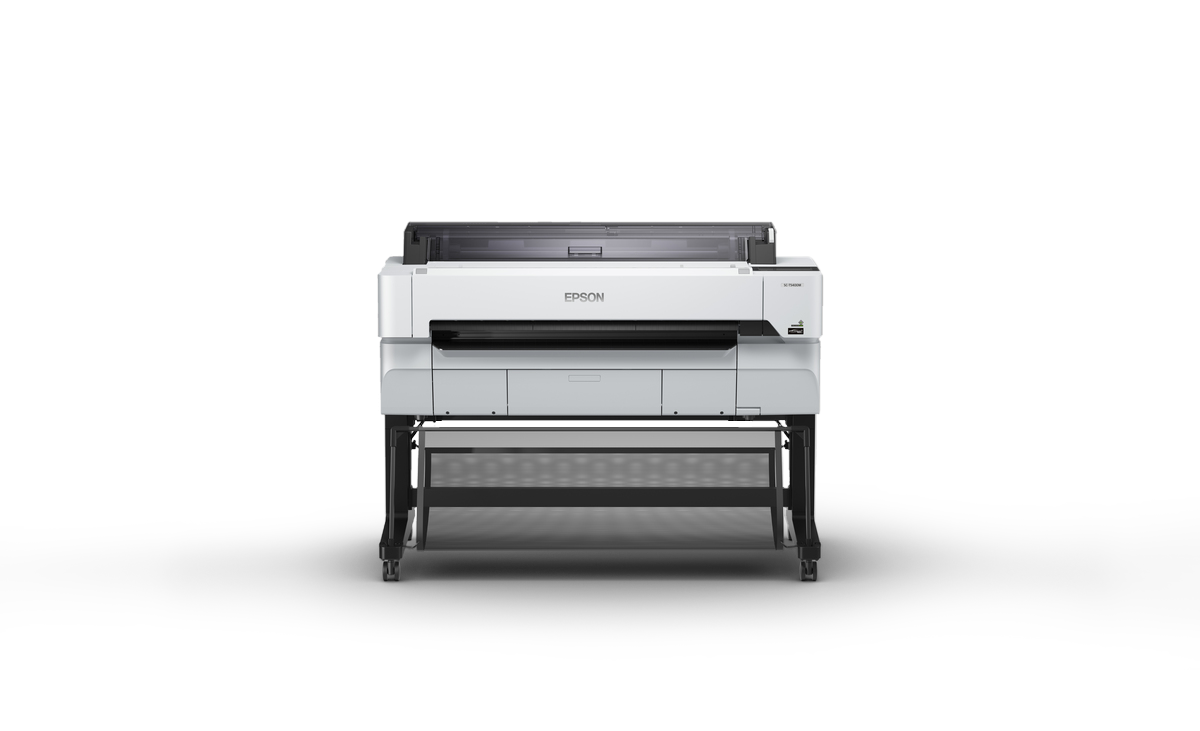

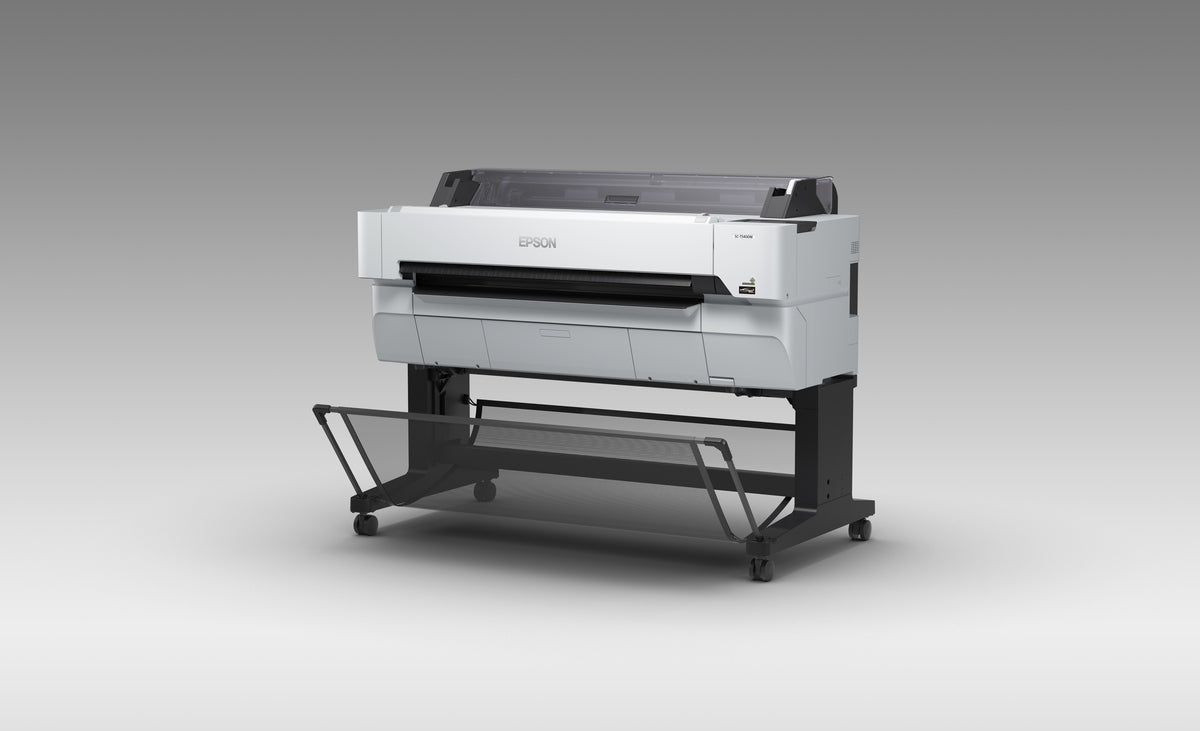

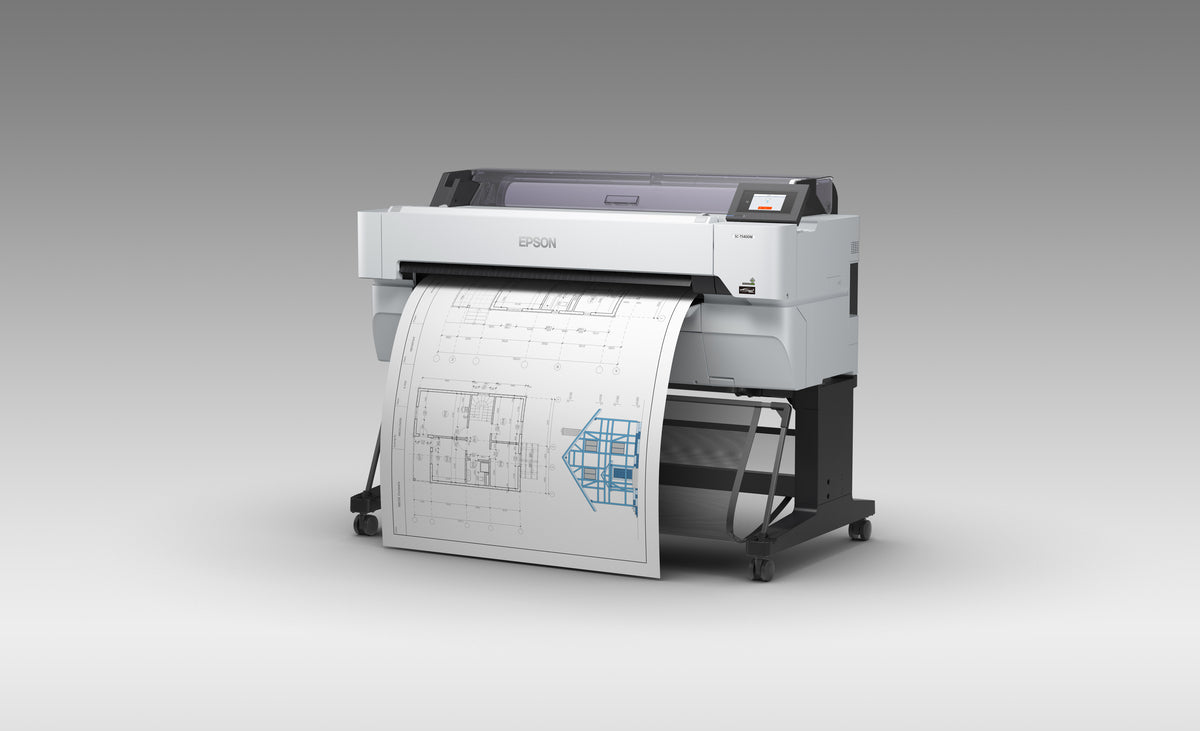

Epson SureColor SC-T5430M Multifunction Technical Printer
PRODUCT DESCRIPTION
Epson SureColor SC-T5430M Multifunction Technical Printer (C11CH65402) - 3 Years Local Warranty
The Epson SureColor SC-T5430M Multifunction Technical Printer - Take your plans to a bigger scale.
Impressive Print Speeds
The PrecisionCore printhead technology enables remarkable print speeds that will print A1 printouts in 22 seconds* - the fastest in speed among all Epson T-Series printers.
Unsurpassable Quality
With an improved formulation that works especially well with plain paper and special media such as tracing paper, the UltraChrome XD2 uses pigment ink for CMYK to provide quality, and to deliver accurate and sharp line printing that is suitable for vector images or luster data.
RGB Filters with Dual LEDs
In-built with RGB Filters and dual LEDs, the CIS Scanner on the SC-T5430M scans documents with greater clarity.
Supports Various Scan Modes
Watercolor Rendering, Recycled Paper Correction, Tracing Paper Correction, Blue Print Scanning, Inverted Blue Print.
Control at your Fingertips
A 4.3 inch touch panel on the T-series gives you the convenience of an easy setup and a PC-less operation that just makes things extra efficient.
Preview before Printing
Save time and money when you preview your documents before printing, preventing accidental misprints.
Seamless Scan to Print
Scan and enlarge your printouts in four easy steps without needing to connect to a computer.
Ideal For
Architects, engineers, construction firms and CAD/GIS teams in Singapore that print technical drawings, plans and posters. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-T5430M Datasheet — Technical Specifications
General
| Model | SureColor SC-T5430M |
| Official Product Name | Epson SureColor SC-T5430M Multifunction Technical Printer |
| Epson Product Code | C11CH65402 |
| Brand | Epson |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years |
Ink
| Ink Type | Epson UltraChrome XD2 Pigment Ink |
| Colours | 4 Colours - Cyan, Magenta, Yellow, Black |
| Ink Capacity | 110ml or 350ml (Cyan, Magenta, Yellow, Black) |
Media Handling
| Maximum Roll Diameter | 2/3" core |
| Maximum Roll Weight | Max. 170 mm/12kg |
| Media Thickness | 0.8mm |
| Media Thickness (ASF / Cutsheet) | Up to 0.3 mm Auto Sheet Feeder / Cutsheet: 0.08 mm to 0.3 mm |
| Maximum Paper Width | Roll: 254 mm to 914 mm; Cutsheet: 210 mm to 914 mm |
| Media Type | Inkjet Coated Paper, Tracing Paper, Plain Paper |
| Side Margin | 3mm |
| Borderless Print | Yes |
Consumables
| Maintenance Box | Yes |
| Auto Cutter Spare Blade | Yes |
Control Panel
| Control Panel | 4.3" Touch Screen |
Printer Width
| Printer Width | 36" |
Connectivity
| Included Software | Windows: Install Navi, Printer driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config, Epson Software Updater, LFP Print Plug-in for Office, Manuals; Mac: Setup Navi |
| Printer Interfaces | Super-Speed USB, 100BASE-TX / 1000BASE-T, IEEE802.11 b/g/n, USB Host |
| USB Direct | Yes |
| Printer Languages | ESC/P raster, HP-GL2, HP RTL |
| Memory | 1GB + 8GB*2 |
| Printer Management | Epson Edge Dashboard, Accounting Tool |
| Advanced Printer Driver | Crop/Rotate/Enlarge Tools |
Printing
| Printing Technology | PrecisionCore TFP Printhead 1.3" |
| Nozzle Configuration | 3,200 nozzles (800 nozzles x 4 channels x 1 head) |
| Maximum Print Resolution | 2,400 x 1,200 dpi |
| Minimum Ink Droplet Size | 4.0pl |
| Print Speed (CAD A1) | 22 sec |
Scanner
| Scanner Integration | Built-In |
| Scanner Sensor | CIS with RGB Filters |
| Light Source | Dual |
| Optical Resolution | 600dpi |
| Scan Speed (200dpi) | Colour: 4.5 ips; Mono: 7.5 ips |
| Maximum Scan Length | 30.5m |
Copy
| Scaling | 25 to 400% |
| Maximum Copies | 99 |
Options
| Options | Roll Feed Spindle (36") |
Electrical
| Power Consumption | Operating: approx. 38W; Ready: approx. 13W; Sleep: approx. 1.6W; Off: approx. 0.25W |
| Power Requirement | AC 100-240V, 50/60Hz |
Environmental
| Operating Humidity | 20 to 80% (no condensation) |
| Storage Humidity | 5 to 85% (no condensation) |
General
| Dimensions (W x D x H) | 1,385 x 966 x 1,060 mm |
| Weight | 89kg (without ink) |
| Warranty | 3-years |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-T5430M. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Included Software | Windows: Install Navi, Printer driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config, Epson Software Updater, LFP Print Plug-in for Office, Manuals; Mac: Setup Navi |
| Printer Interfaces | Super-Speed USB, 100BASE-TX / 1000BASE-T, IEEE802.11 b/g/n, USB Host |
| USB Direct | Yes |
| Printer Languages | ESC/P raster, HP-GL2, HP RTL |
| Advanced Printer Driver | Crop/Rotate/Enlarge Tools |
Package Contents & Ordering Information
Ordering Information
| Model | SureColor SC-T5430M |
| Epson Product Code | C11CH65402 |
| Recommended Retail Price (incl. GST) | S$7,203.00 |
| Consumables | UltraChrome XD2 ink (per epson.com.sg ink finder): 350ml T41D - Cyan C13T41D200, Magenta C13T41D300, Yellow C13T41D400, Black C13T41D500; 110ml T41Q - Cyan C13T41Q200, Magenta C13T41Q300, Yellow C13T41Q400, Black C13T41Q500. Maintenance box and auto cutter spare blade listed in specs without part numbers. |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-T5430M
What warranty does the SureColor SC-T5430M come with?
3 Years Local Warranty from Epson Singapore: 3 years. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-T5430M use?
UltraChrome XD2 ink (per epson.com.sg ink finder): 350ml T41D - Cyan C13T41D200, Magenta C13T41D300, Yellow C13T41D400, Black C13T41D500; 110ml T41Q - Cyan C13T41Q200, Magenta C13T41Q300, Yellow C13T41Q400, Black C13T41Q500. Maintenance box and auto cutter spare blade listed in specs without part numbers. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
