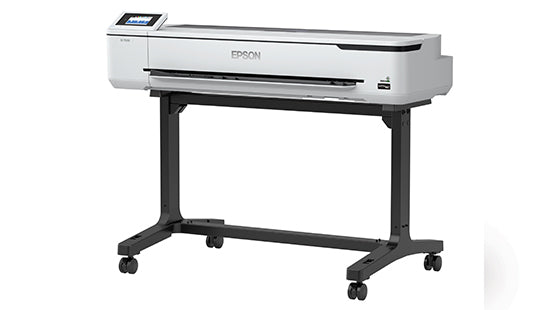

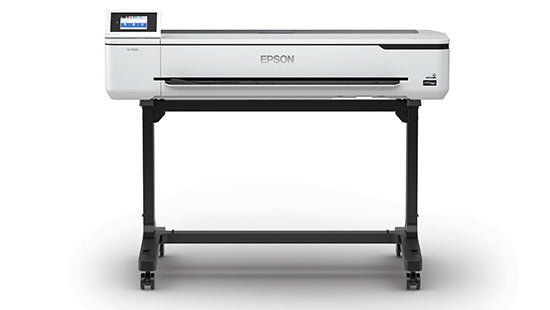

Epson SureColor SC-T5130 Technical Printer
PRODUCT DESCRIPTION
Epson SureColor SC-T5130 Technical Printer (C11CF12401) - 3 Years Local Warranty
The Epson SureColor SC-T5130 Technical Printer - Fast and Accurate, Down to the Finest Details.
Small Footprint
Sleek, minimally designed, the SC-T5130 is of a comfortable size that fits into tight workspaces effortlessly and has one of the smallest footprints in its class.
Ideal For Corners
As the printers are built for a full front operation, they can be placed ideally in any corner of the office, without taking up too much space.
Auto Switch Function
As the SC-T5130 printer takes into account smaller-sized offices, it is developed to allow loading of a range of paper sizes. The Auto Switch Function enables a seamless switch between roll paper and cut sheet paper, reducing the need for a second printer for additional A3 or A4 printing.
User Convenience In Mind
Designed with the user in mind, the printer will print and cut printouts without dropping it from the printer until it is ready to be collected.
Ergonomic Design
Designed with the user in mind, the SC-T5130 printer's smart design can cater to users of different heights to help make it comfortable for them to load the media as well as to operate the printers.
Wireless Connectivity
The SC-T5130 is integrated with Wi-Fi and Wi-Fi Direct, making it convenient to print right from smart devices from anywhere in the office. The Wi-Fi Direct function acts as an access point, allowing devices to connect directly to the printer without a router. Additionally, the T-series printers come equipped to allow direct wireless printing from any Apple devices through Apple AirPrint, without the need for any additional drivers.
Control At Your Fingertips
A 4.3 inch touch panel on the SC-T5130 gives you the convenience of an easy setup and a PC-less operation that just makes things extra efficient.
Ideal For
Architects, engineers, construction firms and CAD/GIS teams in Singapore that print technical drawings, plans and posters. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-T5130 Datasheet — Technical Specifications
General
| Model | SureColor SC-T5130 |
| Official Product Name | Epson SureColor SC-T5130 Technical Printer |
| Epson Product Code | C11CF12401 |
| Brand | Epson |
| Warranty | 3 Years Local Warranty (Singapore) - 3 years |
Ink
| Ink Type | Epson UltraChrome XD2 Pigment Ink |
| Colours | 4 Colours – Cyan, Magenta, Yellow, Black |
| Ink Capacity | Black: 50ml, 80ml; Cyan, Magenta, Yellow: 26ml, 50ml |
Roll Media Handling
| Maximum Roll Diameter | 2" core |
| Maximum Roll Weight | Max. 110 mm / 3kg |
Control Panel
| Control Panel | 4.3" Touch Screen |
Consumables
| Maintenance Box | Yes |
| Auto Cutter Spare Blade | Yes |
Printer Width
| Printer Width | 36" |
Connectivity
| Included Software | Windows: Install Navi, Printer driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config, Epson Software Updater, LFP Print Plug-in for Office, Epson manuals; Mac: Setup Navi |
| Interface | USB/LAN/WiFi |
| Printer Interfaces | Super-Speed USB, 100BASE-TX/1000BASE-T, IEEE802.11 b/g/n |
| Printer Languages | ESC/P raster, HP-GL/2, HP RTL |
| Scanner Integration | Supports Epson Document Scanner |
| Advanced Printer Driver | Crop/Rotate/Enlarge Tools |
Printing
| Printing Technology | Printhead: PrecisionCore TFP Printhead 1.3" |
| Nozzle Configuration | 3200 nozzles (800 nozzles x 4 channels x 1 head) |
| Maximum Print Resolution | 2400 x 1200 dpi |
| Minimum Ink Droplet Size | 4.0pl |
| Print Speed | CAD (A1): 31 sec |
Paper Handling
| Media Thickness | Roll: 0.05 mm to 0.21 mm; ASF/Cutsheet: 0.12 mm to 0.27 mm |
| Maximum Paper Width | Roll: 329 mm to 914 mm; Cutsheet (1 sheet): 210 mm to 910 mm; Cutsheet (ASF): A1 to A0 (as listed) |
| Media Type | Inkjet Coated Paper, Tracing Paper, Plain Paper |
| Side Margin | 3mm |
| Auto-Sheet Feeder | Yes (Up to A3) |
Power
| Power Consumption | Operating: Approx. 28W; Ready: Approx. 8W; Sleep: Approx. 1.6W; Power Off: Approx. 0.2W |
| Power Requirement | AC 100–240V, 50/60Hz |
| Recommended Operating Humidity | Operating: 20–80% (no condensation); Storage: 5–85% (no condensation) |
General
| Dimensions (W x D x H) | 1268 x 696 x 913 mm |
| Weight | 46kg (without ink cartridges) |
| Memory | 1GB |
| Warranty | 3-years warranty |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-T5130. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Included Software | Windows: Install Navi, Printer driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config, Epson Software Updater, LFP Print Plug-in for Office, Epson manuals; Mac: Setup Navi |
| Interface | USB/LAN/WiFi |
| Printer Interfaces | Super-Speed USB, 100BASE-TX/1000BASE-T, IEEE802.11 b/g/n |
| Printer Languages | ESC/P raster, HP-GL/2, HP RTL |
| Advanced Printer Driver | Crop/Rotate/Enlarge Tools |
Package Contents & Ordering Information
Ordering Information
| Model | SureColor SC-T5130 |
| Epson Product Code | C11CF12401 |
| Recommended Retail Price (incl. GST) | S$5,378.00 |
| Consumables | UltraChrome XD2 pigment ink (epson.com.sg ink page): T40B series – Black 80ml C13T40B100, Cyan 50ml C13T40B200, Magenta 50ml C13T40B300, Yellow 50ml C13T40B400; T40A series – Black 50ml C13T40A100, Cyan 26ml C13T40A200, Magenta 26ml C13T40A300, Yellow 26ml C13T40A400. Maintenance box and auto cutter spare blade listed as available (part numbers not published on page). |
Epson Singapore does not publish an itemised in-the-box list for this model. Please ask SourceIT if you need the exact package contents confirmed before ordering.
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-T5130
What warranty does the SureColor SC-T5130 come with?
3 Years Local Warranty from Epson Singapore: 3 years. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-T5130 use?
UltraChrome XD2 pigment ink (epson.com.sg ink page): T40B series – Black 80ml C13T40B100, Cyan 50ml C13T40B200, Magenta 50ml C13T40B300, Yellow 50ml C13T40B400; T40A series – Black 50ml C13T40A100, Cyan 26ml C13T40A200, Magenta 26ml C13T40A300, Yellow 26ml C13T40A400. Maintenance box and auto cutter spare blade listed as available (part numbers not published on page). Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
