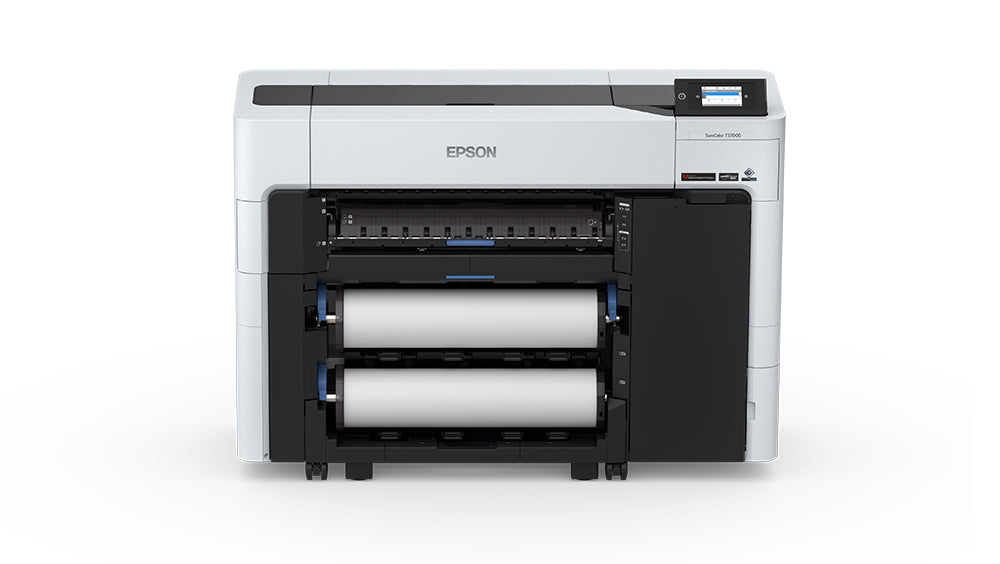

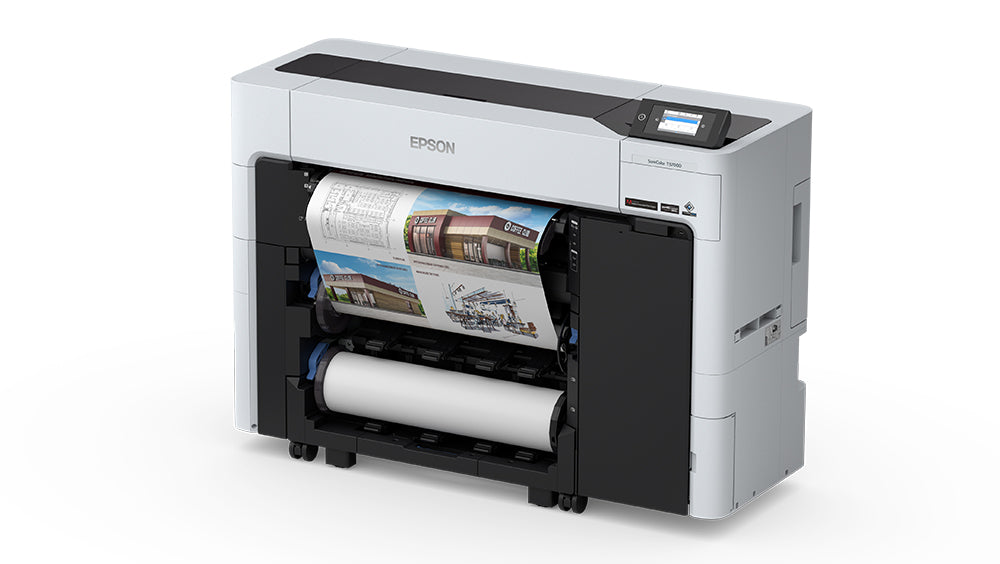

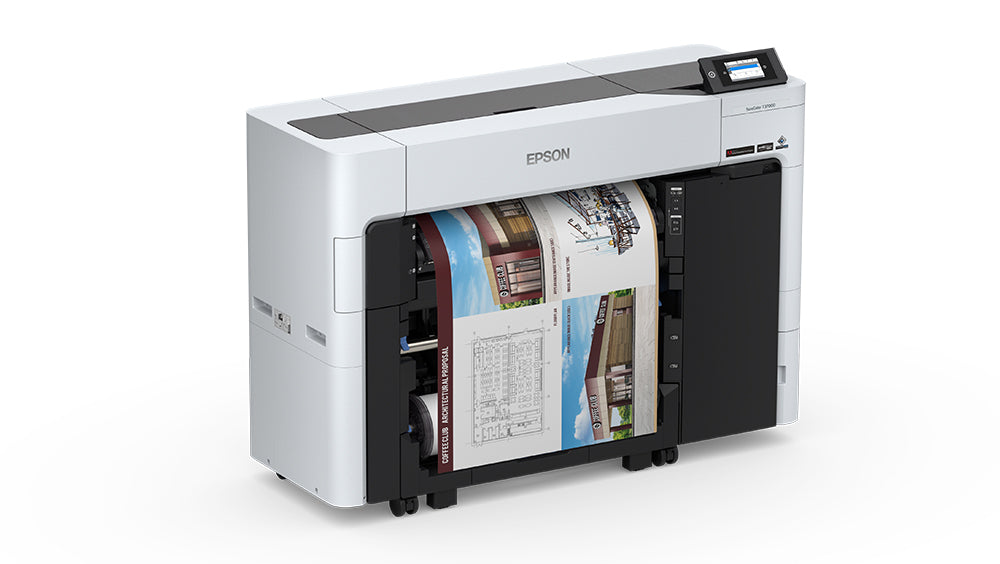

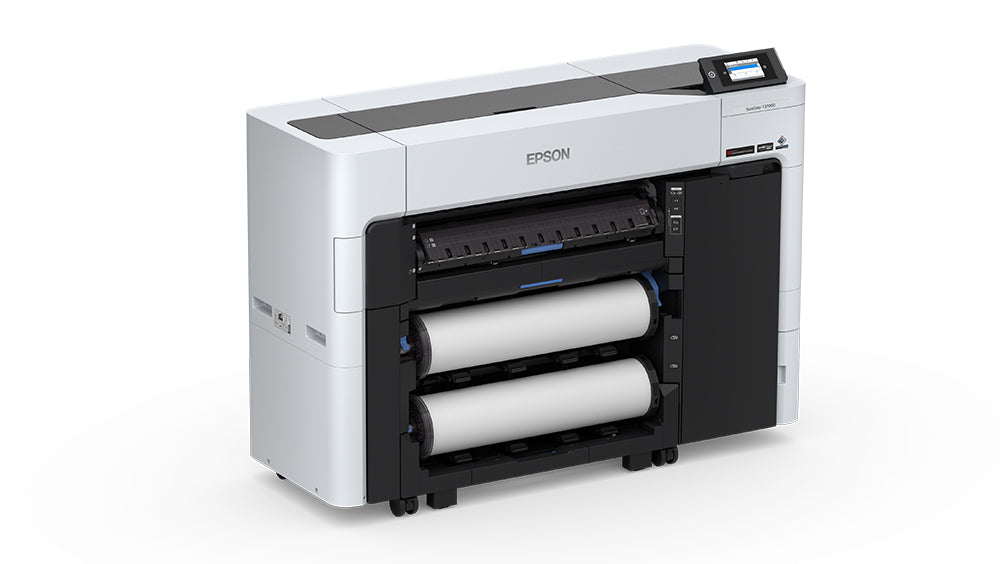

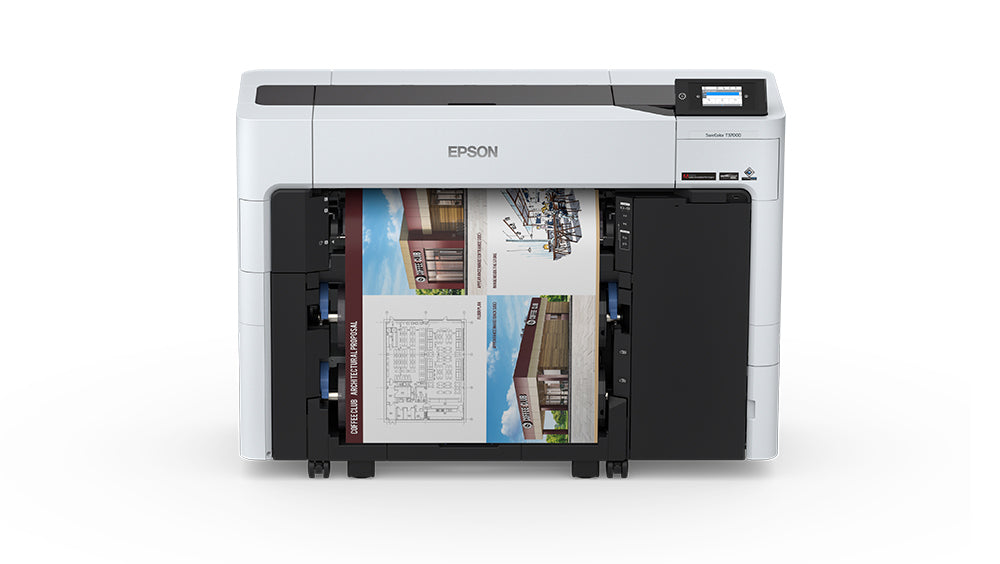

Epson SureColor SC-T3730DE 24" Dual Roll Technical Printer
PRODUCT DESCRIPTION
Epson SureColor SC-T3730DE 24" Dual Roll Technical Printer (C11CH80409) - 2 Years Local Warranty
The Epson SureColor SC-T3730DE 24" Dual Roll Technical Printer - Sustainable Innovation with Excellent Scalability.
Sustainable Innovation with Excellent Scalability
Be ready to amplify your ideas and showcase them in spectacular precision with Epson's new SureColor technical printer series. Equipped with PrecisionCore MicroTFP printheads for precise printing and vivid colour-accurate prints using the UltraChrome XD3 inks.
Key Capabilities
Outstanding print speeds for CAD documents of up to 20s (A1 prints); Improved image quality with 6 colour UltraChrome XD3 inks; Higher capacity (110ml/350ml/700ml) ink set available; Enhanced security with self-encrypting SSD and print authentication; Full frontal operation with sleek chassis design; Dual roll for increased non-stop productivity.
PrecisionCore Micro TFP Printhead
The larger 2.64" printheads deliver increased productivity from faster speed coupled with industry-leading precise droplet formation. Using the variable-sized droplets technology, businesses can expect crisp line accuracy, sharp text and vibrant photo quality.
Self-Encrypting SSD
With the self-encrypting SSD, enjoy improved performance and handling of large print data. The 960GB additional storage memory allows the capability to create folders for PC-less production printing with its data secured by AES-256 and protected by a TPM chip.

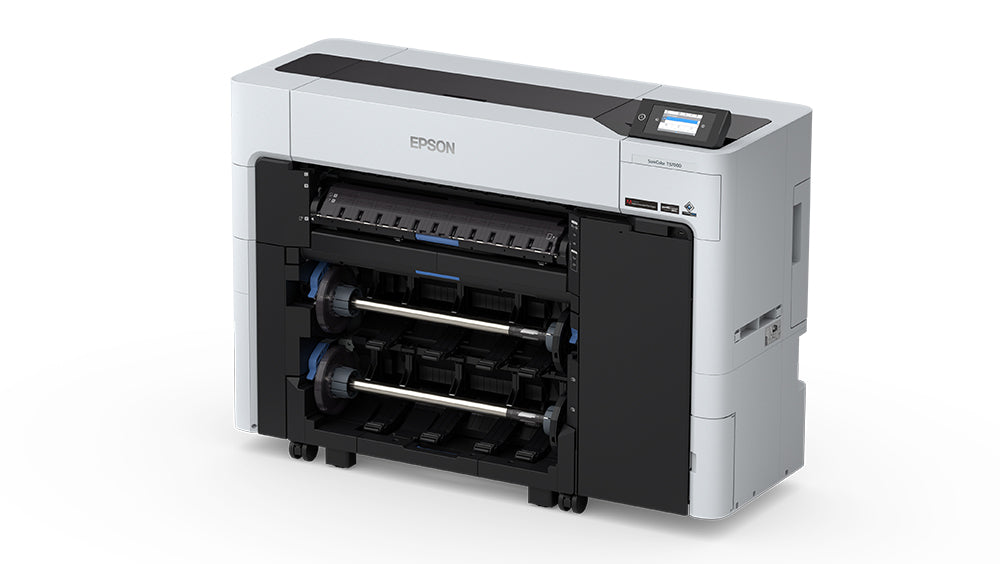

Improved Media Handling
With dual-roll capability, operators' workload is reduced and productivity is maximised. Using the function for automatic selection of different media types and sizes, operators can also use the second reel as a take-up reel for unattended non-stop operation.
Outstanding Print Quality and Performance
Achieving the finest details both on paper and special media, the UltraChrome XD3 inks with new red ink produce prints in rich and vivid colours, especially for POP materials. Featuring six colours, including the all-new gamut-expanding red ink, businesses can print everything from everyday technical drawings to graphics and renderings.
Full Frontal Operation Design
Intuitive front loading improves convenience for operators with an innovative full frontal operation design. For non-stop productivity and increased efficiency, operational downtime is reduced with high-capacity ink cartridges, storage space for consumables, and dual rollers.
Ideal For
Architects, engineers, construction firms and CAD/GIS teams in Singapore that print technical drawings, plans and posters. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-T3730DE Datasheet — Technical Specifications
General
| Model | SureColor SC-T3730DE |
| Official Product Name | Epson SureColor SC-T3730DE 24" Dual Roll Technical Printer |
| Epson Product Code | C11CH80409 |
| Brand | Epson |
| Warranty | 2 Years Local Warranty (Singapore) - 2 years |
Consumables
| Maintenance Box | C13S210115; Borderless: C13S210116 |
| Replacement Cutter Blade | C13S210117 |
| 110ml Ink Cartridges | Cyan: C13T51F200; Magenta: C13T51F300; Yellow: C13T51F400; Photo Black: C13T51F100; Matte Black: C13T51F800; Red: C13T51FF00 |
| 350ml Ink Cartridges | Cyan: C13T50Y200; Magenta: C13T50Y300; Yellow: C13T50Y400; Photo Black: C13T50Y100; Matte Black: C13T50Y800; Red: C13T50YF00 |
| 700ml Ink Cartridges | Cyan: C13T50R200; Magenta: C13T50R300; Yellow: C13T50R400; Photo Black: C13T50R100; Matte Black: C13T50R800; Red: C13T50RF00 |
Printer Width
| Printer Width | 24" |
Connectivity
| Interface | USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n) |
| Memory | 4GB + 960GB (Optional SSD) |
| Mobile | Epson Smart Panel, Apple AirPrint |
| USB Direct | Epson Scanned PDF, TIFF, JPEG, HP-GL/2, HP RTL |
| Printer Languages | ESC/P raster, HP-GL/2, HP RTL |
| Wi-Fi Direct | Wi-Fi Direct (Simple AP, up to 8 device connections) |
| Control Panel | 4.3" Touch Screen |
Printing
| Print Head | PrecisionCore MicroTFP Printhead |
| Nozzle Configuration | 9,600 nozzles (400 nozzles x 24 channels x 1 head) |
| Maximum Print Resolution | 2,400 x 1,200 dpi |
| Minimum Ink Droplet Size | 3.5 pl |
| Print Speed (A1 Plain Paper) | 16 sec (Draft), 21 sec (Speed), 111 sec (High Quality) |
| Print Speed (A1 Premium Glossy 170gsm) | 65 sec (Speed), 111 sec (Quality), 245 sec (Max Quality) |
| CAD A1 Print Speed | 20 sec (Draft, 300x600dpi), 27 sec (Speed, 600x600dpi) |
| Poster A1 Print Speed | 21 sec (Vivid/Speed, 300x600dpi) |
| Line Accuracy | ±0.1% or ±0.26 mm |
| Minimum Line Width | 0.08mm (0.02mm addressable) |
| Margin (Roll Paper) | Top, Bottom: Min. 3mm; Right, Left: Min. 0mm |
| Margin (Cut Sheet) | Top: Min. 3mm; Bottom: Min. 12.7mm; Right, Left: Min. 0mm |
Paper Handling
| Media Thickness | Roll: 0.07mm–0.8mm; Cut Sheet: 0.07mm–0.8mm; Poster Board: 0.8mm–1.5mm |
| Paper Path | Roll (Double Roll), Cut Sheet (Manual Feed), Poster Board (Manual Feed) |
| Borderless Print Sizes (mm) | 1118, 1030, 914, 841, 728, 700, 610, 594, 515, 508, 500, 432, 406, 356, 330, 300, 254 |
| Maximum Roll Diameter / Weight | 2/3" Core, Max. 170mm / 6.8kg |
| Paper Width | Roll: 254–610mm; Cut Sheet: 203–610mm |
Dimensions and Weight
| Dimensions (W x D x H) | 1,365 x 499 x 975mm |
| Weight | 118.1kg |
Electrical Specifications
| Rated Voltage | AC 100-240V 50/60Hz |
| Rated Current | 3.4-1.6A |
| Power Consumption | Operating: 75W; Ready: 32W; Sleep: 2.0W; Standby: 0.3W |
Ink System
| Ink Type | UltraChrome XD3 Pigment Ink |
| Ink Colours | Cyan, Magenta, Yellow, Red, Matte Black, Photo Black |
Environmental Conditions
| Operating Temperature | 10°C to 35°C |
| Storage Temperature | -20°C to 40°C |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 5% to 85% (no condensation) |
| Sound Pressure | 46dB(A) |
| Sound Power | 6.3B(A) |
Operating Systems
| Windows | Windows XP (32bit/64bit), Vista, 7, 8, 8.1, 10, 11 |
| Windows Server | 2003 SP2 or later, 2008, 2012, 2016, 2019, 2022 |
| Mac OS | OS X 10.6.8 or later |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-T3730DE. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface | USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n) |
| Mobile | Epson Smart Panel, Apple AirPrint |
| USB Direct | Epson Scanned PDF, TIFF, JPEG, HP-GL/2, HP RTL |
| Printer Languages | ESC/P raster, HP-GL/2, HP RTL |
| Wi-Fi Direct | Wi-Fi Direct (Simple AP, up to 8 device connections) |
| Mac OS | OS X 10.6.8 or later |
Package Contents & Ordering Information
Ordering Information
| Model | SureColor SC-T3730DE |
| Epson Product Code | C11CH80409 |
| Recommended Retail Price (incl. GST) | S$6,956.00 |
| Consumables | UltraChrome XD3 pigment ink (6 colours incl. Red). 110ml: C C13T51F200, M C13T51F300, Y C13T51F400, PK C13T51F100, MK C13T51F800, Red C13T51FF00. 350ml: C C13T50Y200, M C13T50Y300, Y C13T50Y400, PK C13T50Y100, MK C13T50Y800, Red C13T50YF00. 700ml: C C13T50R200, M C13T50R300, Y C13T50R400, PK C13T50R100, MK C13T50R800, Red C13T50RF00. Maintenance Box C13S210115; Borderless Maintenance Box C13S210116; Replacement Cutter Blade C13S210117. |
In the Box
- Printer
- Initial ink packs
- AC power cable
- Setup guide
- Software CD-ROM
- Maintenance box
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-T3730DE
What warranty does the SureColor SC-T3730DE come with?
2 Years Local Warranty from Epson Singapore: 2 years. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-T3730DE use?
UltraChrome XD3 pigment ink (6 colours incl. Red). 110ml: C C13T51F200, M C13T51F300, Y C13T51F400, PK C13T51F100, MK C13T51F800, Red C13T51FF00. 350ml: C C13T50Y200, M C13T50Y300, Y C13T50Y400, PK C13T50Y100, MK C13T50Y800, Red C13T50YF00. 700ml: C C13T50R200, M C13T50R300, Y C13T50R400, PK C13T50R100, MK C13T50R800, Red C13T50RF00. Maintenance Box C13S210115; Borderless Maintenance Box C13S210116; Replacement Cutter Blade C13S210117. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
