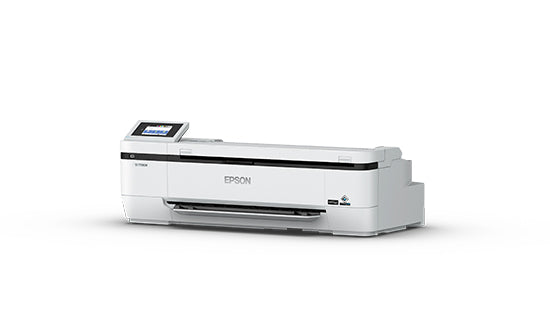

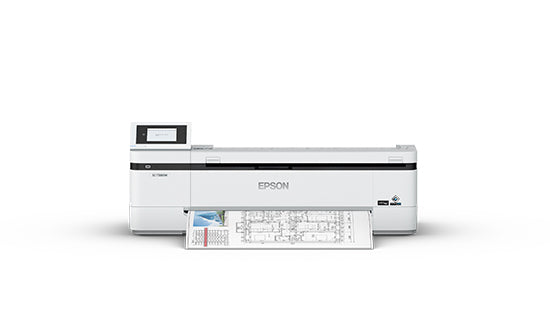

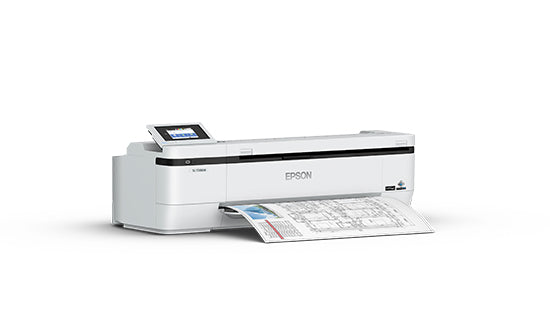

Epson SureColor SC-T3130M 24" Multi-Function Technical Printer (C11CJ36402) - 3 Years Local Warranty
The Epson SureColor SC-T3130M 24" Multi-Function Technical Printer - Go Big on Possibilities and Precision.
PrecisionCore Printhead Technology
Equipped with the next-generation PrecisionCore printhead technology, piezo elements are used to mechanically eject ink from the SureColor T-series' PrecisionCore Micro TFP printhead, producing incredibly precise line detail, sharp text and photographic quality graphics. Variable size dot technology controls ink droplets down to 4.0 picolitres on the SC-T3130M.
Nozzle Verification Technology
Print without interruptions with the advanced built-in Nozzle Verification Technology (NVT). This technology monitors nozzle health and adjusts print quality automatically without interruption, even during printing.
Control at Your Fingertips
A 4.3-inch touch panel gives you the convenience of an easy setup and PC-less operation.
Small Footprint
At 970 x 505 x 292mm without the stand, the SC-T3130M has one of the smallest footprints in its class.
Wireless Connectivity
Integrated with Wi-Fi and Wi-Fi Direct, with Apple AirPrint support for wireless printing from smart devices anywhere in the office.
Epson Cloud Solution PORT
Cloud-based software providing printer status monitoring, troubleshooting alerts, production tracking and usage analytics.
Seamless Scan to Print
Scan and enlarge your printouts in just four easy steps without needing to connect to a computer.
Key Highlights
Ideal For
Architects, engineers, construction firms and CAD/GIS teams in Singapore that print technical drawings, plans and posters. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-T3130M Datasheet — Technical Specifications
General
| Model |
SureColor SC-T3130M |
| Official Product Name |
Epson SureColor SC-T3130M 24" Multi-Function Technical Printer |
| Epson Product Code |
C11CJ36402 |
| Brand |
Epson |
| Warranty |
3 Years Local Warranty (Singapore) - 3 years |
Consumables
| Black Ink Cartridge |
50ml: C13T40A100; 80ml: C13T40B100 |
| Cyan Ink Cartridge |
26ml: C13T40A200; 50ml: C13T40B200 |
| Magenta Ink Cartridge |
26ml: C13T40A300; 50ml: C13T40B300 |
| Yellow Ink Cartridge |
26ml: C13T40A400; 50ml: C13T40B400 |
| Maintenance Box |
C13S210057 |
| Auto Cutter Spare Blade |
C13S210055 |
Printer Width
Connectivity
| Memory |
1GB + 8GB x 3 |
| Interface |
USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n) |
| USB Direct |
PDF, TIFF, JPEG |
| Printer Languages |
ESC/P raster, HP-GL/2, HP RTL |
| Wi-Fi Direct |
Wi-Fi Direct (Simple AP) |
| Control Panel |
4.3" Touch Screen |
Printing
| Print Head |
PrecisionCore TFP Printhead |
| Nozzle Configuration |
3,200 nozzles (800 nozzles x 4 channels x 1 head) |
| Maximum Print Resolution |
2,400 x 1,200 dpi |
| Minimum Ink Droplet Size |
4.0 pl |
| Print Speed |
CAD (A1): 34 seconds |
| Line Accuracy |
±0.1% or ±0.26 mm |
| Minimum Line Width |
0.07mm (0.02mm with special consideration) |
Paper Handling
| Media Thickness |
Roll: 0.05 mm to 0.21 mm; ASF/Cutsheet: 0.12 mm to 0.27 mm |
| Side Margin |
3mm |
| Auto-Sheet Feeder |
A4 to A3 |
| Maximum Roll Diameter / Weight |
2" core, Max 110 mm / 3kg |
| Paper Width |
Roll: 329–610 mm; Cutsheet: 210–610 mm |
| Paper Capacity for ASF |
50 sheets plain paper / 5 sheets special media |
Electrical Specifications
| Rated Voltage, Frequency, Current |
AC 100–240V, 50/60Hz, 1.4A |
| Electric Power Consumption |
Operating: Approx. 24W; Ready: Approx. 11W; Sleep: Approx. 2.0W; Power Off: Approx. 0.2W |
Ink System
| Ink Type |
UltraChrome XD2 Pigment Ink |
| Colours |
Cyan, Magenta, Yellow, Black |
Environmental Conditions
| Temperature |
Operating: 10–35°C; Storage: -20–40°C |
| Humidity |
Operating: 20–80% (no condensation); Storage: 5–85% (no condensation) |
| Sound Pressure |
Operating: Approx. 47dB(A) |
| Sound Power |
Operating: Approx. 6.6B(A) |
Operating System
| Operating System |
Windows XP SP3 or later / Vista / 7 / 8 / 8.1 / 10; Windows Server 2003 / 2008 / 2012 / 2016 / 2019; Mac OS X 10.6.8 or later |
Scanning
| Sensor |
CIS |
| Light Source |
RGB LED |
| Optical Resolution |
600 dpi |
| Scan Speed (200dpi) |
1.5 ips (Colour) / 4.5 ips (Mono) |
| Minimum Document Size |
148 x 148 mm |
| Maximum Document Size |
609.6 x 2,720 mm |
| Scan Formats |
JPEG, PDF (Single Page), PDF (Multi Page), PDF/A (Single/Multi), TIFF |
| Scan to Destination |
Scan to Network Folder, Scan to FTP Server, Scan to Email, Scan to Memory Device |
Copy
| Copy Speed |
77 sec (Colour) / 60 sec (Mono) |
| Scaling |
25–400% |
| Maximum Copies |
99 |
Options
| Roll Feed Spindle (24") |
C12C933211 |
| Printer Stand (24") |
C12C933151 |
| Carrier Sheet |
C12C936101 |
Dimensions and Weight
| Dimension with Stand (W x H x D) |
970 x 974 x 696 mm |
| Dimension without Stand (W x H x D) |
970 x 292 x 505 mm |
| Weight without Stand |
33.4 kg |
Warranty
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-T3130M. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Interface |
USB 3.0, Ethernet (100BASE-TX/1000BASE-T), Wi-Fi (IEEE802.11b/g/n) |
| USB Direct |
PDF, TIFF, JPEG |
| Printer Languages |
ESC/P raster, HP-GL/2, HP RTL |
| Wi-Fi Direct |
Wi-Fi Direct (Simple AP) |
| Operating System |
Windows XP SP3 or later / Vista / 7 / 8 / 8.1 / 10; Windows Server 2003 / 2008 / 2012 / 2016 / 2019; Mac OS X 10.6.8 or later |
Package Contents & Ordering Information
Ordering Information
| Model |
SureColor SC-T3130M |
| Epson Product Code |
C11CJ36402 |
| Recommended Retail Price (incl. GST) |
S$4,977.00 |
| Consumables |
UltraChrome XD2 pigment ink cartridges: Black 50ml C13T40A100 / 80ml C13T40B100; Cyan 26ml C13T40A200 / 50ml C13T40B200; Magenta 26ml C13T40A300 / 50ml C13T40B300; Yellow 26ml C13T40A400 / 50ml C13T40B400. Maintenance Box C13S210057. Auto Cutter Spare Blade C13S210055. Options: Roll Feed Spindle 24" C12C933211, Printer Stand 24" C12C933151, Carrier Sheet C12C936101. |
In the Box
- Printer
- Initial Ink Cartridge
- AC Power Cable
- Setup Guide
- Software CD-ROM
- Maintenance Box
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-T3130M
What warranty does the SureColor SC-T3130M come with?
3 Years Local Warranty from Epson Singapore: 3 years. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-T3130M use?
UltraChrome XD2 pigment ink cartridges: Black 50ml C13T40A100 / 80ml C13T40B100; Cyan 26ml C13T40A200 / 50ml C13T40B200; Magenta 26ml C13T40A300 / 50ml C13T40B300; Yellow 26ml C13T40A400 / 50ml C13T40B400. Maintenance Box C13S210057. Auto Cutter Spare Blade C13S210055. Options: Roll Feed Spindle 24" C12C933211, Printer Stand 24" C12C933151, Carrier Sheet C12C936101. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
