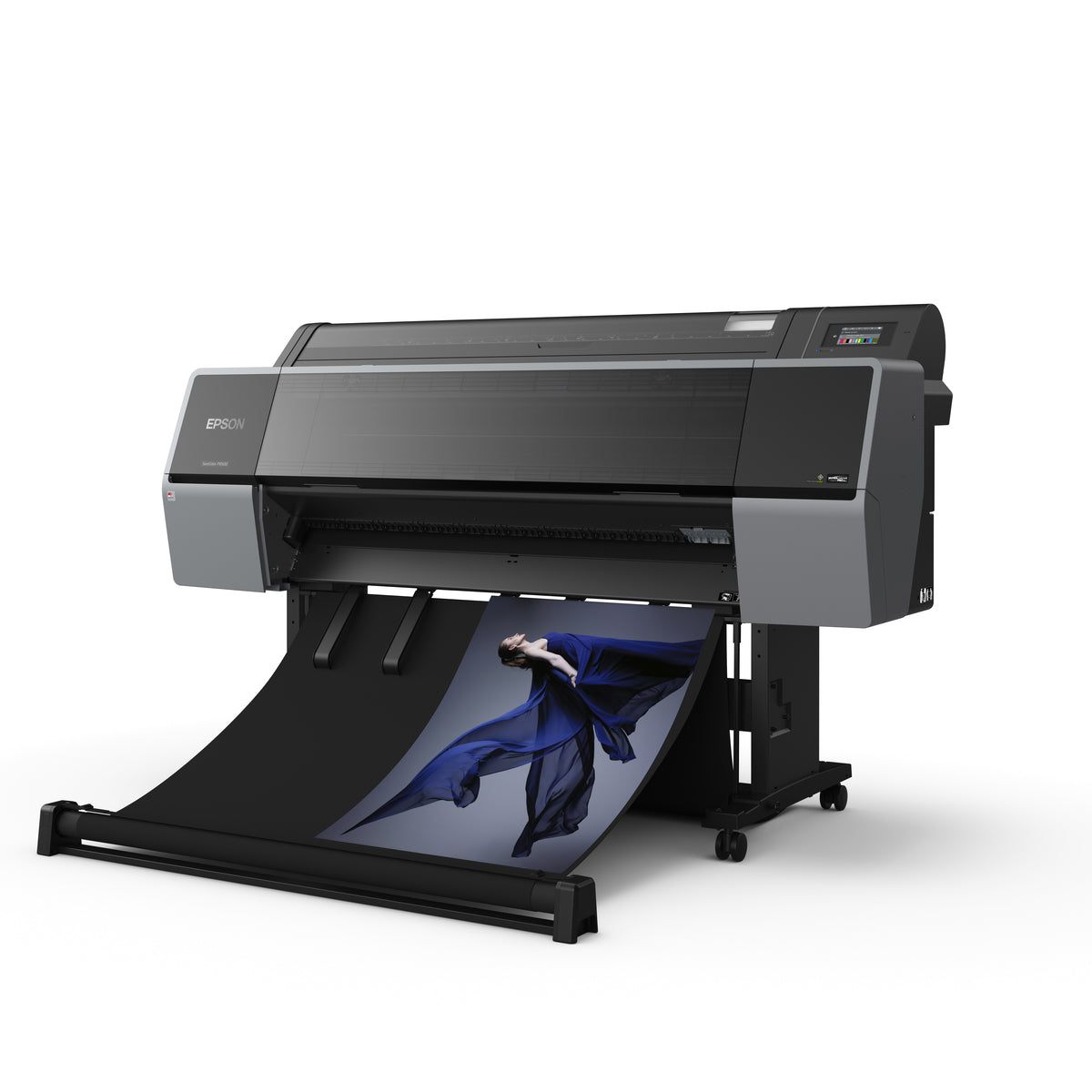

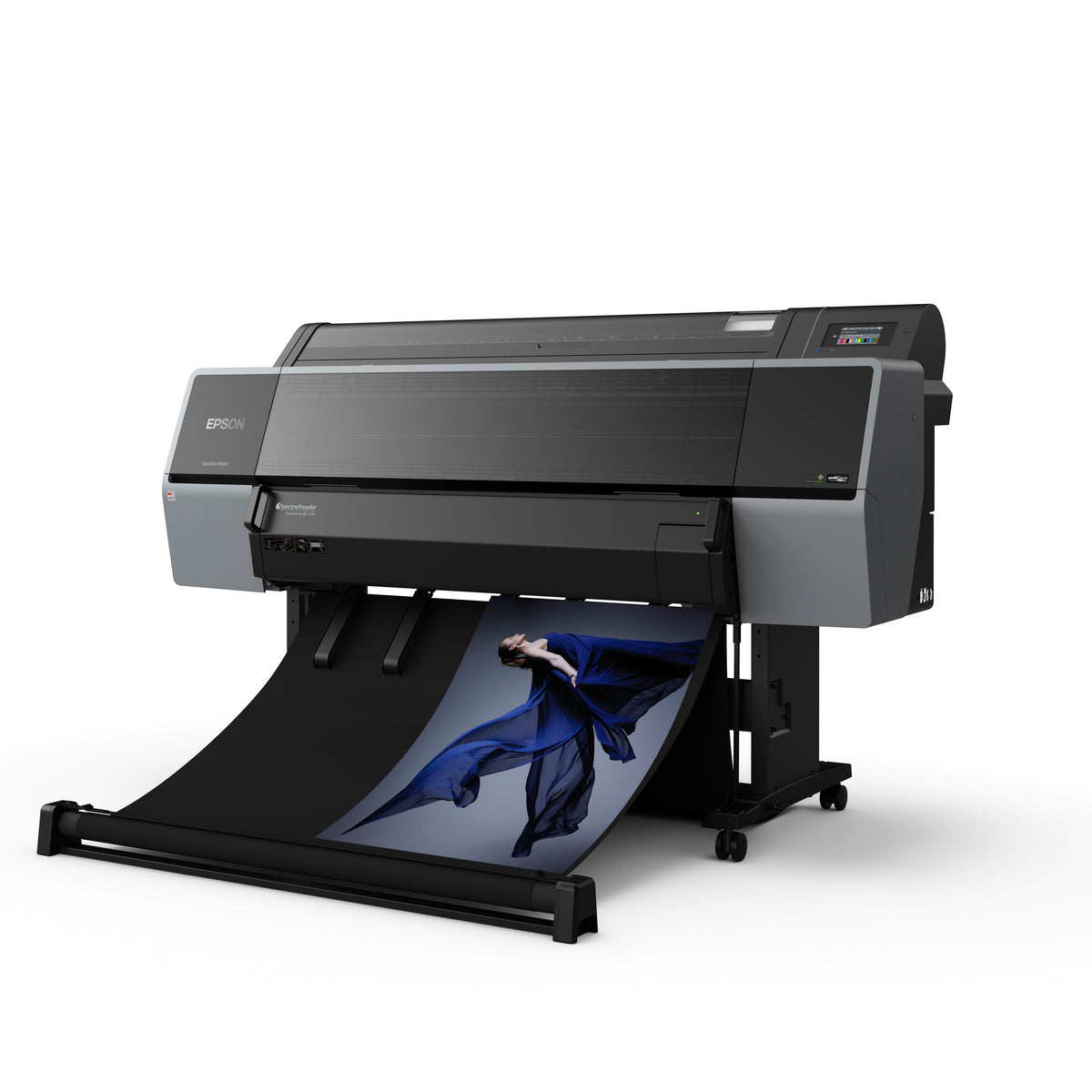

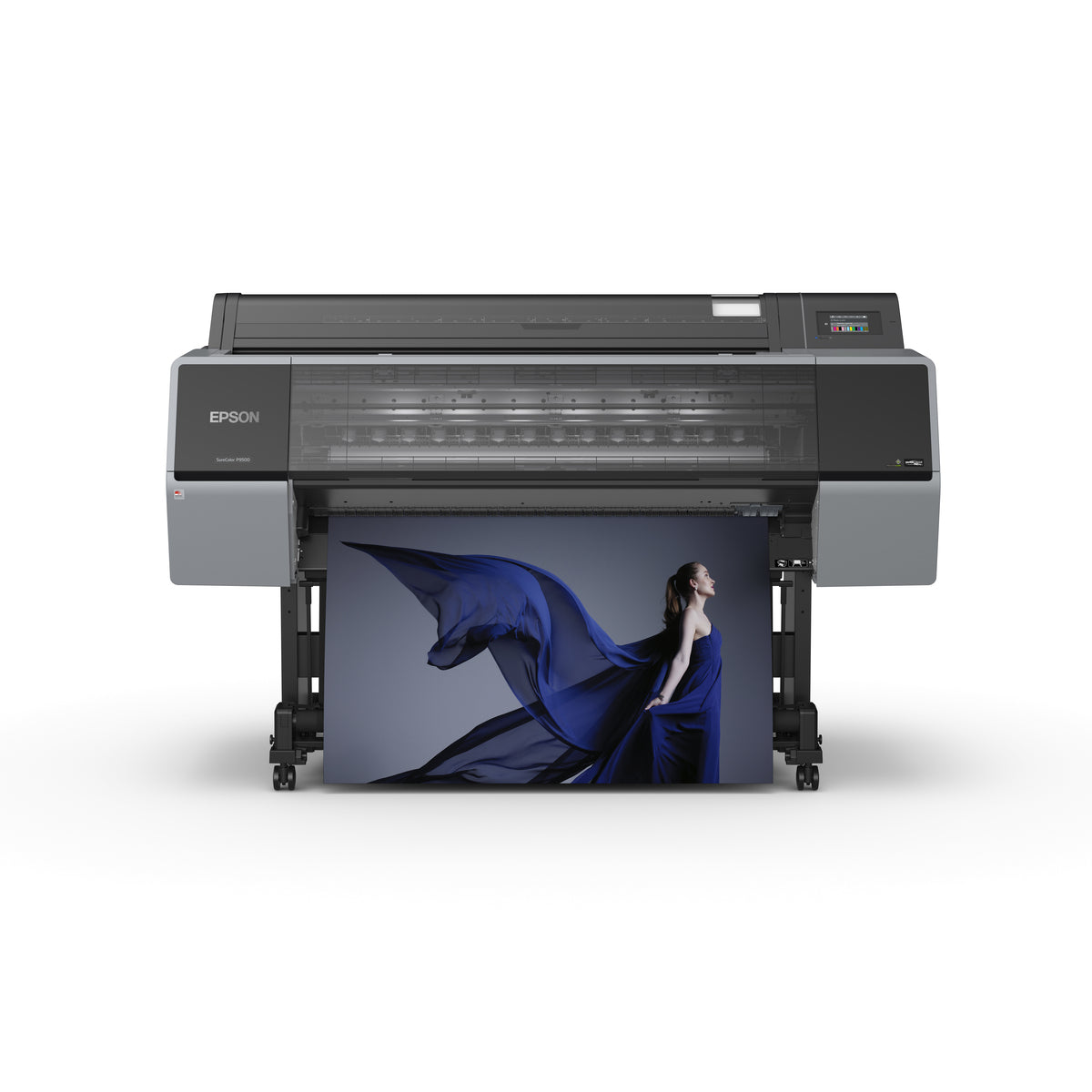

Epson SureColor SC-P9530 Photo Graphic Production Printer
PRODUCT DESCRIPTION
Epson SureColor SC-P9530 Photo Graphic Production Printer (C11CH13402) - 1 Year Local Warranty
The Epson SureColor SC-P9530 Photo Graphic Production Printer - Impeccable Photo Quality. High-Accuracy Color Reproduction.
Remarkable Productivity
Epson's PrecisionCore MicroTFP printhead utilises 9600 nozzles, for faster print speeds. Enjoy fast production turnaround with class-leading speeds of up to 285 sec per print (default settings) on B0 size premium glossy photo paper. The PrecisionCore MicroTFP printhead is developed using 12 individual PrecisionCore channels, each with 800 nozzles.
Exceptional Print Quality at Affordable Costs
Enjoy peace of mind for your business with Epson's commitment to product quality and the provision of a standard warranty, inclusive of the printhead. Experience fast and ultra-reliable high-volume printing with unique combination of Epson's printhead technology and UltraChrome PRO12 pigment ink technology.
Consistent Vibrant Quality
Produce exceptional colour prints that last up to 200 years, along with four levels of grey for accurate transitions with very low grain, even at the fastest print modes, thanks to Epson UltraChrome PRO12 pigment ink technology.
Designed for Convenience
Easily manage print layouts and colours with our industry-leading standard Epson Edge Print software. It provides ease of use with access to all major functions. This is coupled with an anti-dust design that allows for easy printhead cleaning, and a 4.3" touch screen.
Ideal For
Photo labs, print service providers, photographers and fine-art studios in Singapore producing large-format photo and graphic output. Supplied by SourceIT with local Singapore warranty, GST invoice and corporate or project pricing on request.
SureColor SC-P9530 Datasheet — Technical Specifications
General
| Model | SureColor SC-P9530 |
| Official Product Name | Epson SureColor SC-P9530 Photo Graphic Production Printer |
| Epson Product Code | C11CH13402 |
| Brand | Epson |
| Warranty | 1 Year Local Warranty (Singapore) - 1 year |
Printing
| Printing Technology | MicroTFP Printhead |
| Nozzle Configuration | 9,600 nozzles (800 nozzles x 12 channels x 1 head) |
| Maximum Print Resolution | 2,400 x 1,200 dpi |
| Minimum Ink Droplet Size | 3.5pl |
| Print Speed | 219 sec (Level 1); 285 sec (Default) Premium Glossy Photo Paper 170gsm A1 size / ISO Bike |
| Printing Method | PrecisionCore Inkjet Technology, Variable-Sized Droplet Technology |
Ink
| Ink Type | Epson UltraChrome PRO12 Pigment Ink |
| Colours | Cyan, Vivid Magenta, Yellow, Light Cyan, Vivid Light Magenta, Orange, Green, Violet, Photo Black, Matte Black, Gray, Light Gray |
| Ink Capacity | 150, 350, 700 ml |
Paper Handling
| Paper Path | Friction Feed |
| Paper Size & Thickness | Width: Roll Paper: 254mm to 1,118mm; Cutsheet: 210mm to 1,118mm; Thickness: Roll: 0.08mm to 0.5mm; Cutsheet: 0.08mm to 1.5mm |
| Roll Dimensions | 2" roll core media: Max. 103mm / 10kg; 3" roll core media: Max. 150mm / 10kg |
Recommended System Requirements
| Win PC System Requirements | Windows 10/8.1/8/7/Vista/XP; CPU: Core 2 Duo 3.05GHz; Memory: More than 1GB; HDD: Free space more than 32GB |
| Mac System Requirements | Macintosh Mac OS X(10.6.8 or later); CPU: Core 2 Duo 3.05GHz; Memory: More than 1GB; HDD: Free space more than 32GB |
Dimensions and Weight
| Weight | Approx. 154 Kg (without ink cartridges) |
| Dimensions | Printing: 1,909 x 2,211 x 1,218 mm (W x D x H); Stowed: 1,909 x 667 x 1,218 mm (W x D x H) |
Electrical Specifications
| Power Consumption | Operating: Approx. 110W; Ready: Approx. 32W; Sleep: Approx. 3.4W; Power Off (Standby): Approx. 0.3W |
| Rated Current | 3.4 - 1.6A |
| Supply Voltage | AC100-240V 50/60Hz |
Utility Software
| Utility Software (Bundled in CD) | Windows: Install Navi, Printer Driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config SE, Epson Software Updater, Epson Manuals, Manual Launcher, Epson Control Dashboard; Mac: Setup Navi, EpsonNet Config SE, Epson Software Updater |
| Utility Software (Web delivery) | Windows: Install Navi, Web Installer, Firmware Updater, PS Driver, HDI Driver XPS Driver, Epson Media Installer, EpsonNet Setup Manager, Epson Device Admin, Epson Edge Dashboard, Epson Edge Print, Epson Print Layout, LFP Accounting tool, Adobe ICC Profiles; Mac: Web Installer, Install Navi, Printer Driver, EpsonNet Config, Epson Software Updater, Uninstaller, Epson Manuals, Epson Media Installer, Firmware Updater, Epson Print Layout; Linux: Printer Driver |
Connectivity
| Interfaces | Hi-Speed USB/USB, 1000BASE-T/100BASE-TX |
| Printer Language | ESC/P raster |
General
| Memory | 2 GB |
| Acoustic Noise Level | Sound Pressure Level: Approx. 49.5 dB(A); Sound Power Level: Approx. 7.5 B(A) |
| Control Panel | 4.3" Optical Touch Colour LCD |
| Printer Width | 44" |
| Options | SpectroProofer, SpectroPhotoMeter, ILS30EP, Auto Take Up Reel Unit, Hard Disk Unit, Adobe PostScript 3 Expansion Unit, Roll Media Adapter |
| Consumables | Maintenance Box; Auto Cutter Spare Blade; Borderless Replacement Pad Kit; Ink Cartridge |
Recommended Operating Temperature & Humidity
| Temperature | Operating: 10°C to 35°C; Storage Packing: -20°C to 60°C; Unpacking: -20°C to 40°C |
| Humidity | Operating: 20 to 80% (no condensation); Storage: 5 to 85% (no condensation) |
Compatibility & Software Support
Compatibility details below are taken from Epson Singapore's published specification for the SureColor SC-P9530. Drivers, utilities and firmware are available from Epson Singapore's support site (see Datasheet & Downloads).
| Utility Software (Bundled in CD) | Windows: Install Navi, Printer Driver, EpsonNet Setup, EpsonNet Print, EpsonNet Config SE, Epson Software Updater, Epson Manuals, Manual Launcher, Epson Control Dashboard; Mac: Setup Navi, EpsonNet Config SE, Epson Software Updater |
| Utility Software (Web delivery) | Windows: Install Navi, Web Installer, Firmware Updater, PS Driver, HDI Driver XPS Driver, Epson Media Installer, EpsonNet Setup Manager, Epson Device Admin, Epson Edge Dashboard, Epson Edge Print, Epson Print Layout, LFP Accounting tool, Adobe ICC Profiles; Mac: Web Installer, Install Navi, Printer Driver, EpsonNet Config, Epson Software Updater, Uninstaller, Epson Manuals, Epson Media Installer, Firmware Updater, Epson Print Layout; Linux: Printer Driver |
| Interfaces | Hi-Speed USB/USB, 1000BASE-T/100BASE-TX |
| Printer Language | ESC/P raster |
Package Contents & Ordering Information
Ordering Information
| Model | SureColor SC-P9530 |
| Epson Product Code | C11CH13402 |
| Recommended Retail Price (incl. GST) | S$15,064.41 |
| Consumables | UltraChrome PRO12 inks. T44V 350ml: C13T44V100 Photo Black, C13T44V200 Cyan, C13T44V300 Vivid Magenta, C13T44V400 Yellow, C13T44V500 Light Cyan, C13T44V600 Vivid Light Magenta, C13T44V700 Grey, C13T44V800 Matte Black, C13T44V900 Light Grey, C13T44VA00 Orange, C13T44VB00 Green, C13T44VD00 Violet. T44N 700ml: C13T44N100 Photo Black, C13T44N200 Cyan, C13T44N300 Vivid Magenta, C13T44N400 Yellow, C13T44N500 Light Cyan, C13T44N600 Vivid Light Magenta, C13T44N700 Grey, C13T44N800 Matte Black, C13T44N900 Light Grey, C13T44NA00 Orange, C13T44NB00 Green, C13T44ND00 Violet. Also (no part numbers on page): Maintenance Box, Auto Cutter Spare Blade, Borderless Replacement Pad Kit. |
In the Box
- Printer
- Printer Stand
- Initial Ink Cartridge
- AC Power Cable
- Setup Guide
- Software CD-ROM
- Maintenance Box
Datasheet & Downloads
Frequently Asked Questions — SureColor SC-P9530
What warranty does the SureColor SC-P9530 come with?
1 Year Local Warranty from Epson Singapore: 1 year. Every unit sold by SourceIT is a genuine Singapore set with a GST invoice.
Which consumables does the SureColor SC-P9530 use?
UltraChrome PRO12 inks. T44V 350ml: C13T44V100 Photo Black, C13T44V200 Cyan, C13T44V300 Vivid Magenta, C13T44V400 Yellow, C13T44V500 Light Cyan, C13T44V600 Vivid Light Magenta, C13T44V700 Grey, C13T44V800 Matte Black, C13T44V900 Light Grey, C13T44VA00 Orange, C13T44VB00 Green, C13T44VD00 Violet. T44N 700ml: C13T44N100 Photo Black, C13T44N200 Cyan, C13T44N300 Vivid Magenta, C13T44N400 Yellow, C13T44N500 Light Cyan, C13T44N600 Vivid Light Magenta, C13T44N700 Grey, C13T44N800 Matte Black, C13T44N900 Light Grey, C13T44NA00 Orange, C13T44NB00 Green, C13T44ND00 Violet. Also (no part numbers on page): Maintenance Box, Auto Cutter Spare Blade, Borderless Replacement Pad Kit. Always use genuine Epson consumables to protect print quality and warranty coverage. SourceIT can supply them together with the unit.
Is stock held locally?
SourceIT holds fast-moving Epson models in Singapore. Anything not in local stock is ordered through Epson's local distributor - ask us for the current lead time before committing to a date.
Can SourceIT quote for multiple units or a project?
Yes. Send us your quantity and delivery requirements and we will quote the units together with consumables, options and installation where required, with local warranty and GST invoice.
